STEP File Format: A Complete Guide
A STEP file (short for Standard for the Exchange of Product model data) is a widely used 3D file format designed to enable the seamless sharing of 3D models between different CAD (Computer-Aided Design) software. It is an ISO standard (ISO 10303) that encodes the geometry and metadata of 3D objects in a way that maintains their precision and integrity across platforms. The ISO merit defines encoding mechanisms for presenting data that conforms to a particular scheme per the express modeling data language in ISO 10303-11.
Advantages And Disadvantages Of Using STEP Files
Advantages
1. Cross-platform compatibility: STEP files are a neutral format supported by almost all major CAD software, making them ideal for collaboration between teams using different tools. This reduces the need for repeated file conversions, ensuring data integrity during transfers.
2. Preservation of parametric data: Unlike STL files, which only store surface geometry, STEP files retain parametric and feature-based data. This allows for easier editing and modification of designs, even after export, preserving the full engineering intent.
3. Rich metadata support: STEP files store additional information like assembly hierarchy, materials, tolerances, and colors. This makes them more versatile for detailed design and manufacturing workflows compared to simpler formats like OBJ or STL.
4. High precision: STEP files are not restricted to approximations like mesh-based formats (e.g., STL). They use mathematical representations (B-rep) for surfaces, ensuring designs are precise, accurate, and suitable for high-end applications like aerospace and automotive.
5. Long-term archival: As an ISO standard, STEP files are designed for long-term interoperability and readability, making them a reliable choice for archiving complex 3D designs without worrying about software-specific obsolescence.
Disadvantages
Here are five disadvantages of using STEP files:
1. Large file sizes: STEP files often have significantly larger file sizes than mesh-based formats like STL or OBJ. This can make them less efficient for storage, sharing, and processing, especially for complex designs.
2. Lack of rendering details: While STEP files excel in preserving geometric and parametric data, they lack detailed rendering information like textures, lighting, and UV maps. This makes them unsuitable for applications like 3D art or game development where visual fidelity is crucial.
3. Limited support for advanced features: STEP files may not support some advanced, proprietary features of specific CAD systems, such as constraints, motion simulations, or design histories. These details can be lost during export, limiting downstream edits.
4. Slower to process: Due to their detailed and complex structure, STEP files can be slower to load, process, and manipulate in CAD software compared to simpler formats like STL or DXF, especially on less powerful hardware.
5. Not ideal for 3D printing: For 3D printing, STEP files must often be converted to mesh-based formats like STL, as most slicers are optimized for triangular meshes. This extra conversion step can introduce errors or reduce efficiency in workflows.
What is the Difference Between STL and STEP Files?
STL (Stereolithography) and STEP files are both used in 3D design workflows but serve different purposes. STL files are mesh-based and store 3D geometry as a collection of triangles that define the surface of an object. This simplicity makes them ideal for 3D printing, as slicer software directly uses this surface geometry to generate toolpaths. However, STL files lack any metadata, such as material properties, colors, or assembly information, and do not retain parametric design features, making them limited for detailed design work.
On the other hand, STEP files preserves detailed parametric data, assembly structures, and metadata like tolerances and materials. Unlike STL, these files use precise mathematical representations (B-rep) rather than approximations, ensuring greater accuracy and suitability for editing. These characteristics make STEP files useful in collaborative engineering workflows and industries like aerospace and automotive, where high fidelity and the ability to modify designs are crucial.
The choice between STL and STEP depends on the application. For tasks like 3D printing, where only surface geometry is needed, STL is the go-to format due to its simplicity and smaller file size. However, when working in complex design and manufacturing environments, STEP files are preferred for their ability to retain and communicate comprehensive design intent. While STL is optimized for output and fabrication, STEP is tailored for design collaboration and flexibility. Together, they represent two complementary tools in the 3D modeling ecosystem.
How to Create a STEP File?
Creating a STEP file typically involves exporting a 3D model from CAD software. First, you need to design or open your 3D model in software that supports STEP file export. Once your model is ready, ensure all necessary details like dimensions, assembly components, and tolerances are properly defined. Next, navigate to the export or save-as option in your software and select the STEP format (.stp or .step) from the list of supported file types.
Before finalizing the export, some programs allow you to configure export settings, such as specifying the STEP version (AP203, AP214, or AP242) based on your needs, with AP242 being the most modern and comprehensive. After saving the file, it’s a good practice to check the exported STEP file for integrity. This can be done by re-importing the file into your CAD software or a viewer to ensure that all features, geometry, and metadata have been retained correctly. If the STEP file will be shared, it’s wise to compress it if the file size is large, as STEP files can become quite bulky. The process is straightforward and ensures your design is in a versatile, widely compatible format suitable for collaboration and manufacturing workflows.
How To Convert STEP Files to Other File Formats?
The need to convert STEP files comes from the need to carry out actions like 3D printing, content for AR/VR apps, and many other functions. SelfCAD is one of the best software to use when it comes to the conversion of files into various 3D file formats.

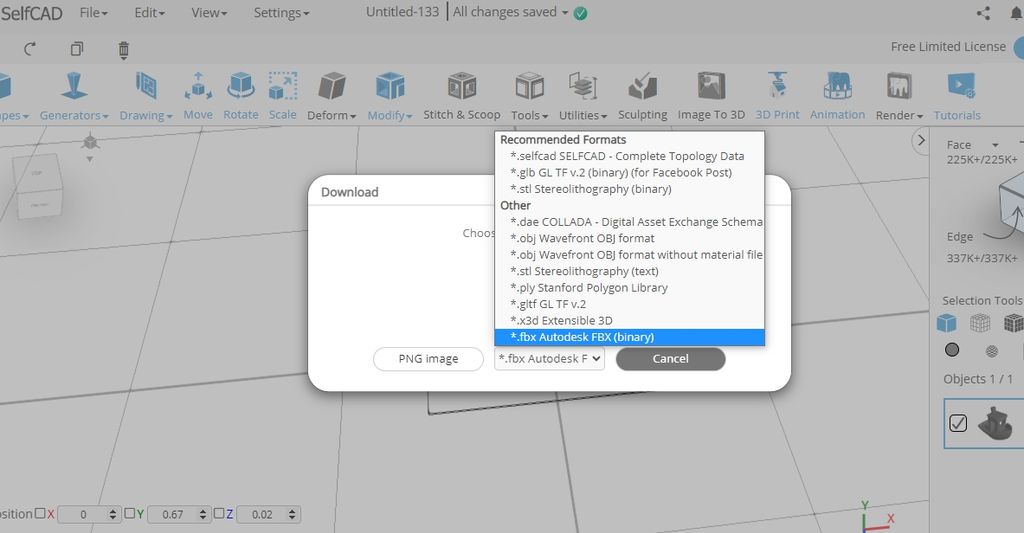

SelfCAD can convert STEP files into STL, OBj, and other 3D file formats including G-code for 3D printing. What you only need to do is import the files to the software, and modify them based on your needs. To convert it to other file formats, you need to first of all import the file to the software. After importing, go to export and choose the format from the drop down given as shown below.
If you would like to convert the file to G-code, you will need to use the slicer of SelfCAD. In menu bar, click 3D print. This will redirect you to the slicer where you will see an option to choose your slicer and later you will access the slicer where you can slice your model and generate the G-code. The slicer of SelfCAD is compatible with most of the common FDM 3D printers. Check the video below to learn how to slice STL files in SelfCAD.
Best Websites to Get STEP Files
1. GrabCAD
GrabCAD is a massive platform tailored for engineers, designers, and 3D modelers. It offers millions of free CAD models, including STEP files, shared by a thriving community of professionals. The platform allows users to download, upload, and collaborate on designs, making it ideal for both personal and professional projects. GrabCAD also provides useful features like version control and collaboration tools through their Workbench software. With models ranging from mechanical parts to complex assemblies, it’s a go-to resource for detailed STEP files.
2. TraceParts
TraceParts is a well-known CAD content platform that hosts industrial-grade STEP files for engineers and designers. It partners with leading manufacturers and suppliers to provide accurate 3D models, making it a reliable source for components, machinery parts, and assemblies. You can search for specific parts by category, industry, or supplier, and download the files in multiple formats, including STEP, IGES, and STL. TraceParts is particularly beneficial for professionals looking for ready-to-use parts in their projects.
3. 3D ContentCentral
3D ContentCentral, powered by Dassault Systèmes, offers a wealth of user-contributed and supplier-certified CAD models. It is especially popular for SOLIDWORKS users, but it supports various formats, including STEP files. Engineers and designers can find high-quality parts, assemblies, and components to integrate into their designs seamlessly. The platform also provides customization tools for specific parts, allowing you to modify dimensions before downloading, which is particularly handy for customized engineering designs.
4. PARTcommunity by CADENAS
PARTcommunity provides a huge repository of 3D CAD models in STEP and other formats, with a focus on industrial and mechanical components. Manufacturers and suppliers host their parts catalogs on the platform, ensuring the models are precise and upto-date. PARTcommunity’s intuitive interface makes it easy to search, filter, and download parts tailored to your project needs. This site is ideal for professionals seeking certified parts for manufacturing, prototyping, or detailed simulations.
5. TurboSquid
TurboSquid is a marketplace for high-quality 3D models tailored to industries like animation, engineering, and design. While many models are sold, TurboSquid also offers a variety of free STEP files for download. The platform stands out due to its premium-quality models, often created by professional designers. It's particularly useful for industries requiring polished, realistic designs, such as automotive, industrial design, or product prototyping. TurboSquid caters to both high-budget and free-model seekers, providing excellent options for a range of projects.
6. Printables
Printables, by Prusa Research, is a popular platform specifically geared toward 3D printing enthusiasts. While it primarily focuses on STL files, many creators upload STEP files for more flexibility in modifying designs. The platform is community-driven, featuring a user-friendly interface, categorized libraries, and helpful tools like project instructions and print settings. Printables also hosts contests, rewarding creators for sharing high-quality models, making it a vibrant hub for both hobbyists and professionals looking for editable designs.
7. Thingiverse
Thingiverse, owned by MakerBot, is one of the oldest and most expansive repositories for 3D printable files. Thingiverse’s vast collection includes everything from mechanical parts and functional tools to creative art pieces and cosplay props. With a strong community of makers and educators, Thingiverse is perfect for finding designs that can be used for both 3D printing and engineering modifications.
The above are the main websites where you can download free STEP files. In case any of these sites is blocked in your country or your network doesn't allow you to download the file, you can download a VPN to help you access them without any restrictions.
Conclusion
STEP file is a file format that facilitates seamless collaboration and precision in 3D design workflows. The ability to preserve detailed parametric data, metadata, and assembly structures makes it ideal for engineering and manufacturing applications where accuracy and interoperability are critical. Moreover, their CAD-neutral nature ensures compatibility across various software platforms, making them a cornerstone for industries that demand high-fidelity data exchange. While they may not be optimized for every use case, such as direct 3D printing or visual rendering, their ability to retain comprehensive design intent makes them an invaluable asset in modern design and production processes.
