Earlier, when there was no technology and machines, casting tools were made manually. Of course, casting used to consume months without automation, which we can do now with a 3D printer's mold in days. In general manufacturing, the patterns are complicated, time-consuming, and not affordable. Creating sand molds using 3D printing is reasonable for automatic methods. This reduces time and labor. Sand Casting is the traditional method of casting and is still in use because it is a cost-effective method that helps produce complex components. Let’s explore and learn about sand casting and the benefits of 3D printing in the process.
What is Sand Casting?
Sand Casting: Image Source: reliance-foundry.com
Sand casting includes the use of sand mold to cast the object. Most objects made from metal are cast in sand casting. Sand is easy to work with various materials and enables the making of detailed shapes. The casting is beneficial for creating metal components of all sizes and shapes. Here, in sand casting, the sand molds are constructed to produce castings that include fine exterior and interior detail. The cast is made of hollows and then filled with molten metal. Next, it is kept to cool down, and then the object is removed.
Being the oldest casting method, the core has remained the same, but it has undoubtedly become more precise and automated with the evolution of new techniques. The greatest revolution of this process is 3D printing molds.
How Does the Sand Casting Process Work?
Sand Casting process: Image Source: manufacturingguide.com
Sand casting involves the following steps:
- Assemble the sand mold
- Pour liquid metal into the mold
- Allow the metal to cool
- Breakaway the sand and remove the casting
The first step is assembling the sand mold, which is basically creating the mold. It includes the arrangement of cop and drag. The casting flask can be a wood or metal frame; it includes molding sand. Sand is poured on the cope to create the pattern, the core and gating system are covered, and it is filled with half a layer of sand. After filling, the sand is compacted by vibration.
Once the mold is formed, this arrangement of the cope is removed from the drag. Now the Pattern is extracted, but it must be done very precisely to avoid breaking. As to fill the liquid metal, the mold is greased to facilitate easy casting removal. The mold is secured with certain arrangements to ensure that the liquid metal will not leak. An arrangement is made to pour the molten liquid into the mold as the liquid is hot; the cavity is made through a gating system and then poured into a mold using the pouring cup. Next, the object is broken out of the sand mold when the casting has cooled.
What is 3D printing?
Three-dimensional printing is the manufacturing process of creating a physical object using a digital file. 3D printing includes layering liquid or powdered material and fusing it into the object form. This is an advanced casting method.
The Reinvention of Casting with 3D Printing
New technology has made a variety of changes to traditional methods. Here, the combination of 3D print molds for sand casting is exceptional. Of course, it is an excellent reinvention of including the 3D printing manufacturing method for making molds. It would definitely take the whole manufacturing process forward. The combination is a competitive benefit over the conventional manufacturing process.
3D printing is utilized for making molds and cores from the sand; this process is known as Binder Jetting. In the Binder Jetting printers, the product is built in the form layer-by-layer with the use of a binder to bond and strengthen each layer. In 3D printing, the most common sand materials used are Silica and Zircon.
How Does Sand 3D Printing Work?
In the sand 3D printing process, the material used is sand. As mentioned, Silica and Zicron are common material particles. Binder jetting is a technology that uses the binder polymer to bind the particles together to form the physical 3D model. These are used to create molds for pouring molten liquid into it. At the beginning of Sand 3D printing, the focus was on metal casting molds. Sand 3D printers include many functional features over other typical 3D printing methods. The layering printing process permits the design of complex parts with different geometries. So, how is this layering made? It is determined by slicing for 3D printing, which is inbuilt in various software, enabling the model of the object into thin sections.
Added Benefits of 3D Printing Molds for Casting
3D printing is known for various features; Sand 3D printers have also been used for multiple purposes. The reason lies in its features. Let's understand the features of the Sand 3D printer in detail.
Features:
- The greatest feature of Sand 3D printing is its ability to produce a large printing volume that is more than other standard 3D printing technology.
- It needs no backing structures, whereas the materials which are not 3D printed by the binder can support later layers.
- Very minimal material loss; no materials are wasted as the excess material in the print bed is reused.
- It is affordable and needs inexpensive printing materials. The sand and binder agents are readily available and also affordable.
- Sand 3D printers can create complex geometrics, and in addition, with too few features, they can use metal powder.
- Superb time saving, as conventional techniques take months to make the molds and cores, 3D printing molds are done in days.
- Many 3D printing methods include the high use of heat to make the physical object. The Sand 3D printer does not use heat but instead consists of the inkjet printer, but instead of ink onto a piece of paper, it prints binder onto a sand layer. No use of heat is a great advantage in saving energy and insulation.
Applications of 3D printing and Sand 3D Printers
Sand 3D printers are well known due to their flexibility. They are employed in various industries. Following are a few uses of Sand 3D printers:
- Metal sand casting is made of wood, wax, or clay. It is time-consuming and requires skilled professionals to make the pattern perfectly.
- Sand 3D printing is a great alternative to reduce time and maintain quality, as 3D printing creates complex molds directly.
- Sand 3D Printing can create complex shapes to be used in architectural design. It is great to develop concrete forms on a Sand 3D printer in the needed size, shape, and thickness. This gives architects a chance to make innovative designs flexible with work.
Direct Printing of Metal Parts
Metal printing: Image Source: 3printing.com
Sand 3D printers can be used to 3D print metal parts directly. To make the expensive metal replacement design in sand 3D printing, the model should be directly printed with metal particles instead of sand. The Sand 3D printer process saves time and money and can produce large print volumes and buildable parts in one piece.
Best 3D Printing Software

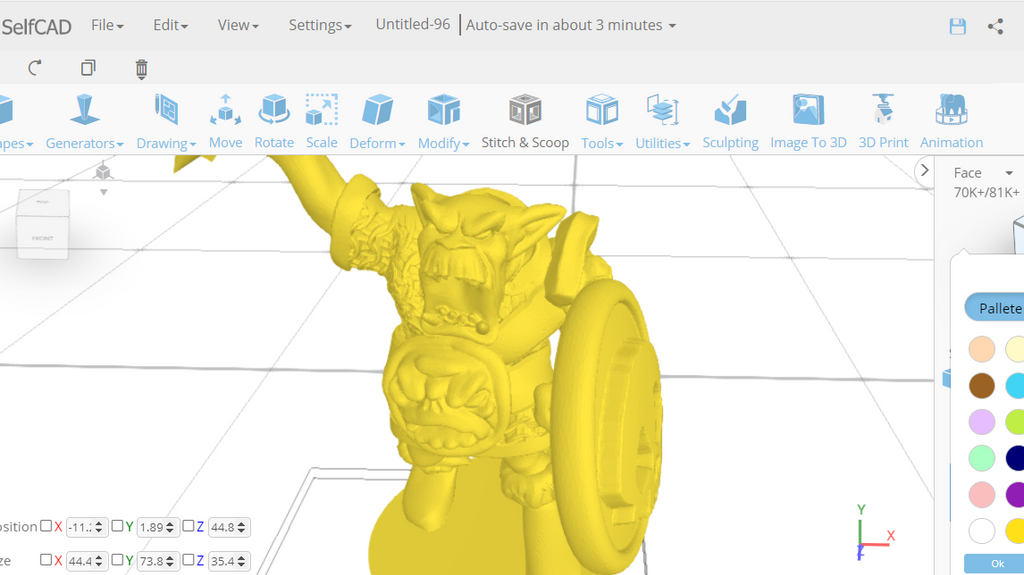

3D printing starts with 3D modeling software. There is numerous software used for 3D modeling. One of the versatile software is SelfCAD. It is used to create simple and complex 3D designs. SelfCAD includes the programming of 3D printing. This programming is known as G-code, used in creating 3D models and transforming them into a format that will be understood by the 3D printer and create the physical model.
3D printing is a fast process of creating physical models. SelfCAD is built with G-code programming and the ability to create 3D models. Also, it comes with an In-built slicer, used to prepare their designs for 3D printing, so you will not need any different software.
Conclusion
We have discussed 3D printing and sand casting in detail—also, the progress made from sand casting to 3D printing. Technology has made its way to renovate the old traditional methods, not to replace the conventional ways but to improve them and overcome problems faced in traditional methods. 3D modeling is a new technology helping us to make various works easier. Also, 3D modeling is used in several industries. SelfCAD is the best 3D modeling software used to create amazing 3D models.
