Resin 3D Printing: The Basics

Resin 3D printing is a form of additive manufacturing that uses a liquid photopolymer resin and a UV light source to create 3D printed objects. It produces models with a smooth surface finish and high resolution, making it ideal for applications where accuracy and detail are paramount, such as medical models and dental prosthetics. This article will provide an overview of resin 3D printing and discuss what you need to know if you’re interested in this type of printing. We’ll also look at some of the advantages and disadvantages of this process and explain how you can get started with resin 3D printing.

What is Resin 3D Printing?

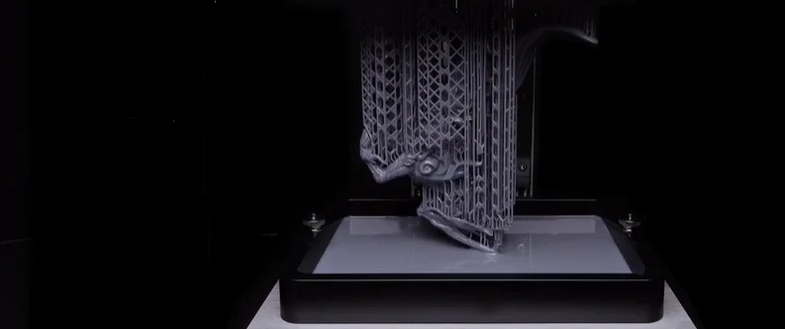

Resin 3D printing, also known as Stereolithography (SLA), is a form of additive manufacturing technology used to create 3D objects. During the process, a liquid photopolymer resin is cured layer-by-layer using an ultraviolet laser which traces out the object’s cross-section on the surface of the resin. The resin is then cured, and the next layer is traced, creating the 3D object. This process is repeated until the entire object is completed. Resin 3D printing is suitable for a wide range of applications, such as prototyping, product development, medical device manufacturing, and jewelry production.

How Does Resin 3D Printing Work?

Resin 3D printing is an additive manufacturing process that uses a liquid photopolymer resin to create 3D objects. The process begins with a digital 3D model created in a CAD software. The 3D model is then transferred to the 3D printer, where the printer will use a laser or projector to trace the design onto the liquid resin. The light from the laser or projector will harden the resin, layer by layer, and create a 3D object. This process is called stereolithography (SLA). Each layer is just a few microns thick, and the process is repeated until the model is complete.

Once the 3D model is finished, it is removed from the tank and post-cured in an ultraviolet (UV) light chamber to ensure all the layers are fully cured. After curing, the 3D model is cleaned and finished. This includes removing any excess resin, smoothing the surface, and removing supports, if necessary. The benefits of resin 3D printing are that it is fast, accurate, and produces complex shapes with smooth surfaces. It is also very cost-effective compared to traditional manufacturing methods. The downside is that it requires the use of potentially hazardous chemicals, and the models can be fragile.

Advantages of Resin 3D Printing

There are several advantages to using resin 3D printing over other 3D printing processes.

1. Quick Production: Resin 3D printing is often faster than other 3D printing technologies, making it ideal for the quick production of objects, such as prototypes and end-use parts.

2. High Resolution: Resin 3D printing offers a very high resolution, allowing you to print complex shapes and intricate details with ease.

3. Durability: Resin 3D printed objects are durable and able to withstand a variety of environments, including extreme temperatures and exposure to chemicals.

4. Cost-Effectiveness: Resin 3D printing is also cost-effective compared to other 3D printing technologies.

5. Variety of Materials: Resin 3D printing allows you to print objects using a wide variety of materials, such as rigid, flexible, transparent, and even bio-compatible materials.

6. High Accuracy: Resin 3D printing is accurate, allowing you to produce objects with very tight tolerances.

7. Post-Processing: Resin 3D printing allows for post-processing, such as polishing, painting, sanding, and heat treatment. This further increases the flexibility of the process and allows for more creative freedom.

Disadvantages of Resin 3D Printing

While resin 3D printing has many advantages, there are also some disadvantages to consider.

1. Low Strength: Resin 3D printing materials are not as strong as other materials, such as metals and plastics. As a result, resin 3D-printed parts are unsuitable for applications requiring high strength.

2. Poor Durability: Resin 3D printing materials are not as durable as other materials, and parts printed with them are prone to wearing out or breaking down faster.

3. Poor Heat Resistance: Resin 3D printing materials have poor heat resistance and can deform or melt when exposed to high temperatures.

4. Limited Choice of Materials: Resin 3D printing materials are limited in terms of their range and selection, which may restrict your choice of materials for certain applications.

5. Toxic Fumes: Resin 3D printing materials can produce toxic fumes when heated, so adequate ventilation and safety measures should be taken when using them.

What are the Best Resin 3D Printers?

1. Formlabs Form 3L: The Formlabs Form 3L is one of the highest-rated resin 3D printers available in 2023. It offers a large build volume of 33 x 33 x 100 cm, a high resolution of 25-300 microns, and is capable of printing with a range of materials.

2. Anycubic Photon S: The Anycubic Photon S is an affordable resin 3D printer that provides excellent print quality and comes with various features, such as a 2K LCD screen and a 50-micron layer thickness.

3. Elegoo Mars Pro: The Elegoo Mars Pro is a reliable and affordable resin 3D printer with a 4.3-inch color touchscreen and a high resolution of 25-100 microns.

4. Raise3D Pro2 Plus: The Raise3D Pro2 Plus is a feature-rich and reliable resin 3D printer with a large build volume of 12 x 12 x 24 inches. It has dual Z-axis motors and can print with up to 200-micron resolution.

5. Sparkmaker FHD: The Sparkmaker FHD is a resin 3D printer designed for home users. It features a large build volume of 14 x 14 x 18 cm, a high resolution of 50-100 microns, and a user-friendly interface.

What Different Resin Printing Technologies Are Used in 2023?

There are three main technologies used in resin 3D printing: Stereolithography, Digital Light Processing, and Liquid Crystal Display. All three technologies use a light source to cure a liquid resin into a solid object. However, they differ in the way that the light source is used. In SLA, a UV laser is used to cure the resin one layer at a time. This results in very high-resolution prints but can also be slow and expensive. DLP uses a projector to cure the resin. This is faster than SLA, but the resolution is not as high. On the other hand, LCD uses a matrix of LEDs to cure the resin. This is the fastest and most affordable of the three technologies, but the resolution is not as high as SLA or DLP.

Best Software for Preparing 3D Models for Resin 3D Printing

To prepare 3D models for resin 3D printing, you need to have a 3D modeling software as well as a 3D slicing program. There are alot of  3D design programs available, but we recommend using SelfCAD. SelfCAD is one of the easiest 3D modeling software available that anyone can get started much easily.

The software runs online and has a downloadable version for Windows and Mac. SelfCAD is a powerful 3D modeling software that offers a wide range of tools for creating and editing 3D models. Some of the most important tools in SelfCAD include:

• Mesh tools: The tools of SelfCAD work directly on the meshes; you can use them to modify your meshes and ensure they are printable. The video below shows how to modify and clean meshes in SelfCAD.

• Basic 3D Shapes: There are various basic shapes in the software like cubes, spheres, cylinders, and other geometric shapes that you can modify to create your 3D designs. Check out how you can use the shapes of SelfCAD to create 3D models much quickly in the video below.

• Modification tools: These tools are used to modify the shape of a 3D model. They include tools for extruding, beveling, and chamfering. The video below shows how to modify existing 3D models in SelfCAD.

• Drawing tools: These tools are used to create 2D drawings that can be used as a basis for 3D models. They include tools for drawing lines, curves, and text.

• Surface tools: These tools are used to create smooth surfaces on 3D models. They include tools for rounding, smoothing, and filling,

• Boolean tools: These tools are used to combine or subtract 3D models from each other. They include tools for union, intersection, and difference. They are very helpful, especially when you want to hollow out a 3D object.

• Sculpting tools: These tools are used to create and edit 3D models by hand. They include tools for pushing, pulling, and smoothing. These tools are very helpful for creating organic designs that are complex and detailed.

• Rendering tools: These tools are used to create realistic images of 3D models. They include tools for setting up lighting, materials, and textures.

• 3D slicer: SelfCAD comes with its own in-built online slicer that you can use to slice your designs and generate the Gcode for your 3D printer. The slicer of SelfCAD is also easy to use and you don’t need to have previous experience in 3D slicing to use it.

Create Precise and Detailed Models with 3D Resin Printing!

Resin 3D printing has revolutionized the way we create 3D objects. It has allowed for greater design complexity and accuracy, faster production, and more cost-effective printing. With this technology, we can create a wide range of items with intricate details and complex geometries. From prototypes to models, 3D printing with resin offers many advantages over traditional manufacturing methods. It is an ideal choice for projects that require complex shapes, intricate details, and fine tolerances. With the proper knowledge and supplies, anyone can create a variety of 3D objects with resin 3D printing.

---
