Differences and Similarities Between Quads And Tris

The decision between quads and tris has long baffled and fascinated artists, animators, and game developers in 3D modeling, where imagination and technology collide. Since these two polygons have different structures and qualities, there has been some contention about which is better for producing 3D models that are visually appealing and technically effective. According to the proverb, "Quads for beauty, tris for performance." However, is it really that easy?

The basic elements of geometry and topology are central to the quad-tri challenge. Quadrilaterals, often known as quads, are polygons having four sides and four vertices that typically take the form of squares or rectangles. Tris, or triangles, offer a simpler and more compact form because they have three sides and three vertices. Both offer advantages, and the choice of which to use relies on the particular needs and limitations of the current project.

Tris in Details

Triangles, or Tris, are a frequent form of polygon used in 3D modeling. They are planar shapes made up of three sides and three vertices. Compared to more complicated polygons like quads or Ngons, they are the most basic polygonal element and give a simple structure.

Triangles are used for many things in 3D modeling and have several benefits. They are effective for real-time applications like video games and simulations since they are widely supported by graphics hardware and rendering algorithms. Triangles are more efficient than polygons with more sides in terms of calculations and memory requirements, which leads to quicker rendering times and better performance.

Triangles also have innate stability and predictable behavior. They can retain consistent surface normals since they are planar, which governs how light interacts with the model and influences its shading. This predictability is especially useful in applications requiring precise lighting simulations and lifelike visual effects.

Benefits of Tris in 3D

Triangles in 3D have advantages such as:

• Efficiency: Triangles are computationally more efficient than quads and use less memory. Because of their effectiveness, they are perfect for real-time applications like video games where performance is essential.
• Predictable shading: Triangles keep their surface normals constant, which controls how light interacts with the model and influences shading. This predictability allows more realistic visual effects and accurate lighting simulations.
• Stability: They are naturally stable because they are planar. They are dependable for retaining the model's shape and structure because they do not easily deform or warp.
• Interoperability: Triangles are widely supported by rendering techniques, graphics technology, and several 3D modeling applications.
• Tessellation: Triangles are the foundation for the tessellation process, which divides polygons into smaller triangles to add detail and enhance surfaces. Tessellation offers more detail where needed, enabling more complex and accurate modeling.

Challenges of Tris in 3D

Triangles (tris) are useful, but they also provide several difficulties in 3D modeling:

• Artifacts and shading issues: Triangles have the potential to produce visual irregularities such as irregular shading, pinching, or surface discontinuities, particularly when utilized incorrectly or in excess. When compared to polygons with more sides, it can be more difficult to create smooth, curved surfaces with just triangles.
• Topology complexity: Triangulated meshes can provide complicated topologies that are challenging to understand. They may also make the process of modeling, rigging, and animation more challenging since it can be more difficult to control the flow of edges and maintain neat edge loops.
• Modeling control: When compared to polygons with more sides, triangles offer less control over deformations and edge flows. Due to this restriction, it may be more difficult to manage and shape the geometry precisely, particularly when intricate manipulation or difficult surface transitions are necessary.
• Subdivision surfaces: Triangular meshes may experience difficulties when applying subdivision surfaces. Certain subdivision algorithms can provide unequal subdivision results and undesirable effects when used to triangles because they behave more naturally and reliably when applied to quads or n-gons.
• UV unwrapping: Triangles can make the UV unwrapping process, flattens 3D objects into 2D space for texture mapping, more difficult. To ensure good UV layout and reduce texture stretching or distortion, triangular meshes may need additional processes and modifications.
• Mesh editing: Compared to meshes of quads or higher-sided polygons, triangulated meshes can be more difficult to edit and modify. Triangles can make adding or removing geometry, modifying edge loops, or altering the topology more difficult, necessitating careful analysis and perhaps more effort.

It's essential to note that while these difficulties exist, experienced 3D artists and modelers have come up with strategies and workflows to mitigate these issues effectively.

Quads

3D quads, sometimes called quad polygons or 3D quads, are polygonal objects with four sides and four vertices in a 3D space. They are essential building blocks of 3D modeling and represent flat, four-sided shapes.

3D quads are flexible and frequently used in various 3D modeling and computer graphics elements, just like their 2D counterparts. They make it possible to easily and accurately dictate the creation of elaborate 3D objects and surfaces.

Quads are the foundational blocks for defining the geometry and structure of a 3D mesh in 3D modeling. Quads create faces, which make up the model's surface, by joining vertices with edges. Quadrilateral connection and arrangement determine the mesh's framework, topology, and flow.

The modeling method heavily depends on the layout of 3D quads. Quads should be organized cautiously to maintain good edge flow, which is necessary for deformation and animation. A well-designed quad design makes smoother transitions and better control over the model's shape and motion possible.

Rendering engines and 3D modeling tools frequently support quads. They are a common polygon and work with many different tools and workflows. The modeling process is made more effective and simple by the availability of numerous software applications with features and tools designed specifically for handling quads.

Benefits of Quads

Quads, or quadrilaterals, have various advantages in computer graphics and 3D modeling. The following are some benefits of using quads:

• Accurate Surface representation: Quads are suitable for modeling planar and curved surfaces. Since they have four sides, they naturally align with planar frameworks, which makes them perfect for modeling objects like walls, floors, or tabletops. Quads can make flat surfaces more quickly and efficiently than inconsistent triangular shapes.
• Smooth and organic curves: Quads excel at representing curved surfaces, enabling the creation of smooth and organic shapes. 3D Artists and designers can define accurate curves and shapes by carefully connecting the vertices of a quad. Quads allow more flexibility and shape control, which is essential when modeling characters, creatures, or objects with detailed organic designs.
• Surfaces for subdivision: Quads are often used for surface subdivisions. Polygons are divided into smaller ones through subdivision process, which creates smoother, finer-grained surfaces. They are especially well suited for subdivision since they may be divided into smaller quads with little to no abnormalities developed. This makes it possible to produce surfaces of excellent quality with intricate details.
• Controllable topology: Quads allow for better mesh topology and edge flow management. Smooth deformations and natural animations are facilitated by a well-designed quad topology. Artists can ensure predictable responses to transformations and rigging by arranging quads in predetermined patterns, such as loops or rings. This is especially important in character animation where good topology increases realistic movement and deformation.
• Industry Compatibility: Many 3D modeling software and rendering engines support quads. Most software solutions offer specialized functions and workflows for using quads, facilitating effective modeling procedures. They are easily handled by rendering engines, leading to faster rendering times compared to more complex polygon types.
• Editing and modifying meshes: Quads provide more versatility when editing and modifying meshes. Due to their regular structure, quad-based meshes are typically simpler to handle and alter. Edge loops and vertex positioning can be precisely controlled with quads, which makes it easier to fine-tune and modify the model's geometry.

Understanding Quads Using SelfCAD

Launch SelfCAD and create a new project or open an existing one. Select the "3D Shape" tool from the toolbar on the left side of the screen. In this case, we will use this cube with the following details to work on quads.

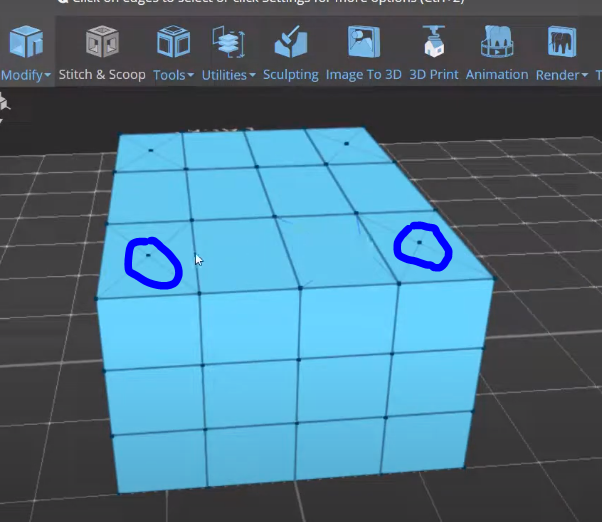

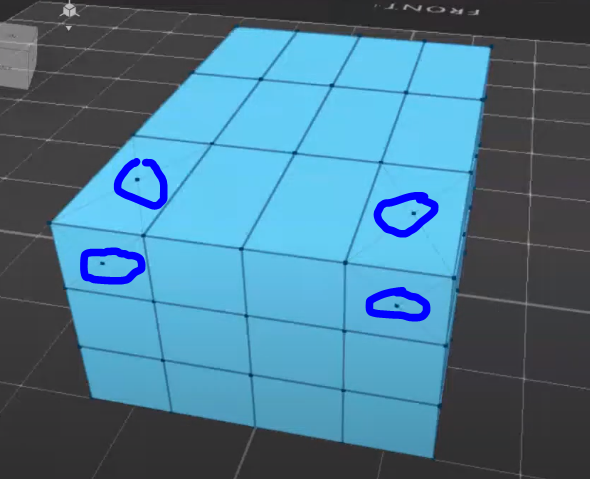

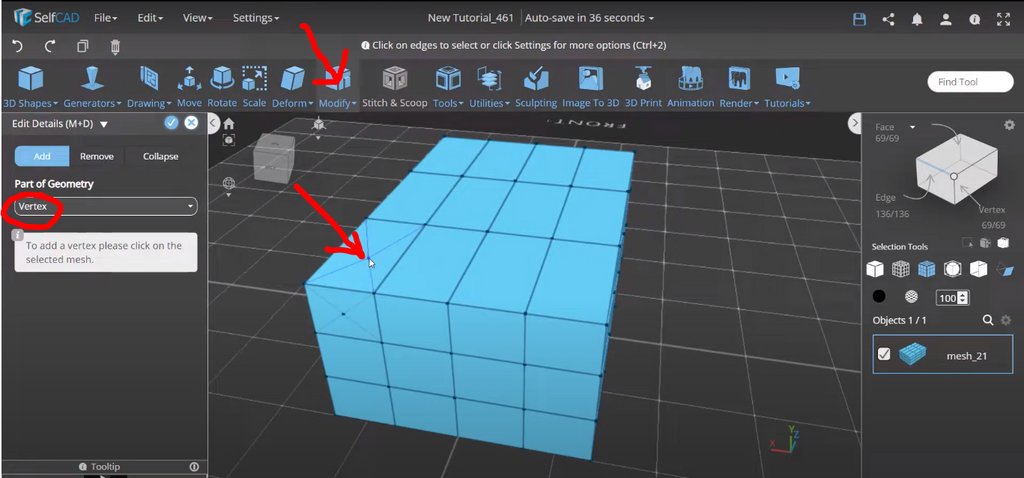

To come up with quads, we have to Add Vertices on the corner faces of the cube. To add vertices, click on the Modify Tool, select Edit Details > Add Vertex, and using the cursor just click the middle of the faces where to add vertices as shown below:

Add vertices on both the top and side faces of one side,

and only the top faces on the other side

The two sides will give us a comparison of each quad operation.

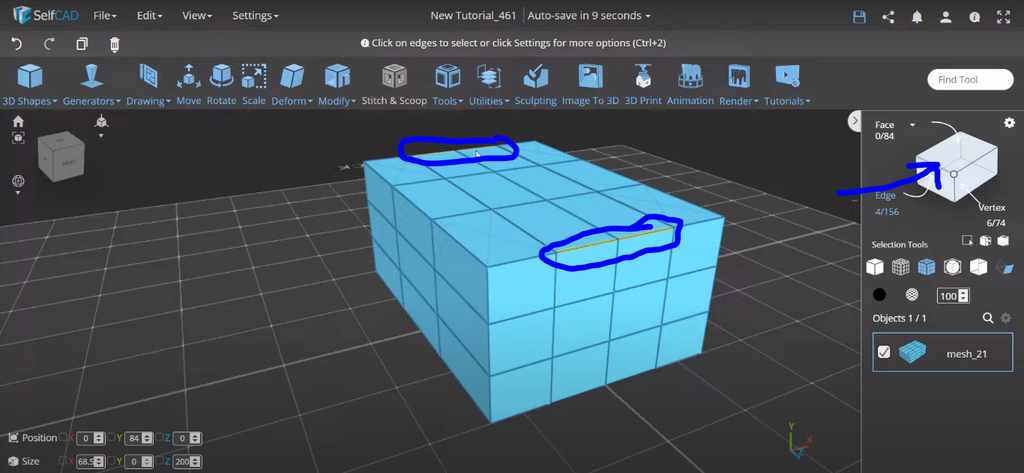

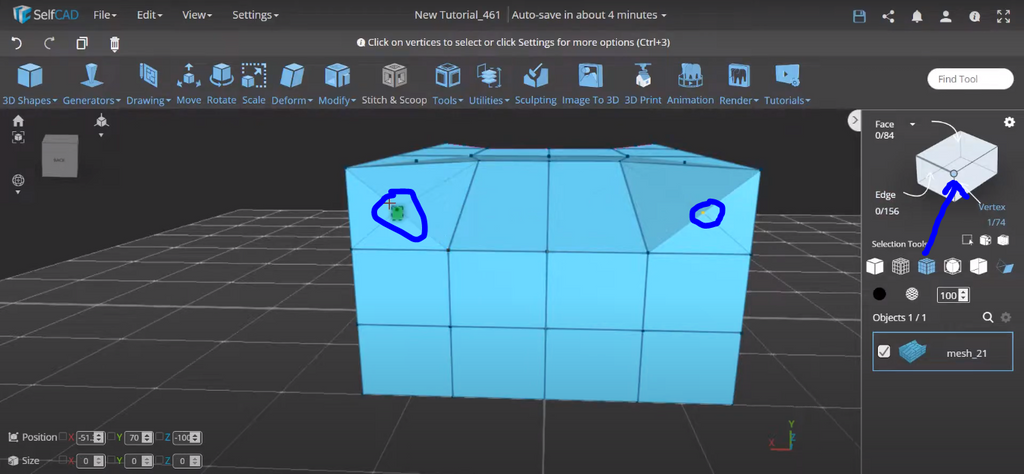

Next step, activate the Edge Selection tool at the right side (shown by the blue arrow) and select the center edges of the cube (shown by the blue ovals below).

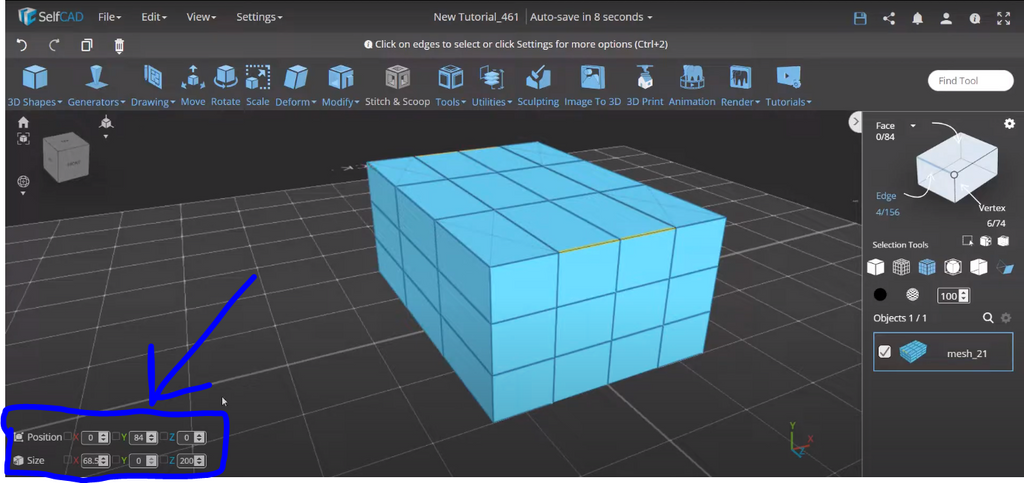

Then Scale it by changing our Z from 200 to 10 in the Size parameters, and Move it down by changing the Y from 84 to 80 in the Position parameters, displayed at the left down corner of the workspace:











Change the parameters to:

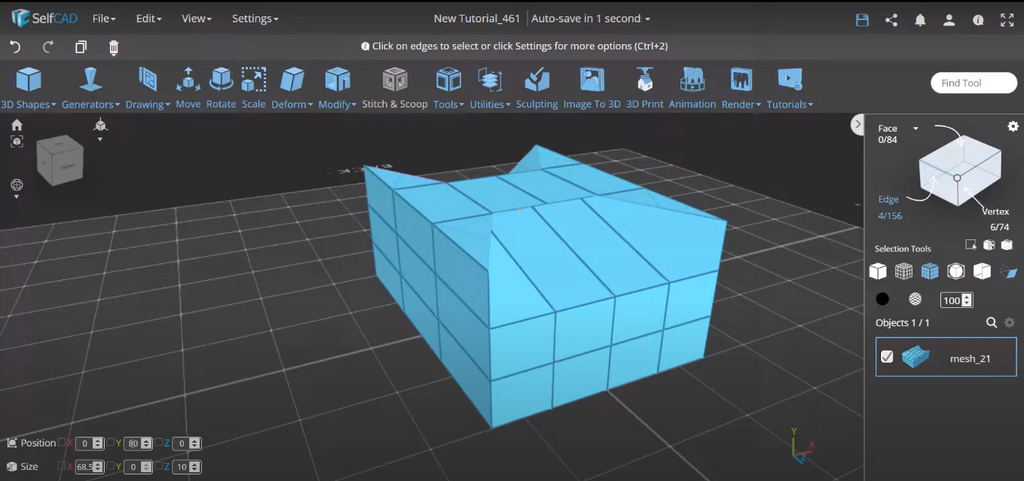

Our new cube will look like this:

At the top vertices, everything is fixed, and the cuts are regular and easy to modify. On one side where we inserted vertices on both top and side faces, you can easily Scale and Move them together without any deformation by activating the Vertex selection on your right-hand side, select the vertices you want to operate on by dragging from right to left:

You can change the parameters to either Move and Scale them as you wish or basically use the Scale Tool and Move Tool.

Moving and scaling the selected vertices still forms an intact model of your choice with no complications arising. The process of Moving and Scaling is smooth because there are cuts already made. As you can see the top faces are nicely fixed also, and no challenge of folding, flipping, or even self-intersection.

On the other side where we only made the vertices at the top faces of the cube, the faces appear as follows, and appears a bit twisted:



Two operations can be done:

First, you can add the cut as follows.

In the Modify Tool, select the Edit Tool > Add Edge and use the cursor to add the edge to make the cut: Secondly, you can add the vertices and then use the vertices to modify the face.

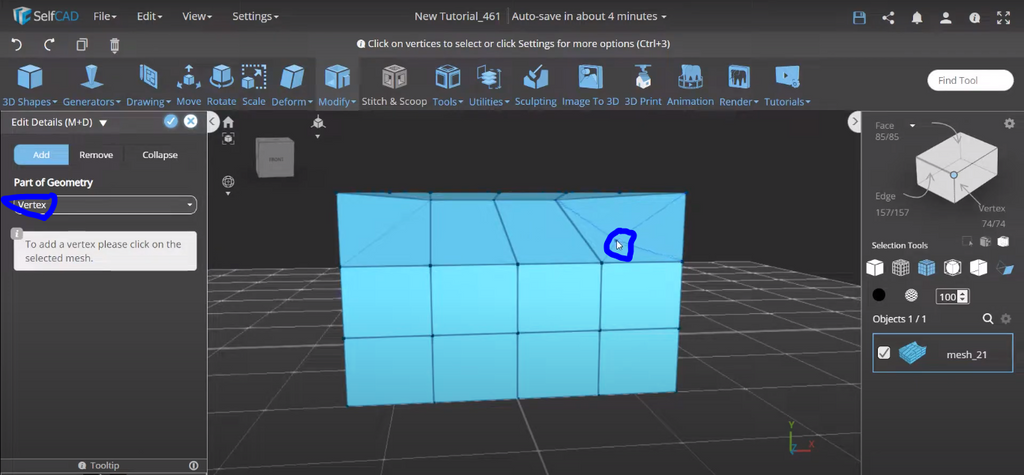

To do this, in the Modify Tool, select Edit Details > Add vertex and this action will deform the quad depending on where you make the cut because it is as shown.

This is how you may use SelfCAD software to work on the quads in 3D modeling to prevent folding, self-intersection, and flipping out of your design.

Comparison Between Quads and Tris

Similarities

Both quads and tris are polygonal shapes that are often used in computer graphics and 3D modeling. Although they have some fundamental differences, they have much in common regarding usage and applications. To begin with, the surfaces of 3D models are represented by quads and tris. They serve as the structural units that make up the three-dimensional geometry of objects. From simple geometric forms to intricate organic models—all shapes and structures can be made using any polygon.

The function of quads and tris in rendering and visualization is the same. They specify a 3D model's surface and give the required details for shading and texturing. Rendering algorithms can produce the final image using either quads or tris, regardless of how a model comprises polygons.

The capacity of quads and tris to accurately depict planar surfaces is another similarity. Tris can also be used to mimic planar surfaces, but quads naturally have four sides and can represent planar shapes. A succession of tris can be used to approximate a flat surface by precisely aligning their vertices.

Subdivision surfaces can also be made using both types of polygons. A low-polygon mesh is broken into smaller polygons using the subdivision surfaces technique to create a smoother, more detailed surface. Subdivision algorithms can use quads and tris to create higher levels of smoothness and detail. It is crucial to remember that quads are typically favored in subdivision surfaces because of their capacity to maintain a more predictable and consistent topology.

Quads and tris can both be used to specify the mesh of characters or objects for animation and deformation. They enable the development of adaptable models that are rigged and animated. Tris remains useful in some situations, particularly when working with complicated or irregular forms, even though quads are frequently preferred for animation because they maintain superior edge flow and deformation.

From a technical point of view, real-time rendering and application requirements for quads and tris are similar. Both must follow specific guidelines, such as maintaining the proper winding order (consistently defined as clockwise or counterclockwise vertex order) and avoiding self-intersections. These guidelines are essential for accurate rendering and preventing artifacts like obvious seams and inaccurate shading.

In addition, 3D modeling and rendering software frequently support quads and tris. Quad-based and tri-based mesh creation and manipulation features are available in modeling tools. Both polygons may be handled by rendering engines well, ensuring precise 3D model display.

Differences

The geometry of quads and tris is one important distinction. Quads are flat, four-sided shapes with four sides and four vertices. Contrarily, tris, on the other hand, are polygons with three sides and three vertices. The behavior and characteristics of the polygons in various applications are directly impacted by this variation in the number of sides and vertices.

Quads are preferable over tris because they represent curved and planar surfaces more correctly. Due to their four-sided nature, quads easily align with planar structures, making them excellent for representing flat surfaces like walls or floors. Quads may also more easily conform to curved surfaces, giving rise to a more accurate representation of organic shapes like characters or inanimate objects. Tris, however, is limited to triangulating planar and curved surfaces, which can result in a less accurate representation of the desired shape.

Quads' effect on mesh topology and edge flow is another significant distinction between quads and tris. In a 3D mesh, quads typically allow better control over edge loops and edge flow. Quads' four sides make it possible to create clear, orderly edge loops that support smooth deformation and animation. The flow of edges can be more readily managed with the right quad design, which leads to better modeling and animation workflows. Conversely, Tris might cause irregular or chaotic edge flows because the triangle form can obstruct a surface's normal flow. Due to this, using this to get desired deformation and animation outcomes may be more difficult.

Another area where quads and tris differ greatly is on subdivision surfaces. Due to their capacity to maintain a more predictable and consistent topology, quads are frequently chosen for subdivision algorithms. An additional quad is created when a quad-based mesh is subdivided, resulting in a smoother surface with finer features. This is especially helpful for creating surfaces that look high-quality and organic. Tris, on the other hand, may cause difficulties for subdivision surfaces. A quad-based mesh can be triangulated to add irregularities into the subdivision process, leading to deformed or uneven surfaces.

Another area where quads and tris differ is efficiency. In general, tris are thought to be more effective for rendering and real-time applications. Triangle-based meshes are easier to process and render since graphics gear is built to cope with triangles. Triangular meshes are simpler to calculate and can perform better in real-time applications like interactive 3D experiences or video games. Quads may need extra stages or optimizations for efficient rendering, particularly when working with large-scale landscapes or complicated models.

Conclusion

The decision between quads and tris when it comes to modeling workflows depends on the particular project requirements. Quads are frequently preferred for modeling organic forms, characters, or architectural components that call for smooth surfaces and controlled topology. Tris, however, can be helpful when working with specialized tools or algorithms that depend on triangles or in other situations where precise control over the shape and edge flow is required.

---
