Tips for Effectively Removing Prints From the Bed
Removing your 3D prints from the printing bed is not always easy. Sometimes, some parts adhere more strongly to the bed than other parts; sometimes, the entire print becomes firmly attached to the printing bed. It is crucial to be careful while removing parts and prints so that the print does not get damaged.
Understanding Adhesion
Removing a print off the build plate can be challenging and dangerous, especially when it's resistant to movement. Ideal removal should be simple and not harm the construction plate or the part. While this might seem simple, it can actually be quite complicated if there is excessive first-layer adhesion, which is frequently the case with polymers like PETG that adhere exceptionally well to most surfaces. Prints clinging too much to your print bed are a problem, even though they are not as common as low adhesion or warping. If you've ever had to forcefully remove your model from the build plate only to discover that some of it are still attached to the bottom, you understand how unpleasant it can be.
Nozzle distances that have been incorrectly configured cause a lot of 3D printer issues. If the build plate and your nozzle are too far apart, the printer line can come out thinner than desired, even to the point of becoming translucent. When your nozzle is a bit much close to the build plate, it can produce wavy patterns and a rough-to-the-touch surface when the surplus filament is pushed upward at the edges of the current printing line. The nozzle itself may accumulate filament, causing frequent clogs or excessive extrusion that will cause your prints to be distorted.
Due to the first layers being over-sticky and confined to the point of shredding the filament between layers, finished objects may be challenging to remove. When heated print beds are set to too high temperatures, they can function too well at boosting model adhesion. Your filament won't adhere properly to the build plate and won't attach strongly enough if it cools down too rapidly. On the other hand, if your filament is overheated, it won't set quickly enough and will stick excessively well. In essence, a hot build plate will make your print over-adhere and become more challenging to remove because the higher the bed temperature, the better the bed adhesion.
Depending on the type of filament you're using, the optimal temperature will vary. When in doubt, always refer to the manufacturer's suggested settings for your filament. Using too much bed adhesive will result in your prints sticking to the surface too firmly, much like using too much of any one ingredient might ruin a delicious meal. It's doubtful that you will need additional glues or sprays to keep your model in place if you use a naturally adhesive filament like PETG. Your prints will become excessively adhered to the build plate and become very difficult to remove if you use too much adhesive material, or maybe none at all, unnecessarily. For the best adhesion, different filaments require different optimal bed surfaces. A less-than-ideal build surface could cause adhesion issues on either end of the adhesion spectrum, either sticking too well or not well enough.
These recommendations may help you determine the build surface you should utilize. It's a good idea to make sure you're using the best surface, depending on your chosen filament. The issue with your extrusion multiplier may exist if you have verified and attempted all the aforementioned settings but still have filament over-adhesion. The settings for the extrusion multiplier, also known as the flow rate in your slicer, control your printer on how quickly to feed filament into the extruder. Over-adhesion will result from the heating and extrusion of too much filament at once if this setting is too quick and at a pressure that is too high.
Which Are the Easiest Ways To Remove the Print From the Print Bed?

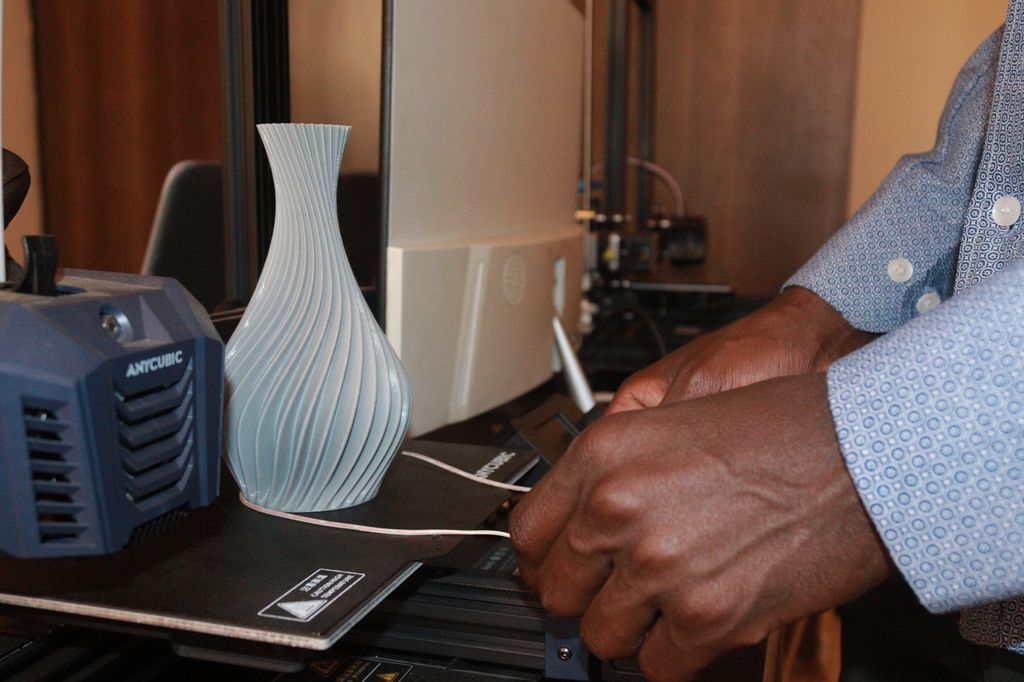

1. Flossing
Although a little unorthodox, this technique successfully removes a stuck part from the bed. It should be regularly moved back and forth like a saw. The friction created by the back-and-forth movement will aid in the removal of your part. The most popular tool for this unconventional technique is probably dental floss. Still, you may also use stronger string-like items like jewelry or high-gauge soldering wire.
Using your floss or wire, wrap it around the base of your print so that it is lying on the build plate. Then, quickly slide the floss or wire back and forth while pushing in your direction. Eventually, your part should give way and come off the construction plate, perhaps even with a fresh aroma!

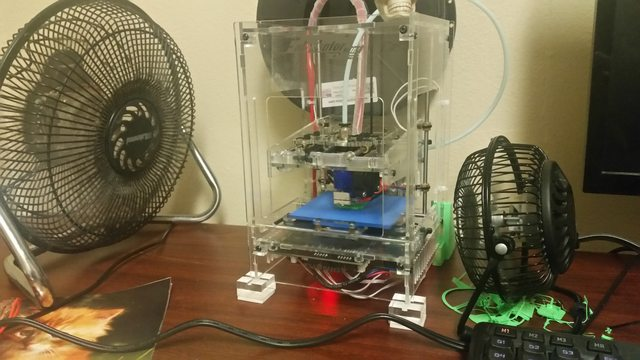

2. Creating a Temperature Difference
A print can also be removed from a bed by cooling it down. You can take advantage of the varying cooling rates of the build surface and the printed item since materials compress as they become colder. This method will function even better if your build plate is composed of a temperature-sensitive material, such as glass or aluminum.
To accomplish this, allow the build plate and print to reach room temperature, and then, if the part is still stuck, put the build plate (with the stuck portion) in a cool location. This might be your refrigerator or freezer, or it might be a vent that blows chilly air.
3. Using a Raft
In addition to serving as a series of buffer layers between your print and the build plate, 3D printing rafts also serve as a means of improving bed adherence. On top of that, you don't have to worry about the raft getting damaged because you'll probably discard it. Rafts are a beneficial feature because they not only make it simpler to remove parts but also lessen the likelihood that your part will be bent.
The increased printing time and filament usage is the biggest drawback of employing a raft. Most slicers have raft parameters that can be changed, such as the number of top layers. After printing, you have two options for moving forward: either take the item off the raft first or take the raft off the build plate first. Rafts help increase bed adhesion and act as a series of buffer layers between your print and the build plate. The raft won't likely be thrown away, so you don't need to worry about it getting destroyed.
Rafts are a useful feature since they reduce the risk of your part being bent and also make it easier to remove pieces. The major disadvantage of using a raft is the increased printing time and filament consumption. The majority of slicers allow you to alter raft settings, like the number of top layers. After printing, you can choose between removing the printed object from the raft first or removing the raft from the construction plate.
3. Adding a Buffer Layer
This technique is comparable to utilizing a raft, except it places non-printable buffer layers between the build plate and the bottom of your print, such as tape, sheets, or glue. Painter's tape, PEI sheets that can be peeled off, and ordinary glue sticks are just a few alternatives for these buffer layers. Use the buffer layer to stick or apply the additives, recalculate your Z offset to reflect the rise in build plate height, and then begin printing. After it is finished, you can either remove the entire buffer layer or just a portion of it. If the part has adhered with glue, you can help it fall off by running the plate through the water to remove the glue layer.
4. Replacing the Build Platform
If part removal is a significant issue, you might consider moving to a flexible construction plate. Simply put, adjustable build plates are built surfaces intended to bend. The ability to stretch the build plate and have the print peel off makes it simple to remove items. Today, a flexible build platform comes in a wide variety. Among the most well-known brands are Prusa, BuildTak, Easy-Peelzy, and Ziflex. Make sure the measurements are accurate, and the flexible build plate is suitable for your printer before choosing one. For instance, you wouldn't want to select a thicker plate because it would obstruct an inductive sensor.

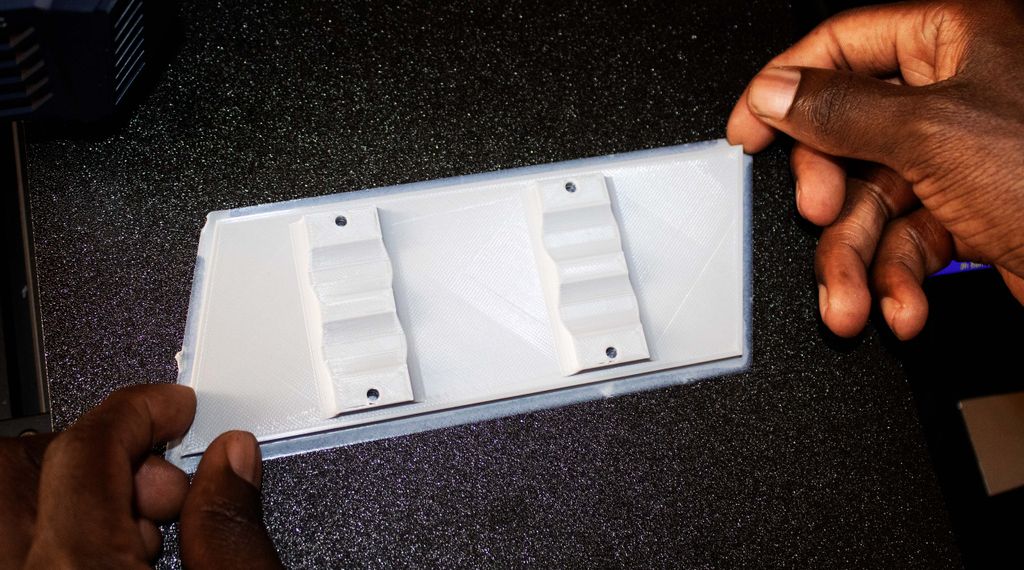

5. Using Brute Force
This is more of a last resort. All you need for this technique are your hands. Hold the build plate firmly in position with one hand while removing the print off the surface with the other. Be careful when removing parts in this manner, as it might be perilous if you suddenly free yourself from the bed and smack your hand into something. Alternately, try prying the component off the bed with a powerful object. If there is a gap between the build plate and the model in a particular section of the print, this works nicely.
Best 3D Printing Software
To get the most out of your 3D printing experience, you need the right software. One such software is SelfCAD, a powerful 3D printing software that is easy to use and feature rich. It has a range of features that make it ideal for 3D printing. It has a comprehensive 3D modeling library, making it easy to create complex 3D models. It also features a powerful online slicer, which enables users to slice designs and prepare them for 3D printing. In addition, SelfCAD provides many interactive tutorials to help users learn how the software works.
SelfCAD also comes with easy to use freehand drawing and sketching tools that you can use to create designs from scratch. There is image to 3D tool that you can use to convert images to 3D models. With SelfCAD, you can also generate realistic 3D renders of your designs that you can use for various purposes like marketing. There are powerful 3D sculpting brushes that you can use to create organic designs easily. With the drag and push sculpting brush, you can easily shape and mold your designs to create stunning effects. You can also use the pinch-and-grab brush to add details such as creases, wrinkles, and dimples to your designs. With the soft brush, you can get a smooth finish to your designs.
Conclusion
Unwanted Adhesion takes place due to several reasons. These can be avoided by ensuring all the settings are ideal, and the equipment used is suitable for the materials used. If at all unwanted adhesion occurs, simple tools such as flosses and solvents can be used to separate the print from the bed.
