How to Position Objects in 3D Space using SelfCAD

 |  Krutika Shet

How to Easily Position Objects in 3D Space

What is 3d modeling?

The term “3D modeling” refers to the process of creating a three-dimensional representation of an object or surface using specialized software. This representation, called a 3D model, can convey a real-life or new object size, shape, and texture.

The overall process of making an object

  1. Decide the object to be made: could be an already existing or new innovation. Get a clear idea of the end result you want to obtain.

  2. Make a basic sketch and decide the dimensions: The sketch along with the dimensions will help you understand the structure correctly. Observation and correct interpretation are key.

  3. Think of construction in CAD: What should be made first? What are the main building lines/points/shapes of the form? Also, do a basic calculation of the dimensions individually.

  4. Start making! Start as you had planned. You might have to go back and forth a couple of times trying to figure out different tools that could be used and selecting the correct tools. In the beginning, you might have to restart from the very beginning at times, but you’ll figure it out after a few attempts.

  5. Add details: Colors, materials, and textures. Go ahead and render it as well! You can make a small animation too!

The Design Process includes:

  1. Constructing the basic shapes/drawing or if possible you can start from a form as well.

  2. Using the drawing to construct the main form body (using the tools mentioned later).

  3. Go on and separately create the different parts of the object.

  4. Once all the parts are made, you can place them correctly as required.

  5. You can join the parts by using the stitch and scoop operation.

  6. You can add details by using the modify tool.

  7. Then go ahead and add the details like color, texture, material, etc.

What is positioning in 3D?

You place an object in space in the appropriate position using the x, y, z coordinates and the angle of revolution along the axes (in degrees). Anytime you set the position of an object, you do so with reference to a coordinate system. For understanding purposes, one can think of the x, y, z axes as latitudes, longitude, and altitudes. However, the axes are straight on a flat surface unlike the latitudes, longitude, and altitudes, which are on a curved surface.

Coordinate System:

In 3D space, the smallest area is a point. Each point is defined by a unique set of three numbers, called coordinates. Each point in virtual space is specified by three numbers representing right/left, front/ back, and height components.

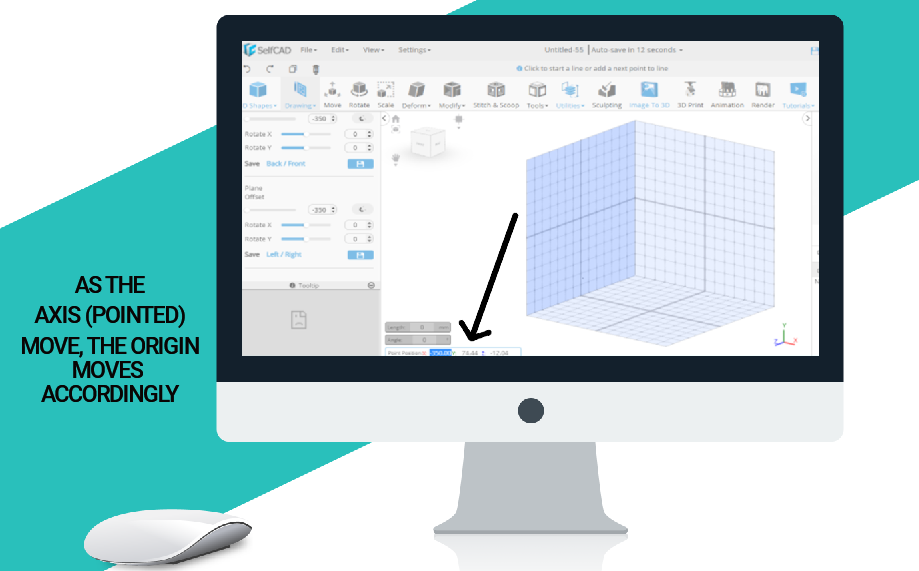

The origin of the virtual universe is the intersection of the 3 axes. It's point is (0, 0, 0). As the axes move, the origin will move accordingly.

Positionning objects in 3D Space

Origin of an object:

The coordinates you give to an object are aligned with the object’s origin / base point. The origin of most objects by default is the central point of the base of the object, except for a sphere which has its center as its origin. It can change at times, though.


SelfCAD follows the Euler rotation method. The local axes are visible over the object for better understanding. If they are not visible, go to advanced settings and turn them on.

Placement of different parts and alignment:

Mathematical calculations

You can now use the basic mathematics you learned in school to position your parts correctly. You can make use of basic calculations, Pythagoras theorem, properties of different shapes and forms, and basic trigonometry. Spending some time on calculation would help position your objects correctly in place.

Snap Tool

Snapping can be used to place objects correctly on other objects or planes. You can make separate parts and then attach them to one other easily using snapping.

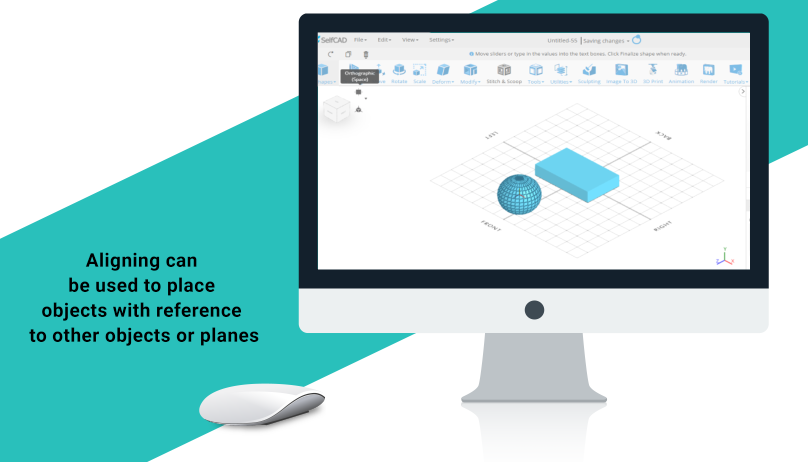

Align tool

Aligning can be used to place objects with reference to other objects or planes. This is really helpful in quickly aligning multiple objects in a specific manner. Go ahead and try it out!

Views: Perspective and Isometric

The perspective view will give a realistic view and can be used to understand how it’ll look in the real world. However, isometric will give a geometric and flat view, which can be used for correct geometric construction.

Positioning objects in 3D Space


Different tools for form making

Add thickness/ Extrude:

Adding height to a surface perpendicular to it. This will layer the same surface on top of the base as per height input.


Using different cross-sectional drawings to make the form.

Follow path:

This can be used to make a surface/object follow a certain part and to add thickness along with it. You can use this to make an object repeat itself along the path a certain number of times as well. This can also be used to make patterns and reparations along any desired path.


This will revolve the curve around an axis and make an object. This can be used to make radially symmetric objects, as on a potter’s wheel.

Image to 3D

This feature lets you directly convert an image to a 3D form. Simple and easy!

Example 1: Speaker

Basic Sketch:

Positioning objects in 3D Space

R: Radius, H: Height

A basic sketch to refer to while making the CAD model. The structure and basic measures are clear. This is just for you to have a rough idea of the proportions and positions. A bit of trial and retrial can be done while making the model.

Making the model:

The positions can be assigned using basic addition and subtraction. If you are not able to position it while placing it, no worries, you can move it around later.

The main body should be made first, so all other parts can be placed on top of it. The other parts will definitely be positioned outside of the cuboid, so the minimum measure will be the box dimension itself. For example: The buttons to be placed on the front side will be 50 units in the positive direction along the front, considering the back is placed at 0 units. Similarly in other directions respectively.

You can try making the model on your own first, or try out the tutorial by following this link: Speaker Tutorial Link

Example 2: Bowling Pins

Basic Measurements:

You can refer to the actual pin measurements directly.

Positioning objects in 3D space

How to Design

The cross-sectional radius at certain heights is decided. The loft tool can be used to make the model.

To make the circles for the loft, the 3D sketch tool can be used for offsetting the plane as required. The circles at different heights can be made with ease. The bowling pin is quickly made ready because the measurements are available.

Now, you can play around with the placement and arrange them up. Remember the default origin is placed at the center of the bottom of the pin. You can change it in the advanced settings. Note that the area covered by the base itself is 22 units from the origin on all sides, and the maximum radius is 46. The next pin should be placed taking these measurements into consideration. If it is placed 46 units away from the previous, they will just touch each other. Thus, they need to be placed at a distance of more than 46 units.

Making it using the tutorial here.
