Get to Know How to Melt and Dissolve PLA Filament
PLA (Polylactic Acid) filament ranks as one of the most prevalent substances used in 3D printing due to its ability to biodegrade, ease of use, and flexibility. However, there are times when melting and dissolving PLA filament is essential for recycling, artistic works, or just reforming and repurposing the material. In this detailed article, we will look at several methods and techniques for melting and dissolving PLA filaments properly.

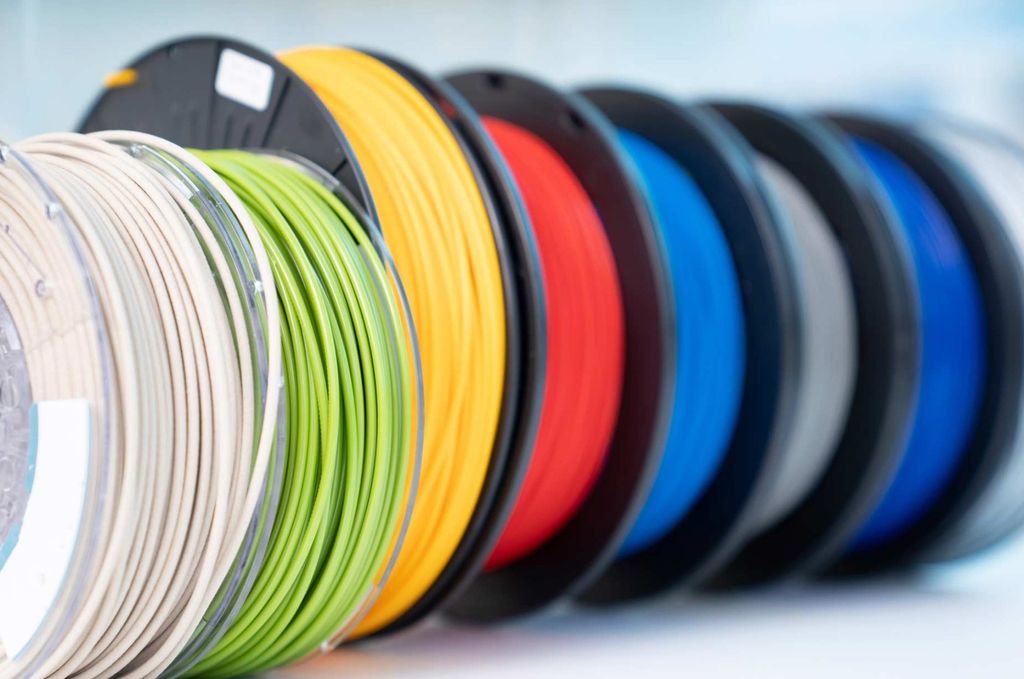

What Exactly is PLA Filament?
Polylactic acid (PLA) is a thermoplastic that comes from cassava, corn, sugarcane, or sugar beetroot pulp. The main ingredient is lactic acid, which exists in these plants. PLA comes out as a biodegradable and inexpensive material that breaks down slowly. It is increasing in popularity as a favored filament in 3D printing because of its ease of use, relatively low melting point, and excellent layer adhesion. PLA is widely utilized in producing models for instruction, decorating items, and aesthetically pleasing prints where high strength is not needed.
PLA filament tends to be fragile and has very little heat resistance despite its wide application. Though many PLA types can be heated for higher heat resistance, it isn't easy to change the characteristics of PLA the way they are. Yet, the resilience of your printed PLA element can be increased by melting or dissolving the outermost layer in post-processing with PLA solvents.
Is it Possible to dissolve PLA?
PLA filament can be dissolved due to its ability to dissolve as a thermoplastic material. This technique utilizes post-printing solvents, such as ethyl acetate, to eliminate flaws and surface variations from a 3D print. As a result, the exterior is perfectly smooth and beautifully finished. There are a few approaches open to those who want to get a finished PLA print. Solvents, as has been stated, can be used, but with caution, due to the potential toxicity and associated dangers. On the other hand, PLA plastic can be smoothed without the use of any chemicals. Both paths will be explored extensively.
A solvent can be used to remove PLA residue from clogged extruders. It involves soaking the nozzle for an extended period and then carefully removing the softened PLA residue. Options, such as the cold pull method, enable chemical-free removal of PLA from a hotend.
How to Dissolve PLA Using Solvents
Without a doubt, the most efficient method for breaking down PLA requires the use of chemicals. A varied range of chemicals is now available that can dissolve PLA. It is an excellent technique for ensuring the perfect manufacturing of your 3D products. As certain chemical solvents are beneficial, others tend to harm both the ecosystem and human beings. Seeking suitable solvents for dissolving PLA? A few examples are shown here, along with views into their mechanisms.
1. Ethyl Acetate
Ethyl acetate has a pleasant fragrance and is also affordable. This compound's scent is like that of bananas and strawberries. Its quick dissolution adds to its attraction, making it one of the best options for dissolving PLA. If you're used to scrutinizing product ingredients, you've probably come across ethyl acetate. This solvent is frequently employed in the production of perfumes, tea blends, nail paint removers, and other products. While its look may appear benign due to its extreme combustibility, use caution. As a result, using and storing ethyl acetate needs vigilance.
2. Acetone
Acetone is one of the many solvents accessible for dissolving PLA. However, according to studies, it is not the ideal PLA solvent. However, it has some impact on the scenario of PLA dissolution. The logic behind this is that acetone, due to its small potency, cannot completely dissolve pure PLA. When compared with blended PLA, which includes other plastic types, it performs best. The secret to releasing acetone's PLA-dissolving ability lies in combining it with additives.
These additives quickly bind to acetone, boosting its ability to melt PLA. The use of acetone for PLA dissolving results in the formation of a slightly sticky and more malleable PLA surface. In certain instances, acetone might even pose a threat to the integrity of your PLA material. As a result, a cautious approach is essential when applying acetone to PLA. Observing specific precautions becomes imperative while employing acetone in your PLA dissolution endeavors.
As acetone is flammable, it is essential to follow specific safety precautions. Wearing protective eyewear and a mask to shield your eyes and respiratory system from the toxic vapors of acetone is another precaution. Wearing gloves is a good idea to avoid coming into close contact with acetone. In addition, use acetone only in areas with adequate ventilation to prevent the accumulation of potentially hazardous vapors. Working in areas free of potential ignition sources, such as electronic devices, is a key safety tip.
3. Methyl Ethyl Ketone (MEK)
This particular solvent can dissolve PLA, but there is a strong and unanimous recommendation from experienced researchers to avoid its use. The consensus among these experts is that MEK poses significant hazards. It is categorized as one of the most perilous chemicals, making it suitable exclusively for industrial purposes. Even in industrial settings, only those with expertise should be entrusted with its handling. It's crucial to emphasize that attempting to utilize it domestically is strictly discouraged due to its inherent danger.
4. Ethyl Acetate
If you're searching for a gentler alternative to dilute PLA, consider ethyl acetate an excellent option. Moreover, it boasts a pleasant aroma and comes at an affordable price point. The scent emitted by this compound closely resembles that of bananas and strawberries. Its quick evaporation further solidifies its position as a top-tier choice for dissolving PLA. If you're in the habit of scrutinizing product ingredients, you might have already encountered ethyl acetate.
This particular solvent finds common application in the production of perfumes, tea extracts, nail polish removers, and more. Despite its seemingly innocuous nature, exercising caution with this solvent is crucial due to its highly flammable properties. Hence, meticulous care should be taken when utilizing and storing ethyl acetate.

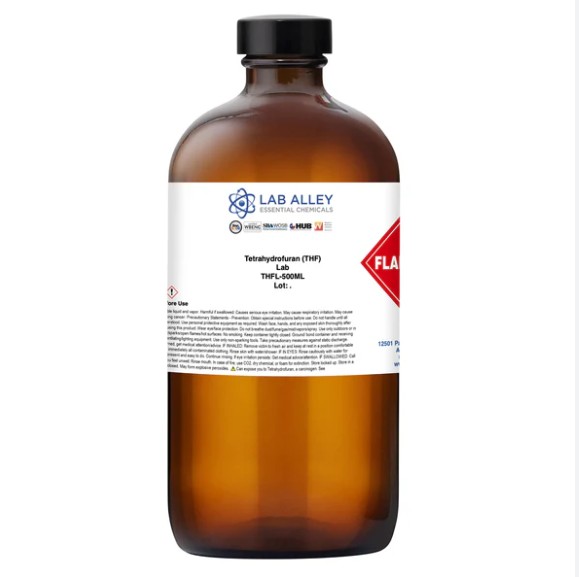

5. Tetrahydrofuran
Tetrahydrofuran, abbreviated as THF, offers an alternative chemical option for the complete dissolution of PLA. Much like MEK, its primary application is in industrial settings. However, THF poses comparable risks due to its high level of hazard, making it unsuitable for household use – a precautionary stance that is well-founded. Notably, THF possesses an exceptionally low flashpoint, rendering it highly flammable. This attribute eliminates it as an ideal candidate for PLA dissolution within residential environments, as even the slightest stimulus could potentially ignite a fire. Despite its efficacy in vaporizing PLA and enhancing its visual appeal, it remains imperative to recognize its potential health hazards. In circumstances where the use of THF cannot be avoided, the employment of a protective mask becomes indispensable. This measure serves as a safeguard against inhaling dangerous fumes, ensuring personal well-being.
6. Dichloromethane (DCM)
Unless you possess expertise in handling DCM, we discourage its use for dissolving PLA. Despite its faster efficacy in dissolving PLA, this chemical can pose risks to your skin, plastic materials, artwork, coatings, and more. Despite its colorless appearance and pleasant odor, it has the potential to undermine your diligent efforts. Hence, if you choose DCM as your PLA solvent, it's advisable to undertake the procedure under the guidance of an expert or delegate the task to one. Furthermore, anticipate that this chemical won't mix with water, and instead, it readily forms bonds with other solvents.
If the prospect of handling chemicals appears overwhelming because of potential health hazards, or if the outcomes from using solvents are unsatisfactory, there exist several non-chemical options for refining and post-processing PLA prints. Let's discuss these alternatives more closely.

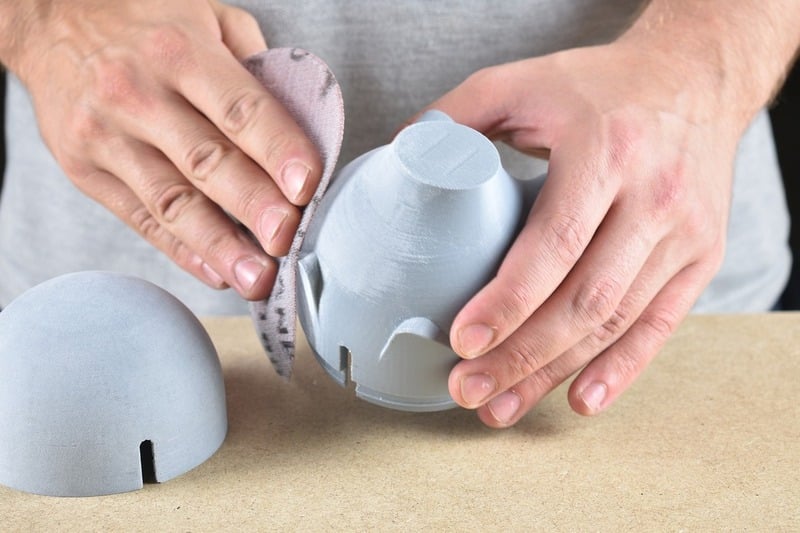

1. Sanding
Smoothing a PLA print is a reliable and secure method, although it does demand a significant time investment. Your approach will vary based on the size and structure of your 3D print. Employ a combination of sanding blocks, sandpaper, and nail files to systematically eliminate the outer layer of the print. Apply your chosen sanding medium in circular motions across the printed object. Optimal outcomes are achieved by moving opposite the print's grain, commencing with a coarse-grit sandpaper. Over time, you can incrementally transition to higher grit levels, culminating in the use of wet sandpaper. This final touch will give your component a sleek and polished finish.

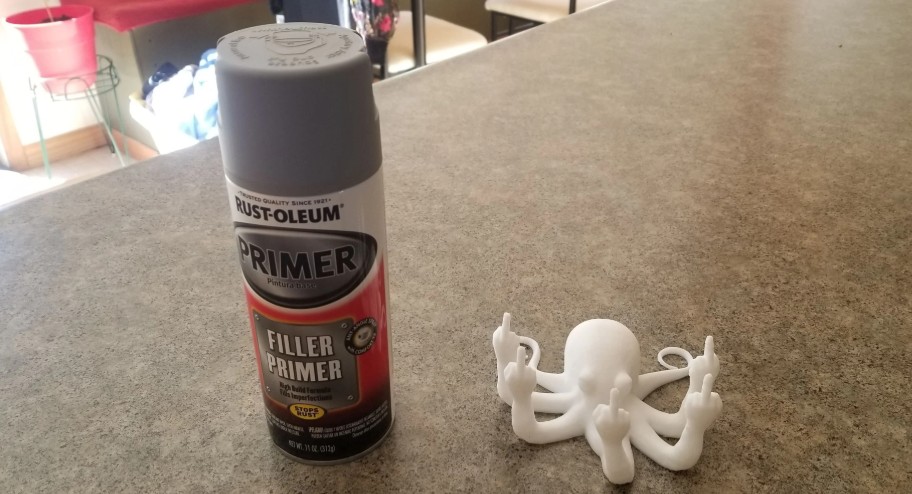

2. Primer Spray
Utilizing priming proves to be an effective technique in achieving a refined finish for PLA prints, particularly if your primary concern pertains to the visibility of layer lines. Comparable to the application of epoxy resin, this approach also entails the application of a protective layer onto the 3D print. Nevertheless, in this scenario, the primer is evenly sprayed onto the fabricated model. It is recommended to apply two to three coats of primer for optimal results.
In practice, priming is commonly employed in conjunction with the process of sanding. Once the initial layers of primer have thoroughly dried, the surface can be smoothed by sanding. What prompts this approach rather than direct sanding? There are two key reasons. First and foremost, the primer itself is more amenable to sanding compared to PLA material. Additionally, through the sequence of primer application followed by sanding, you are simultaneously preparing your component for subsequent painting endeavors.
3. Epoxy Resin
Epoxy resin can be used as an effective alternative to achieve a polished exterior on your PLA 3D prints. This method involves applying a coating onto the surface of the component. Comprising two key elements, namely the resin itself and a hardener, this coating requires thorough blending before application to the printed object using a brush. Through the application of epoxy resin coating, imperfections and raised sections on the outer facade of the printed piece are effectively concealed, culminating in a refined surface texture. It remains feasible to layer additional coats of epoxy resin to achieve the desired level of sleekness.
4. Surface Melting
Another viable approach to achieve smoother finishes on PLA prints without resorting to hazardous chemicals involves the technique of surface melting. This method proves especially efficient when dealing with more extensive surface areas and components lacking intricate features, as the heating process can compromise the definition. To enact this process, utilize a heat gun to evenly distribute hot air across the exterior of your PLA object. As the hot air takes effect, it will gradually soften the print's surface, thereby mitigating the visibility of layer lines and culminating in a polished, lustrous exterior texture. Nevertheless, exercise caution, for excessive heat exposure can swiftly induce warping in PLA. Thus, it is advisable to frequently monitor your piece during the procedure.
Which 3D Modeling Software is the Most Suitable for Creating 3D Models?
There are many 3D modeling applications is available to create intricate 3D models. An ideal recommendation for both seasoned professionals and those embarking on their learning journey is SelfCAD. This online as well as downloadable 3D modeling tool boasts considerable potency and user-friendliness. Moreover, versions compatible with Windows and Mac platforms are downloadable.
It comes with various tools like 3D modeling, rendering, animation, and even an online slicer that you can use to prepare your designs for 3D printing. You can use to create jewelry, prepare dental scans for 3D printing, and create both simple and complex 3D models with ease. It also comes with many interactive tutorials to help you get started with ease as well as an academy that you can use to get started on 3D modeling from the basic level to advanced level.
Conclusion
Becoming skilled in the technique of melting and dissolving PLA filament provides creators with a realm of innovative opportunities. By grasping the procedures, safety measures, and potential applications, individuals can reshape, recycle, and create anew, all while maintaining a focus on safety and environmental awareness. It's essential to navigate this domain wisely, turning PLA filament into extraordinary creations.
