How to Hollow Out a 3D File

Whether you're a hobbyist, artist, or professional designer, learning how to hollow out 3D objects is essential, especially when you are designing models for 3D printing or when just 3D modeling generally. In addition to reducing material costs, hollowing out a 3D object offers many benefits in terms of speedier print times, reduced weight, and incorporating of internal systems.

This article will show you how to hollow out a 3D object using various techniques and tools. The essential ideas apply regardless of whether you're using SelfCAD, Blender, Fusion 360, or another 3D modeling program. You'll get the knowledge and confidence to take on your next project as we review the crucial factors, tools, and methods needed to create a successful hollowed-out design.

The Benefits of Hollowing Out 3D Objects for 3D Printing

It's important to note that the advantages of hollowing out 3D objects can vary depending on the specific application, material, and design considerations. There are several merits of hollowing out 3D objects. The following are some of the perks of creating hollowed-out 3D objects:

• Weight Reduction: Hollowing out 3D objects can help them weigh less overall without affecting structural integrity. This is especially helpful in sectors like aerospace, automotive, and transportation, where lighter components help to increase cargo capacity, improve performance, or improve fuel efficiency.
• Material Optimization: It also helps minimize material usage and waste by removing extra material from the interior. Cost reductions may emerge from this, particularly if expensive or rare materials are used.
• Improved Functionality: Hollowing out objects enables adding extra parts, mechanisms, or features into the void space, improving functionality. For instance, hollowed-out areas in consumer electronics can house cooling systems, circuitry, or batteries. This enhances the object's adaptability and functionality without drastically changing its outward appearance.
• Improved Acoustic or Thermal Properties: The hollow space inside a 3D object can function as a sound or temperature absorber or resonating chamber. Trapping air or insulating materials inside the void can improve thermal insulation or provide better acoustic insulation by limiting noise transmission.
• Customization and Design Flexibility: It also gives designers more customization and creative options. With solid 3D objects, exploring with such elaborate and sophisticated designs would be difficult or impossible. This makes it possible to design aesthetically pleasant and visually appealing structures.
• Cost-effectiveness: By using less material, taking less time to print, and requiring little post-processing, hollowing out 3D objects can lower production costs. It can help reduce transportation expenses because lighter goods require less energy and resources to move and ship.
• Ease of Assembly: Hollowed-out 3D objects frequently have simpler assembly processes since fewer parts can be joined or fixed. This can lead to speedier and more efficient manufacturing, lowering labor and assembly costs.

Things to Consider When Hollowing Out 3D Objects

Considerations for Design: Design your 3D object with hollowing in mind from the very beginning. Consider the hollowed-out object's purpose, structural integrity, and desired qualities.

Thickness and Structural Integrity: Ensure that the object's remaining shell or walls are thick enough to ensure structural integrity. The thickness of an object will vary depending on its material, size, and application. Thinner walls may require additional support structures or reinforcement to prevent distortion or collapse.

Use Hollowing Capabilities in 3D Modeling Software: If you're using 3D modeling software, consider one with built-in functions for hollowing out objects. This may ease the procedure while also providing precise control over the thickness and shape of the hollowed part. A good example of a program with such capabilities is SelfCAD.

Material Selection: The material used will affect the hollowing process as well as the overall quality of the product. Consider the material's qualities, such as its strength, flexibility, or heat conductivity, to ensure it meets the needs of the product and the hollowing technique utilized.

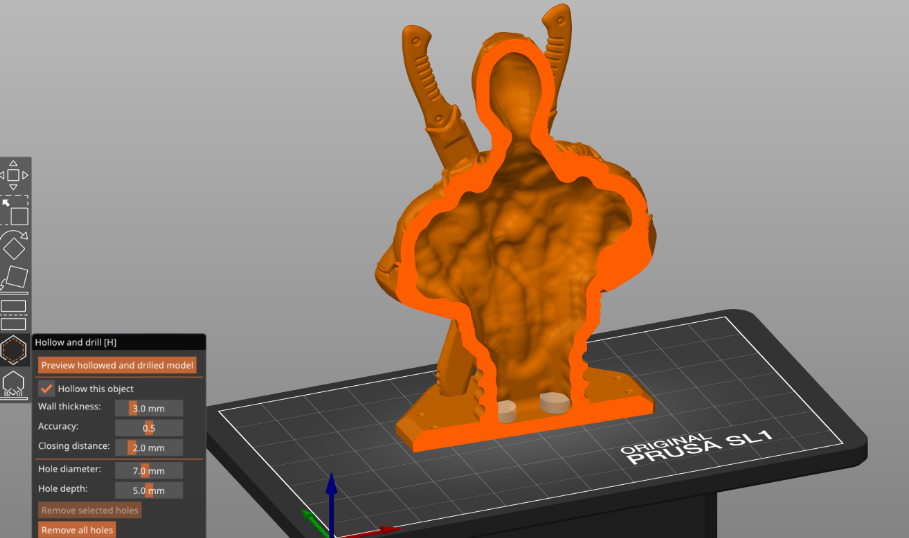

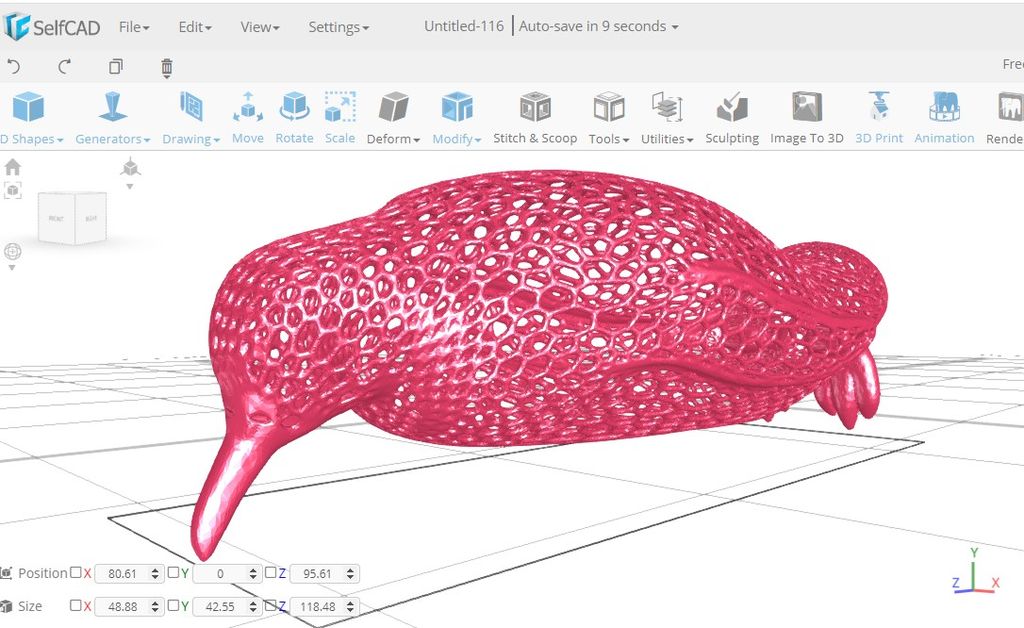

Hollowing procedures: Multiple hollowing methods are available depending on the object and manufacturing method. In 3D printing, you can create a solid object and then specify the required shell thickness, or you can hollow it down using lattice or infill structures. Using proper cutting tools, CNC machining, or subtractive manufacturing methods may include removing material from the interior.

Considerations for Post-Processing: After hollowing out the object, consider any necessary post-processing actions. Depending on the production procedure, you may need to smoothen the surface, reinforce weak places, or add finishing touches to obtain the intended aesthetics and usefulness.

What Tools You Need

To create and modify the 3D object digitally, you'll need CAD or 3D modeling software like SelfCAD. Most CAD software comes with Boolean tools that help one hollow out the object or combine several designs together. Boolean operations are operations that use Boolean logic to combine or subtract from two or more shapes. Depending on your modeling program, the boolean tools may be found in the Modify menu or in a separate tool palette.

Once you’ve selected the boolean tools, you can select the operation type you want to perform. The two most common operations are union and difference. The union will combine two objects together to form a single object, while the difference will subtract one object from another. We will use the difference operation to hollow out our 3D object for our purposes.

To use the difference operation, you will need to create a second object that will be used to hollow out the first object. This second object should be smaller than the first and should fit inside the 3D object. Once you have the two objects, you can select both of them and then select the difference operation. This will subtract the smaller object from the larger one, leaving only the hollowed-out shape.

Once the operation is complete, you can adjust the hollowed-out object's size and shape. You can also use the boolean tools to add additional details to the object, such as holes and grooves. This can be helpful if you want to create a more intricate design.

Step-by-Step Guide on How to Hollow Out the 3D Object Using SelfCAD

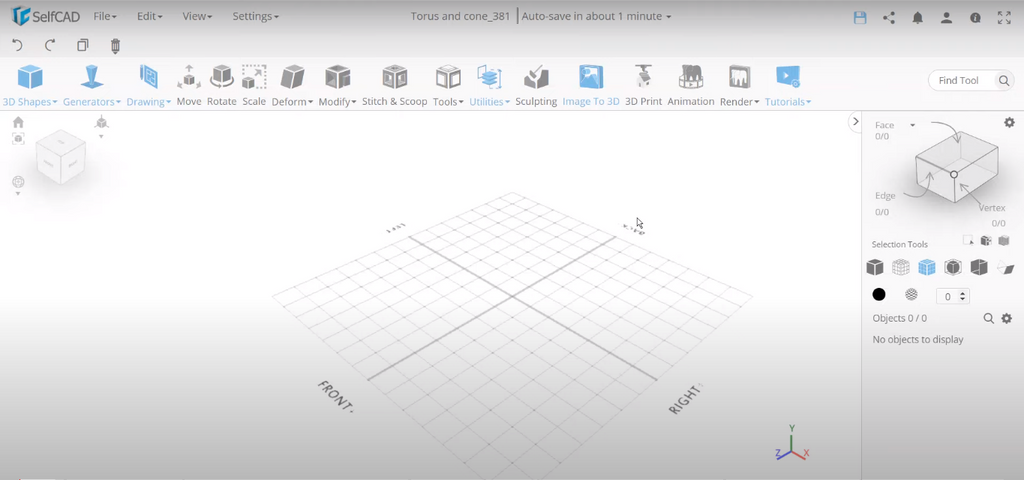

There are many kinds of CAD software on the market you can use to hollow out your object, but we recommend using SelfCAD as it is very easy to use. It has been designed for both beginners and professionals in 3D modeling. The software offers a wide range of tools and features for 3D modeling, rendering, slicing, and simple animation tools, all under one program. The video below demonstrates how SelfCAD works.

SelfCAD is a comprehensive system that incorporates 3D printing, slicing, and CAD functionality onto a single platform. This implies that you may directly prepare your 3D models for 3D printing within the software and hollow them out. This makes it an ideal software for everyone.

Here's a step-by-step guide on how to hollow out a 3D object using SelfCAD:

1. Launch SelfCAD: Open your web browser and navigate to SelfCAD website. Log in to your account or create a new one if you don't have an account yet, then launch the software.

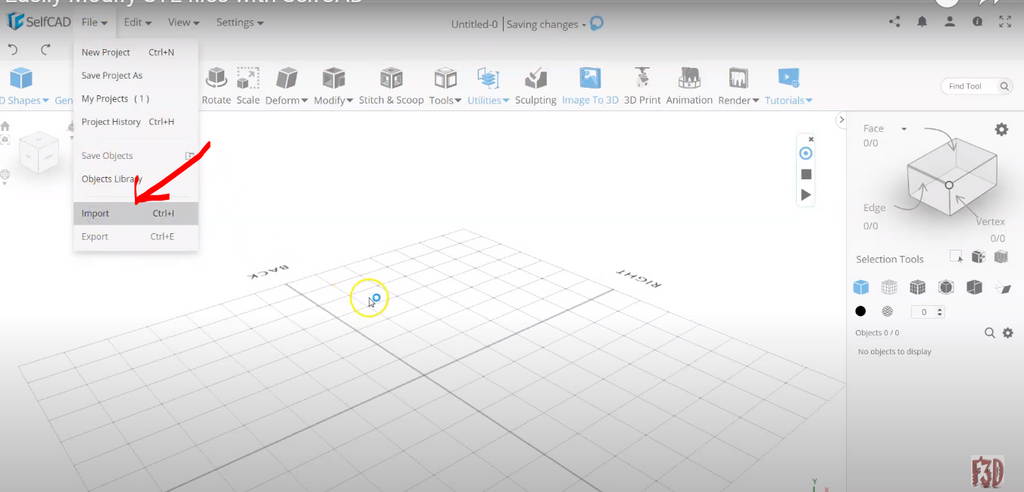

2. Import or create the 3D object: Once you're logged in, you can either import an existing 3D object file or create a new one from scratch using SelfCAD's modeling tools. To import a file, click on the "Import" button in the toolbar on the left and select the desired file from your computer.

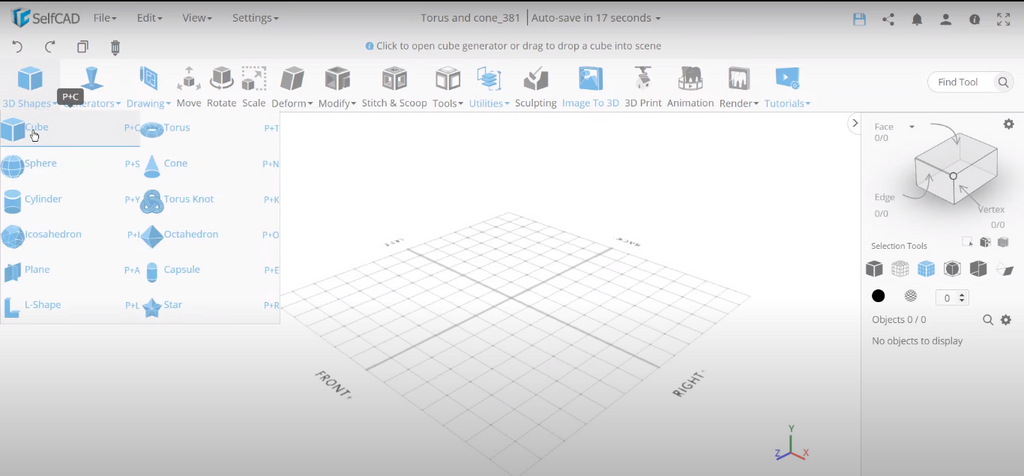

 If you want to create a new object, use SelfCAD's various modeling tools and models to shape your design.

3. Select the object: After importing or creating the 3D object, select it by clicking on it. You will see the object highlighted, and selection handles will appear around it.

Note: The main tool used in hollowing out 3D objects is the Shell tool.

However, in this case, we will look at the easiest and simplest way to hollow out 3D objects in SelfCAD.

Keep in mind that SelfCAD has a Selection First Tool, and in this case, we are selecting a face.

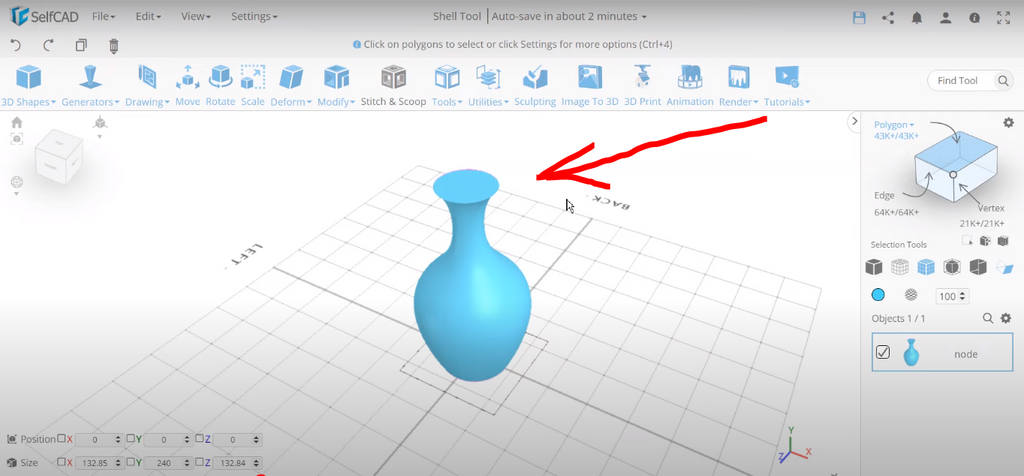

After importing or creating your object, this is what you will see (in this case, the object used (Vase):

In this case, we want to hollow out the vase, so we will choose the top face.

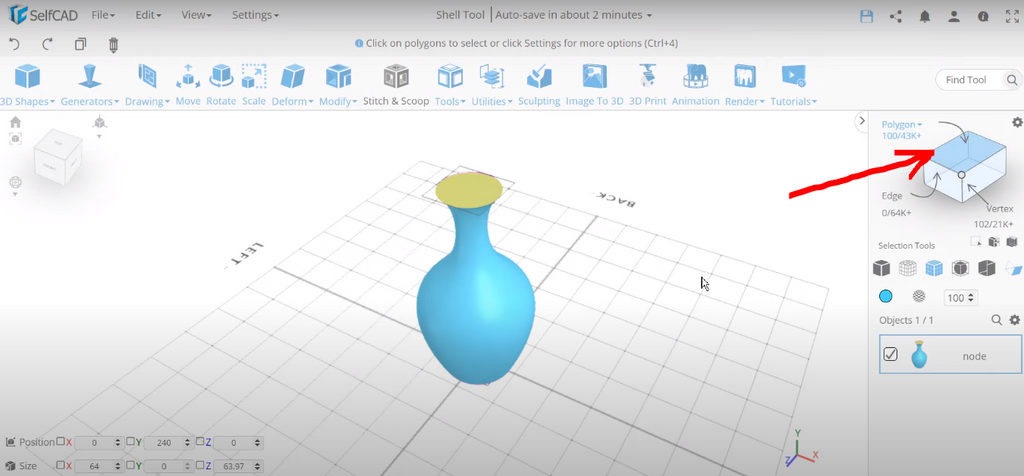

To select the top face, Activate the Polygon Selection that is found on the right side of the object.

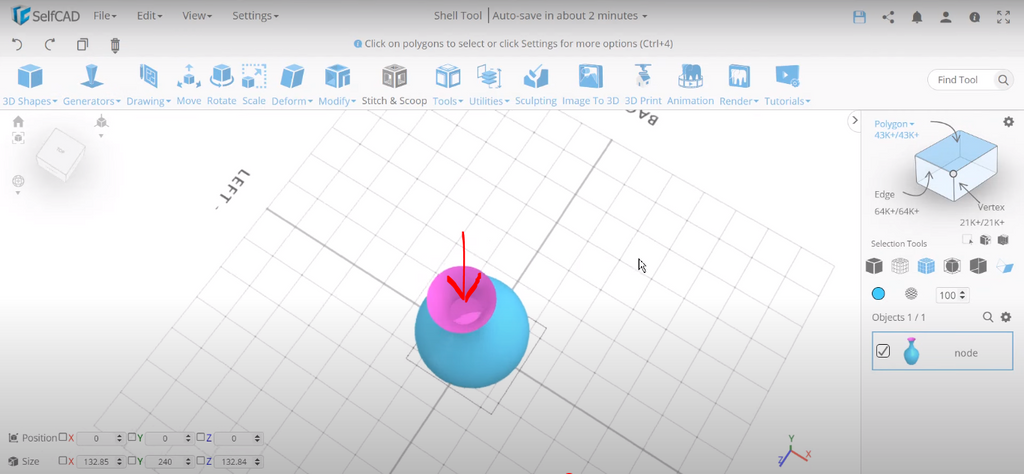

Then select the top face as shown below:

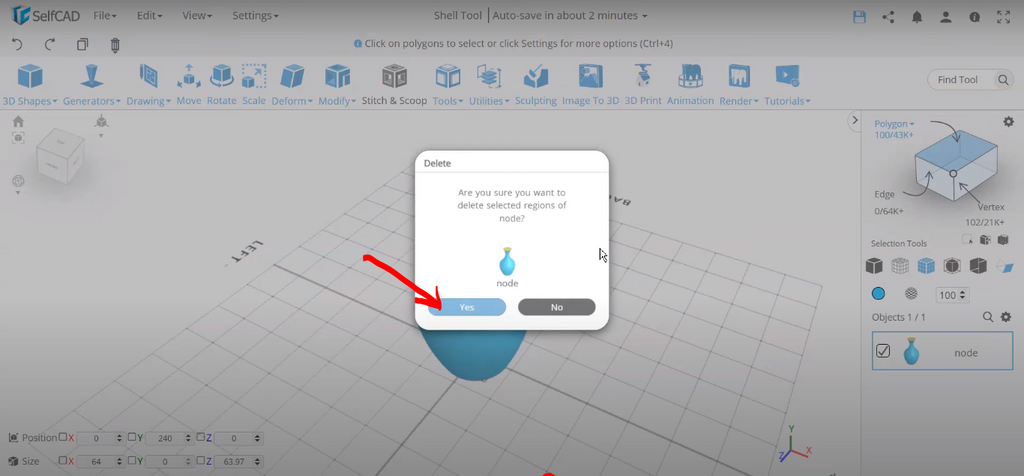

4. Hollow out the object: This is the main step. After selecting the top face, just click the Delete command.

There you go! You have hollowed out your Object.

5. Add Thickness: To add thickness to your hollowed object, select the object again.

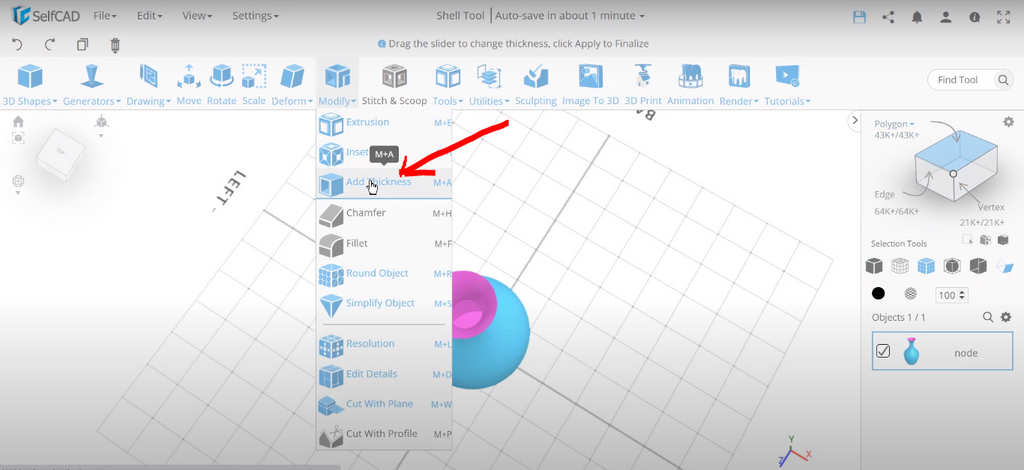

Then at the top bar tools options, choose Add Thickness Tool.

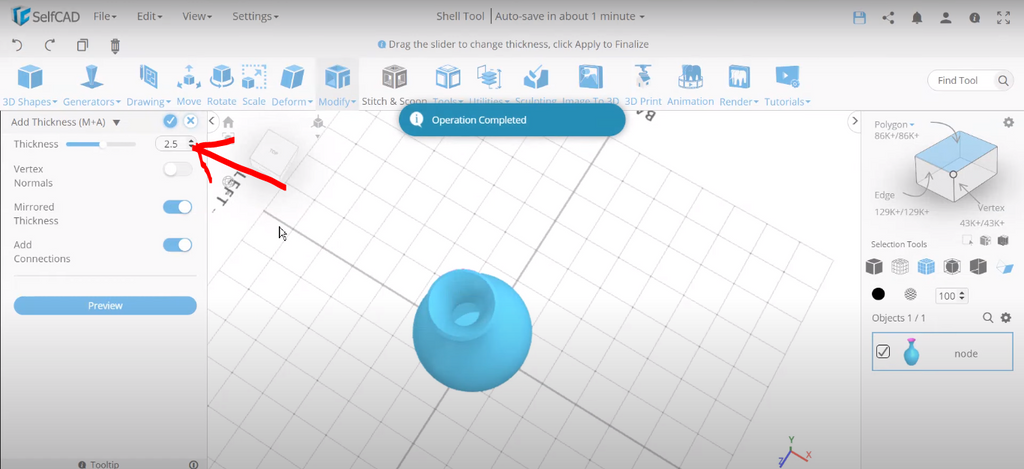

Then adjust the thickness by entering the desired or your preferred value at the left side panel. In this case, we have used 2.5.

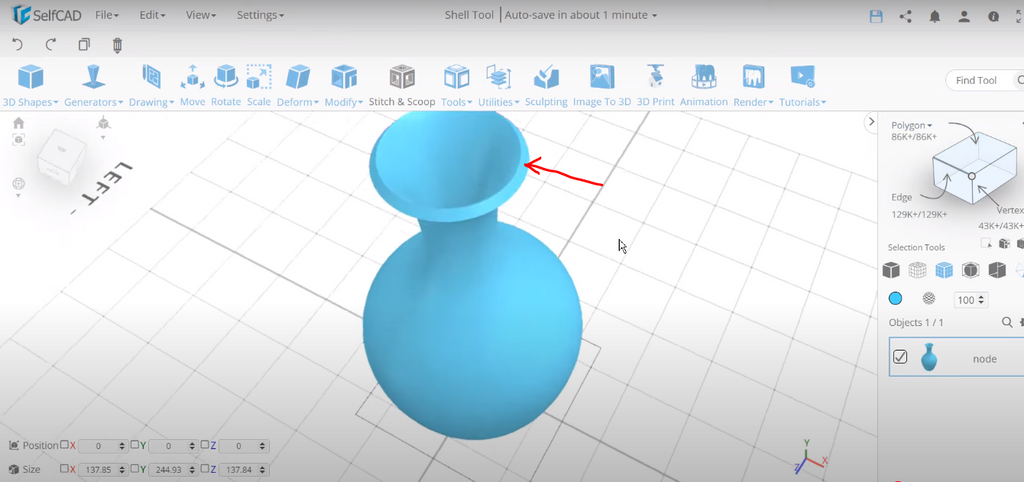

Then Apply. Play around with these settings until you achieve the desired results. Having added a thickness of 2.5, this is how it looks like:

That is how you successfully hollow out 3D objects.

6. Examine the preview: After adjusting the parameters, you can preview the hollowing effect on your 3D object. The preview will give you a visual representation of how the final result will look. If the hollowing result isn't what you expected, you can go back to the hollowing parameters and make further adjustments until you achieve the desired effect.
7. Save or export the modified object: Once you're satisfied with the hollowed object, save your work by clicking on the "Save" button. Alternatively, you can use the export options to save the modified object file in a format suitable for your needs. SelfCAD supports various 3D file formats like STL, OBJ, and more. If you would like to slice the model, you can also use the in-built online slicer of SelfCAD to do so. It’s compatible with most FDM 3D printers, and getting started is easier too.

Carve Out Your 3D Models With Precision

As we have seen, 3D objects can be hollowed out to save on material, speed up printing, and improve structural strength. It makes it possible to create detailed shapes and complex geometries that could be difficult or impractical to generate otherwise. Hollowing can also be used for practical purposes, such as producing containers, molds, or parts with interior channels or chambers. The process of hollowing out 3D objects is now much easier with programs like SelfCAD, and you don’t need to have previous experience in 3D modeling to be able to do so.

---
