3D Printer Retraction Issues: How to Fix It
One crucial aspect of successful 3D printing is proper retraction, which involves pulling the filament back into the nozzle during non-printing moves. Retraction helps prevent stringing, oozing, and blobs, ensuring clean, precise prints. However, mastering retraction settings can be challenging as various factors come into play. Retraction is a critical parameter in 3D printing that controls the filament flow when the printer head moves between different parts of the print or during non-printing travel moves. Retracting the filament avoids oozing and reduces the chances of stringing between other parts of the pattern. When a retraction is not configured correctly, it can lead to unwanted imperfections, compromising the overall quality of the printed object. Therefore, it is essential to understand and optimize retraction settings to achieve the desired print results.
In this comprehensive troubleshooting guide, we will explore the intricacies of 3D printer retraction issues, providing practical solutions to help you achieve flawless prints.
Troubleshooting Retraction Issues
1. Check Retraction Distance

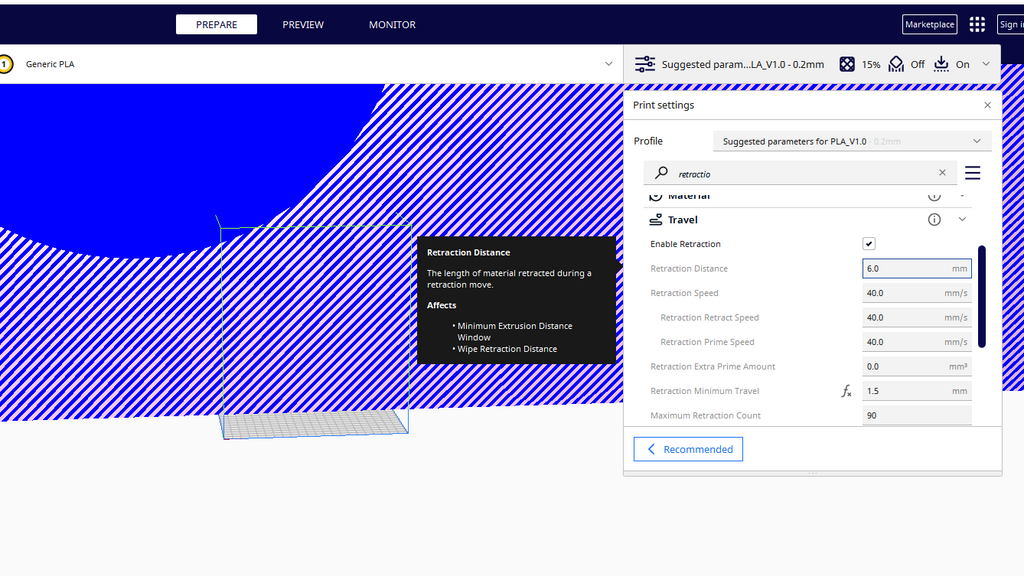

The retraction distance is a crucial parameter in 3D printing that determines how far the filament is pulled back into the nozzle during travel moves. This retraction motion helps prevent the filament from oozing or stringing between printed parts, resulting in cleaner and more precise prints. However, an inadequate retraction distance can lead to filament oozing, which can cause unwanted strings and affect the overall print quality. It is recommended to gradually increase the retraction distance to resolve filament oozing issues until the problem is eliminated. Start by making incremental adjustments, typically between 2-6mm, and observe the print results.
The optimal retraction distance may vary depending on various factors, including the specific printer model, filament type, and printing speed. Increasing the retraction distance allows for a more significant pullback of the filament, reducing the chances of filament oozing during travel moves. The pressure within the hot end is released by retracting the filament further, minimizing the likelihood of unwanted material extrusion between printed parts. It helps to achieve cleaner and sharper edges, especially when printing complex models with intricate details.
2. Adjust Retraction Speed

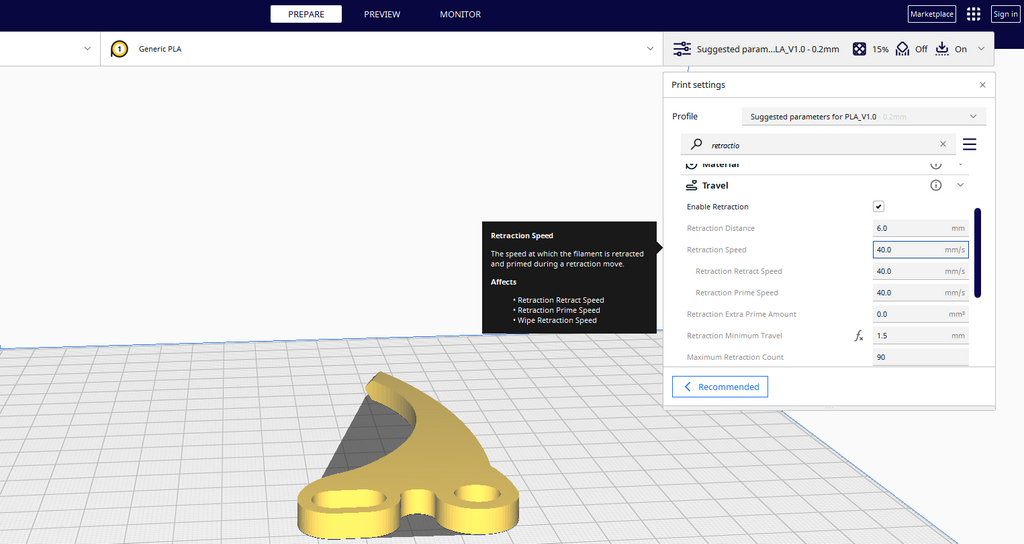

Retraction speed is vital in achieving adequate filament retraction during 3D printing. It determines how quickly the filament is pulled back into the nozzle during travel moves, helping to prevent stringing and oozing. However, if the retraction speed is set too high, it can lead to filament grinding, under-extrusion, and inconsistent retraction, negatively impacting print quality. Find out the right balance to optimize retraction speed and avoid these issues. When the retraction speed is too high, the filament can be forcefully retracted, causing it to grind against the extruder gears or filament path. This grinding can lead to filament deformation, clogs, and unreliable extrusion.
It's crucial to ensure the retraction speed is set at a moderate value to prevent excessive stress on the filament and the extruder system. In order to address retraction speed issues, it is recommended to reduce the speed to a more moderate range, typically between 40-60 mm/s. This adjustment allows for smoother and more controlled retraction without compromising the extrusion process. Reducing the speed gives the filament enough time to retract without causing excessive strain or grinding.
3. Verify Hotend Temperature

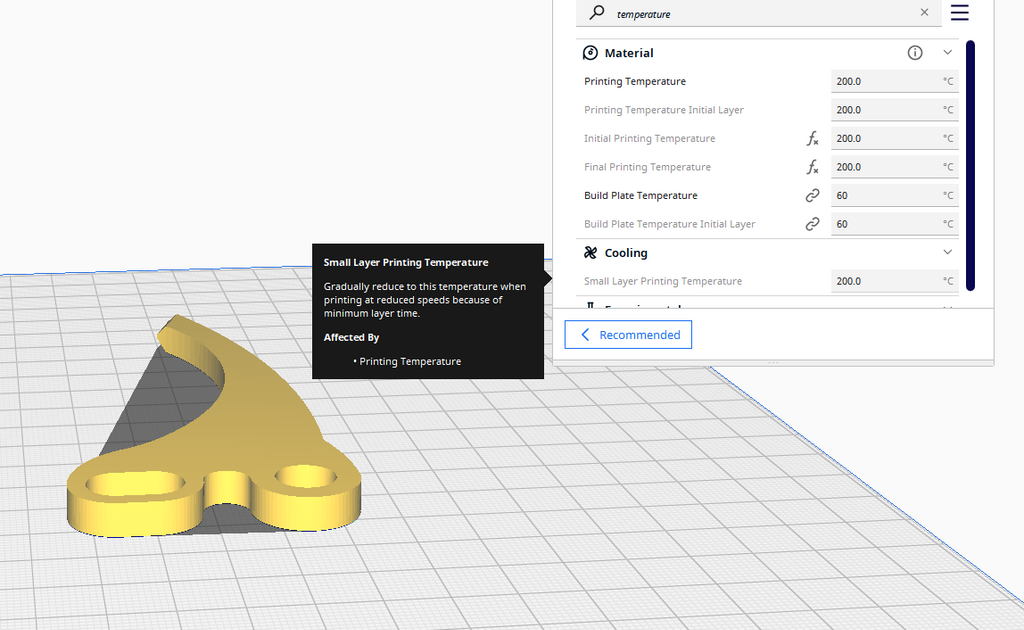

Maintaining a stable and accurate hot-end temperature is crucial for successful retraction during 3D printing. Inconsistent temperature can cause variations in filament behavior, viscosity, and flow characteristics, leading to retraction issues. Verifying and controlling the hot-end temperature is essential to ensure reliable retraction performance. Start by checking the manufacturer's recommended temperature range for the filament you are using.
Use a dedicated temperature measurement device, such as a digital thermometer or an infrared thermometer, to monitor the temperature at the hot end. Make sure the temperature remains within the specified range throughout the print. If you notice significant temperature fluctuations, it may indicate a problem with your printer's heating system.
Check the hot-end connections, wiring, and thermistor for any loose connections or damage. Calibrate or replace components as necessary to maintain accurate temperature control. A properly calibrated and stable hot-end temperature will help ensure consistent filament behavior during retraction.
4. Check Bowden Tube and Extruder Assembly

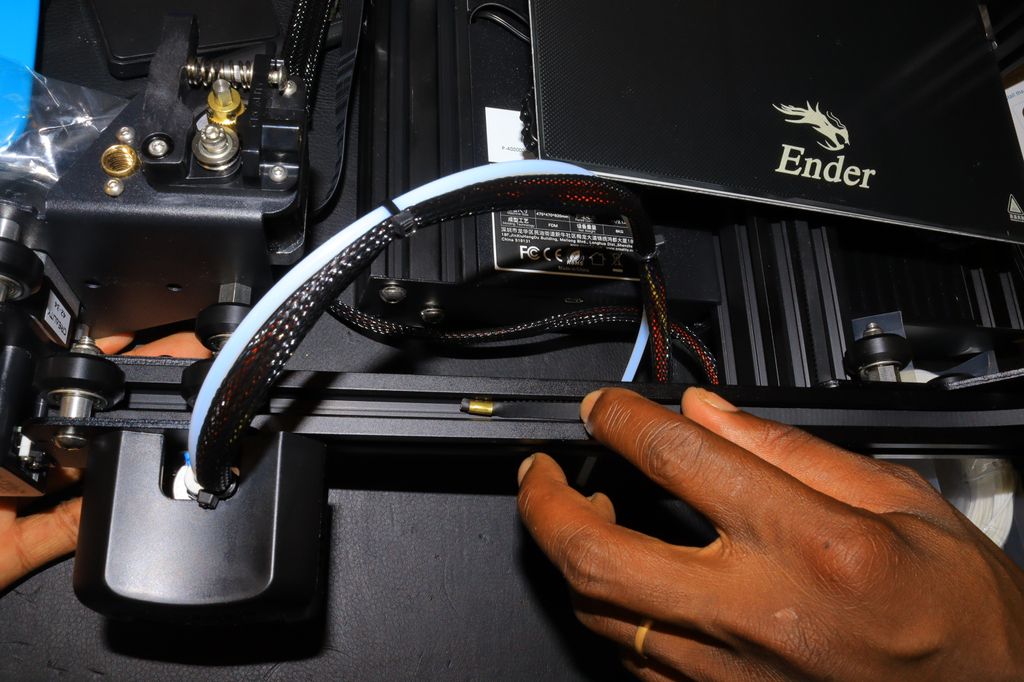

The Bowden tube and extruder assembly are critical in filament feeding and retraction. A poorly assembled or clogged extruder assembly can lead to extrusion consistency and retraction problems. To address these issues, carefully examine the Bowden tube and extruder components. Inspect the Bowden tube for any obstructions, such as dirt, debris, or filament residue. Remove the box and clean it thoroughly if necessary. Check for any wear or damage, such as cracks or deformations, hindering smooth filament flow.
Replace the Bowden tube if it shows signs of deterioration. Next, examine the extruder assembly, including the gears, tensioner, and drive mechanism. Ensure that all components are properly aligned and functioning correctly. Any misalignment or mechanical issues can affect the extrusion and retraction process. Lubricate the moving parts and adjust the tensioner to maintain a filament grip. A well-maintained extruder assembly will promote smooth filament feeding, minimize filament slippage, and enhance the effectiveness of retraction.
5. Review Filament Quality

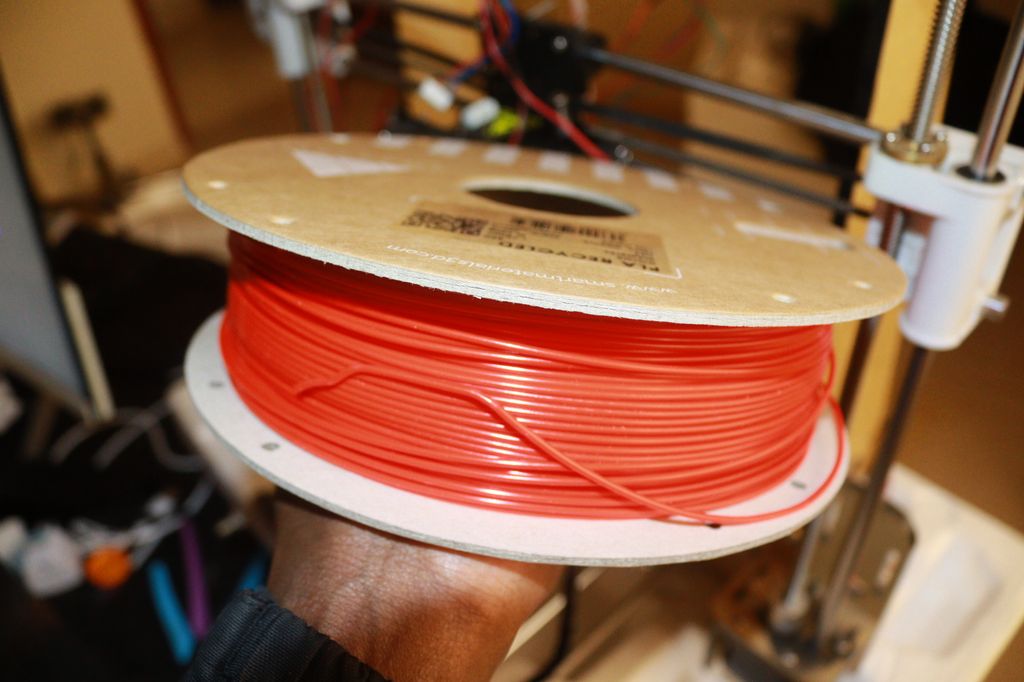

The quality of the filament you use can significantly impact retraction performance. Poor-quality or low-grade filament may contain impurities, varying diameters, or excessive moisture. These factors can lead to clogging, inconsistent flow, and retraction issues. It is essential to invest in high-quality filament from reputable manufacturers. Ensure the filament is stored in a dry environment to prevent moisture absorption.
The moisture-laden filament can cause steam bubbles, filament popping, and irregular flow patterns, affecting retraction performance. Inspect the filament for any signs of moisture damage, such as discoloration or bubbling. If you suspect moisture absorption, consider drying the filament using a dedicated filament dryer or methods like desiccant packets or vacuum sealing. Using quality filament and storing it properly can minimize the chances of retraction problems caused by poor filament quality.
6. Optimize Cooling and Fan Settings
Proper cooling is essential to solidify the filament quickly and prevent excessive stringing or oozing during travel moves. Insufficient cooling can lead to filament not solidifying in time, resulting in unwanted artifacts on the print. Review your cooling and fan settings to ensure they are appropriately configured for the specific filament you are using. Most slicer software allows you to adjust the cooling fan speed and position based on layer height or particular print sections.
Start by enabling the cooling fan to kick in after the first few layers, as the initial layers often benefit from less cooling to ensure good adhesion. As the print progresses, gradually increase the fan speed to provide adequate cooling while maintaining print quality. Pay attention to the fan position and airflow direction. Ensure that the fan directs airflow toward the printed object and covers the area where retraction occurs. Optimizing the cooling setup for your printer and filament combination will help minimize stringing, improve print quality, and enhance retraction performance.
Best 3D Printing Software
There are various 3D printing software available that you can use in your project. The one you choose to use depends on your level of experience, budget, operating system, and the complexity of the project you are working on. One of the best 3D printing software available is SelfCAD.
SelfCAD is an all-in-one, web-based and downloadable 3D modeling and printing software that empowers users to bring their creative ideas to life with ease. It stands out for its user-friendly interface, making it accessible to beginners and experienced designers alike. In addition to coming with powerful and versatile 3D modeling tools like 3D sculpting, freehand drawing and sketching, 3D rendering software and 3D shape generators, SelfCAD also comes with an in-built online slicer that you can use to prepare your designs for 3D printing.
With this tool, users can effortlessly prepare their 3D models for printing by generating G-code instructions tailored to their specific 3D printer. The slicer's functionality simplifies the 3D printing process, ensuring smoother and more efficient prints. The software is also affordable and it’s ideal for those who want a powerful 3D printing software that is budget-friendly.
Overcome Retraction Setbacks for Flawless 3D Printing
Troubleshooting retraction issues in 3D printing requires a systematic approach and attention to detail. By understanding the key parameters, such as retraction distance, speed, and acceleration, and optimizing factors like hot-end temperature, extruder assembly, filament quality, and cooling settings, you can overcome common retraction-related problems.
