Converting STL to G-code in 2026: The Basic Steps

You have probably heard of STL and G-code files if you are into 3D printing. While G-code is the language used by most 3D printers to regulate movement, STL files are the most popular 3D printer file format. Continue reading to learn how to use the SelfCAD software to convert STL files to G-code.

What are STL and G-Code Files, and What Are Their Uses?

STL stands for "stereolithography." It's a file format native to the stereolithography CAD software created by 3D Systems. The STL file represents a 3D model's surface geometry without representing color, texture, or other model attributes, and it's widely used for 3D printing. Many Computer-Aided Design software can read and write STL files and since it represents a surface as a series of small triangles, it's often used in mesh simplification and refinement in digital modeling.

G-code on the other hand is a language in which people tell computerized machine tools how to make something. It's the "instructions" that 3D printers and CNC machine reads to know what to do. After designing a 3D model and preparing for 3D printing in a slicing software, the model is then converted into G-code. This code instructs 3D printers on printing each layer, specifying details like print speed, temperature, layer height, and more. In essence, while an STL file represents the "what" (the object you want to create), the G-code represents the "how" (the specific instructions for the machine to create that object).

Benefits of STL to G-Code Conversion

Here are seven reasons you want to convert STL files to G-code.

1. Machine Interpretation: Most 3D printers cannot interpret or use STL files directly. Converting STL to G-code provides a set of instructions that the printer can follow, essentially translating a 3D design into a series of movements, extrusions, and other commands that the machine understands.Layered Printing**: G-code divides the 3D object from the STL file into layers. This layered approach is how 3D printers operate, building objects one layer at a time.
2. Fine-tuning control: By converting to G-code, you can optimize and adjust printing parameters such as print speed, temperature, layer height, infill density, and more. This allows for tailored print quality and material efficiency.
3. Support structure generation: Many 3D objects require support structures to be printed correctly. Slicing software, during the conversion, can automatically generate these support structures. The user often has the flexibility to customize where and how these supports are added.
4. Material extrusion control: G-code contains specific instructions on how much filament to extrude, at what rate, and when to retract to prevent oozing or stringing, ensuring print accuracy and quality
5. Multiple parts and rafts and brims: G-code conversion allows users to add 3D printing rafts (base layers to help with adhesion) and print multiple parts simultaneously by setting up the print bed in the slicer software.
6. G-code is a universal language for 3D printers. By converting STL to G-code, you ensure the design is compatible with a wide range of 3D printers.
7. Visualization and simulation: After converting to G-code, many slicing software applications allow users to preview the print layer-by-layer. This can help identify potential problems or inefficiencies before actual printing, saving time and materials.

How to Convert an STL File to G-Code?

An STL file can be converted into G-code in two different ways. Using a slicing software is the first option, and using a CAM program is the second. A 3D model is divided into layers by slicing so that each layer can be printed separately. There are many 3D slicers available that you can use to do the conversion, but in this article we are going to use the online slicer of SelfCAD. Its free, and simple to use. The video below shows how SelfCAD software works in general.

Converting an STL File to G-Code in SelfCAD

The process of converting STL to G-code in SelfCAD is simple. The main steps are as follows:

Step 1: Sign Up to SelfCAD

To sign up to SelfCAD, visit SelfCAD website and click "Sign up". You can start with the free account and then later upgrade to the paid version in order to get the full features of the software. You can either use the software online or you can download the software for Windows and Mac. Both of these programs are synchronized together. Whatever you do offline, you can get it on the online version too.

Step 2: Import Your STL File or Create One

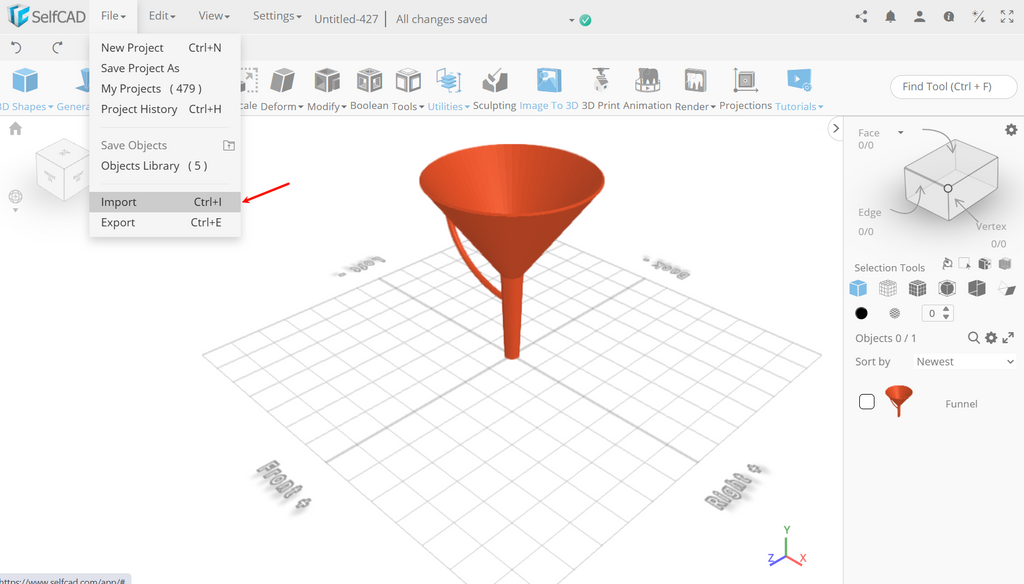

To import an STL file to SelfCAD in order to convert it to G-code, you can use the Import feature found in the File section of the website. Alternatively, you might obtain models from 3D model websites like Cults3d, Myminifactory, and Thingiverse. If you would like to modify your files before slicing, you can use the various tools of SelfCAD to do so. The video below shows how to edit and simplify an STL file in SelfCAD.

If the meshes have issues, you can also fix them using the various Magic Fix tool of SelfCAD. Get to know how to fix non manifold issues in the meshes in the video below.

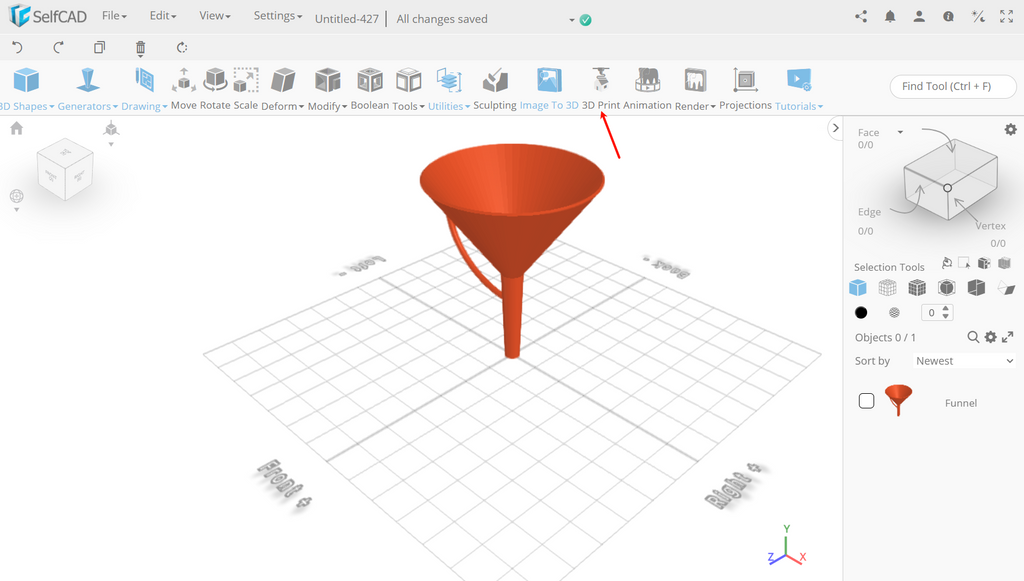

Step 3: Access the Slicer, Choose Your 3D Printer and Start Slicing the Model

You must first select your printer in the slicer. Once you access the slicer, then you will need to choose your 3D printer. Once you choose the 3D printer, you will be ready to slice your design and generate the G-code. You can also customize your settings based on your requirements. If you don’t know the specific settings, you can retain them in their default state.

Step 4: Start Slicing and Save the G-Code

Once you have selected your 3D printer and chosen the specific settings for your design, you can then select Slice and the process will start. You should be able to see the amount of time it will take for your design to be sliced, and the amount of material, and also you can also preview to see how your design will be 3D printed.

Once you are done, you can save your Gcode to your computer.

Tips for STL to G-Code Conversion in SelfCAD

The following key points should be considered in STL to G-Code Conversion in SelfCAD:

• Try increasing your file's resolution to improve the quality of your files and achieve better results while slicing; this will make your model more accurate and detailed.
• You can choose your printer from a list of 3D printers that are included in the slicer. If your 3D printer is not listed, you can contact the SelfCAD team and they will be able to add it for you. The appropriate settings will immediately load in SelfCAD once you've chosen your printer.
• Select the appropriate infill rate. How much material will be placed into your model depends on this parameter. A stronger and more durable object will result from a larger infill percentage, but the printing process will take longer and make it more expensive.
• The requirement for support is yet another crucial setting to take into account. To protect your part from collapsing during the printing process, supports are structures that are produced alongside your part. They may be useful, but they also significantly lengthen and increase the cost of your project.

Conclusion

STL to G-code conversion can be a complex process, but with the right software, it can be easy and accurate. We hope this guide has helped you understand the basics of STL to G-code conversion and given you the information you need to use SelfCAD to convert STL to G-code.

---
