Cleaning 3D Printer Nozzle: How to do it Right
An FDM 3D printer consists of many parts; however, the nozzle is one of the most important. It is on the hot end where the melted material exits. Many people are unfamiliar with this component. It is usually threaded on one side, which is connected to the hot end, and on the other side, it has a smaller hole from where the filament is extruded.
The nozzle is involved in the extrusion of the printer; hence it is an essential component. If it is not working properly, it can create many printing errors. Different types of nozzles are made from different materials, with varying diameters and other characteristics, determining their performance and lifespan.
Everything changes or degrade over time, nozzles included. When nozzles get clogged and dirty and they are overused, they degrade. Therefore it is necessary to clean your printer’s nozzle regularly to ensure its proper working. By doing this, you can increase your nozzle's lifespan.
In this article, we will see the nozzle's cleaning process and how to maintain the nozzle clean and fix any problems that occur with the nozzle.
How To Decide Whether the Printer Nozzle Is Having Problems?
It is tricky to identify the clogged nozzles. However, some indicators quickly tell you about the blocked nozzles.
So, if you are finding bad print quality, you can tell that your nozzle is obstructed. Also, inconsistent extrusion, under extrusion, and missing layers are some of the problems of clogged nozzles. A partial blockage can create these problems; the stuck material can also cause a complete jam.
The improper first layer is another sign of nozzle clogging. If the filament is not extruded in the first layer, it will be the problem of nozzle congestion. Other signs of nozzle clogging are filament curling after the extrusion and thinner print lines. Recognizing these signs will help you clean the printer’s nozzle and avoid the risk of further problems.
How to Clean the 3D Printer Nozzle?
3D Printer Nozzle: Image Source: top3dshop.com
If there is a filament deposit on the outer surface of the nozzle, it is time to clean it. This is an easy process. You only need the brass wire brush and a wiping cloth to clean the outer surface. The brass brush can prevent damage to the brass nozzle, and you can scrub any stuck printed material on the nozzle.
Heat your 3D printer nozzle before starting the cleaning process. The heated nozzle softens the material stuck on it. That way, you won't have a problem wiping them out. After scrubbing the nozzle, wipe all the leftover things from the nozzle surface. Soft microfiber material can be used for this purpose. Now the nozzle is clean, and you can start printing with this nozzle.
How to Unclog the Nozzle of the 3D Printer?
There are many easy steps for cleaning clogged nozzles. Some of them are given below.
1. Use a Nozzle Cleaning Kit
A standard nozzle cleaning kit consists of a needle, tweezers, and a brush. Use all the tools and follow these steps to clean your 3D printer’s nozzle.
- First, heat the nozzle to its standard maximum temperature. This will help to soften the material stuck to the nozzle.

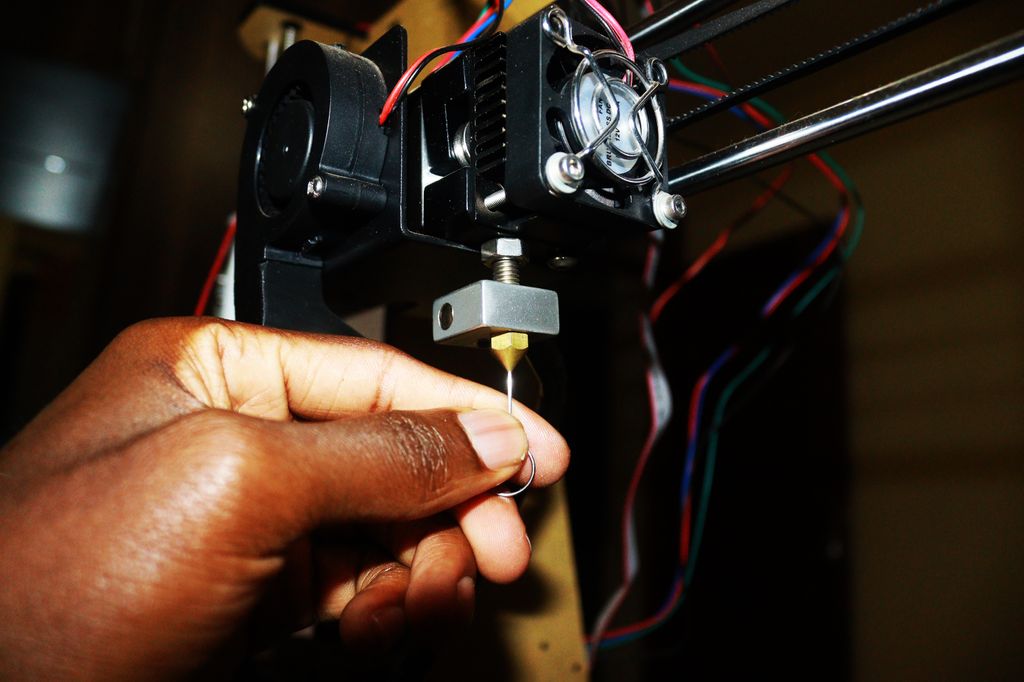

- Pick the larger pieces that block the filament using the cleaning kit's needles.
- Use the brush to remove the smaller bits of filaments.
- Lastly, use the tweezers to remove the final pieces of filament debris.
2. Soak the nozzle in the Acetone solution
Using a cleaning kit or the cold pull method is unsuitable for filaments like ABS. This cannot unclog the nozzle. Removing the nozzles and soaking them in acetone is the best solution for cleaning ABS filament waste.
Start the process by heating the nozzle before you remove it from the 3D printer hot end. The high temperature helps the nozzle free from the block and makes it easy to unscrew. Spanner or nozzle removal is used for safely and efficiently removing the nozzle.
After removing the nozzle, soak it in the acetone solution for at least 30 minutes. The acetone helps to dissolve the ABS filament, which is stuck inside the nozzle.
After cleaning the nozzle, you can reassemble the 3D printer and start printing again. Before using the nozzle on the printer, make sure that it is completely dry. You can use a paper towel or soft cloth for this purpose.
3. Clean the Nozzle by Using the Heat Gun
Acetone is effective for the ABS filament. But not for the other filaments. For example, Nylon and PETG are unreactive in acetone.
While dealing with these filaments, a heat gun is helpful to clear the nozzle. First, remove the nozzle from the hot end; for this, repeat the same procedure as in the ABS filament. The next step is to heat the nozzle by using the heat gun until the filament material is melted out from the nozzle. Once the filament is melted, use a thin needle or wire brush to remove the extra debris from the nozzle. Be careful while handling the heated nozzle.
After cleaning the nozzle, reattach it to the printer and start printing again. Before this, ensure that the nozzle is completely cooled down.
How to Prevent the 3D Printer Nozzle Clogging?
3D Printer Nozzle Clog: Image Source: 3dprintguides.com
1. Use the Cleaning Filament Regularly
Cleaning filament is the easiest and best way to clean the nozzle from the inside. They are particularly made for cleaning the molding machine from the inside. Any clogged particles can be easily removed from the nozzle.
The use of cleaning filament is an effective process. After specific use of the printing process, you can use the cleaning filament regularly.
2. Replace the Worn-Out Nozzle
The constant friction of the filament causes wear and tear of the nozzle. This wear increases when the filament is abrasive, such as carbon fiber or metal-filled. The filament not only wears the nozzles but can also clog the nozzle from the inside by accumulating small metal particles. If you notice the nozzle wearing, you must replace it immediately.
3. Use High-Quality Filament
If the filament is of high quality, it can reduce the clogs and give you superior print quality. It will reduce impurities, and it will have a consistent diameter if produced in a dust-free environment and this ensures that there are no clogs in your nozzle.
Best 3D Modeling and Printing Software - SelfCAD
SelfCAD is one of many 3D modeling software options available for 3D printing. SelfCAD can be downloaded or used online. In addition to being suitable for beginners, it is also ideal for professionals. In addition to being easy to use, SelfCAD has a simple user interface that users can learn easily without taking much time in learning.
SelfCAD also comes with a powerful 3D rendering engine that you can use to generate realistic renders of your designs with ease. A 3D slicer is also included, which makes it simple to slice your models and get the G-Code for your 3D printer. It is the most affordable professional 3D printing equipment accessible, both for beginners and experts.
Conclusion
Every 3D printer user has to clean the parts of the 3D printer regularly. Maintaining the 3D printer is the best thing to avoid the problem. If left unattended, they pose a safety hazard. Nozzle cleaning is one of the most crucial cleansing activities. Cleaning the nozzle gives the best results for many users in their 3D printing. If the nozzles are worn down, you must replace them regularly. Eventually, cleaning the nozzle might become a habit for you which in turn maintains the print quality of your 3D printer.
