The Five Best Belt 3D Printers

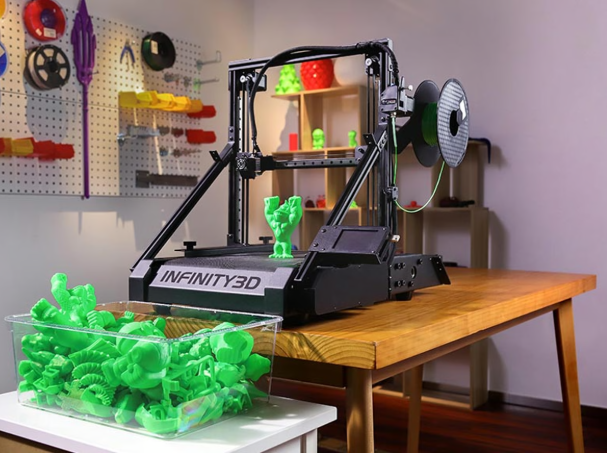

Best Belt 3D Printers: Image Source: clevercreations.org
3D printers have been around for a while now, and their popularity has only grown in recent years. But what are belt 3D printers? Belt 3D printers are a type of 3D printer that uses a continuous belt rather than a build plate. This allows for large and complex prints that would be otherwise impossible with a traditional 3D printer. Belt 3D printers are also much faster than their counterparts, making them ideal for industrial applications. Plus, the lack of a build plate means that there is less chance of warping or other defects. If you're looking for a powerful and versatile 3D printing solution, a belt 3D printer is definitely worth considering.
What Are the Benefits of Using a 3D Printer on a Belt?
A belt 3D printer's ability to print long objects in three dimensions is one of its significant benefits. You may create big model buildings, swords, and other things that would not fit on a conventional FDM printer since a 3D printer has no limits in the Z direction. 3D models can be printed indefinitely as long as you can sustain your parts beyond the belt's length. For this reason, some belt 3D printers have a detachable extension bracket accessory. Alternatively, you can automate your printing procedure with belt 3D printers. You might not want to expend the effort of removing the components from the print bed, wiping it off, and then starting a new 3D print each time if your work involves printing several parts in 3D.
Advantages:
- Unlimited z-axis allows for 3D printing of any length.
- Bulk 3D printing is affordable.
Disadvantages:
- Enclosure-free 3D printers without belts.
- A surface finish that is rougher than glass print beds.
- Only a few slicer choices.
- Extra support structures are necessary.
Important Factors to be Considered When Buying a Belt 3D Printer
- Slicer Support: The design of belt 3D printers is unique. Traditional slicer software setups cannot be used to slice models due to their inclination printing angle. Slicing support for belt 3D printers is rather limited in major slicers because these printers are still relatively new.
- Build quality: Budget 3D printers usually have low build quality. However, good build quality is crucial in the case of belt 3D printers. Long-term 3D prints benefit from a robust structure's ability to support the prints well.
- Filament sensor: Any belt 3D printer must include the filament sensor. Its purpose is to let you know how much filament is fed into the printer. The sensor will alert the printer and halt the printing process if your filament spool runs out or the filament breaks in the middle of a 3D print.
- Belt material: Belt 3D printers have fewer build platform options than conventional FDM printers, which can employ a glass bed, PEI-coated spring steel, BuildTak surfaces, and more. There are simply not many choices to replace the belt with. This is why getting a belt 3D printer with a firm belt surface is critical.
Best 3D Printer Slicer - “SelfCAD”
There are various 3D modeling software that you can use with your belt 3D printers. A good example is SelfCAD. SelfCAD combines both 3D modeling and slicing features under one program. You can design both simple and complex designs and after the design process, you can use the in-built 3D slicer to prepare the model for 3D printing. Changing the settings of the in-built slicer of SelfCAD based on one's needs is quite simple. You can alter the print quality, infill, support, print bed settings, and materials to achieve ideal print settings. You can view the time it takes to print your object in the slicer and how much material you need.
The software has interesting tools like the sculpting that allows you create organic designs with ease. There are also freehand sketching and 3D drawing tools for creating designs from scratch. There is image to 3D model tool which makes it easier to turn 2D photos to 3D models at a click of a button. There is also a powerful rendering tool that makes it easier to generate realistic 2D images for your 3D models.
5 Best Belt 3D Printers
1. Blackbelt 3D

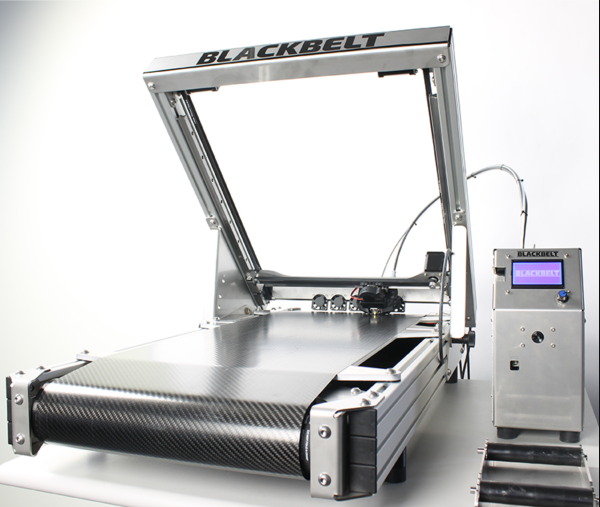

Blackbelt 3D Printer: Image Source: blackbelt-3d.com
The first commercial 3D printer to implement unlimited Z-axis was the Blackbelt. Industrial applications for belt 3D printing were made possible by its ground-breaking design and premium components. The belt securely holds your prints in place and comprises a strong carbon fiber composite material. Its modular architecture enables rapid printhead assembly swapping for flexible filament printing. The Blackbelt team can also modify the printer to fit your 3D printing process perfectly.
The printer's industrial linear guides enable a smooth motion, and you can change the printer frame's inclination degree. It is made with industrial applications in mind, has a premium design, and has a durable build quality. The Blackbelt will be your best option if your budget allows for a conveyor belt 3D printer that costs more than $10,000.
2. White Knight Belt 3D Printer

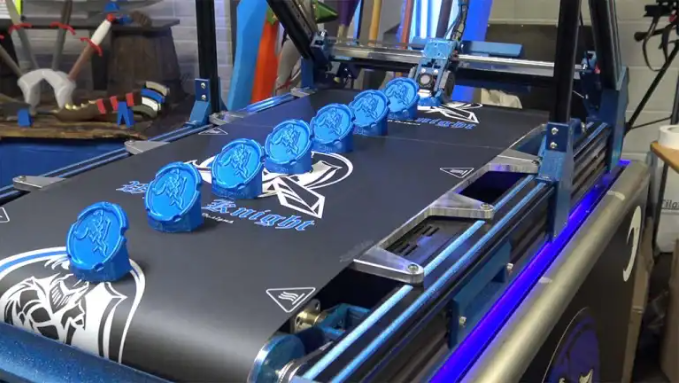

White Knight Belt 3D Printer: Image Source: 3ddistributed.com
White Knight Belt 3D Printer comes in handy if you are interested in building your own belt 3D printer. It is an open-source conveyor belt 3D printer created by NAK 3D Designs. It contains high-quality components yet is far less expensive than comparable ready-to-buy products.
With its CoreXY construction, the White Knight features a 400 mm x 430 mm print area. It is intended to work with an all-metal hot end and a Duet WiFi 3D printer controller board. Additional tools for producing top-notch 3D printing quality include the Bondtech Extruder and the BuildTak printing surface.
The White Knight is a tribute to the open-source and 3D printing communities and, if you're up for making it, a terrific addition to your 3D printing setup.
3. Creality 3DPrintMill

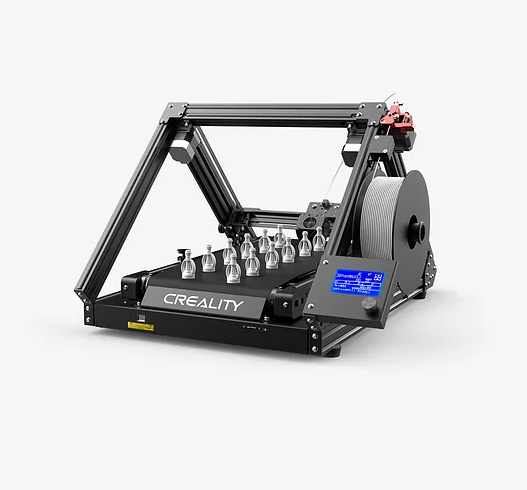

Creality 3DPrintMill: Image Source: 3dprinters.com
The Creality 3DPrintMill is one of the popular belt printers. Also known as the CR-30, it is the outcome of a protracted partnership between well-known 3D printer maker Creality and DIY YouTuber Naomi Wu. It was released on Kickstarter in late 2020. After successfully exceeding the initial funding target on Kickstarter, the printer was mass-produced and offered for sale at a reasonable price of about $1,000.
A full-size SD card port, a fast-heating hot end, and a 32-bit motherboard are just a few significant aspects the printer has undergone from early pre-release versions. As with other belt 3D printers, the printer's frame is quite substantial, so you should be able to print fairly broadly. The 3DPrintMill also incorporates a CoreXY motion technology for its XY-plane mobility, allowing quick and precise printhead movements.
4. Sainsmart Infi-20

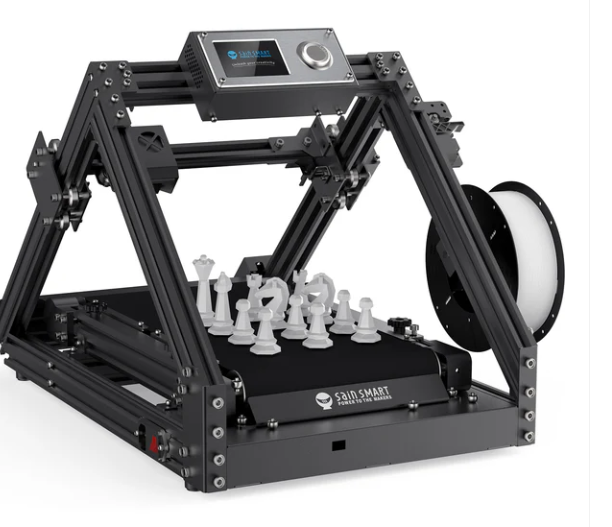

Sainsmart Infi-20 3D Printer: Image Source: sainsmart.com
Third, the Sainsmart Infi-20 closely resembles the Creality 3DPrintMill, which may be due to the fact that Sainsmart is a partner of Creality and helps to market and sell other Creality printers. The Infi-20 appears to be a bit thicker than the other belt printers on the list, but it's still a fantastic choice, especially considering its inexpensive cost of under $900!
With the printer's top-mounted LCD interface and 32-bit Wi-Fi chipset, you can manage your printer from a distance. The Infi-20 uses separately controlled axes and isn't a CoreXY machine like the 3DPrintMill. A filament runout sensor is another feature of the printer that helps print large models constantly without worrying that your print may end earlier than expected.
5. IdeaFormer IR3

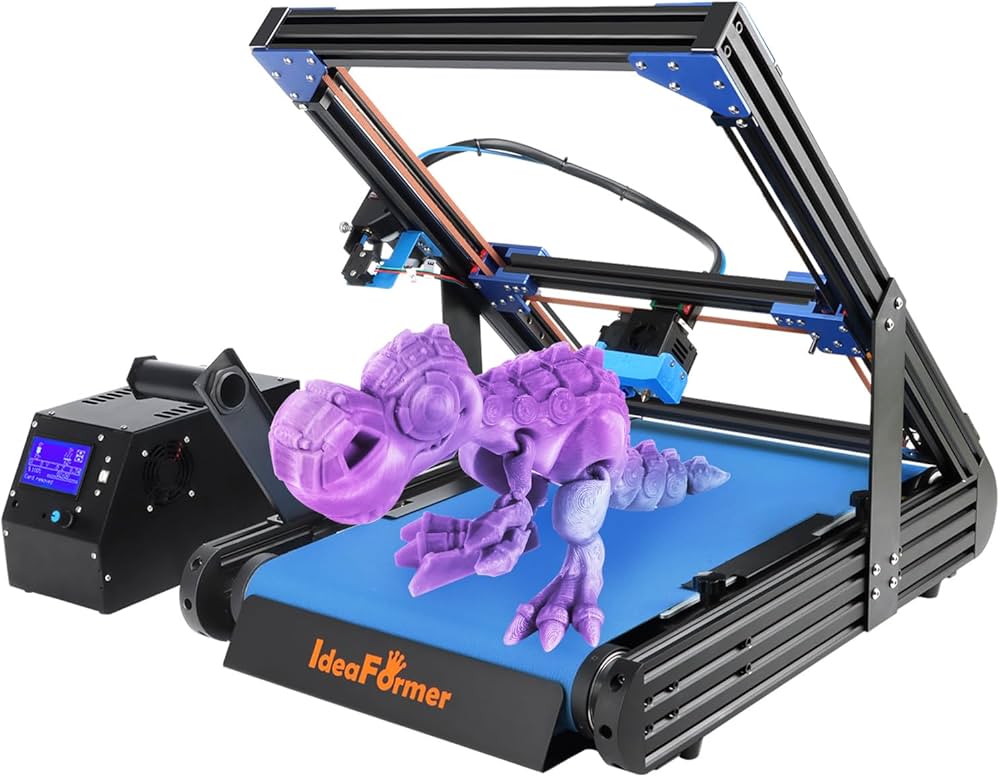

IdeaFormer IR3 3D Printer: Image Source: alibaba.com
A desktop-sized conveyor belt 3D printer designed for customers on a tight budget is the IdeaFormer IR3. It has a straightforward design and includes standard functions for a cheap 3D printer; however, it is packaged as a belt printer. The printer has a CoreXY construction, and the print surface is a PU polyester belt. The XY axes have linear guides for smooth and accurate movement. The printer's hot end is unique to it and includes a two-gear extruder as well as a filament breakage detector. These essential components are made to deliver dependable 3D printing over an extended period. The IdeaFormer I3 is a great choice if you can live with its restrictions and want to try out printing with a cheap belt 3D printer.
Conclusion
There are several uses for belt 3D printers. The potential benefits of 3D printers are intriguing, especially for desktop applications that may be used at home. The technology is just as interesting for those who frequently create prototypes in various professions, work in design, or wish to put novel ideas into practice. You don't really need this technology if you only want to print a few little home items or the occasional small figurine, sculpture, or piece of art. As the devices are used more frequently, they will be enhanced, making it possible to process unusual filaments in the future, simplify print monitoring, and reduce the risk of printing errors.
