Best 3D Models of Hinges to Download and 3D Print
3D printing technology has revamped the manufacturing industry by providing innovative solutions for various applications. One such venture is the production of hinges using 3D printing techniques.
Your excitement for 3D printing may be shaken by the different options available. As you read further, you’ll eliminate the confusion and identify the best 3D-printed hinges. Hinges are mechanical devices used to connect and rotate two objects. Their benefits of providing support, stability, and smooth movement of two connected things are the reasons for their high demand. Different hinges have varying uses, applications, and advantages. They have various benefits for gates, doors, industrial machinery, cabinets and furniture, and other foldable structures.
Most people prefer 3D printing hinges over traditional ones to easily create custom-fitted parts for their projects.
The List of 7 Best 3D Printed Hinges You Should Check
1. Standard

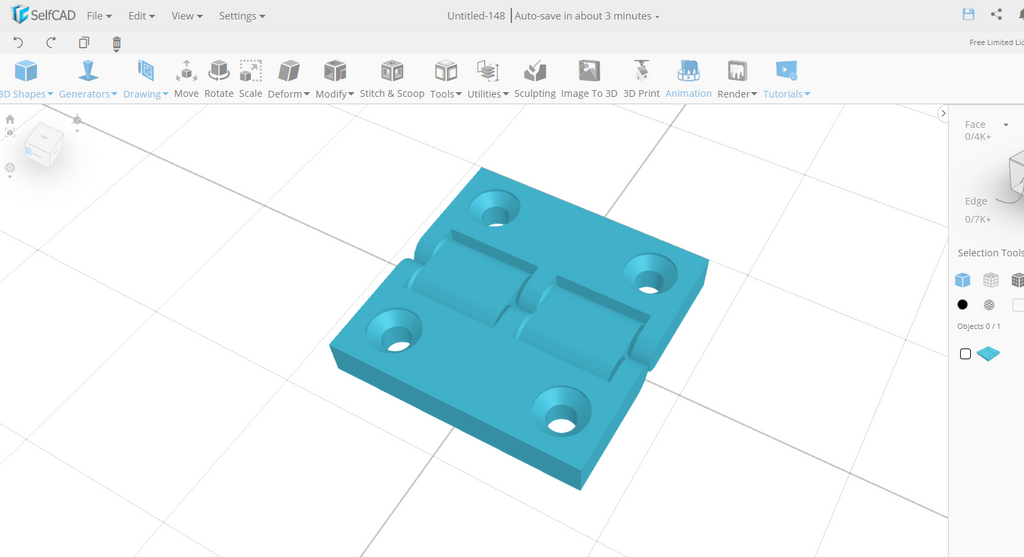

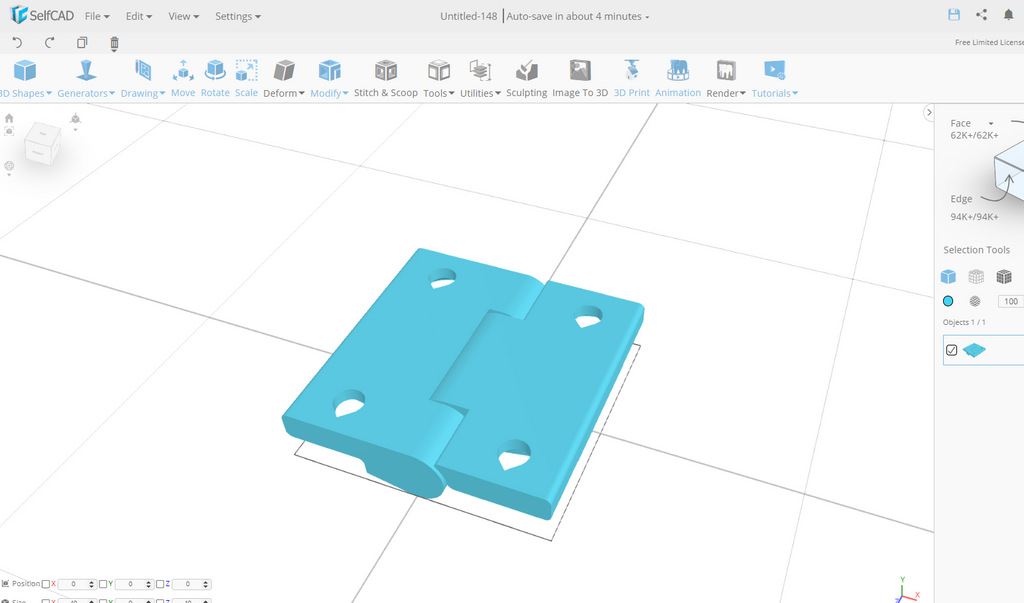

Modifying a standard hinge in SelfCAD
Standard hinge has a basic and simple design with dynamic uses, such as foldable furniture and display devices. This mechanical joint facilitates rotation/movement between two parts. It has two screw holes on each side. Its design depends on its precise application and requirements. You can use CAD software and consult design guidelines for the expected output.
Expert suggestions -
Print the standard hinge in PLA or PETG. The standard hinge's infill density is 50 to 100% with a 0.2 mm height layer.
Merits
-Cost-effective - You can create a standard hinge at a comparatively low cost, particularly for small applications and one-off designs.
-Rapid Prototyping - You can effortlessly repeat the created designs and test their functionality.
Demerits
-Post-Processing Efforts - Post-processing requirements include time-consuming steps like polishing, assembly, or sanding.
-Size Limitations - Its size specifications are limited.
Download link: Thingiverse.
2. Reversible
Modifying a Reversible hinge in SelfCAD
Reversible is the most preferred hinge because of its large degree of movement in both directions - you can easily open, close, and rotate back. Its two axes on each side ease the indications. That is used on panels like a door. The reason behind its strength is PETG filament. Before designing it, consider its geometry to facilitate the interlocking components. Ensure its materials have longevity and strength. You can choose any material - Nylon, PLA, or ABS.
Mertis
-Flexibility - Regarding limited rooms, reversible can be your top choice. That allows you to open the door in either direction.
-Aesthetics - Smooth and modest design of this hinge is visually appealing and attention-grabbing.
Demerits
-Complexity - Its different components increase the probability of usage-related damage across time. So, frequent repairs are needed.
-Noise and stability - It has many moving parts that lead to noise and stability problems.
Download Link: Thingiverse.
3. Sliding

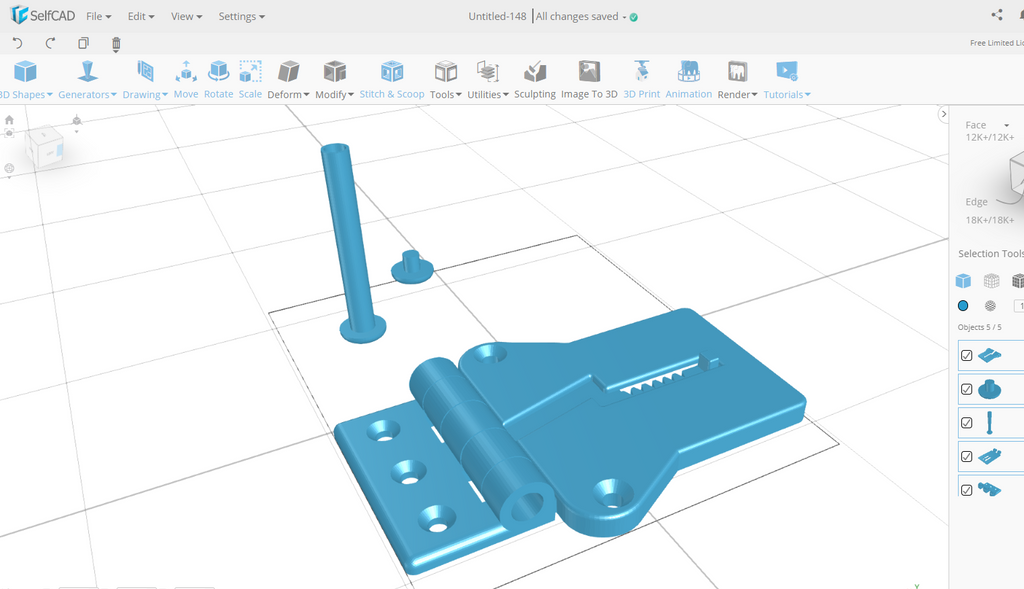

Sliding Hinges being modified in SelfCAD
People choose sliding hinges for their smooth and noise-free movement. A track and a sliding bracket are two primary components of a sliding hinge. It offers versatile solutions such as usage in furniture designs (fold and unfold doors, etc.)and laptop computers (to open, close, and fold back the screen entirely)
It opens 90 degrees, and one of its slides extends before the hinge rotates. The suggested infill density for sliding is 30%.
Mertis
-Space-saving - Sliding is the best operational hinge in case of limited space. Because it doesn’t require swing clearance, you need to put a slide parallel to a surface.
-Accessibility - It provides much better accessibility than traditional hinges. That is useful in crowded rooms.
Demerits
-Limited opening width - It has a less range of motion that allows less pivoting. So, it affects its functionality in specific situations.
-Installation complexity - It has a more complex installation than other hinges because of the requirement of extra hardware such as rollers, tracks, or guides.
Download Link: Thingiverse.

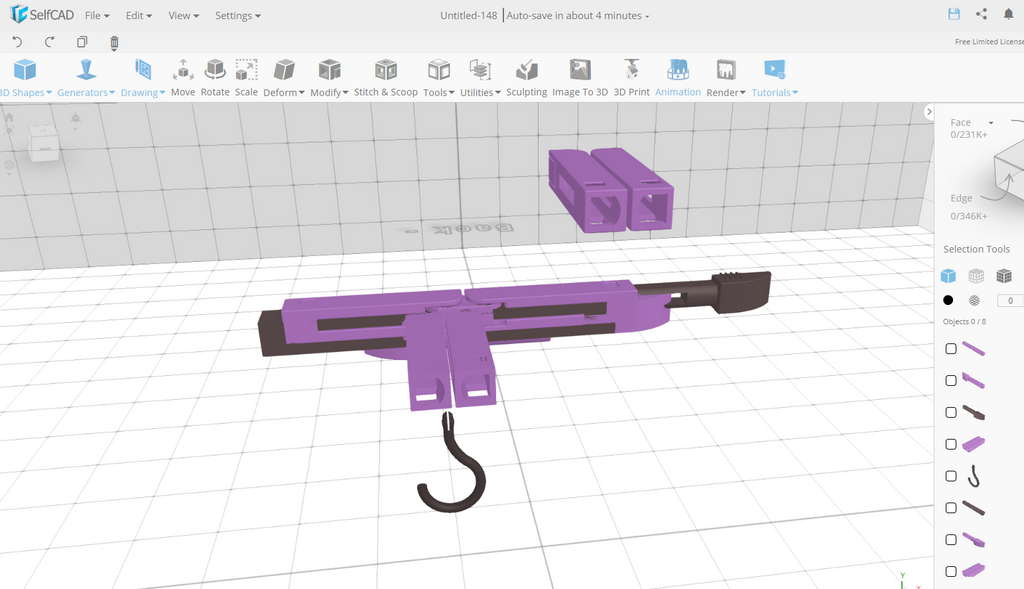

4. Folding Coat Hanger
The portability of folding coat hangers makes them the first choice of travelers to sort and organize their wrinkle-free clothes. They are ideally chosen for packing in gym bags, suitcases, or backpacks. You can manage your closet by employing it. It is made up of eight 3D printable pieces with two combined hinges. It has metal or plastic frames. Primary considerations regarding folding coat hangers are weight capacity, durability, and easiness to use.
Mertis
-Portability - Easy to fold the coat hanger that you can carry in a bag or luggage without fear of damage and covering less space.
-Organization - You can stay organized and maintain the proper folding of clothes using a folding coat hanger.
Demerits
-Weight Capacity - These are designed to be lightweight and portable. So, they are not rigid and robust enough to hold heavy-weight items like winter clothes.
-Less durable - It includes many moving parts that can be the reason for their wearing down.
Download Link: Thingiverse.
5. Parametric
Parametric has a primitive structure having a print-in-place option. That is designed in OpenSCAD. It comes with the benefits of being versatile and easy to use, such as customizing it by changing its design element, size, and numbering of mounting holes on the hinge. You can easily adjust it per your requirements and the material to post on.
Mertis
-Customizable - Adaptable Parametric to your specific needs. With its changeable arms or hooks, adjust its width and height to use the hanger, conforming to the shape and size of the clothing.
-Space-Saving - Optimize space by organizing and storing different clothing sizes and reducing the number of required hangers for certain garment items.
Demerits
-Cost - Parametric’s high price resists many individuals from investing in these remarkable hinges.
-Learning Curve - Further efforts are required to adjust the parametric hangers for the learning curve. That involves identifying the optimal position for various garment items.
Download Link: Thingiverse.

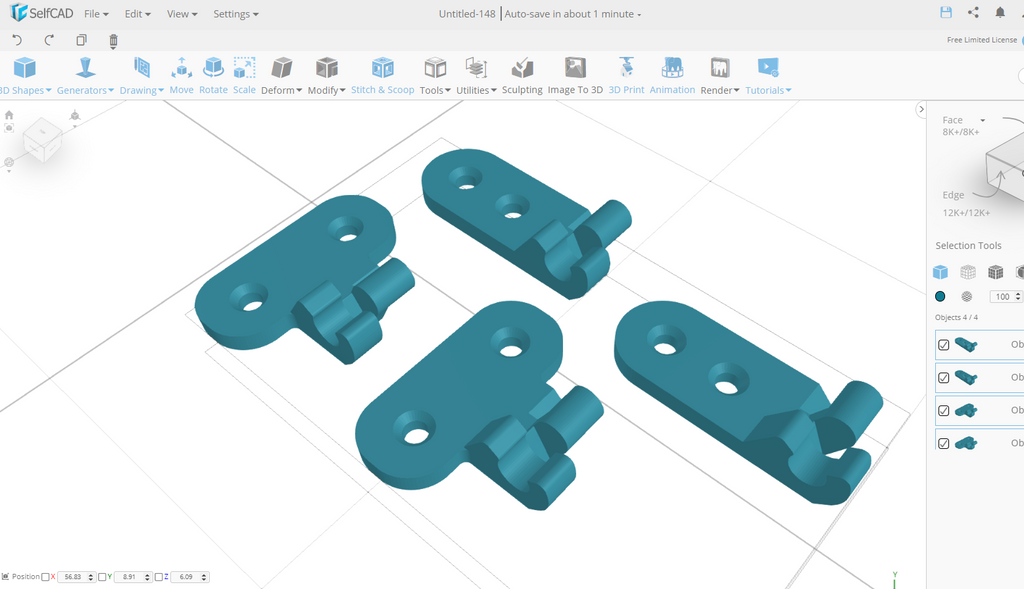

6. Modular
Modulars’ flexibility in movement in all directions makes them the best choice. It contains two hinge models, which are easy to link for a functional hinge. It has the T structure of the modular hinge parts. The primary requirement is to put and assemble together its different elements. It is also considered the best alternative to print-in-place designs.
Mertis
-Future adaptability - You can reconfigure them by modifying and altering them without any cost or complete replacement.
-Maintenance - Effortless to repair them by replacing specific damaged parts without working on the entire setup. Time and energy saving.
Demerits
-Poor durability - Additional components for its movements increase the chances of damage. However, it depends on the quality and design for its durability.
-Complexity - Different components are included in its formation. So, paying deep attention to assemble and adjust it per their requirements can be challenging for beginners.
Download Link: PrusaPrinters.
7. Bag Clip

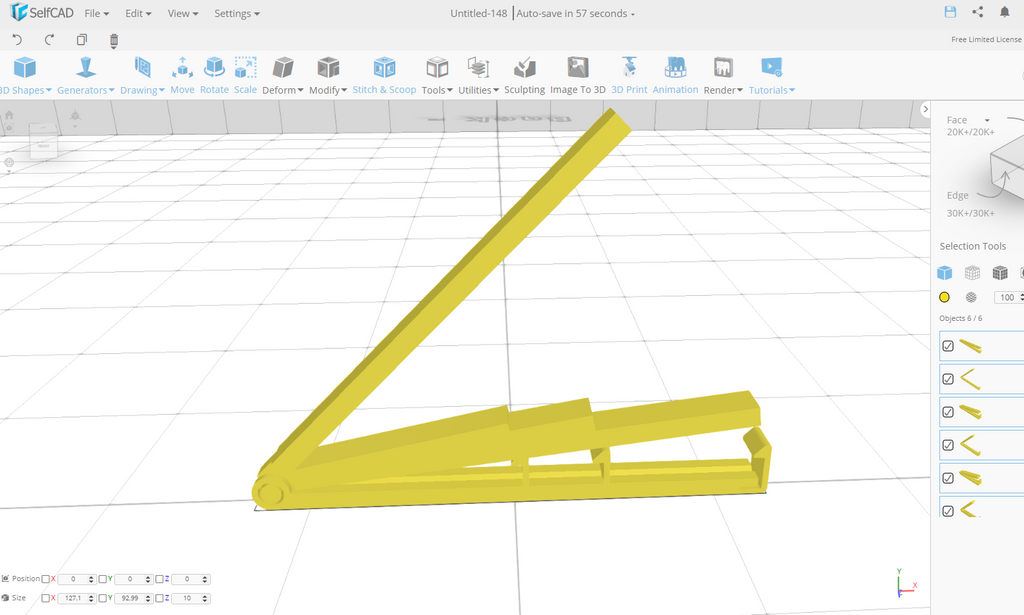

Bag clip being modified in SelfCAD
Bag clip hinges are small tools known as bag clip fasteners or bag clip clasps. The primary purpose of these bag clips is to secure the edible in opened bags by sealing them. The hinge mechanism used in the bag clip ensures the maintenance of food quality. It contains two plastic or metal jaws attached to the hinge mechanism. These jaws are used to open and close the grip of the bag’s opening. It resists air, contaminants, and moisture from entering the bag by sealing it.
Mertis
-Convenience - Bag clips are reusable and easy to use than other convenient ways of sealing the packets—accessible food items with their topmost maintained quality.
-Durability - It is made of durable materials like plastic and metal. So, you use them in long-terms for repetitive purposes.
Demerits
-Size Limitations - Despite their size variability, they can not seal large-sized and thicker bags.
-Limited Versatility - Bag clips are used only for sealing bags, limited to only one purpose. Moreover, they are not versatile enough to seal containers.
Download Link: Thingiverse.
Best 3D Modeling Software for Creating Hinges
When it comes to creating hinges using 3D modeling software, SelfCAD is the ultimate choice. SelfCAD offers a comprehensive set of features and tools specifically designed for precise hinge design and modeling. Here's why SelfCAD is the best software for creating hinges:
-Intuitive design tools: SelfCAD provides a wide range of intuitive design tools that simplify the process of creating hinges. From basic geometric shapes to advanced modeling techniques, SelfCAD offers versatile tools that allow users to design hinges with various configurations and functionalities precisely.
-Parametric modeling: SelfCAD's parametric modeling capabilities enable users to create customizable hinges. With this feature, users can easily modify the dimensions, angles, and other parameters of the hinge design, ensuring a perfect fit for their specific needs.
-Interlocking mechanisms: SelfCAD supports the creation of intricate interlocking mechanisms for hinges. Users can design hinges that incorporate precise interlocking features, providing stability and smooth movement for the assembled parts.
-Mechanical simulation: SelfCAD offers mechanical simulation tools that allow users to test the functionality and performance of their hinge designs. Users can simulate the movement of the hinge, detect any potential interferences or clashes, and make necessary adjustments to optimize the design.
-Seamless 3D printing integration: SelfCAD integrates seamlessly with 3D printing, allowing users to easily export their hinge designs in various file formats compatible with 3D printers. The software provides slicing capabilities to optimize the printing process, ensuring accurate and high-quality prints of the hinge models.
-User-friendly interface: SelfCAD features a user-friendly interface that caters to both beginners and experienced users. Its intuitive layout and easy-to-use tools make it accessible for anyone looking to design hinges without a steep learning curve.
Embrace the World of 3D Printing, One Hinge at a Time
We have described some of the best designs for hinges that you can download, customize and 3D print. If you don’t find the designs that are appropriate to you, you can design your own in a 3D modeling software like SelfCAD and even prepare it for 3D printing. This will also give you an opportunity to learn how the software works and get a proper understanding of the majority of the tools.
