How to Navigate the 3D Workspace
A 3D workspace is the environment in which 3D objects are designed. It is typically used for CAD (computer-aided design) or CAM (computer-aided manufacturing) applications. 3D workspaces provide various tools and features that enable users to create 3D models and manipulate them in multiple ways. The users can interact with the workspace in a number of ways. They can move, rotate, and resize objects and manipulate their properties, such as color and texture. In this guide, we'll go over some of the basics of navigating a 3D workspace so that you can get started.
The Importance of Understanding to Navigate 3D Workspace
Understanding 3D Workspace is essential for all 3D designers, artists, and engineers, as it provides them with the platform and environment to create and manipulate 3D models. It is an important tool for visualizing and designing objects of different complexities. The following are some of the benefits of understanding to navigate the 3D workspace:
1. 3D workspace helps in creating realistic models: Users achieve this by manipulating objects, textures, lighting, and other elements that can be used to create a realistic 3D environment.
2. It aids in a faster design process: With the help of 3D Workspace, designers can create designs faster and more efficiently. This helps them to save time and money, as well as increase the quality of the design.
3. It increases the level of accuracy: Understanding a 3D Workspace helps designers to create highly accurate models, which allows them to reduce errors and increase their efficiency.
4. It helps in creating better animation: It’s easier for designers also to develop better animations and motion graphics in a 3D workspace. This enables them to make more realistic animations, which can be used in movies, television shows, and video games, among other types of media.
5. It helps in better visualization: Users can visualize 3D models in real time and make changes to the design as they go along. That means the designers are able to get a better understanding of the design better
6. It enables easier collaboration: With 3D Workspace, users can collaborate with each other to create better designs. This, in turn, helps to increase efficiency and reduce costs.
Setting Up 3D Workspace
Setting up a 3D workspace is the first step when using 3D software. It is important to ensure the environment is configured to your liking before you start creating. The workspace is the user interface where you will be spending most of your time. You can customize it to fit your needs and preferences. Generally, the 3D workspace will include a scene view, a viewport, a timeline, a material editor, and a toolbox.
The scene view is the primary view of the 3D world, where you can position and orient objects. The viewport allows you to view the scene from different angles and distances. The timeline will enable you to create and edit animation frames. The material editor is where you will develop materials and textures. Finally, the toolbox contains tools and settings that are used to create and manipulate objects. Once everything is set up, you can start creating your 3D designs.
Choosing the Right Software
There are various possibilities if you seek 3D software with a simple workspace. For users of all levels, we recommend using SelfCAD. SelfCAD is a 3D modeling software that was designed to address the need for a simple and easy-to-use program. The intuitive workspace of the software allows users to quickly learn the basics and then move on to more advanced features.
SelfCAD comes with various basic shapes that one can modify them to create complex 3D models as shown below.
It also has interesting drawing tools that are used to create the initial basis for 3D models. They include tools for drawing lines, curves, and texts. The line drawing tool allows users to draw straight lines, arcs, and circles with ease. It also allows users to draw complex shapes by combining multiple lines. The curve drawing tool lets users draw curves of different shapes and sizes.
SelfCAD also offers a range of powerful sculpting tools that allow users to manipulate and refine their 3D models with precision and ease. These tools include brushes for pushing, pulling, and smoothing, which can be used to create complex and detailed organic designs.
Tips for Effective Navigation of 3D Workspace
Effective 3D workspace navigation is crucial for productivity and successful design. Here are some tips to assist you in utilizing a 3D workspace:
Become familiar with the controls: Recognize the navigation controls unique to your application or tool. The mouse or trackpad is frequently used for rotation, panning, and zooming. Learn the keyboard shortcuts for navigating through the various modes.
Use Keyboard Shortcuts and Hotkeys: For often-used operations like rotating the view, altering the perspective, or switching between multiple camera views, make use of keyboard shortcuts and hotkeys. Utilizing and memorizing these shortcuts will significantly accelerate your workflow.
Use Mouse/Trackpad Gestures: Numerous 3D applications are compatible with mouse and trackpad gestures. For instance, two-finger movements can be used to pan or zoom, and three-finger gestures for rotation. Familiarize yourself with these gestures to navigate more intuitively.
Utilize Viewport Controls: The majority of 3D software offers extra viewport controls, such as orbit, trackball, or fly-through modes. Try out different combinations of these controls to determine which one best fits your workflow. Check the software's ability to let you edit or produce your own navigation settings as well.
Utilize Focus and Selection Modes: Some software has focus or selection modes that let you focus on particular items or scene aspects. Limiting movement to the chosen objects or concentrating the camera on a specific region of attention can make navigating simpler.
Consider putting up unique views or cameras if you frequently need to look from particular perspectives or situations. As a result, you may rapidly switch to predefined viewpoints and preserve them, which is useful for navigating consistently or showing your work.
How to Navigate a 3D Workspace With SelfCAD (Overall best 3D Design Software)
In this section, we are going to look at how to navigate a 3D workspace with SelfCAD. The software offers a streamlined workflow and user-friendly tools for quick 3D designing. The following are the steps to navigate a 3D workspace in SelfCAD:
1. Launch SelfCAD
Open SelfCAD in your web browser and log in to your account.
2. Import or Create 3D Objects

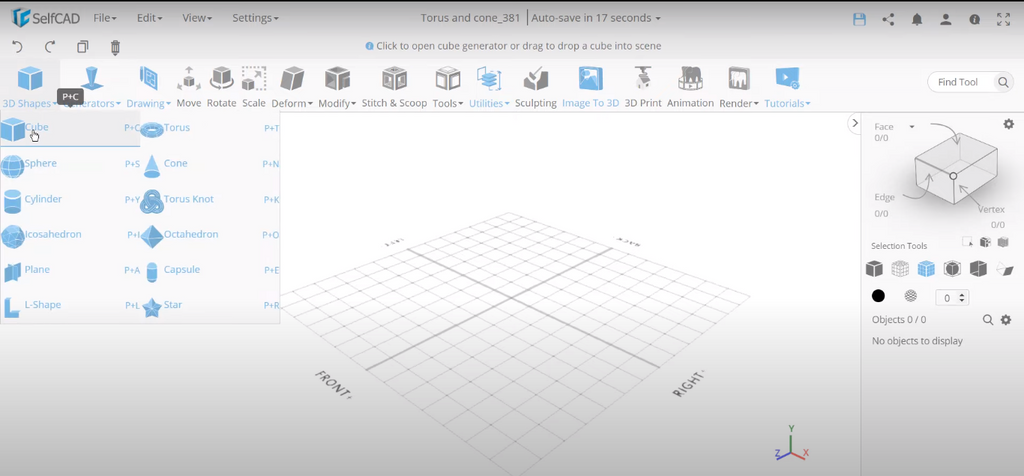

Import existing 3D objects or create new ones using SelfCAD's design tools and 3D shapes. SelfCAD offers a wide range of built-in 3D shapes, such as a cube, spheres, cylinders, cones, and Torus, among others, that you can use as a starting point or incorporate into your designs. SelfCAD also provides more complex shapes like gears, spirals, text, and various other pre-designed objects that you can incorporate into your designs.
3. Moving 3D Objects

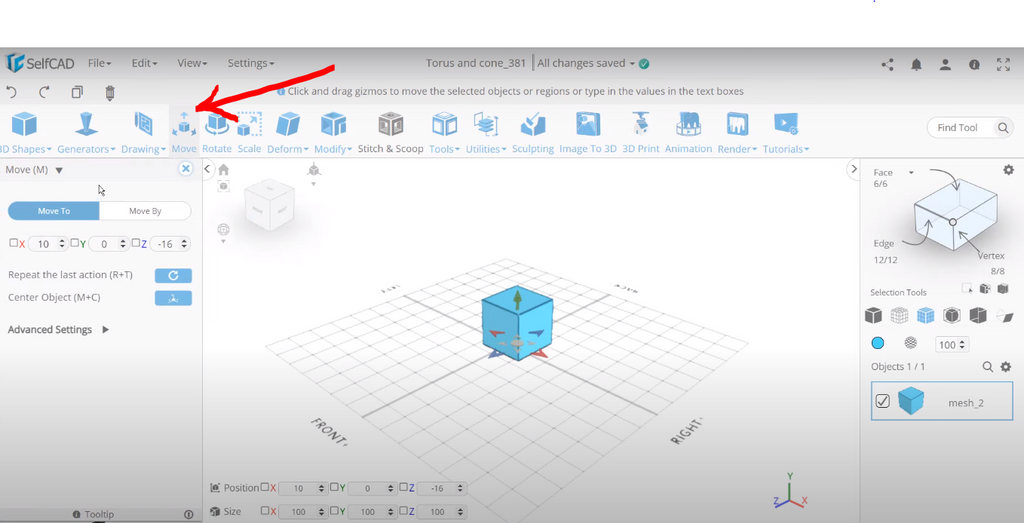

The move tool is used to move objects around in the workspace. To use it, select the object you want to move, and click on the Move Tool icon (located on the left-hand side of the screen).
Adjust the position of the object by clicking and dragging the colored arrows representing the X, Y, and Z axes. The red arrow represents the X-axis, the green arrow represents the Y-axis, and the blue arrow represents the Z-axis. Alternatively, you can manually input precise values for translation in the "Transform" tab on the right panel.
4. Scaling 3D Objects

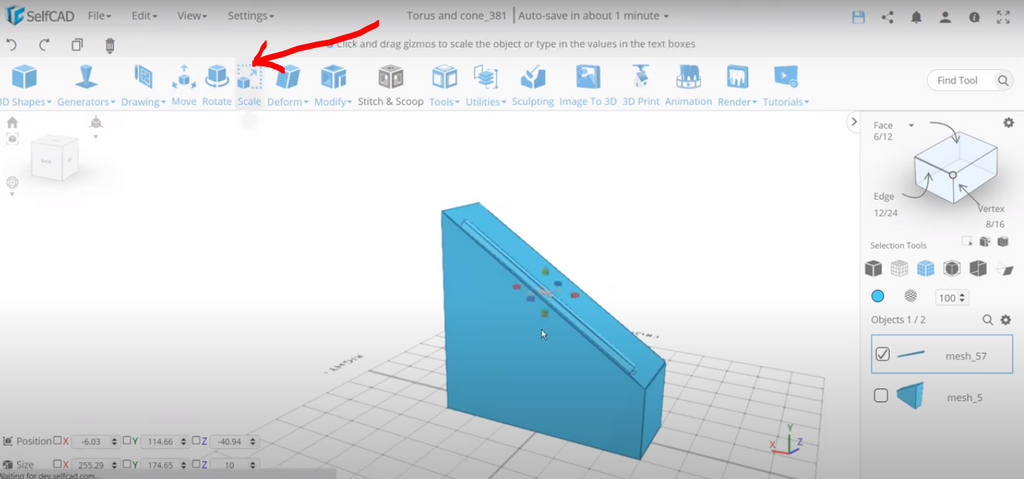

The scale tool is used to resize objects in the workspace. Select the object you want to scale to use, and click on the Scale Tool icon.
Adjust the scale of the object by clicking and dragging the colored boxes at the corners of the object. You can manually input precise values for scaling in the "Transform" tab on the right panel.
5. Rotating 3D objects

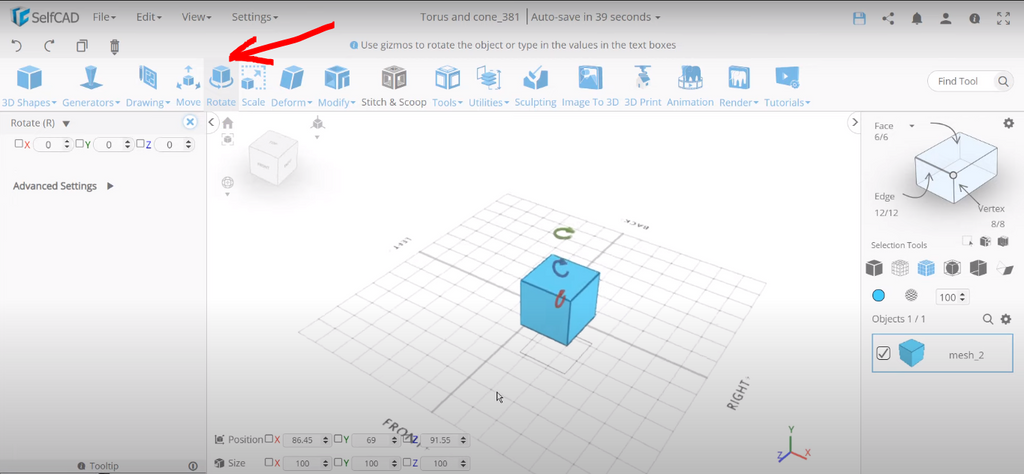

The rotate tool is used to rotate 3D objects in the workspace. Choose the object you want to rotate by clicking on it to use it. Look for the Rotation Tool in the toolbar. It is usually represented by an icon that resembles a circular arrow or a rotation symbol.
Then adjust the rotation of the object by clicking and dragging the colored arcs representing the X, Y, and Z axes. The red arc represents the X-axis, the green arc represents the Y-axis, and the blue arc represents the Z-axis. As mentioned earlier, you can still input precise values for rotation in the "Transform" tab on the right panel.
6. Understanding Pivotal Points
Pivotal points refer to the anchor points on an object that serves as the reference point for any transformations (e.g., moving, rotating, scaling) applied to the object. In SelfCAD, the pivotal point is represented by a small sphere. You can change the pivotal point by selecting the object, clicking on the move, rotate, or scale tool, and then clicking on the desired pivotal point location (e.g., center, corner, edge).

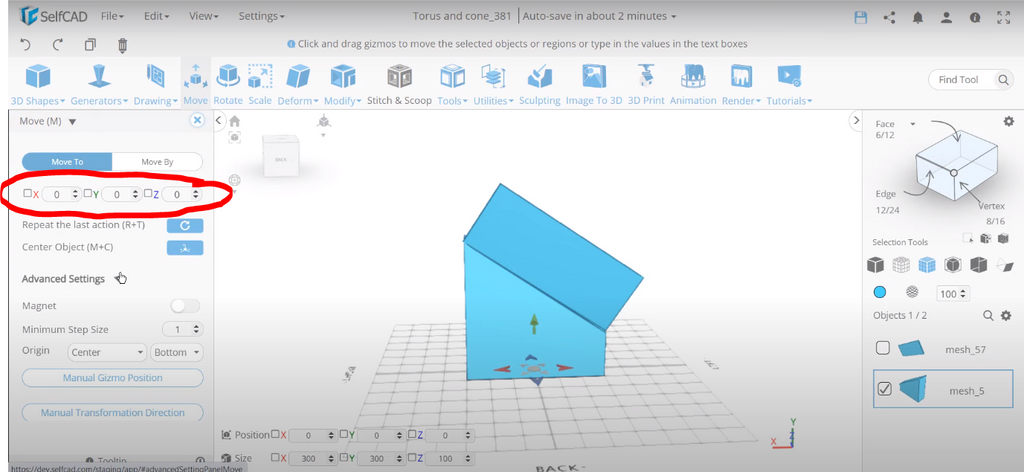

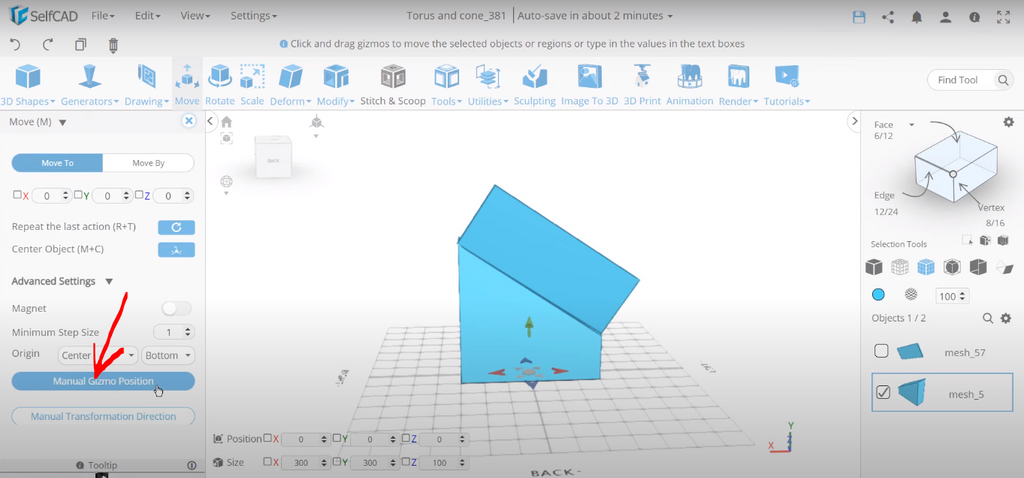

For example, Select the object, then activate the Move Tool (You can use rotate or scale tool as well). Clicking the Move Tool, you will realize the position is at default: X(0), Y(0), and Z(0). On your left side, there are Advanced settings given. To change and adjust the pivot points to your preference, use the Manual Gizmo Position option.

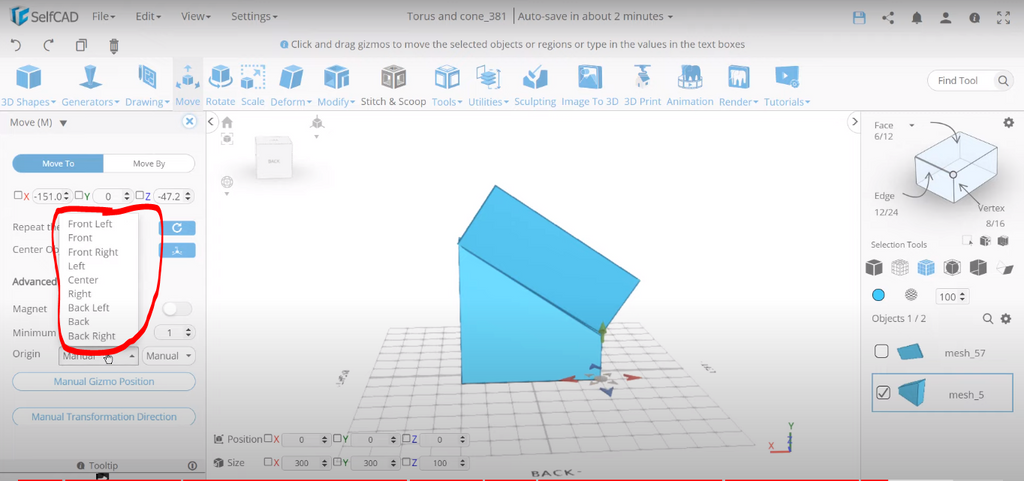

Then choose where you want to position your pivot points in the choices given:
You can note that the gizmo position is at the Back Left. Using SelfCAD, it is therefore easy to understand Pivot points as a 3D artist or beginner.
7. Taking Measurements
As a 3D modeler taking measurements, one thing to note is that the 3D workspace is infinite. That means you are the one choosing the measurement of your workspace. All measurements start from the center of the workspace, except when you have changed the pivot point in your 3D object.
To take measurements of the 3D object:

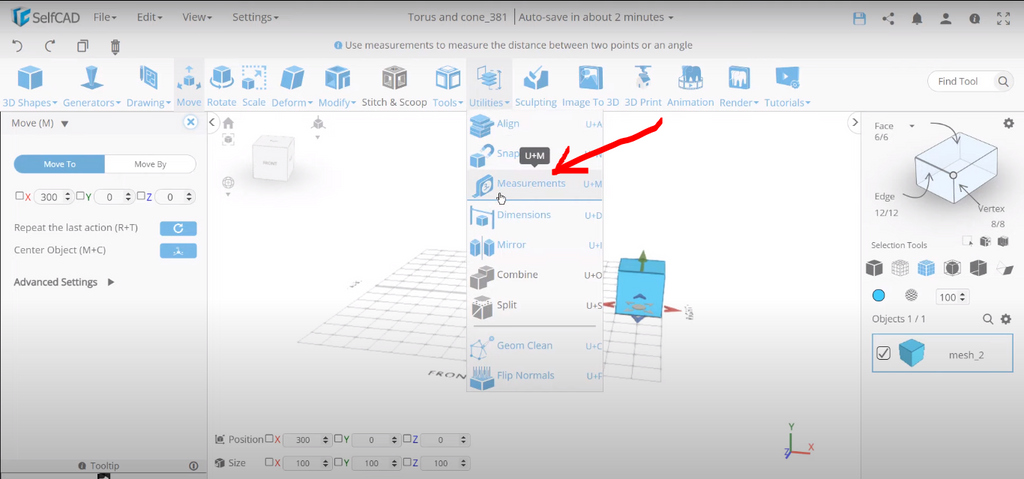

Select your object, then click on the "Measure" tool in the toolbar.

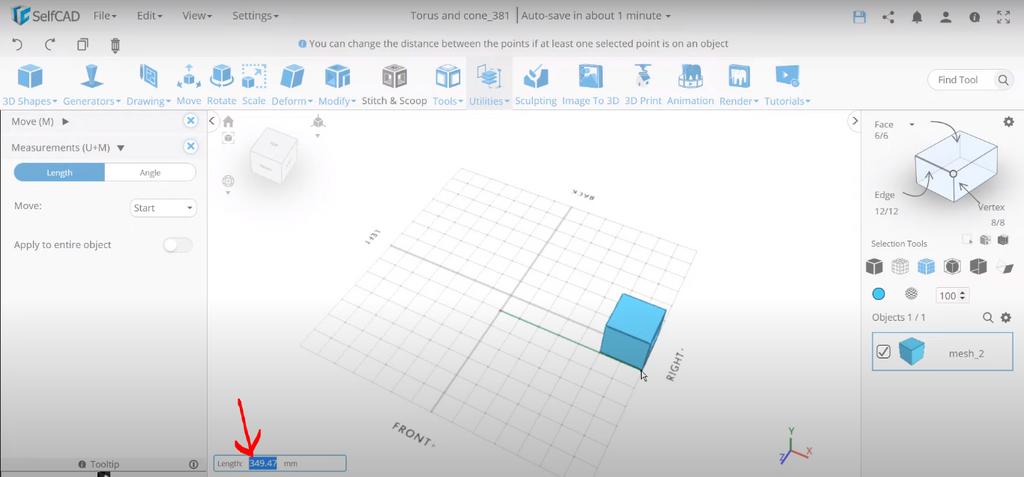

Click on a point on the first object to start measuring. Click on a second point on the same or a different object to complete the measurement. The measurement details, including distance, angle, or area, will be displayed in the right panel or just below your workspace, as shown below:
With SelfCAD, one can measure the angles of the given 3D objects.
8. Aligning Two 3D Object
In SelfCAD, you can actually align two 3D objects. You can align at the centers, edges, or faces. 3D objects can be aligned:
- By adjusting the position of the objects manually, that is, inserting values that align well with the other object.
- By rotating, scaling, and moving the object to align it with the position required.
- By taking the measurements of the angles of the 3D objects, and aligning them.

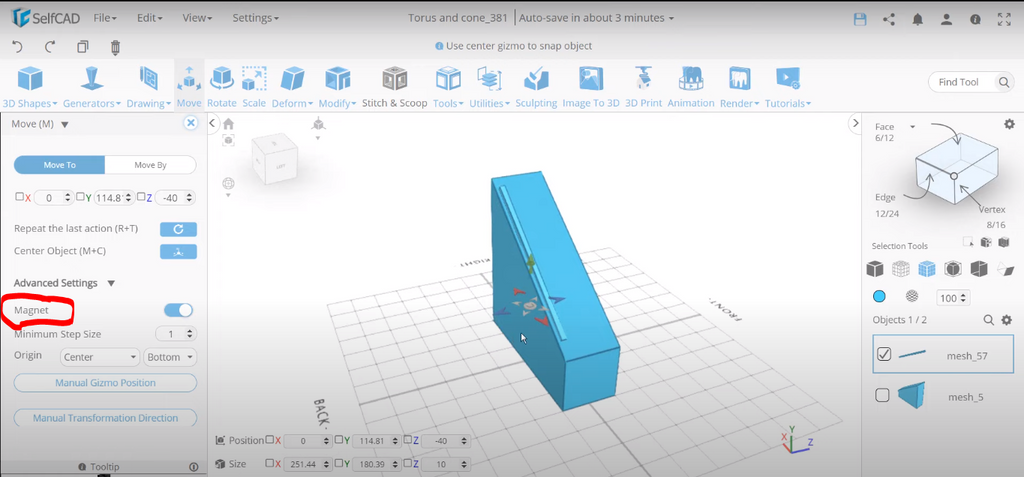

For example, select the object, rotate, and approximate the angle of the other object. To get the perfect alignment, when you activate the Move Tool, choose the Magnet option and then position the Gizmo at the center.
The Magnet provides an icon that will help you just snap the 3D object to the other perfectly.
9. Prevent the Deformation of 3D Objects
Sometimes when you are performing 3D operations such as scaling or moving the objects in a certain direction, they get deformed. However, there is a way one can prevent this from occurring. This is by using the Local Transformation option.

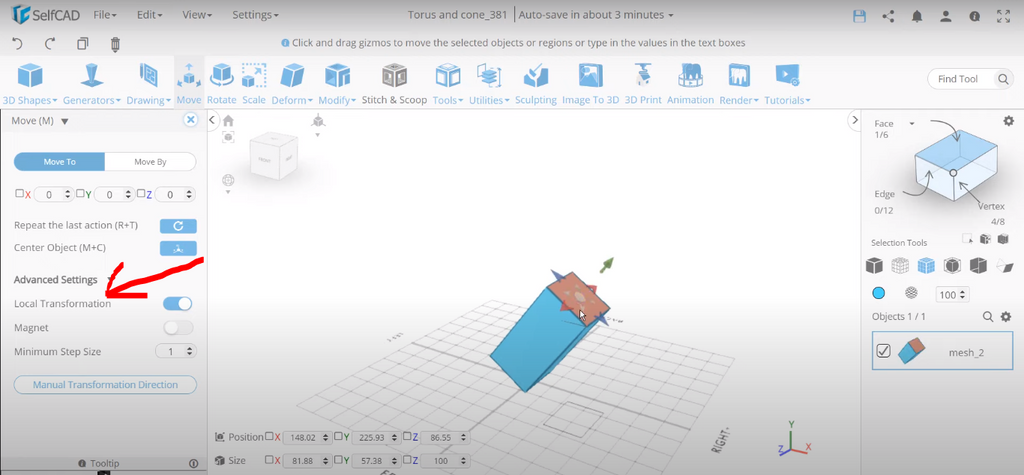

This is essentially changing the axis of your operation from using the Grid (floor) to a 3D object plane as the coordinate system. That means you can only use the Local Transformation option only by selecting a face or polygon of a 3D object. Then when you Move or Scale it, deformation will not occur.
Explore Your 3D Workspace With Finesse!
Understanding the workings of a 3D workspace is a valuable skill that can improve your efficiency, creativity, communication, and career prospects. Choosing the right software is of paramount importance. Maneuvering a 3D workspace can be intimidating initially, but with practice and patience, it can become second nature. We hope that this guide becomes valuable and handy in your endeavors.
