3D Printing Watches: 6 Models to Download and 3D Print

Additive manufacturing allows you to make virtually anything. However, watches require intricate mechanisms to function, but does 3D printing have the capability to print such detailed parts? Absolutely; in recent years, 3D-printed timepieces have become a reality. The development of 3D printing, particularly in additive manufacturing, has created new opportunities for the watch industry. While complex machining and assembly procedures are frequently used in traditional watchmaking, 3D printing offers an alternate technique for fabricating watch components. Watchmakers may create highly complex and personalized pieces using 3D printing, CAD software, and additive manufacturing techniques.

What Are the Different Approaches to 3D Printing a Watch?

Although the use of 3D-printed watches has increased, it's crucial to remember that traditional manufacturing techniques are still primarily used to create most high-end watches' movements and mechanical components. The skill and craftsmanship of conventional watchmakers are frequently required because of the delicate and precise nature of these components. Nevertheless, the world of watchmaking has benefited from innovation and fresh design options thanks to 3D printing. Rapid prototyping, personalization, and artistic expression have all been made possible. As technology advances, we may anticipate more research into and application of 3D printing techniques in watchmaking.

• Case and Components: Metal alloys, plastics, or even precious metals can be used to 3D print the watch case, bezel, and other external components. This enables the creation of distinctive patterns, elaborate motifs, and personalized accents.
• Dials and Hands: Watch dials and hands with detailed designs and distinctive textures can be produced using 3D printing. Complex designs may now be produced, which would be difficult or expensive with conventional manufacturing techniques.
• Prototyping and customization: 3D printing is especially beneficial for these processes. Before committing to conventional production techniques, watchmakers can test their designs using functioning prototypes. Additionally, it enables component customization to match personal preferences or limited-edition timepieces.
• Limited Edition and Artistic Watches: A few watch manufacturers use 3D printing to produce avant-garde, artistic, or limited edition timepieces. The design flexibility provided by 3D printing permits the creation of complex and outlandish watch designs that challenge conventional aesthetics.

Which Are the Best Watch 3D Models You Can Download?

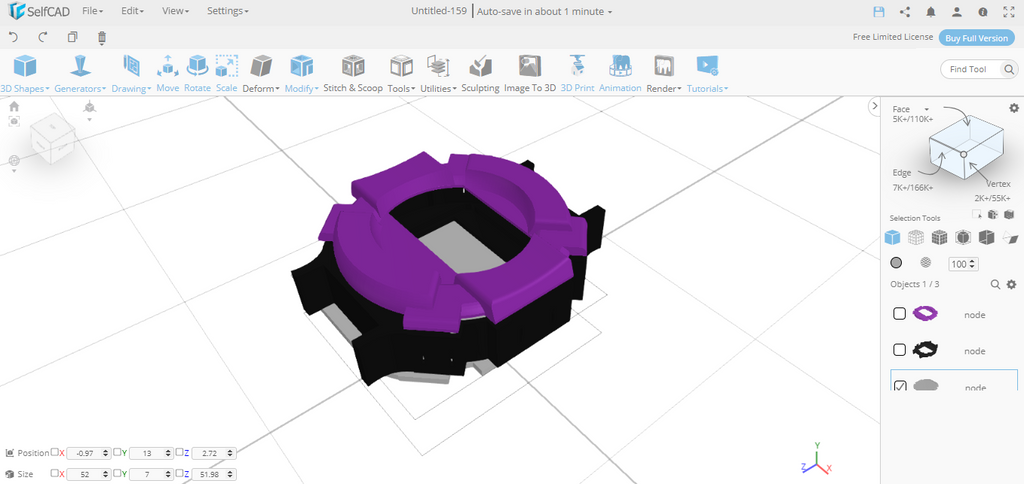

1. Arduino Smartwatch



Smartwatches can be built using Arduino. Smartwatches are just one application for Arduinos, which are adaptable microcontroller platforms with a wide range of capabilities. Your personalized smartwatch can be made using Arduino boards if you have the necessary parts and code. Although Arduinos provide you the freedom to design your smartwatch, it's crucial to remember that the functionality and performance may vary from those of commercial smartwatches.

To offer sophisticated features and enhanced user experiences, commercial smartwatches frequently use more potent microcontrollers, devoted operating systems, and specialist software frameworks. Nevertheless, Arduinos offer fantastic learning, experimentation, and DIY project platform. You can create your smartwatch with specialized features and functionalities by fusing the powers of Arduinos with other sensors, modules, and programming.

This project is highly intricate. It's difficult to follow the instructions even when you are an experienced DIYer, so ensure you are as well-versed in soldering as possible. Some non-printable components include an Arduino Pro Mini microcontroller, an OLED display, and a Bluetooth module.

The creator of this project GodsTale, advises printing the models with a tiny nozzle, if you have one, based on the rendering. If not,  you can use a low layer height alone. Additionally, printing the models with a high infill is a good option for strength. No support structures are required, which will make things simpler.

Download link: Thingiverse.

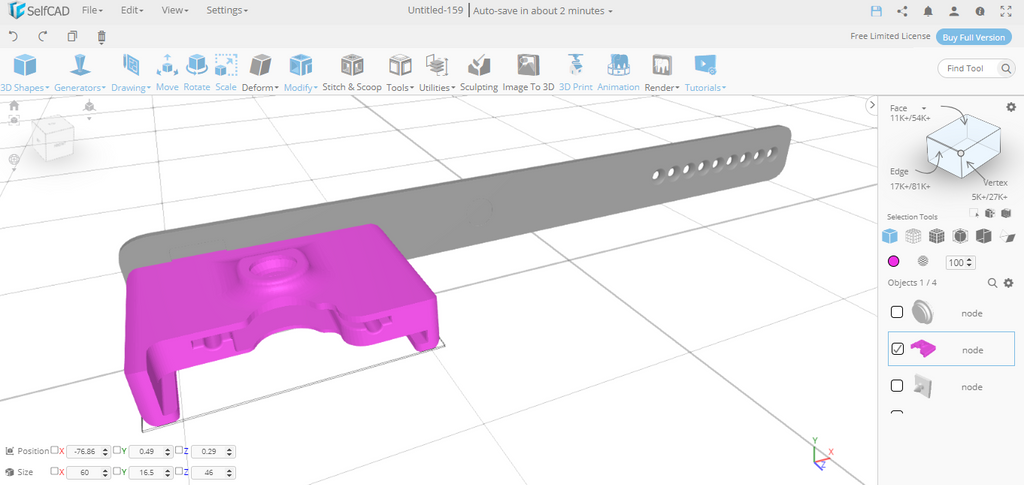

2. Microbit Binary Watch

A wristwatch that uses a micro: bit, a tiny programmable microcontroller board, to show the time in binary is known as a micro: bit binary watch. The micro: bit is a flexible educational tool frequently used to teach kids about electronics and coding. The micro: bit is programmed to interpret and display the time using binary digits, 0s, and 1s, in a micro: bit binary watch. These binary numbers are often shown on the watch via LEDs or a tiny LCD. The user of a binary watch must comprehend the binary number system and be able to decipher the lighted LEDs or display segments to read the time.

Binary digits represent each time digit, including hours, minutes, and occasionally seconds. For instance, a group of LEDs that match the binary code of the hours could be used to display the hours. Micro: bit binary clocks are exciting projects that give students a hands-on chance to learn programming, binary numbering, and time representation. They offer a valuable application for people to learn more about the binary system and advance their coding abilities while building a helpful timekeeping machine.

One of the project's required non-printable components is a BBC Micro Bit. There will be some coding involved, but don't worry—the instructions for the 3D print design contain the complete code. The construction for this watch is a little challenging because the Micro Bit needs to be flashed, but everything should go smoothly if you adhere to the maker's detailed instructions. Since this design does not use chain links, you must print the wristband using a flexible filament, such as TPU. The watch's print won't break if you wear the band around your wrist.

The designer advises using an infill of at least 35% and printing at 230 °C. To avoid retraction when printing on flexible materials, print slowly. 3DMate designed this model. It has over 1200 downloads and 22,000 views.

Download link: MyMiniFactory.

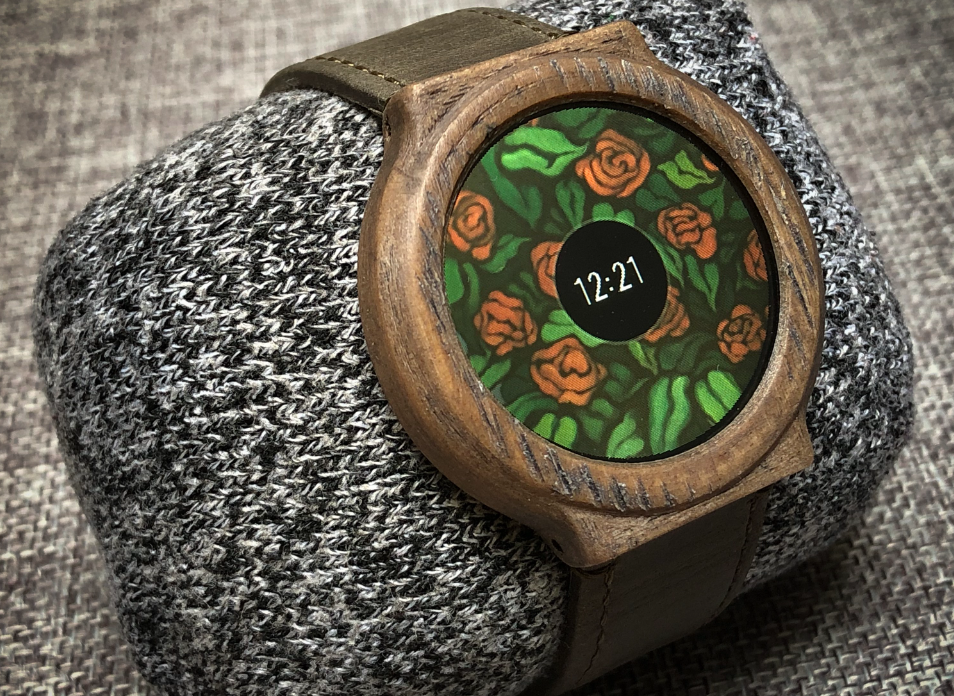

3. Smartwatch

The designer, Samsonmarch produced a really elegant and aesthetically pleasing smartwatch that is less expensive than many others on the market using certain 3D printed pieces and other electrical components. Despite the fact that this smartwatch project calls for 26 separate parts that cannot be 3D printed, you can obtain a complete list of the ingredients to prevent any problems. The looks of the watch are a result of the 3D printed components.

Wood PLA was chosen by the designer; however, you can select the material and color you want for your watch. You can also consider a range of post-processing procedures for improved visual appeal. The housing section of the GitHub page contains the models for the 3D-printed parts. Print the parts with a high infill level, ideally 60%, to guarantee endurance and preserve delicate electronic components. Keep your retraction slightly higher than usual because the Imgur page highlights 3D printing issues, with stringing being one of the most common.

This design is highly well-liked: Over 185,000 people have viewed the project page on Imgur, with approximately 3,000 likes and 128 comments.

Download link: GitHub.

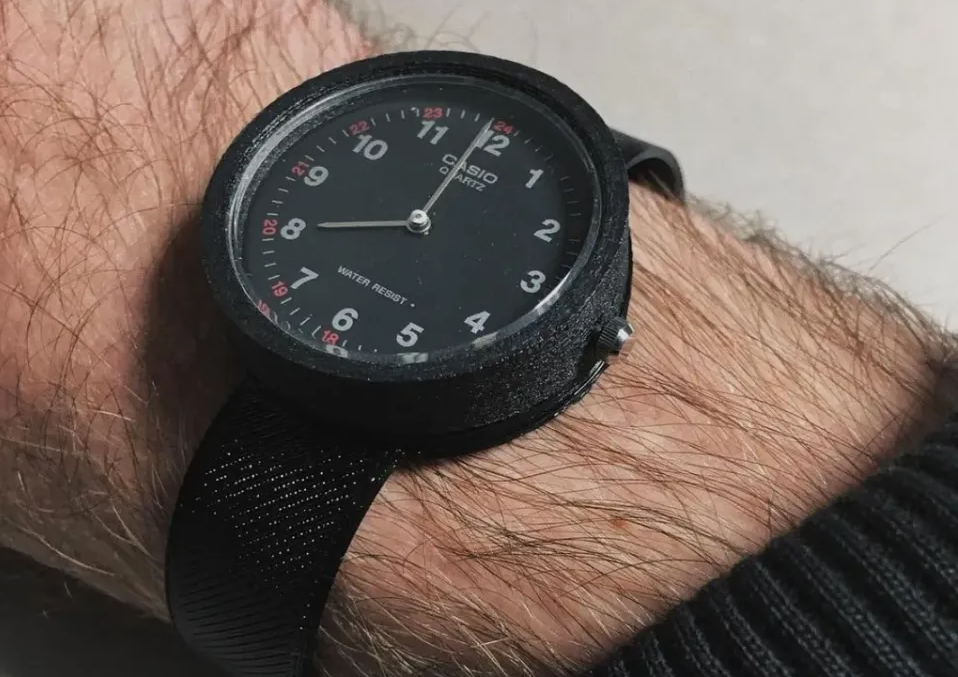

4. 3-Part Analog Watch

This print is for you if you're searching for something simple that isn't overly conceptually or technically challenging. These print files have two parts: one for the band and one for the case. The watch won't shatter abruptly since the band features rings at each end that fit the case without needing glue. The bands also have an excellent finish because of their textured design.

Put one ring on the watch, wrap the band around your wrist, and then put the second ring on to wear the timepiece. An untrained eye will find it difficult to understand how the watch operates. The Casio MQ24-1B analog watch can be fitted into the produced form, and to make 3D printing simpler, none of the components require supports or rafts. TPU is suggested by the author for the straps, which makes it reasonable. 3DBrooklyn is the mind behind this creation.

Download link: Printables.

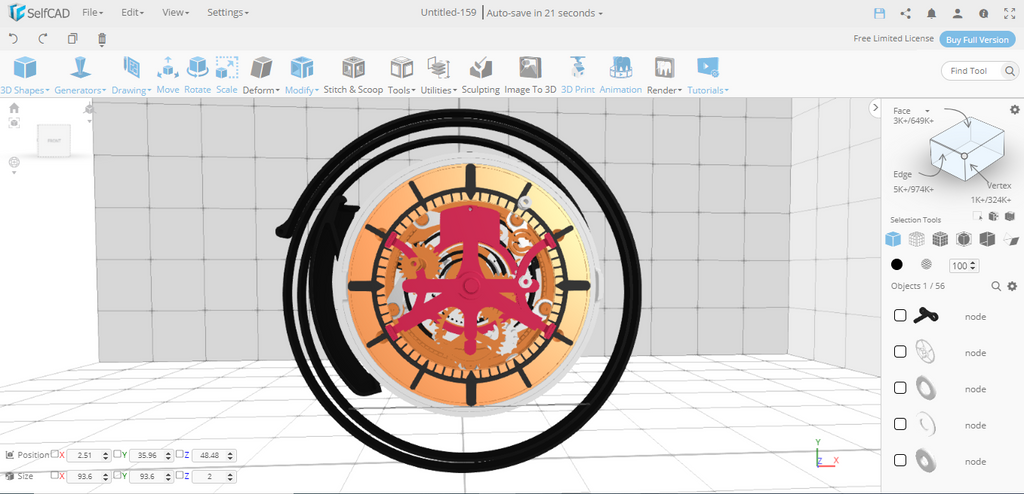

5. 3D-Printed Tourbillon Watch

A 3D-printed mainspring powers the tourbillon of this mechanical watch. There is a Swiss lever escapement in the watch. 3D printed tourbillon runs for about 30-45 minutes on its mainspring inside the moving barrel. Depending on the print parameters, accuracy ranges from one Second deviance to one Minute. The project serves as proof that 3D printing technology is progressing. The process is more dependable and accurate than previous iterations of 3D printers. It's still a highly complex project, though, as printing errors must be manually removed with the help of a watchmaker, or the watch won't work.

This model prints well with no support structures or rafts. 30% infill and using a 0.4mm nozzle are recommended. This model was designed by TheGoofy, and it has 16 makes and 7 remixes.

 Download link: Thingiverse.

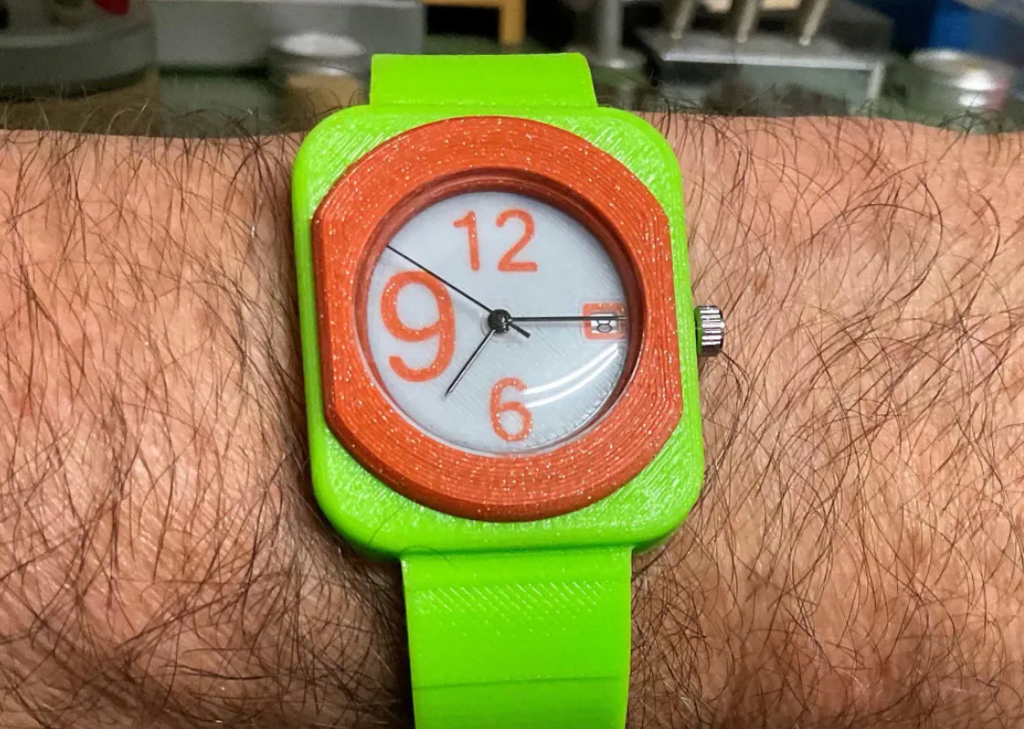

6. PIWATCH

For all you fans of flat watches, here's one for you. Additionally, this watch's band uses the intriguing idea of "compliance." It deceives the material into being bendy at the cross-section, increasing its flexibility by making some portions of the band thicker than others. In this manner, hinges are not required for the bracelet to bend.

Although you can use any material you choose, PLA or PETG may be more advantageous than other materials like ABS, for instance, because flexibility also depends on the material. According to the author's blog post, you can heat up your watch mechanism before sliding it into the print to ensure a tight fit if your watch mechanism can withstand it.

Download link: Printables.

Best 3D Modeling Software for Creating 3D Models of Watches

If you are into 3D printing, there are high chances you might have tried several 3D modeling software. There are many available and sometimes it can be hard choosing the best to use either because of the learning curve, and even the cost. For beginners and professionals looking for an affordable program that you can get started easily without taking much time, we recommend using SelfCAD. It combines 3D modeling, sculpting, rendering, and slicing tools in one program that has an online as well as a downloadable version. This means you can design and refine your watch model without the need for additional software anywhere anytime.

In addition to traditional 3D modeling, SelfCAD provides sculpting tools that are useful for creating organic shapes and intricate details on your watch model. SelfCAD supports both CAD file formats for editing and STL file formats for 3D printing. This flexibility allows you to design the watch and then export it for manufacturing or prototyping. You can also import the file and edit and modify the meshes to suit your needs. You can check the video below to learn how to modify meshes in SelfCAD.

If you would like to create the watch from scratch in SelfCAD, you can follow the steps below.

Step 1: Download and Install SelfCAD: If you haven't already, you need to download and install SelfCAD on your computer. You can also opt to use the online version, both of these are synchronized together.

Step 2: Familiarize Yourself with SelfCAD: Take some time to get acquainted with the SelfCAD interface. You can check out the video to learn the overview of the program.

After watching that video, check out the user manual and learn as much as possible about the various tools of the software. Thereafter, you can check out the interactive tutorials and try simple projects to get acquainted with the workflow of the software.

Step 3: Import Reference Images: Before you start modeling, gather reference images of the watch you want to create. You can find images from different angles and perspectives to help you create an accurate 3D model. Use the Reference Image tool to import the image to the software. Thereafter, you can choose the best method to design it. For example, you can use the freehand drawing and sketching to sketch around the images you import, thereafter turn the sketches and drawings into a 3D model, as demonstrated in the video below.

Alternatives, you can also use the various 3D shape generators of SelfCAD to design your watch from Scratch. You can check the video below to discover the power of the shape generator tools of SelfCAD.

Step 4: Refine the Design: Once you have the basic shape, you can use various modeling tools in SelfCAD to refine the design and add more details. You can extrude, bevel, and sculpt the surface to achieve the desired look.

Step 5: Add Watch Components: Model the watch components, such as the watch face, hands, crown, and straps. Use precise measurements and reference images to ensure accuracy.

Step 6: 3D printing: You can use the in-built online slicer of SelfCAD to slice your design and get the G-code to send to your 3D printer. Thereafter, you can 3D print the parts and assemble them together.

The Future of Timepieces With Exquisite and Personalized 3D-Printed Watches

The manufacture of sophisticated watch components with finely detailed designs is now possible thanks to 3D printing, which has expanded the field of watchmaking. Custom timepieces may be created, prototypes can be made quickly, and intricate designs can be made via 3D printing. It provides the watch industry with innovation, adaptability, and artistry. Although the timekeeping mechanism can eventually be printed, 3D printing of watches is currently only capable of producing the watch's body.

---
