Everything You Need to Know About 3D Printer Firmware
3D printer firmware is the software that controls the operation of your 3D printer. It is responsible for translating the commands from your computer into instructions that the printer can understand and carry out. There are many different types of firmware out there, and which one you use will depend on your printer model and setup. Some printers come with pre-installed firmware, while others require installing it yourself.

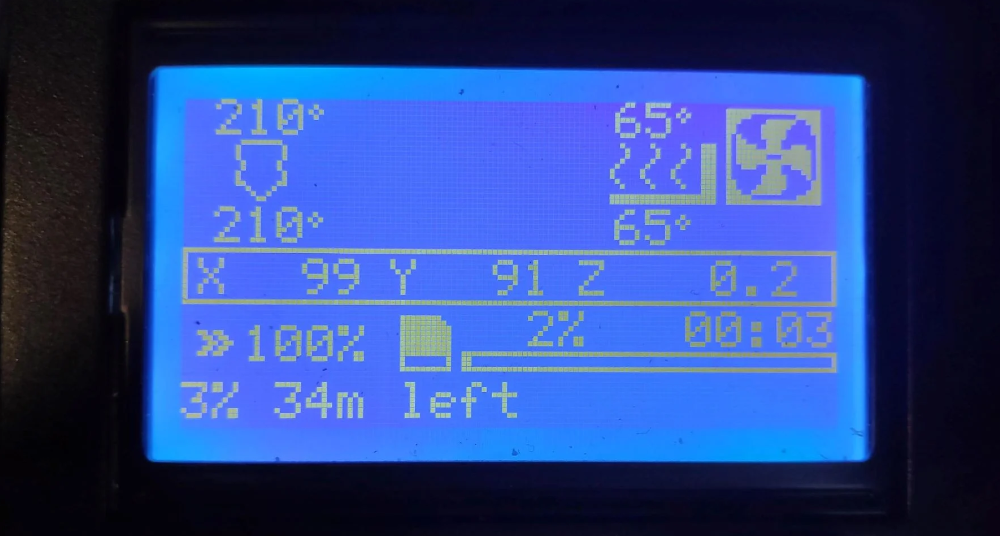

3D Printer Firmware in Details
3D Printer Firmware refers to the software that is responsible for controlling the operations of a 3D printer. The brain interprets the design file and instructs the printer on how to create the object layer by layer. The firmware is programmed onto a chip and installed in the printer's motherboard. Once you have your 3D printer, it is essential to ensure that you have the right firmware version installed on your machine. This is because the firmware is specific to the model and brand of your printer, and using the wrong firmware can cause serious problems or even permanently damage the printer. To establish a connection between your computer and the 3D printer, you must ensure that you have the appropriate firmware version installed.
You can download the firmware from the manufacturer's website or other trusted sources. After installing the firmware, you need to connect your printer to your computer using a USB cable and ensure that it is recognized by the software you use to control it. There are already many web3 development companies that are working on 3D printer firmware. Once you have successfully connected your printer to your computer, you can begin printing your designs!
Why is 3D Printer Firmware Important?
In 3D printing, printing happens whenever you send a G-code file from your slicing software to the 3D printer: The firmware then “understands and figures out” the code and gives instructions to the display, machine, etc. For example, consider the G code command "G1 X5 Y10". The firmware understands this command and then determines the power delivered to the stepper motor so that the extruder achieves X=5 and Y=10. Without the firmware, the 3D printer would not understand the G-code input.
The firmware is “set once and forget” software. For this, it is important to constantly check the firmware available and ensure they are compatible with our device.
The Most Common 3D Printer Firmware Available

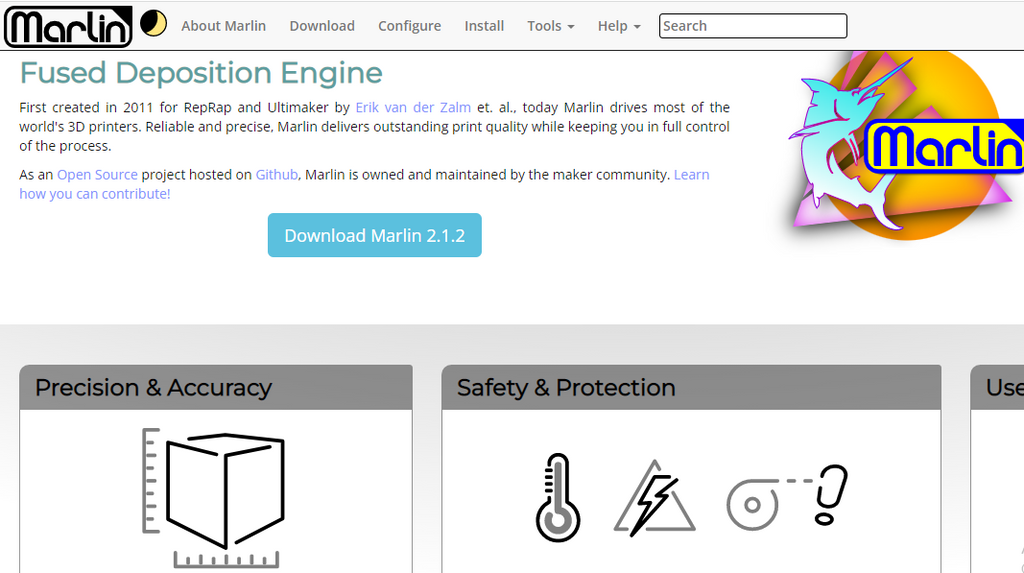

1. Marlin Firmware
Marlin is the most favored 3D printer firmware that most communities use in their devices. Although you may want to upgrade over time, your 3D printer will likely ship with Marlin as the default firmware. Marlin is popular because it has several desirable features that other firmware doesn't have. The Marlin firmware offers a very high level of customization options during installation.
It is known for its precision, accuracy, and safety. Martin 2.0 runs on boards with a 32-bit ARM processor. Marlin is a reliable firmware and is recommended for anyone new to 3D printing for its ease of use.

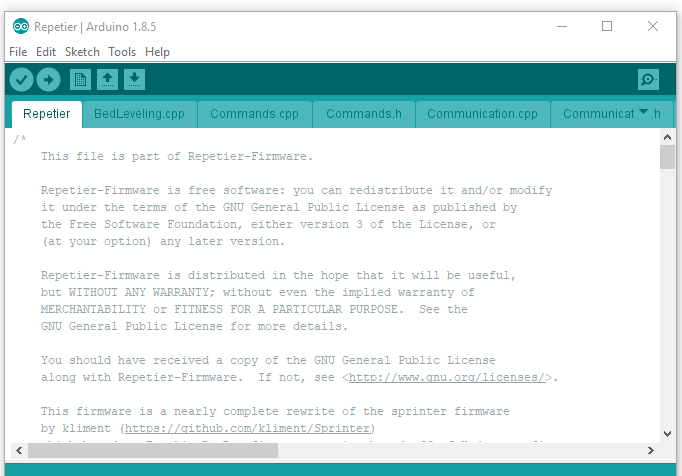

2. Repetier
The Repetier is another excellent option if you're looking for quality, reliable, feature-packed firmware. Repetier also has a web-based configuration tool for easy and convenient firmware modification. Repetier also has countless features aimed at improving your 3D Printing Setup. It is highly customizable and widely compatible with most boards.

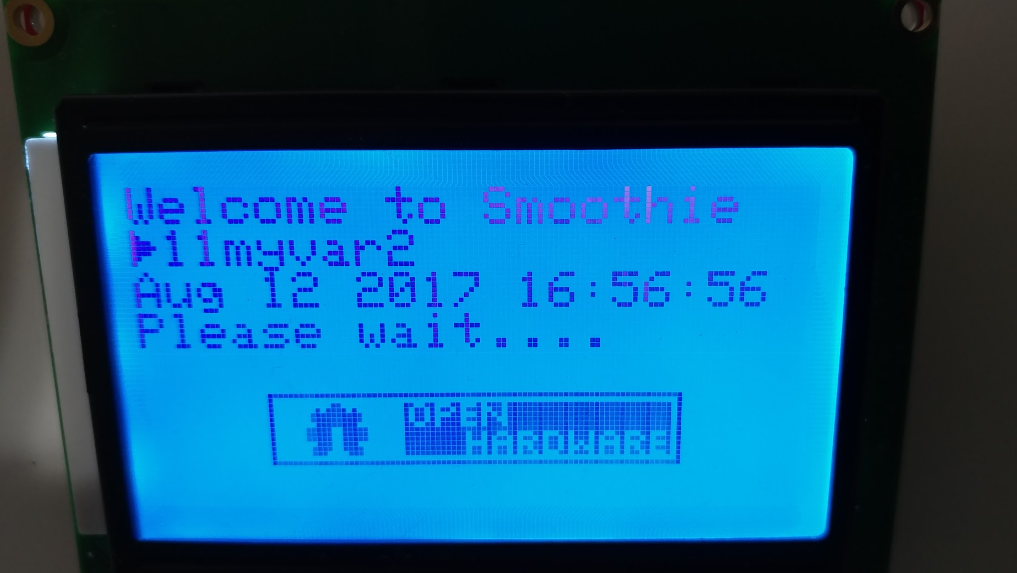

3. Smoothieware
The Smoothie is an open-source, modular, high-performance G-code interpreter and CNC control system designed for the Smoothieboard 32-bit controller. It is intended to be user-friendly, hacker-friendly, and free to use. The Smoothieware was created to reduce the time it takes to learn C++ code. It's a popular choice for many due to its low barriers to entry and its customizability. Many people enjoy Smoothieware because of the low barrier to entry and the allowance for customization
What Is the Difference Between Open Source and Proprietary Firmware?
The difference between proprietary and open-source firmware lies in their accessibility to the source code. Open-source firmware allows anyone to access and modify the source code, while the producer exclusively owns proprietary firmware, and the source code is not available to the public. Proprietary firmware is typically free of bugs, and there's ample support available if any issues arise. On the other hand, open-source firmware can have bugs, and it's not guaranteed to work correctly since anyone can modify it.
How to Install 3D Printer Firmware
After selecting the 3D Printer Firmware that fits your requirements, there are several steps that you need to complete before upgrading your firmware. You can perform these steps on any computer, including the one you use with your 3D printer. The initial step is to download the firmware that you have chosen. While downloading the latest version is the default option, it is best to examine the developer notes to check if any bugs need to be fixed. In such cases, sticking with the latest stable release is better.
Most firmware comes with a generic profile for the 3D printer you are using. This includes information such as the steps for all stepper motors, their maximum feed rates, and travel distance values. This information will simplify the process of setting up the new firmware. You will also need to download the Arduino Integrated Development Environment (IDE). This platform lets you view, modify, compile, and upload firmware code to your 3D printer.
Using a USB cable, connect your computer to the 3D printer, and open the firmware with Arduino IDE. You can then modify the firmware code based on your printer's specifications. In the Arduino IDE's "Tools" section, search for your 3D printer's control board in the drop-down list. To start compiling the code, click the "Verify" button at the top left of the window. You should ideally compile the code without encountering any errors. Finally, you can upload the compiled firmware to your 3D printer using the "Upload" button in the upper left corner of the window.

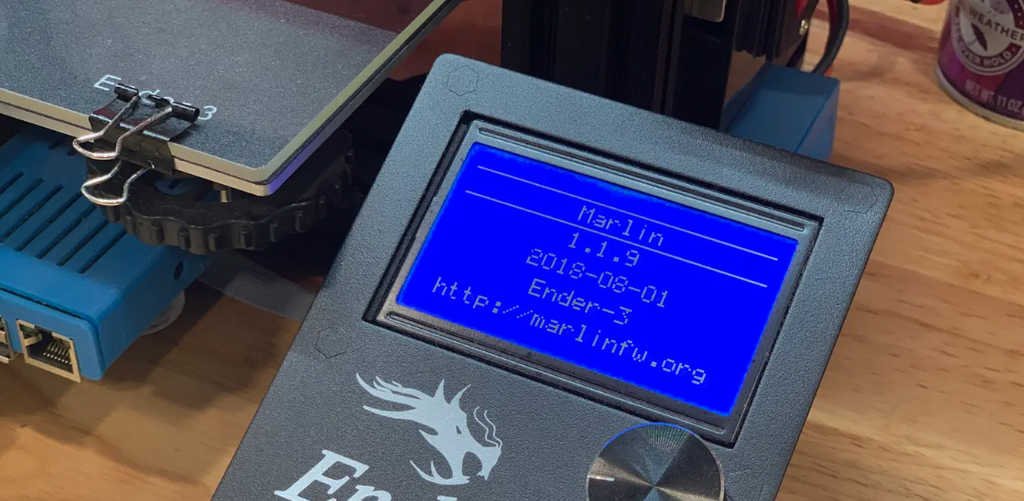

Updating Your 3D Printer Firmware
When you upgrade the firmware on your 3D printer, you are essentially updating the code that controls its various functions, including its movement, temperature control, and printing speed. These updates can help to resolve issues and add new features that can improve the quality of your prints.
The firmware can be updated using Arduino software, a common firmware platform used by many 3D printer manufacturers. After downloading the latest firmware and opening it in the Arduino software, you must connect your printer to the computer via a USB cable. Once connected, you can verify and upload the new firmware to your printer.
While upgrading the firmware on your 3D printer might seem like a daunting task, it is worth the effort. By upgrading your firmware, you can access the latest features and resolve any issues affecting your printer's stability and performance. Staying updated on the latest versions of your firmware is essential, as it can make a significant difference in the quality of your designs and prints.
Troubleshooting 3D Printer Firmware
Firmware issues can be a major source of frustration and can be difficult to diagnose and fix. Fortunately, you can take some simple steps to troubleshoot your 3D printer firmware.
1. Check the documentation: The first step to troubleshooting 3D printer firmware is to check the printer’s documentation. This should include instructions on updating the firmware and any other relevant information related to the firmware.
2. Check the firmware version: Before making any changes, it’s important to make sure you’re running the most up-to-date version of the firmware. If you’re not, you may need to download the latest version from the manufacturer’s website.
3. Check the printer settings: You should also check them to ensure they’re correct. Print speed, temperature, and nozzle size affect the printer's performance.
4. Check for obstructions: Make sure there aren’t any physical obstructions in the way of the printer’s movements. Something as simple as a piece of paper or a stray cable can cause the printer to malfunction.
5. Reset the printer: If the printer isn’t responding to inputs, you might need to reset it. To do this, unplug the printer and wait a few minutes before plugging it back in.
6. Disconnect other devices: If you’re having trouble connecting to the printer, disconnect any other devices that may be connected to the same network. This will ensure that there are no conflicts between devices.
7. Check the firmware log: Check if your printer gives you error messages. This will provide more information on what might be causing the problem.
8. Check for firmware updates: You should also check for any available updates. Many manufacturers release updates to fix bugs or improve performance.
