6 Best 3D Printed Tourbillon Models You Can Download And 3D Print
One of the most significant achievements the human race can be proud of was developing the technology that measures time, yes, clocks. Clocks have made life and science progress in ways that would have been virtually impossible without them.
What is a Tourbillon?
A tourbillon is a sophisticated mechanical component used in expensive mechanical watches. A specific escapement controls how much energy is released from a watch's mainspring to power the movement. A great watchmaker named Abraham-Louis Breguet created the tourbillon in the late 18th century. Its goal is to reduce gravity's negative effects on a watch's ability to keep time accurately. Gravity may alter how quickly the balance wheel oscillates, which could result in a small loss of accuracy in timekeeping.
A spinning cage that houses the hairspring, balancing wheel, and escapement makes up the tourbillon. The cage rotates once every minute, albeit there are exceptions. Gravity's effects on the balance wheel are averaged out by continuously spinning the complete escapement, enhancing precision and accuracy.
Due to their complexity and craftsmanship, tourbillon watches are extremely renowned and are regarded as works of art. They are frequently found in high-end, luxury timepieces, which demand significant design and assembling ability. With translucent or openwork dials and exhibition case backs, the watch's captivating tourbillon movement is frequently on view, allowing the wearer to marvel at the complex mechanism in motion.
It's important to note that recent developments in watchmaking technology, such as better materials and more exact production processes, have greatly reduced the impact of gravity on timekeeping. As a result, it is questionable if the tourbillon serves any purpose in terms of vastly increasing accuracy. However, the tourbillon continues to be highly prized for its artistic appeal, technical intricacy, and creativity in high-end timepieces.
Which Are the Best 3D Models of Tourbillons You Can Download?
1. Triple-Axis Tourbillon

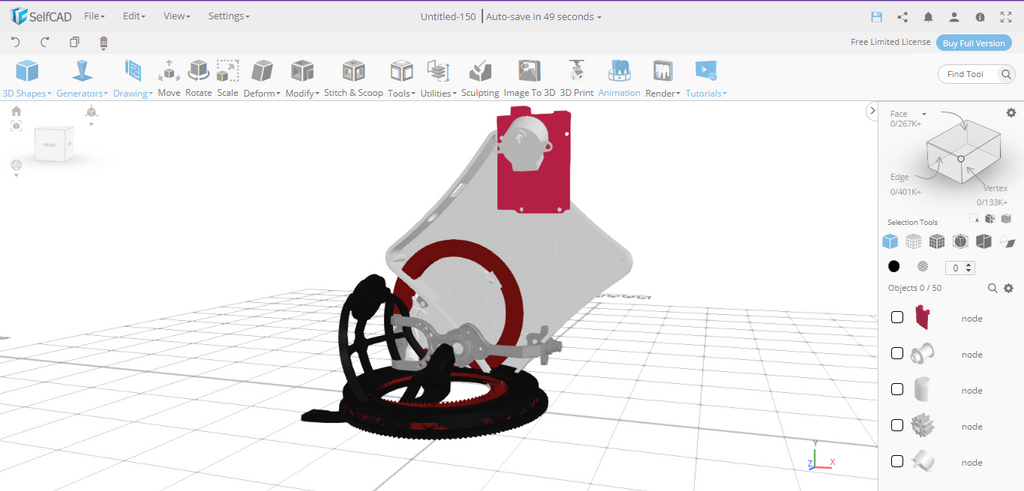

Triple Axis Tourbillon being modified in SelfCAD
The conventional tourbillon mechanism in high-end mechanical timepieces has evolved into the triple-axis tourbillon. A triple-axis tourbillon adds two additional rotational axes to a normal tourbillon's revolving cage, which completes one additional rotation per minute. This increases the accuracy of the timekeeping. In a triple-axis tourbillon, in addition to rotating on its central axis (like a conventional tourbillon), the cage containing the escapement, balance wheel, and hairspring also revolves on two extra perpendicular axes. By counteracting gravity's effects from various angles, this multi-axis rotation seeks to make up for rate fluctuations brought on by changes in watch posture.
The triple-axis tourbillon is considerably more effective at enhancing the watch's precision and accuracy since it achieves a more thorough averaging of positioning mistakes. A triple-axis tourbillon's status and rarity are increased by the substantially higher complexity and level of craftsmanship than a conventional tourbillon. A triple-axis tourbillon's dizzying motion, which moves in several directions simultaneously, is fascinating to observe. Depending on the particular design and configuration of the watch, the rotational rates and durations on each axis may change.
Triple-axis tourbillons are widely prized for their intricacy, technological inventiveness, aesthetic appeal, and functional goal of improving timekeeping accuracy. This amazing 3D printable triple-axis tourbillon model was designed by mcmaven with 11 makes and 2 remixes.
2. Flying Tourbillon

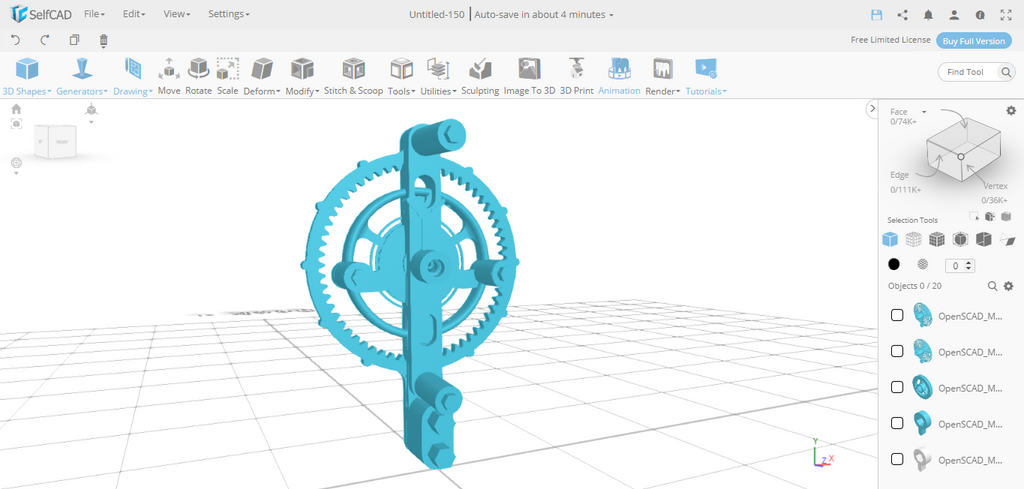

Modifying a Flying Tourbillon in SelfCAD
A flying tourbillon is a form of tourbillon complication used in mechanical timepieces to improve accuracy. Flying tourbillons don't have a top bridge like conventional ones, giving the illusion that the mechanism is suspended or floating inside the watch. The movement components are held by a lower bridge or plate, leaving the upper portion exposed. Similar to a standard tourbillon, a flying tourbillon's main objective is to minimize the effects of gravity on the balance wheel and increase the accuracy of timekeeping. Positional mistakes are averaged out by continuously spinning the escapement and balancing wheel.
Luxury watches with flying tourbillons are highly sought after due to their intricate design and high level of craftsmanship. In addition to their practical advantages, they serve as intriguing visual exhibits highlighting the watchmaker's talent and artistry. Flying tourbillons are an intriguing element in the field of horology due to their blend of mechanical mastery and aesthetic attraction.
This is a straightforward replica of a Swiss lever-flying tourbillon, seen in many expensive timepieces. This model was created by A26 and had 5 makes and 5 remixes.
3. Gyrotourbillon
Gyrotourbillon being modified in SelfCAD.
A Gyrotourbillon is a high-end horological complication found in expensive timepieces. This particular variety of multi-axis tourbillon combines the conventional tourbillon mechanism with an additional revolving axis. The word "gyro" originates from the Greek word used to explain "circle" or "rotation," highlighting the mechanism's multi-dimensional movement. The escapement, balance wheel, and other regulating elements are housed in a rotating cage that circulates on two axes in addition to its rotation on one.
This complex design further improves the watch's accuracy by enabling the regulating system to account for the effects of gravity in various orientations. The Gyrotourbillon's multi-axis spinning helps the watch's design stand out visually while simultaneously battling the effects of gravity. The complicated mechanism frequently adds details like a power reserve indication, a calendar, or a chronograph. The Gyrotourbillon, which combines the art of precise timekeeping with complex mechanical engineering, is the height of horological innovation. It displays the talent, knowledge, and imagination of watchmakers who work hard to push the limits of what is conceivable in mechanical watches.
This model is hand-cranked as it does not provide a power source. The creator recommends printing with PLA with 15% infill for best results. It also requires support structures for printing. Hoshiimiki is the designer behind this.
4. Double Tourbillon

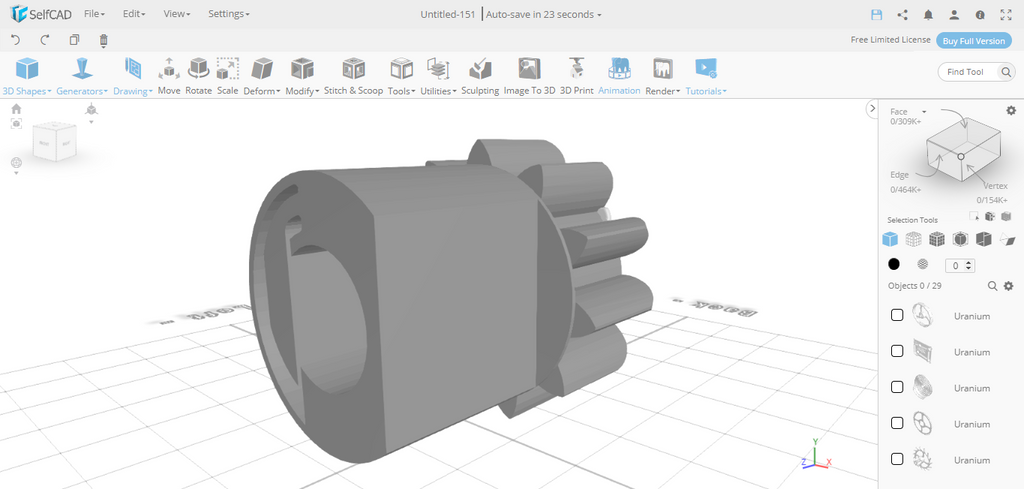

A double tourbillon being modified in SelfCAD
A double tourbillon is a movement that contains two tourbillons, frequently one nested inside the other. This configuration aims to increase the timepiece's accuracy by averaging out positioning mistakes and gravitational influences on the regulating elements. A double tourbillon adds more intricacy and interest to the watch by allowing the two tourbillons to rotate at various speeds and in various directions. The two tourbillons' combined movement produces a complex dance that enthralls onlookers.
Double tourbillons are considered among the most prestigious and sophisticated complications in expensive watches. Due to the complex mechanics involved, they demand excellent design and assembly competence. They are highly prized by watch collectors and enthusiasts for their visual appeal and technical skill. The double tourbillon demonstrates the watchmaker's commitment to achieving extraordinary timekeeping accuracy and pushing the limits of mechanical watchmaking by utilizing two tourbillons. It is a sought-after component in high-end timepieces because it epitomizes artistry and ingenuity.
This model is a Haldimann-style Double Tourbillon. This model was created by NOP21. This can be printed using PLA, and it requires support structures.
5. 3D-Printed Tourbillon Watch
3D Printed Tourbillon modified in SelfCAD
This watch uses a mainspring that was made using 3D technology and has a tourbillon. A Swiss lever escapement powers the watch. For about 30-45 minutes, the mainspring inside the running barrel powers the watch. According to print settings, accuracy is around one Second off within one minute. The project serves as evidence of the advancement of 3D printing technology. The method operates more consistently and precisely than past iterations of 3D printers. It is still a very complex undertaking, though, as printing errors must be manually corrected using watchmaker abilities for the watch to function.
Without rafts or other supports, this model prints successfully. It is advised to use a 0.4mm nozzle and 30% infill. TheGoofy created this model, which has 16 makes and 7 remixes.
6. The Tourbillon 1000%
A coaxial tourbillon mechanism drives the spinning cage with a coaxial set of gears and pinions. It includes an additional set of gears and pinions in contrast to a regular tourbillon, which only employs one gear to drive the cage's revolution. The alignment of the gears along the same axis creates a coaxial layout in a tourbillon, which results in a more effective and reliable power transfer. The performance and accuracy of the clock are improved overall thanks to this design's reduction of friction and improvement of energy transfer.
The tourbillon 1000% is a coaxial tourbillon, one of the first-ever tourbillons made through 3D printing. Nicholas Manousos, a New York watchmaker and horologist, carried out all the design and engineering work himself. To be able to produce the required components in his Harlem workshop, he even modified a commercially available 3D printer. This is only the first of several steps toward 3D-printed mechanical timekeeping. This style is essentially a watch tourbillon that has been magnified by 1000%.
Each Tourbillon 1000% has seven ball-bearing jewels (with ruby-red covers here for effect) and 23 individually printed components. It takes around two weeks for Manousos to print, modify by hand as needed, and position the tourbillon. Although the designs for this model aren’t available, you can find it working on Youtube and try to make it yourself.
Best Software for Creating Tourbillon Models
There are many 3D modeling software that you can use to create Tourbillon models, but the challenge is that most of them are either expensive or difficult to learn. But there are other affordable and easy to use programs like SelfCAD that you can use to create both simple and complex models. Some of the key features of SelfCAD include:
- User-friendly Interface:The software has an intuitive and user-friendly interface, making it accessible to both beginners and experienced 3D modelers. It also offers a straightforward design process, allowing users to create complex models like Tourbillon with ease.
- Integrated CAD and 3D printing: SelfCAD combines Computer-Aided Design (CAD) and 3D printing capabilities. This integration simplifies the process of designing and preparing Tourbillon models for 3D printing, streamlining the entire workflow. There is also an in-built online slicer that yoy can use to prepare designs for 3D printing.
- As of my last update in September 2021, SelfCAD was a 3D modeling software with several key features that made it stand out in the market. Here are ten key features of SelfCAD:
- 3D sculpting tools: The software has various sculpting brushes, enabling you to create organic and freeform shapes with ease.
- Mesh editing: You can edit, refine and modify 3D models created from scratch or imported from other sources based on your needs easily.
- Rendering and visualization: Users can render and visualize their 3D models within the software, helping them get a better idea of how the final design will look.
- Boolean operations: SelfCAD supports Boolean operations, allowing users to combine, subtract, or intersect multiple shapes to create complex geometries.
- Import and export options: You can import and export 3D models in most of the common 3D file formats, enabling seamless integration with other 3D modeling tools and platforms.
In addition to the above features, the software is also affordable. There is a free version that you can sign up and use it to test and see if it’s something interesting to you.
3D-Printed Tourbillon Models: A Blend of Technology and Craftsmanship
In the field of horology, 3D printing has opened up fascinating possibilities, such as the ability to create tourbillons. A tourbillon is a sophisticated mechanical component used in expensive timepieces that reduces the effects of gravity to increase timekeeping accuracy. Complex tourbillon components can be created accurately and meticulously using 3D printing technology, enabling creative designs and customization. Complex geometry, lightweight construction, and detailed detailing are now possible with 3D-printed tourbillons, which were previously difficult to do with conventional production techniques. Even while 3D-printed tourbillons are relatively uncommon, they reveal the potential for pushing the limits of conventional watchmaking methods and producing one-of-a-kind clocks that blend technical accuracy and aesthetic expression.
