3D Print STL Files: A Complete Guide
STL files store information about 3D models. This file describes only the surface geometry of the three-dimensional object and not the details like color, texture, or other common model attributes. STL files are created using a 3D modeling software like SelfCAD, and they are the end product of the 3D modeling process. You can identify these files by their .stl file formats extension. For 3D printing, this is the most used file format.
In this article, we will discuss all the details of the STL file. What is it exactly, and for what purpose will it be used by the 3D artist? Here we explain all the particulars of the STL file.
STL File in Details
STL stands for STereoLithography. It is a 3D model file containing all the information needed to create a 3D object using a 3D printer. It is made up of triangles, which are then connected together to form a 3D object. Each triangle is defined by a set of three points that represent the vertices of the triangle. The STL file also includes information about the surface normal, which is the direction in which the triangle is facing.
The STL file format is widely used in 3D printing because it is a relatively simple and universal format. This means that a 3D model created in any 3D modeling software can be saved as an STL file and then used directly in a 3D printer. The STL format is also very useful for keeping track of how an object is built, as it stores the triangles that make up the object. It is usually used for 3D printing in a variety of industries, from medical and aerospace to consumer products. It is a versatile format that is used in a variety of applications.
How to Create an STL File?

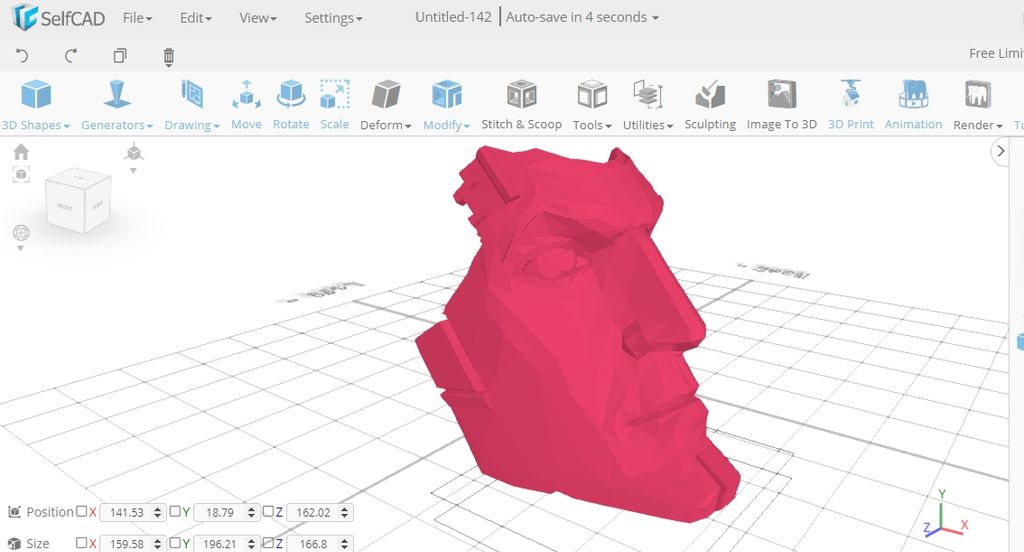

The first step is creating a 3D design. Now, many CAD software is available that can convert the STL files from your 3D model. This only requires the exporting of the STL file from the CAD program. If you would like to create an STL file, there are a lot of 3D modeling software available, and a good example is SelfCAD.

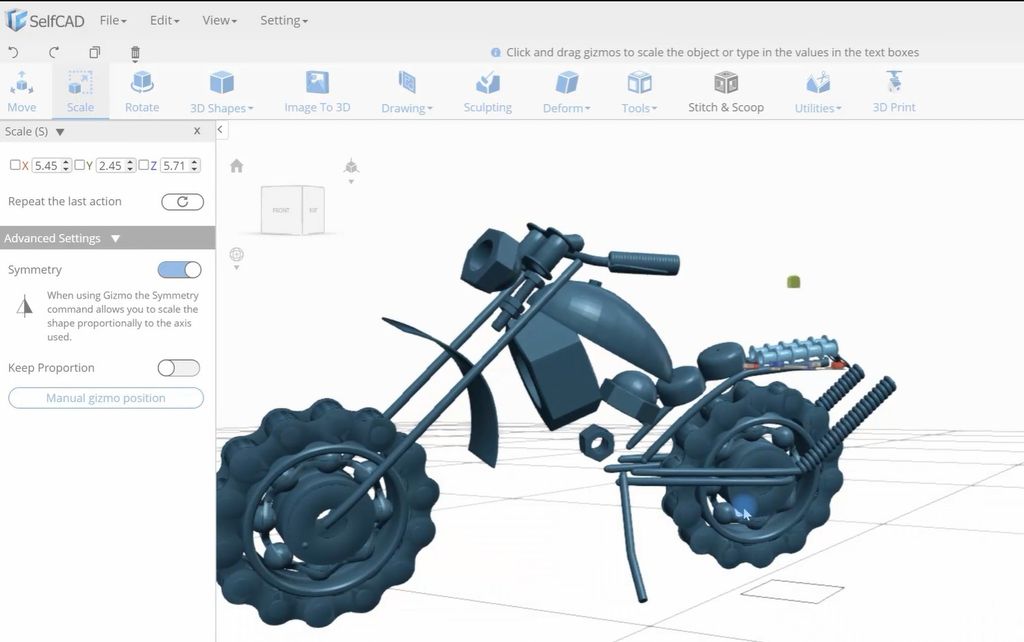

With SelfCAD, you can create both simple and complex designs with ease. Interesting tools like freehand drawing, sketching, and modification tools can be used to create designs from scratch.

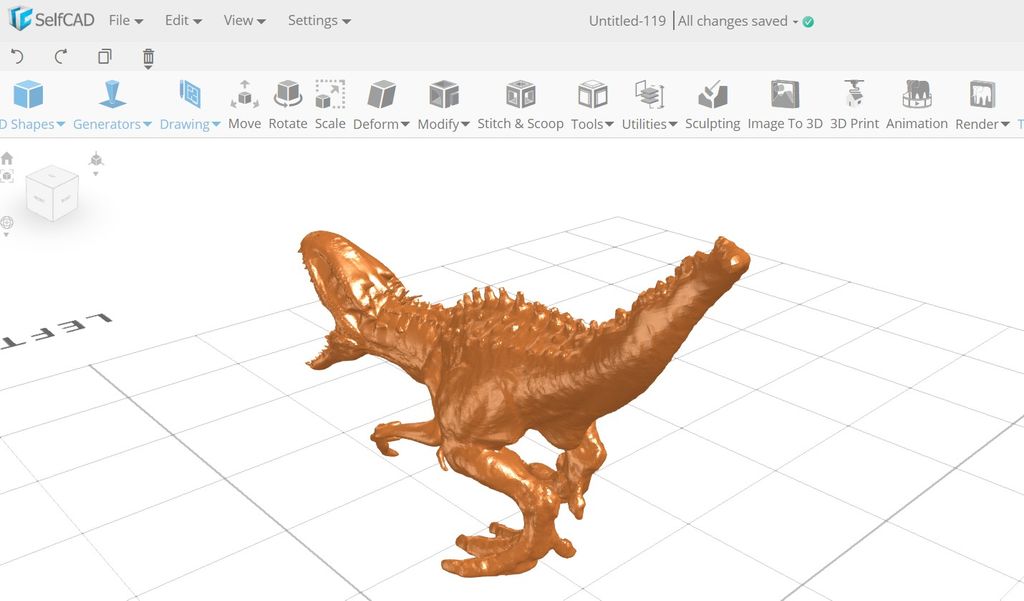

There are also various basic shapes available that you can modify using 3D sculpting brushes or selection tools to create any design, as shown in the video below.
The software also comes with an in-built online slicer that you can use to slice your designs and generate the G-code that you can send to your 3D printer. The slicer is easy to use and get started, and it is compatible with most of the 3D file formats available. You can also edit STL files easily in SelfCAD. For example, you can use the Simplify 3D tool to simply your design before sending it for 3D rendering and animation as shown below.
If you are creating a 3D model that you would like to hollow it out, you can also do it in SelfCAD easily. You can check out how you can hollow out an object easily in SelfCAD in the video below.
Putting colors to your designs is easier in SelfCAD too, as shown in the video below.
This is important, especially if you are doing multi-color 3D printing.
How to Open STL File?
Following are some of the programs which help to open the STL files.
- SelfCAD
- Microsoft Print 3D
- Meshlab
- Microsoft 3D viewer
- Blender
- CATIA
- IMSI TurboCAD Pro
- TinkerCAD
- SketchUp
- ideaMK STL Viewer
- Parametric Technology Creo

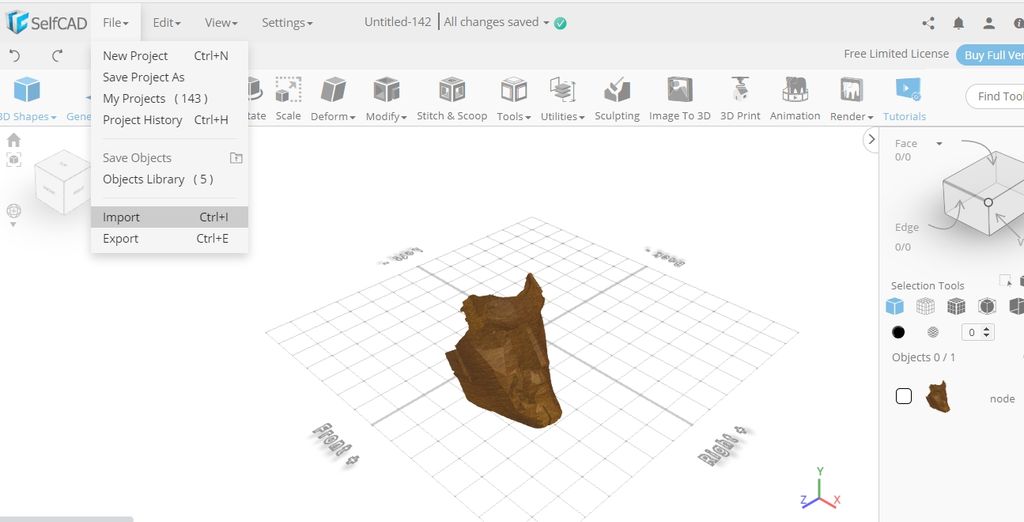

To open STL file in SelfCAD, you begin by going to File > Import as shown below and you will be able to import and view your file in SelfCAD.

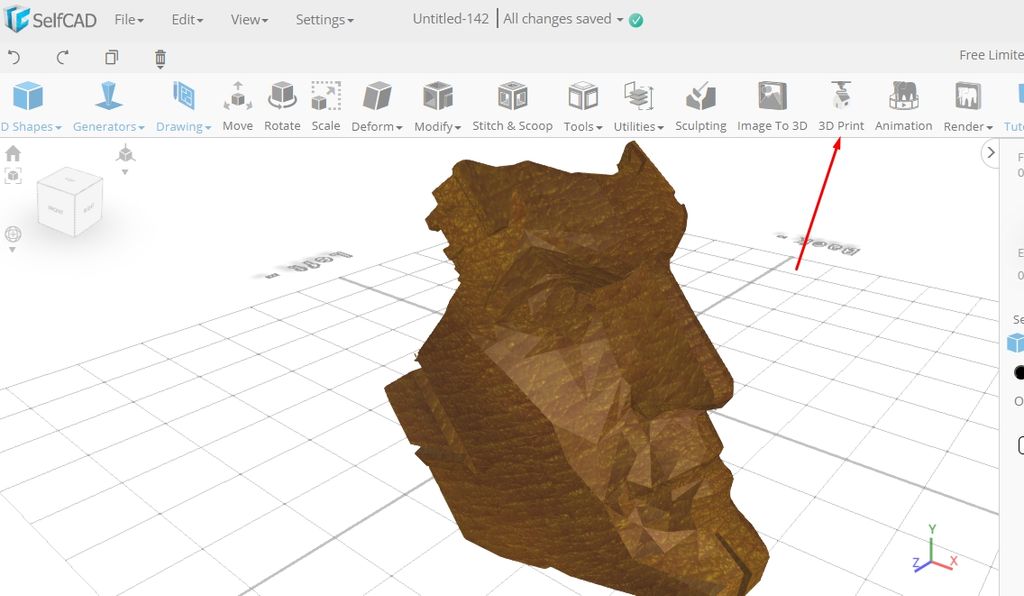

If you would like to slice your designs, you can go to 3D print and a new window will be opened where you will access the slicer. Choose your 3D printer from the list provided before proceeding to choosing your preferred settings.

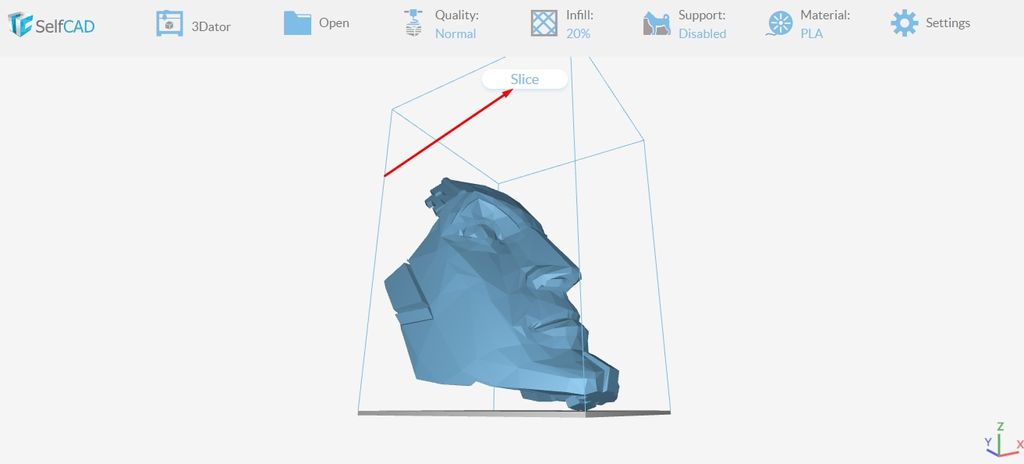

After setting it, you can then click Slice as shown below.
Then you can save the G-code to your drive.
How Does the STL File Format Store a Model?

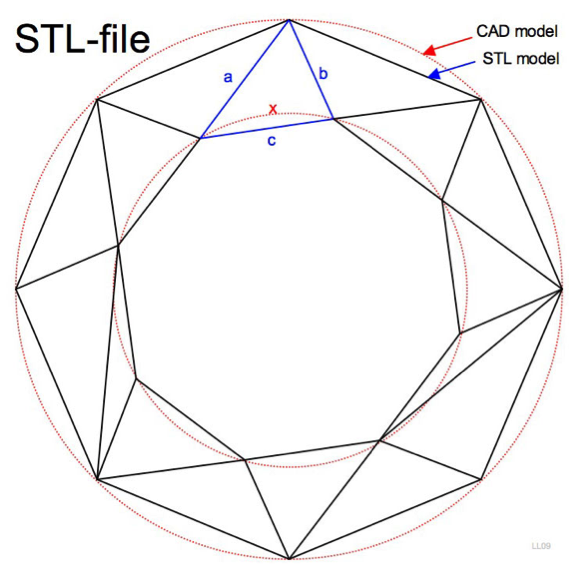

The main task of the STL file format is to encode the surface geometry of the 3D model. This encoding process is known as “tessellation.”
Tessellation
In tessellation, tiling a surface using one or more geometric shapes is done to avoid overlap or gaps. This is the same as tile surfaces or walls and an excellent example of tessellation. The tessellation process uses simple or complex geometric shapes, or you can also use some imaginative shapes. Some examples are readily available on the internet for understanding the process of tessellation.

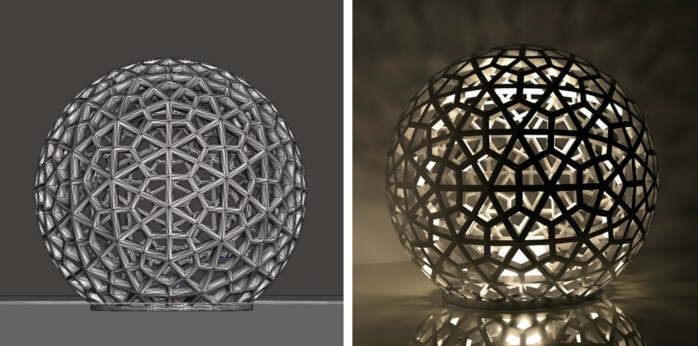

Tessellation for Encoding the Surface Data
The stereolithographic printing process was patented by Chuck Hall, founder of the 3D system, in 1987. This process is started by transferring the information about the 3D CAD model to the 3D printer. The Albert Consulting Group achieved this for the 3D systems, and in that process, they realized that tessellation is needed to encode the information.
Here the basic idea is to use the tiny triangle (also known as “facets”) for tessellating the two-dimensional outer surface of the 3D model. This can be understood by taking the example of the simple 3D cube. This cube is made from 12 triangles. There are two triangles per face; since it has six faces, it adds up to 12 pieces. If you have a 3D model of a sphere, it can be created using many small triangles. The information about these tiny triangles could be stored as a file, and then this file could completely describe the surface of an arbitrary 3D model. This is the basic idea behind the STL file format.
How is the Information Stored After Tessellation?
The STL file format stores the 3D model information in a triangular mesh. A triangular mesh is a collection of small triangles which approximate the surface of a 3D object. Each triangle is defined by three points, each of which has three coordinates which define its position in 3D space. The STL file stores the coordinates of each point as well as the normal vector of each triangle. The normal vector is a vector pointing perpendicular to the surface of the triangle and is used to determine the orientation of the triangle.
The STL file also stores information about the surface properties of the model. This includes the color of the object, the texture of the object, and the shininess of the object. All of this information is stored in the STL file as a set of parameters which can be used by 3D printers to recreate the object.

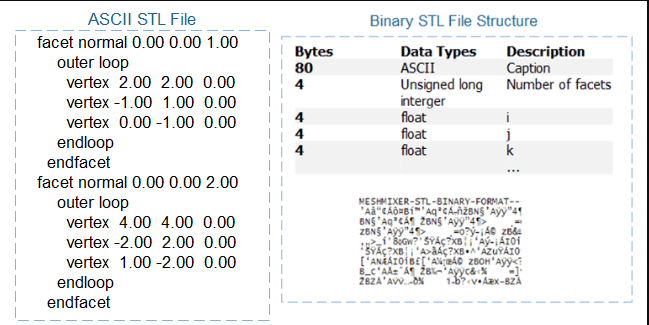

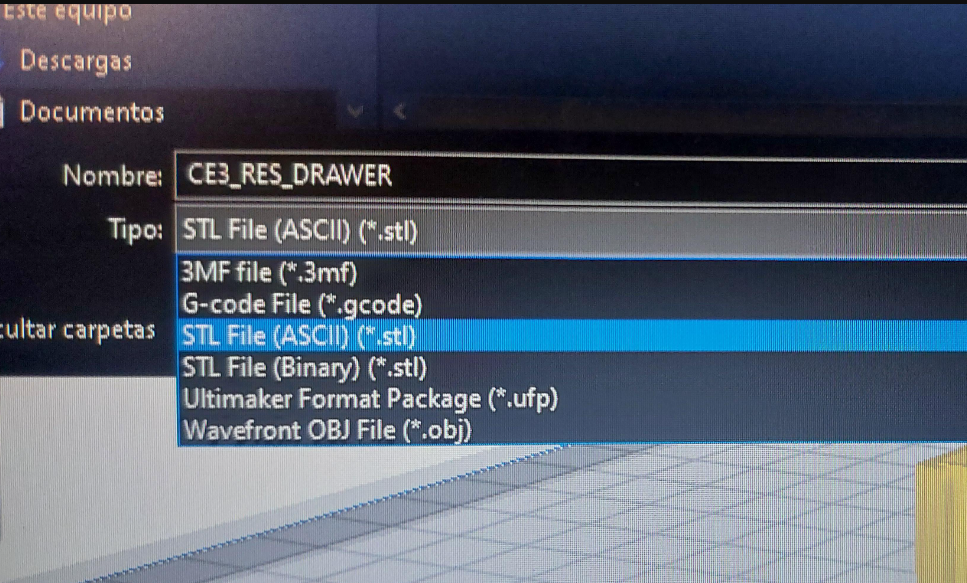

ASCII STL File Format
ASCII STL stands for ASCII Stereolithography and is a type of STL file format. It is a text-based format that represents 3D models using a series of numbers, letters, and symbols. The data is organized into triangles that represent the surface of the object. The triangles are specified by three points, represented by x, y, and z coordinates.
The advantage of ASCII STL is that it is a human-readable format, meaning that the data can be easily viewed and edited with a text editor. This makes it easier to verify the accuracy of the model, as well as make modifications to the model. It also makes it easier to share and exchange STL models. The downside of ASCII STL is that it is a lot larger than binary STL files. It takes up more space and takes longer to transfer. Additionally, ASCII STL files do not contain any metadata, meaning that there is no information about the 3D model, such as the units it is in or what software it was created with.
Binary STL File Format
If there are many small triangles in the object, then its ASCII STL file will become complex, and then we can use the compact binary STL file format. The Binary STL file format is a list of facet information that defines the shape of a 3D object. Each facet is defined by a unit normal vector, three vertices, and a two-byte attribute.
The unit normal vector is a vector that points perpendicularly away from the facet. The three vertices define the corners of the triangle that make up the facet. The two-byte attribute is a number that can be used to store user-defined data. The Binary STL file format is a compact and efficient way to store 3D models. It is also easy to parse, making it ideal for use in 3D printing and CAD applications. This file format is supported by a wide range of 3D printing software, such as Cura and Simplify3D.
3D Printing of STL File
Additive manufacturing works by adding layer by layer, or it can be worked by sintering powder layer by layer. So for 3D printing, all these layers are necessary. At this step, the 3D slicer tool helps you to create all the layers in 2D, which is grouped in a G-Code file which is the language of the 3D printer. This is the building process of the object, which is then executed by the machine.
STL file format is the universal file format, and all 3D printers can read it. Before sending the file to the 3D printer, you must ensure it is not broken. If the file is broken, the 3D printer cannot print this. Adjacent triangles must share two vertices, and the right-hand rule is applied to the vertices, resulting in the same orientation as the normal vector.
How do I Make an STL File?
In most CAD programs today, you can convert a 3D model into an STL file. It's as simple as exporting your STL file from your CAD application. Optimizing your file and enhancing your model's resolution after receiving it may be a good idea. Follow our guidelines to obtain the best outcome from your STL file when ordering through an online 3D printing service. If you have an STL file and would like to open it and see the details, you can use the various STL viewers available, both online and downloadable versions. If you want to modify them or add other details, you will need 3D modeling software.
Conclusion
STL file is used for making a 3D model from just a photo. A 3D printer uses an STL file for printing the 3D model. Here we gave a list of various software and online tools useful for converting an image into STL. We hope that you find this article informative and handy.
