The Common Causes of 3D Print Failures

You’ve downloaded a model, loaded it into your slicer, hit print, and waited, only to pull a stringy, warped, or completely missing object off the bed. Most beginners blame the printer, the filament, or the bed temperature. In many cases, the failure starts earlier, in the file, the geometry, or the slicer setup. These are the most common 3D printing mistakes, and they have nothing to do with the hardware.

Understanding why 3D prints fail means looking past the printer. File integrity, mesh quality, print constraints, and slicer configuration all determine whether the printer can produce a clean result, and most beginner 3D printing problems originate in exactly these areas.

This guide covers the pre-print mistakes that doom prints before they start, why they happen, and exactly what to fix: a practical 3D printing troubleshooting reference for beginners who want to stop failing at the file stage.

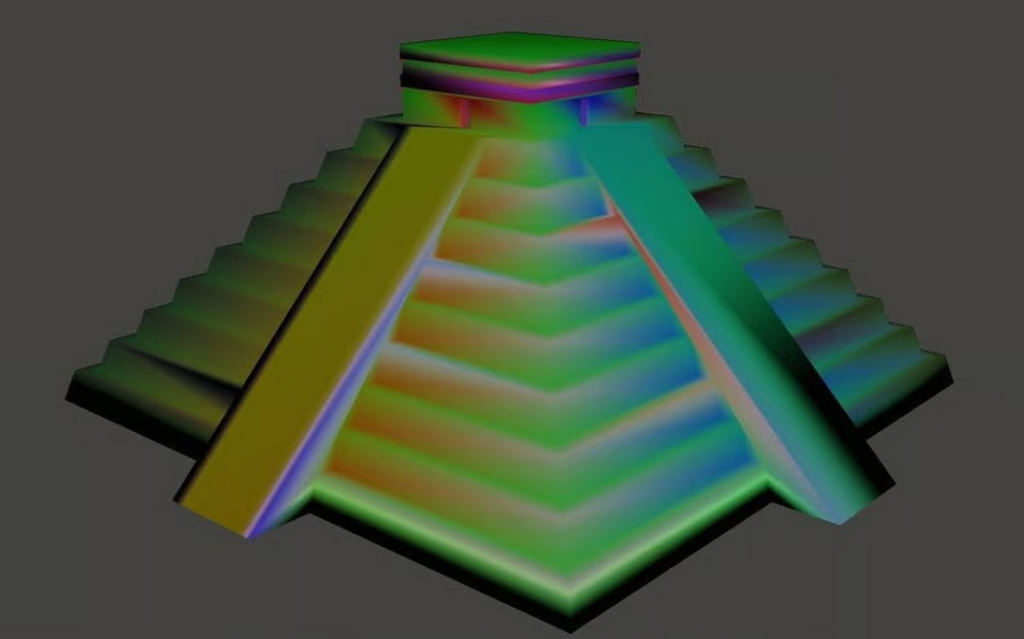

1. The STL File Is Broken, and You Don't Know It

The STL (Stereolithography) format represents a 3D surface as a triangulated mesh. Every triangle must connect cleanly, form a completely closed volume, and maintain consistent outward-facing normals. When these conditions fail, the slicer struggles to interpret the geometry correctly.

Non-Manifold Geometry

A non-manifold edge is one that's shared by more or fewer than exactly two faces. This can happen when you Boolean-union two objects in CAD and leave interior walls behind, or when you accidentally duplicate a face. The slicer may attempt to interpret the geometry and usually produce either missing layers, unexpected holes, or a model that simply refuses to generate toolpaths.

To repair it: Run your file through a mesh repair tool. SelfCAD is an easy to use program that you can use to fix your files. The video below shows how to use the Magic fix tool of SelfCAD to repair 3D models.

Meshmixer (free, from Autodesk), Netfabb (has a free online version), and PrusaSlicer (has built-in repair via the Manifold library) all also help detect and often auto-repair non-manifold edges. The open-source tool MeshLab gives you more surgical control.

Inverted Normals

Each triangle in an STL has a surface normal, a vector pointing outward from the solid. If some normals are accidentally flipped inward, the slicer sees those surfaces as the inside of the model. You may notice this in the slicer preview as strange hollow pockets inside an otherwise solid object. Many mesh repair tools can automatically correct this during a standard recalculation step.

Open Mesh / Holes in the Shell

A printable model must be completely sealed, with no missing surfaces or gaps. These issues commonly occur in CAD exports with incomplete faces, as well as in models generated from photogrammetry and 3D scanning. The slicer may try to automatically reconstruct missing surfaces, or it may simply skip layers in that region entirely.

Pro tip: Always open your file in the slicer's preview before sending it to print. Most modern slicers, such as Cura, PrusaSlicer, and Bambu Studio, highlight mesh errors in red or orange. If the slicer flags mesh errors, inspect them before printing.

2. The Model Was Never Designed for 3D Printing

A model may look perfect on screen, but still fail in production because it was designed for rendering rather than manufacturing.

Walls Too Thin to Print

On a standard FDM (Fused Deposition Modeling) printer with a 0.4 mm nozzle, the minimum reliable wall thickness is around 0.8 mm, two perimeter passes wide. A wall thinner than this simply doesn't have enough material for the slicer to generate any toolpath, so it gets silently omitted. You then wonder why half your model is missing.

According to FDM design guidelines, the recommended minimum thickness for functional parts is 1.2 mm, while structural and load-bearing walls should be 2.0 mm. For SLA resin printers, the minimum supported wall thickness is around 0.8 mm, and the minimum unsupported wall thickness is 1.2 mm.

Very thin features often disappear during slicing or print unreliably on standard FDM setups.

Overhangs Beyond 45 Degrees

FDM printing is constrained by unsupported material deposition. Any surface that extends horizontally without support beneath it is an overhang. The widely accepted 45-degree rule states that overhangs angled more than 45 degrees from the vertical require support structures to print reliably without drooping or collapsing.

As Tom's Hardware explains in their 3D printing design guide, within the 45-degree limit, the underlying layer provides a stable enough base. Beyond it, the extruded material is essentially extruding without sufficient underlying support, and it will sag, curl, or break free entirely.

Possible approaches include adding supports, redesigning the geometry, or splitting the part into separate printable sections.

Bridges That Are Too Long

A bridge is a horizontal span printed between two supported points, like the top of a doorway arch. FDM printers can bridge short gaps by combining cooling, print speed, and a slight tension on the extruded strand. Many entry-level FDM printers handle short unsupported spans reliably, but longer unsupported spans usually require tuning or supports, though experienced users may push to 30 mm with optimized settings and a strong parts-cooling fan.

Without adequate cooling or tuning, long bridges lose tension across the span, creating uneven undersurfaces and dimensional inaccuracies.

No Clearance for Mating Parts

Beginners often model interlocking parts such as hinges, snap fits, screw threads, and press fits with zero clearance between mating surfaces, as they would in a technical drawing for machining. But 3D-printed parts are slightly larger than the nominal model dimensions because the material is deposited. A joint designed with 0.0 mm clearance will fuse solid or won't fit at all.

General practice for FDM is to add 0.2 to 0.4 mm clearance per side on mating features. For SLA resin parts, Xometry's SLA design guidelines recommend a minimum clearance of 0.1 to 0.5 mm, depending on the fit type (push-fit, snap-fit, or sliding).

This is precisely where professional 3D print CAD file preparation services make the biggest difference. When a file is prepared by engineers who understand additive manufacturing constraints, tolerances, clearances, and minimum wall thicknesses, these constraints are validated before the file ever reaches a slicer, reducing many avoidable geometry and tolerance issues.

3. The Model Was Exported at the Wrong Resolution

STL is a triangulated approximation of your CAD geometry. Export settings control the fidelity of that approximation. In practice, this means choosing how smoothly curved surfaces get approximated into flat triangles. Export too coarse and you get faceting; export too fine, and you get a bloated file that crashes the slicer.

Too Low Resolution: Faceted Surfaces

If you export with coarse settings, curved surfaces become visibly faceted, exposing polygon edges and jagged contours. This shows up directly in the final print, with each polygon face visible as a flat step on what was supposed to be a smooth surface.

Too High Resolution: Oversized File That Crashes the Slicer

Overcorrecting by exporting at maximum resolution generates files with millions of triangles that are far larger than any printer can use (since layer height limits printable detail to around 0.05 to 0.2 mm). The slicer takes forever to process, may run out of RAM, or crash entirely. Beyond a certain point, increasing mesh density adds file size and processing overhead without visible print improvement.

The sweet spot: Use a medium or fine export quality setting in your CAD application; this keeps curves smooth without bloating file size. In SolidWorks, choose “Fine” or “Custom.” In Fusion 360, adjust the “Refinement” slider toward the higher end. In Blender, set an appropriate subdivision level before export.

A better alternative altogether is the 3MF format, now supported by all major slicers. 3MF preserves exact mesh data with metadata, avoids the normal-direction ambiguity inherent in STL, and produces smaller files. When available, use 3MF.

4. Scale and Units Are Wrong

Unit mismatches are surprisingly common and often remain unnoticed until the printed part comes out at the wrong size. CAD software works in document units, millimeters, inches, or meters, but the STL format itself carries no unit information. The slicer interprets the imported geometry using its default unit assumptions.

A model designed in inches and exported as STL will appear 25.4 times too large when the slicer assumes millimeters, which is the default in virtually every slicer. A model designed in meters, as some architectural models are, will appear 1000 times too large.

Always verify the bounding box dimensions of your imported model in the slicer before slicing. If you designed a part that's 50 mm tall and the slicer shows 1270 mm, you have a unit mismatch. Most slicers will ask you to import the units to apply.

If you're working with models from multiple sources or multiple CAD packages, standardize on millimeters end-to-end. It eliminates an entire category of avoidable errors.

5. Slicer Settings Don't Match the Material or Printer

Even a perfectly modeled part can fail if the slicer translates it using the wrong settings. Temperature, speed, cooling, retraction, and extrusion behavior all need to be tailored to the specific material and machine.

Temperature Mismatch

Every filament material has a recommended extrusion temperature range. PLA typically prints at 190-220°C. PETG at 230 to 250°C. ABS at 220 to 250°C. Printing at too low a temperature results in underextrusion, poor layer adhesion, and frequent jams. Printing at too high a temperature causes stringing, blobs, and material degradation.

The "PLA profile" in a generic slicer template may not match your specific brand or color's ideal settings. Dark-pigmented filaments often need slightly different temperatures than their natural counterparts. Always confirm against the filament manufacturer's datasheet.

Incorrect Bed Temperature and No Adhesion Strategy

Different materials require very different bed temperatures to adhere properly and resist warping during the print. PLA typically needs 50 to 60°C. ABS needs 100-110°C and an enclosure to maintain ambient temperature. ABS parts frequently warp or detach when printed without adequate bed temperature or enclosure control.

Beyond temperature, adhesion aids such as glue stick, hairspray, PEI sheets, ABS slurry, or Kapton tape can improve first-layer stability on large base surfaces.

Retraction Not Tuned to the Machine

Retraction is the brief backward pull of filament when the nozzle travels between print locations, designed to prevent ooze and stringing. For Bowden-tube setups (where the extruder is remote from the hot end), retraction distances of 4-7 mm are typical. For direct-drive extruders (where the motor sits on the carriage), 0.5 to 2 mm is typically enough. Using Bowden retraction values on a direct-drive printer can cause so much filament to retract that air gaps form in the extruded lines.

Print Speed Too High for the Geometry

Slicing a delicate, fine-featured model at the same speed as a chunky enclosure part is a recipe for vibration artifacts, layer shifting, and missing detail. Fine features need slower speeds to give each layer time to cool before the next is deposited. For tall, narrow parts, minimizing layer time helps prevent heat buildup in the upper layers.

6. Part Orientation in the Slicer Is an Afterthought

Part orientation influences support requirements, surface finish quality, print stability, and overall material usage. Most beginners open a file in the slicer and hit print in the orientation it loaded in, which may not be the most efficient.

FDM parts typically have lower strength between layers than within a layer. FDM parts are significantly weaker in the Z axis (between layers) than in the XY plane (within a layer). If a part will experience bending loads across its length, orient it so those loads run along the XY plane, not perpendicular to layer lines.

Minimize overhangs by rotating. A part with one difficult overhang might be trivially support-free if rotated 90 degrees. Run a quick mental check before accepting the default orientation: is there a position that puts the largest flat face on the bed, eliminates most or all overhangs, and puts the highest-quality surface on the most visible face?

Use a raft or brim for adhesion-critical parts. A brim adds a single-layer skirt around the base of the part to increase contact area with the bed. A raft adds a sacrificial platform below the part. Both improve first-layer adhesion significantly for small-footprint or tall parts that would otherwise tip or lift.

7. The File Prep Workflow Is Bypassed Entirely

Professional print workflows validate files before printing begins to reduce avoidable failures. That means checking mesh quality, validating dimensions, reviewing orientation, dialing in material-specific parameters, and running a layer preview before committing to a print run.

For your own projects, build this pre-flight checklist into every print:

1. Open the file in a mesh repair tool and run geometry validation.
2. Confirm all wall thicknesses are above the material-and-nozzle minimum.
3. Identify all overhangs above 45 degrees and decide: redesign, or support?
4. Check export resolution, neither too coarse nor excessive.
5. Verify dimensions in the slicer match the intended real-world size.
6. Confirm slicer settings match the specific material profile.
7. Review the sliced layer preview in your slicer and watch for missing sections, unexpected supports, or layer inconsistencies.

Only after this checklist passes should you start the print. Experienced users treat printing as a validation process rather than a trial-and-error activity at the machine.

Designing Smarter: Best 3D Printing Software

Several tools make the pre-print phase less error-prone. But we recommend using SelfCAD. SelfCAD is an all-in-one browser-based platform that combines 3D modeling and slicing in a single environment. It comes with interesting tools like freehand drawing and sketching, image to 3D model, powerful 3D sculpting brushes, easy to use selection modes and various modification and deformation tools. SelfCAD also comes with the magic fix tool that helps you fix issues in your designs. Its built-in slicer lets you slice your files in the software without having to switch to another software. The video below shows the overview of the software.

Conclusion

Most failed 3D prints trace back to something that happened before the job even started. Geometry preparation, export settings, and slicer configuration cause far more failures than the hardware ever does.

Printers execute instructions exactly as they are prepared. When the mesh has errors, the part dimensions are off, or the material profile is wrong, those problems appear directly in the final part, and no amount of bed leveling will fix them.

Every hour spent understanding these pre-print failure modes saves multiple hours of failed 3D prints, wasted filament, and frustrated troubleshooting at the machine. Most common 3D printing mistakes are avoidable once you know where to look, and nearly all of them happen before the printer starts.

Checking the file, mesh quality, and slicer setup before printing is how experienced makers turn 3D printing troubleshooting from a constant headache into an occasional edge case. If you’re working on production-scale parts or sending files to a print service, this pre-print validation becomes even more critical and time-consuming. When the stakes are higher or the geometry more complex, professional 3D print CAD file preparation services handle mesh validation, tolerance checking, and print-readiness review as part of a structured engineering workflow, catching beginner 3D printing problems before they reach the machine. For one-off prototypes, the checklist above is enough. For anything going into production, having engineers verify the file upstream is what separates a clean first run from a costly round of failed prints.
