Key Reasons Why Nozzles Clog
Among the most inconvenient issues with 3D printing is a blocked nozzle. It has the potential to impede filament flow, which in turn can destroy a print job. Occasionally, absolutely no filament emerges. Sometimes, nevertheless, the printer will keep printing even though there are holes, weakened layers, or uneven surfaces. The nozzle opening is so narrow that even the tiniest obstructions can obstruct it. You can save time and effort by learning the causes of nozzle clogging.

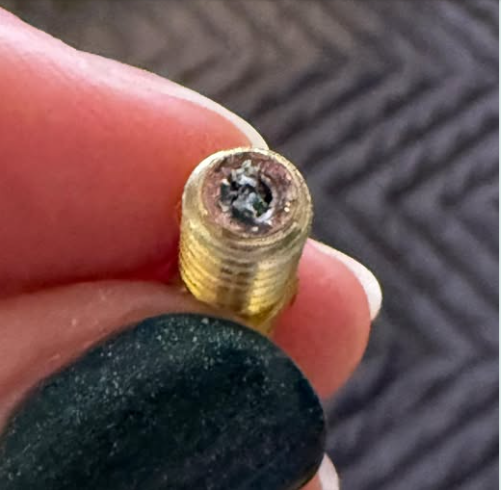

What Does a Clogged Nozzle Look Like?
The symptoms of a blocked nozzle can vary. A full clog is one in which the filament is no longer extrudable. The inability to force the filament past the obstruction could cause the extruder motor to begin clicking. Even though the printer is still operational, the print quality will suffer due to a partial blockage. Inconsistent lines, rough walls, under-extrusion, or missing layers could be visible.
If customers notice sideways curling of the filament when manually extruding filament, it's likely because debris has become lodged in the nozzle. This is because of the following reasons.
1. Low-Quality Filament
A common reason for nozzle blockages is using a filament of poor quality. Filament that is inexpensive could have manufacturing residues like dust, dirt, or microscopic particles. These particles can become stuck in the nozzle after passing the hotend. Some sections of low-quality filament may be thicker than others, a phenomenon known as uneven diameter. This can cause issues with nutrition and eventually lead to obstructions. Improving the filament's quality usually fixes these problems.
2. Wet Filament

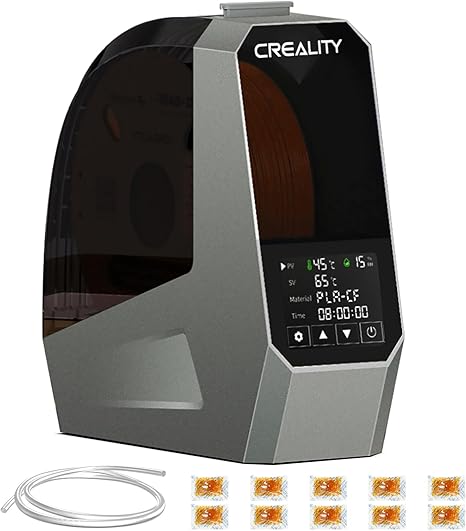

The air is a source of moisture for many filament kinds. Common examples are PLA, PETG, Nylon, and TPU. The retained moisture in the wet filament becomes steam when it passes through a hot nozzle. Uneven extrusion, bubbles, and bursting noises might result from this. The accumulation of this kind of moisture inside the nozzle has the potential to cause clogs as time goes on. One way to avoid this issue is to use a filament dryer and store the filament in an airtight container.
3. Printing at the Wrong Temperature

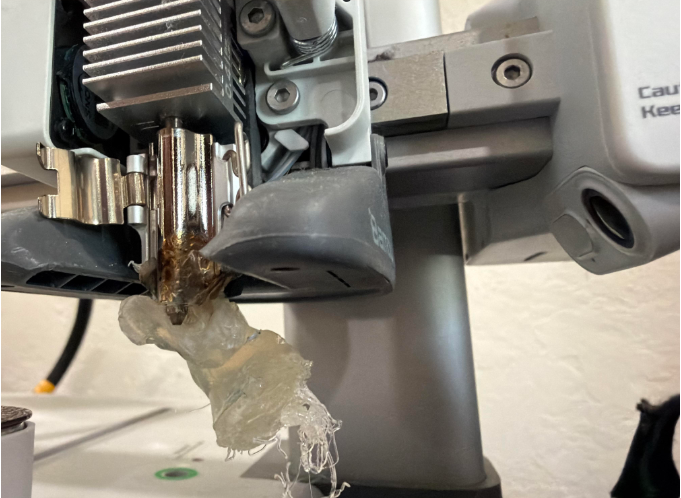

Nozzles can quickly become clogged due to improper temperature settings. Threads might not melt evenly if the nozzle isn't heated enough. The nozzle can become jammed with thick or partially melted plastic. Overheating the hotend can cause the filament to burn and deposit carbon within. Damaged or burned material can obstruct the nozzle's aperture. Heat creep, in which heat rises and prematurely softens the filament, is another consequence of high temperatures.
4. Dust and Dirt on Filament
Exposure to air might cause the filament to become dusty over time. Even seemingly innocuous dust particles pose a threat when they enter the hotend and accumulate in the nozzle. Besides filament, filament rolls can attract pet hair and office grime. This buildup might lead to major clogging issues in the long run. To maintain cleanliness, store filament in airtight containers or bags. You can 3D print a filament dust filter to avoid it.
5. Using Abrasive Filaments
The additional materials in some specialty filaments could cause the nozzle to wear down faster than usual. Common examples are filaments that glow in the dark, carbon fiber filaments, filaments packed with wood, and filaments filled with metal.

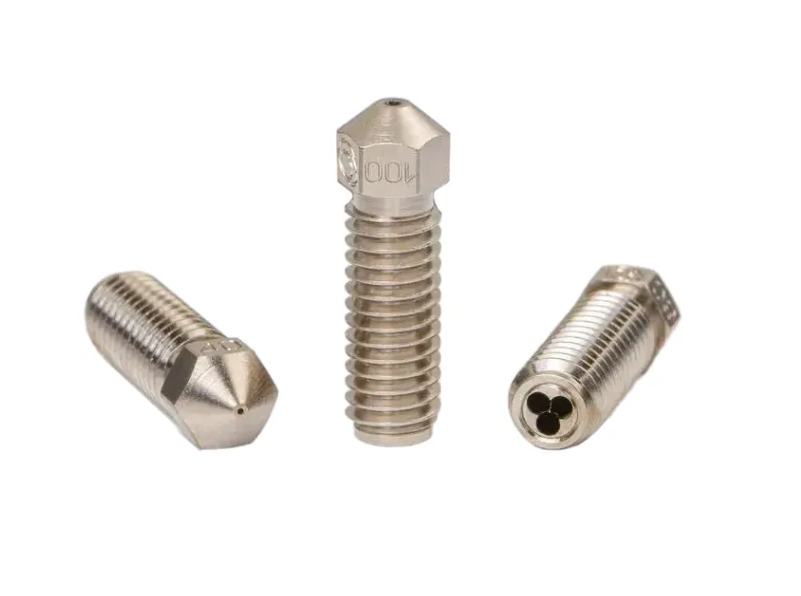

Standard brass nozzles are susceptible to wear and tear from these substances. Rough surfaces may develop inside the nozzle as it wears down, increasing the likelihood of jams. In most cases, these materials work best with a nozzle made of hardened steel.
6. Nozzle Too Close to the Print Bed
It is also possible to clog the print bed by positioning the nozzle too near it. In order for the filament to flow out properly during the first layer, there must be sufficient room. Too much pressure on the nozzle relative to the bed could prevent the filament from fully escaping.
If done correctly, this can force melted filament back into the nozzle by increasing pressure within the hotend. You can avoid this problem by leveling your bed properly.
7. Too Much Retraction
To lessen stringing, you can adjust the retractions to draw the filament back during travel moves. Nevertheless, issues can arise with excessive retracting. Overly retracting the filament can cause the molten plastic to migrate to the hotend's cooler regions. There, it has the potential to solidify and form a clog. Overly aggressive retraction settings are a typical cause of this issue in Bowden-style printers.
8. Switching Between Different Filament Types
The nozzle might become clogged when switching filament types. You can end up with some extra material in the nozzle if you print with ABS first and then transition to PLA. The next print might not be able to completely melt the residual plastic. The accumulation of this material over time has the potential to clog the nozzle. To prevent this, be sure to purge enough filament while changing materials.

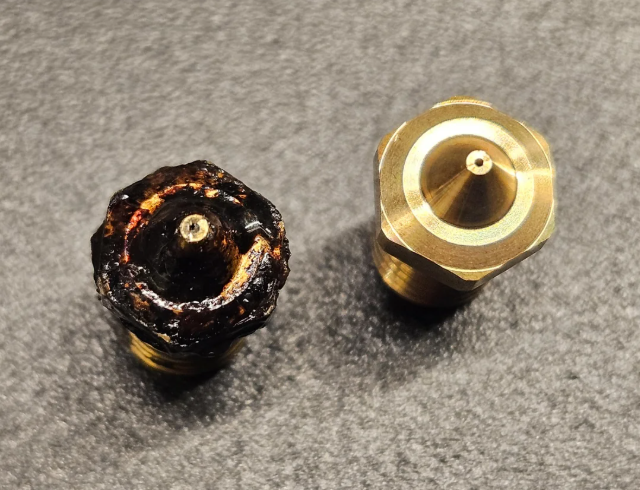

9. Old or Damaged Nozzles
Particularly with frequent printing, nozzles degrade with time. Damage or roughness might develop on the inside of a worn-out nozzle. These rough regions can become clog-causing filament traps. Using abrasive filaments can accelerate the rate of nozzle wear. After cleaning, if the nozzle is still clogged, you may need to replace it.
10. Poor Hotend Cooling
One component of the printer that helps maintain temperature is the hotend cooling fan. Heat can get to places where the filament should stay solid if this fan stops operating or gets clogged with dust. Due to this, the filament becomes pliable before it reaches the nozzle, causing it to jam. To keep your cooling fan free of heat-related blockages, check it often.
How to Prevent Nozzle Clogs?
It is easier to prevent nozzle blockages than to fix them. Always use reputable brands of high-quality filament and keep it in a dry place. Make sure your printer is clean and that your work area is free of dust. Be sure to use the appropriate temperature settings for each type of filament. You should not use the retraction settings on your bed until your bed is perfectly level. Another way to avoid buildup is to clean your nozzle frequently.
How to Fix a Clogged Nozzle?
To clear a blocked nozzle, bring it to the appropriate temperature and attempt to force filament through it by hand. If it doesn't work, try pulling the nozzle cold to clear it of debris. For smaller obstructions, you can also utilize a nozzle cleaning needle. It may be necessary to remove the nozzle to clean it more thoroughly or to replace it entirely in the case of serious obstructions.
Best 3D Design Software for Education
In this article, we discussed Why Do 3D Printer Nozzles Clog; now it's important to look at the best 3d printing software that you can use to create your files. There are many that are available, but we recommend using SelfCAD. It is one of the best 3D modeling software programs for creating both simple and complex 3D models. It's the only 3D modeling software that comes with artistic, technical, and 3D printing tools all under a single program. The video below shows the overview of the software.
Conclusion
There are a lot of avoidable causes of nozzle clogging in 3D printers. Wetness, improper settings, dust, worn-out components, and poor filament are typical culprits. You can avoid jams and get better printing results with regular printer maintenance and good printing habits.
Frequently Asked Questions
1. How do you unclog a 3D printer nozzle?
Get the nozzle hot to the printing temperature and see whether you can force filament through it by hand. If that doesn't get the debris out, try pulling cold. Use a cleaning needle or change the nozzle for obstinate blockages that won't budge.
2. What is the lifespan of a 3D print nozzle?
The filament and nozzle material make a difference. Hardened steel nozzles have a far longer lifespan than brass ones, even after months of consistent PLA printing. Nozzles may wear out more quickly when using abrasive filaments.
3. How to fix a clogged printer nozzle?
The first step is to remove any trapped filament and check the temperature of the nozzle. Try a cold pull or use a needle to clean the nozzle. To clean the nozzle thoroughly or replace it if the blockage is severe, remove it.
4. What are the symptoms of a clogged 3D printer nozzle?
Signs like as under-extrusion, missing layers, uneven lines, poor print quality, clicking sounds from the extruder, and no filament coming out are common.
5. How to avoid nozzle clogging?
Always use dry filament, keep your printer clean, set the temperature correctly, and replace old nozzles.
