45-Degree Rule in 3D Printing: What You Need to Know
A typical cause of 3D printing not turning out as expected is overhangs. Surfaces become uneven, edges droop, and parts droop, even while the remainder of the print appears OK. The model is pushing unsupported angles too far, which is a common source of this. When supports lengthen print times, squander filament, and produce unsightly markings, the frustration level rises. We can fix this with the 45-degree rule. It provides an easy way to predict which shapes will print well and which won't. With this concept in mind, you may streamline your model design process, reduce support requirements, and achieve stronger, cleaner prints with little trial and error.
What Is an Overhang in 3D Printing?

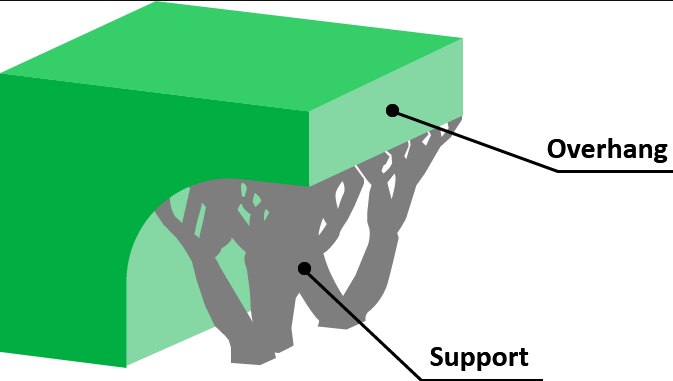

The term "overhang" describes any protruding portion of your model. Underneath it, there is nothing. Problems with overhangs are common in 3D printing. Placing a fresh layer of filament on top of an existing one is essential. It will droop or sag if there is nothing underneath. This can lead to a rough surface or possibly print failure. A small overhang shouldn't be a problem for most printers. However, steep ones provide a challenge. This is why we determine the necessity of support according to established criteria and guidelines.
The Meaning of the 45 Degree Rule
One such design guideline is the 45-degree rule. It states that, in most cases, support is not necessary for printing overhangs that are 45 degrees or less from the vertical. The reason this works is that there is sufficient overlap between each layer to ensure stability. Having an overhang of more than 45 degrees results in insufficient contact. The filament could sag if it loses its support. Then it's a good idea to put in some supports to make sure it doesn't collapse.
To clarify, this rule is more of an advisory than a mandatory statute. On certain machines, you are able to press at steeper angles without any assistance. However, newcomers might steer clear of typical pitfalls by adhering to this rule. Not only that, it cuts down on filament waste on supports and saves time.
Why 45 Degrees Matters?
In the printing process, a foundation is required for every layer. Assuming the angle is small, the successive layers will remain firmly attached. The prior layer supports approximately half of the new layer's area at a 45-degree angle. For most materials, that should be sufficient. Surfaces become cleaner, and prints become stronger as a result. The printer will insert plastic into nothingness if the angle is greater than 45 degrees. Before the material cools, gravity drags it down. Sagging or stringy messes are the result of this. Support is necessary to resolve this.
How Does the 45-Degree Rule Help With Support Decisions?
The 45-degree rule is a useful tool for determining the optimal placement of supports. Consider all of the sloping surfaces in a model. Make preparations to employ supports if the angle of tilt exceeds 45 degrees from vertical. Similar to scaffolding, supports. They support the pieces that protrude while the printer is operating. Without the proper support, steep overhangs have the potential to collapse, resulting in a smooth surface or a destroyed print.

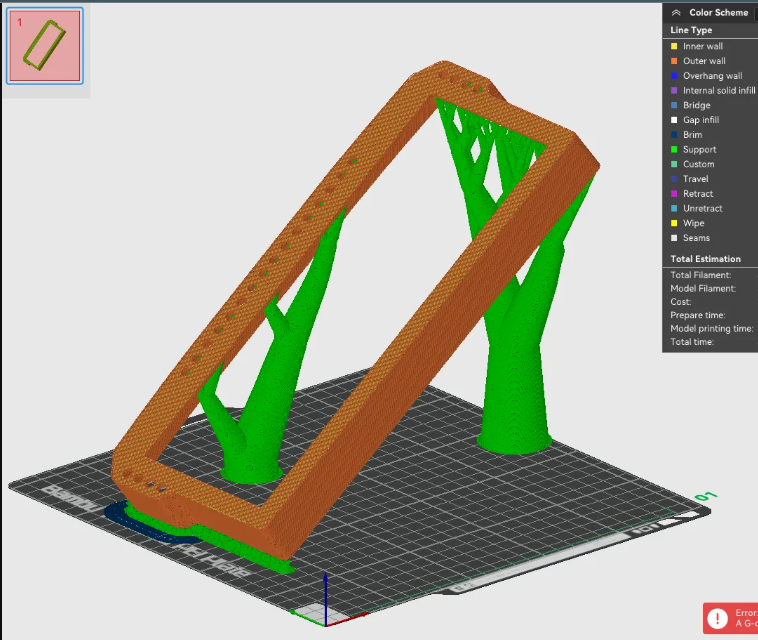

Certain slicer tools draw attention to these spots. They indicate in red areas where surfaces require support. You may now more easily verify your model before printing, thanks to this. To further minimize overhangs, you can also rotate your object within the slicer. Less assistance is usually required, and the outcomes are cleaner as a result.
Can You Break the 45 Degree Rule?

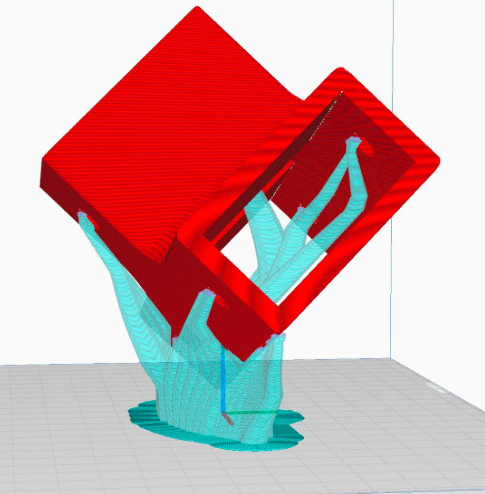

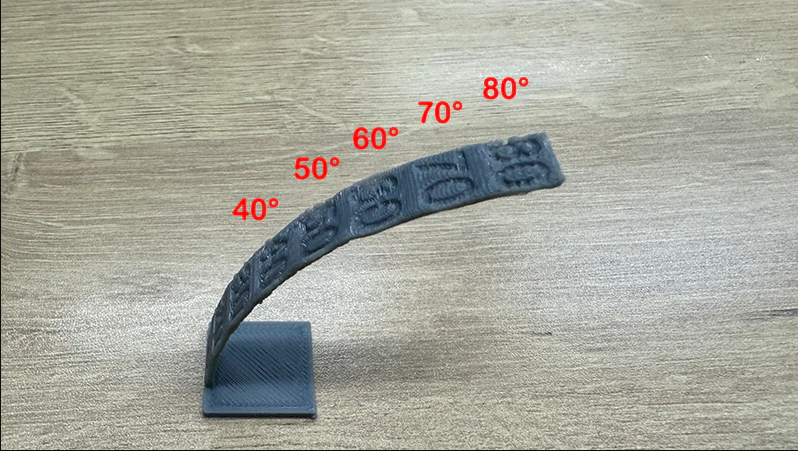

Occasionally, you will be able to break it. The 3D printers and slicers of today are much improved over their predecessors. With proper tuning and good cooling, they should be able to manage steeper angles without supports. Under specific circumstances, some users have been known to push angles as high as 60 degrees. This typically necessitates printer adjustments, improved cooling fans, and slower speeds.
However, these methods are quite sophisticated. Still today, the 45-degree rule is a solid bet for the majority of printing jobs.

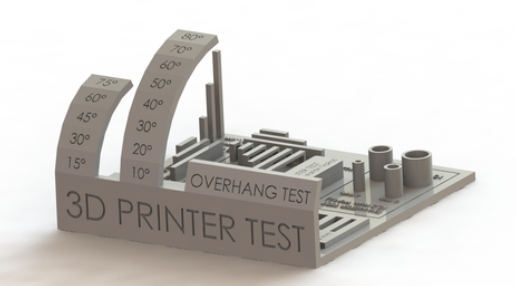

Various materials also exhibit distinct behaviors. PLA hardens rapidly as it cools. In rare cases, it can manage more severe overhangs. Softer alternatives, such as ABS or PETG, might fail sooner. Knowing the limits of your machine and materials requires constant testing.
45 Degree Rule vs Real-World Printing Behavior
The rule explains how things typically function, not how they always work. Results differ in actual printing due to the fact that printers are not all the same. Variables that affect results include cooling force, nozzle quality, firmware fine-tuning, and motion stability.
Overcoming the 45-degree limit is possible with a well-tuned printer and strong part cooling. Inadequately calibrated printers could crash at this level. There are environmental considerations as well. Airflow and room temperature determine the rate of cooling.
Because of this, the regulation should be considered a minimum acceptable standard. In this area, failure is highly improbable to occur. Tuning and experience are the determining factors for success beyond that zone.
Material-Specific Behavior and Overhang Limits
PLA: The 45-degree rule is most reliably followed by PLA. Rapid cooling causes it to harden rapidly. As a result, it can span relatively narrow spaces without sagging. Beyond 45 degrees, with proper cooling, many PLA prints succeed.
PETG: PETG acts uniquely. Long after extrusion, it keeps its softness. Even at nearly 45-degree angles, this makes the edges droop. PETG typically needs supports sooner than PLA.
ABS: ABS contracts when cooled because it retains heat. Longer durations cause overhangs to soften. This raises the possibility of sagging. Overhangs made of ABS frequently break close to the 45-degree limit in the absence of robust cooling.
TPU: TPU gives it pliability and elasticity. It takes a while for it to solidify. Overhangs lose shape easily. For materials that are not rigid, the 45-degree rule does not hold.
Nylon: Nylon is water-absorbing but otherwise acts like ABS. In the absence of adequate drying, this further diminishes the overhang quality.
Layer Height and Its Direct Impact on Overhangs
A layer's height determines the degree to which it overlaps with its predecessor. Layers that are smaller have more overlap. At the same angle, this provides better support.
There is more surface area for contact when printing a 45-degree overhang at a layer height of 0.12 mm as opposed to 0.3 mm. This enhances the surface finish while decreasing sagging.
You can decrease print time by increasing layer height, but overhang performance will suffer. Improving unsupported angles without adding supports can be as easy as lowering the layer height.
Cooling Systems and Fan Configuration
Cooling speed is a major factor in the success of overhangs. Before gravity can bring the filament crashing down, it must solidify. Part cooling with a strong force accomplishes this.
The positioning of the fan is just as important as its power. To reach the extrusion point, airflow is necessary. Even with a high fan speed, ineffective airflow direction diminishes effectiveness.
Issues with layer adhesion can occur due to overcooling. Among polymers, ABS and nylon stand out. Material and shape must be considered when balancing cooling.
Designing Models to Respect the 45 Degree Rule
Before beginning the slicing process, design decisions dictate the print success. Overhang issues arise instantly on flat, horizontal surfaces. They disappear as the slopes mellow.
Chamfers soften abrupt 90-degree turns into gradual slanted shifts. As a result, surfaces remain within the printed range. Fillets alleviate strain by easing transitions.
Supports are unnecessary when you use angled geometry in your design. Layers stay continuous and well-bonded, which increases strength.
Best 3D Printing Software
There are many 3D printing software available that can prepare designs for 3D printing, and a good example is SelfCAD. SelfCAD is an easy-to-use 3D design software that you can use not only to create 3D models but also to edit meshes and slice designs. It comes with interesting 3D modeling tools like freehand drawing and sketching that you can use to create designs from scratch.
There are also easy-to-use selection modes as well as various modification tools to help you modify your designs based on your requirements. It also comes with an image-to-3D feature that makes it easier to turn photos into 3D models. You can also import STL files and modify them based on your needs. The software also comes with an in-built online slicer that one can use to prepare designs for 3D printing.
Conclusion
When printing with a 3D printer, a basic but effective guideline is the 45-degree rule. If you want to know when overhangs will work without supports, it tells you. Additionally, it notifies you when it is likely that you will need assistance. When there is an adequate amount of surface area for layers to rest on, the rule holds. Typically, you'll get the best results if you keep the overhangs at 45 degrees or less. You may break this guideline as you become more experienced. On the other hand, it is a reliable option for novices and regular printing. Prints with fewer surprises and more strength will result from following it.
