FDM 3D Printing: A Complete Guide
Fused deposition modeling (FDM) is a process that uses a tiny nozzle to extrude melted plastic filament. Printing in layers allows the printer to construct an object from the ground up. Instead of resin or powder, FDM uses solid plastic filament, which is different from SLA and SLS. For first-timers, this means less frustration and more security. FDM components are durable and functional for regular tasks. While resin printing offers better surface detail, FDM is the way to go for long-term durability and printing on a massive scale.
How FDM 3D Printing Works?
Software-based layer slicing of a 3D model is the first step in FDM printing. The nozzle's trajectory is defined by each successive layer. In order to print, the printer melts the filament and forces it through the nozzle. The substance adheres to the layer behind it as it rapidly cools. You keep doing this till you finish the part.
Less warping and better adherence are benefits of using a hot build plate. To print supports, some printers use two extruders. When you use supports, you can make complicated forms and overhangs. The supports are either manually removed or dissolved after printing. If the surface needs some light sanding or polishing, that would be great.
Materials Used in FDM 3D Printing

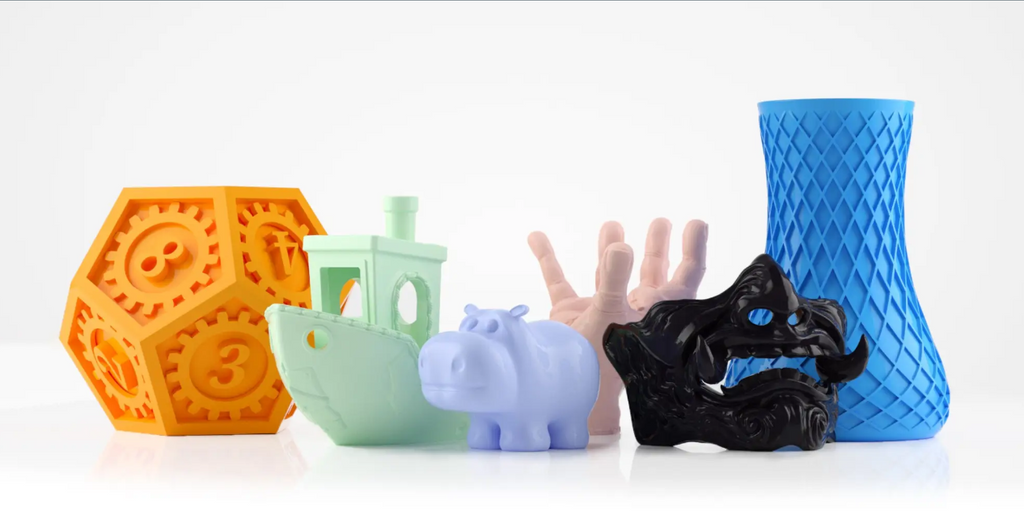

1. PLA – Beginner Friendly
For FDM, PLA is by far the most popular material. Produced from sustainable materials, it melts at relatively low temperatures. PLA is odorless and easy to print with. Models, prototypes, and ornamental objects all benefit from this. PLA is great for newbies because of its low price, large color range, and lack of heat resistance; nonetheless, it can become brittle.
Price: about $15 to $25 per kg
2. ABS – Tough and Durable
Compared to PLA, ABS is both more durable and resistant to heat. Both functional and mechanical components make use of it. Stress and greater temperatures are not problems with ABS. But it warps easily and is difficult to print. You need a bed with heating elements and adequate ventilation. If you require long-lasting parts and can regulate the print conditions, ABS is the material for you.
Price: $18 to $30 per kg
3. PETG – Strong and Flexible
PETG is a great material because it is both strong and easy to print on. It can withstand water and chemicals without bending or breaking. When compared to ABS, PETG is less smelly and prints more easily. It works well with mechanical components, containers, and outside parts. With the right parameters, stringing is less likely to happen.
Price: $17.99
4. TPU – Flexible and Elastic
Thermoplastic urethane (TPU) is a rubber-like yet pliable filament. It is unbreakable even when bent and stretched. Phone covers, seals, and shock absorbers are all great uses for TPU. Careful adjustment and slow print speeds are required. Adjusting the temperature of TPU causes it to melt into components that are both rigid and stretchy.
Price: $20.99
5. Nylon – Strong and Wear-Resistant
Strong and long-lasting, nylon is a popular high-performance fiber. Tools, bearings, and gears can all benefit from it. Because nylon soaks up water quickly, keeping it dry is key. In many cases, a heated bed and a closed printer are necessary. Nylon is capable of bearing substantial weights when printed properly.
Price: $20 to $35 per kg
Specialty and Composite Filaments
Composites made of carbon fiber, wood, or metal are examples of specialty filaments. These substances make things look better or make them stronger. Hardened nozzles are necessary for the use of carbon-fiber filaments, which enhance stiffness. After printing, soluble support ingredients such as PVA and HIPS dissolve, simplifying and improving the quality of even the most intricate designs.
Techniques for Better FDM Printing
Design for Print Success
Think about the limitations of FDM when designing component parts. Support is typically required for overhangs that are more than 45 degrees. Before employing a 0.4 mm nozzle, ensure that the wall thickness is at least 1.2 mm. Weak barriers lack strength. Rounded corners enhance the bonding of layers. Flat surfaces, particularly when made of ABS, amplify warping.
Acquiring Knowledge of Print Orientation
How the print is oriented impacts its durability and visual appeal. Things are at their weakest on the Z-axis. When you can, try to align the stress along the X or Y axis. Strength and detail are both addressed with a 0.2 mm layer height. Choose 0.24–0.28 mm for more robust components. To minimize layer lines, orient the surfaces that are visible.
Support Structures and Removal
For steep overhangs, supports are necessary. Less cleaning is required when using the construction plate supports. Typically, a density of 10-15% is enough. To facilitate removal, set the support Z-distance to 0.2-0.25 mm. For intricate internal details, soluble supports are the way to go.
Temperature and Cooling Control
Proper temperatures enhance the adherence of layers. High cooling while printing PLA works best between 190 and 210°C. With a moderate fan speed, PETG is best at 230–250°C. ABS requires moderate cooling, between 230 and 260°C. There is also the issue of bed temperature. When enclosed, PLA requires 50-60°C, PETG 70-80°C, and ABS 90-110°C.
Print Speed and Flow Rate
Printing at moderate speeds enhances the quality. 50-60 mm/s is optimal for PLA. For PETG, 40-50 mm/s is ideal. Velocity of 20-30 mm/s is ideal for TPU. Keep the flow rate close to 100%. Large alterations result in faults, whereas little adjustments (up to 105% of the original value) can remedy under-extrusion.
Methods for Bed Adhesion
It is crucial to level the bed properly. Squish the first layer just a little. When using a 0.4 mm nozzle, the first-layer height should be between 0.24 and 0.28 mm. A brim of 5-8 mm is helpful for large prints. Rafts alleviate materials that are twisted. To maintain constant adherence, clean the bed on a regular basis.
FDM 3D Printers: Best Options to Buy
1. Bambu Lab X1E
Key Features:
– 256 × 256 × 256 mm build volume
– Enclosed, heated chamber (60°C)
– 320°C hotend, CoreXY motion
– AMS multi-material support
– Price: ~$2,500–2,900 USD
Many Experts think the Bambu Lab X1E is the greatest all-around FDM printer that you can buy. Printing is quick and consistent, and it has clever features like self-diagnostics that cut down on calibrating by hand and real-time vibration control. Printing experts and advanced hobbyists who need consistent results will benefit greatly from its enclosed chamber and dependable motion mechanism, which reduces the likelihood of failed prints and maintenance requirements.
2. Prusa MK4S
Key Features:
– 250 × 210 × 220 mm build volume
– Heated bed up to 120°C
– Auto calibration, open-source
– Strong reliability and support
– Price: ~$950–1,800 USD
The Prusa MK4S maintains the high standard of print quality and user assistance that Prusa is known for. It has a robust community, open-source firmware, and upgrades, and it has very accurate dimensions. It may not be the quickest system, but it's a favorite among serious manufacturers and hobbyists who seek a long-lasting platform they can change and develop over time because of its balance of quality, reliability, and upgrade pathways.
3. Elegoo Neptune 4 Pro
Key Features:
– 225 × 225 × 265 mm build volume
– Direct drive extruder
– Auto bed leveling
– High-speed printing
– Price: ~$229 USD
An outstanding mid-range printer, the Elegoo Neptune 4 Pro offers dependable output at a reasonable price while operating quietly and smoothly. Prints adhere smoothly, and overhangs are no problem with its efficient cooling and dual-gear direct drive system. Because of this, it is a great option for people who desire high quality but don't want to deal with the hassle or expense of more advanced equipment.
4. Creality Ender 3 V3 SE
Key Features:
– 220 × 220 × 250 mm build volume
– Auto leveling, resume print
– Entry-level friendly
– Basic open-frame design
– Price: ~$200–220 USD
An affordable workhorse for novice to advanced users, the Creality Ender 3 V3 SE is a great choice. At a reasonable price, it provides a respectable build volume and reliable performance. As an entry-level FDM printer, many users like its simplicity and upgrade potential, although it may require some initial adjustment compared to more luxurious versions. (work history in the community at large)
5. FlashForge Adventurer 5M Pro
Key Features:
– 220 × 220 × 220 mm build volume
– Fully enclosed design
– Auto leveling, Wi-Fi
– Quiet and beginner-friendly
– Price: ~$450–500 USD
Introducing the FlashForge Adventurer 5M Pro—the ultimate combination of user-friendliness and powerful performance. Its compact form factor and intuitive interface make it an excellent choice for households, schools, and makers seeking high-quality prints with little initialization. Not only is it known for its solid first-layer adhesion and easy processing, but it also reliably prints a wide range of materials.
Which Is the Best 3D Modeling Software?
Having reviewed FDM 3D printing, it becomes essential to learn about the best 3D modeling software. There are many that are available, but we recommend using SelfCAD. SelfCAD is an all-in-one 3D modeling platform designed to make creating, editing, and preparing 3D models simple and accessible. Unlike many traditional tools that require steep learning curves, SelfCAD combines modeling, sculpting, and slicing features in a single interface, making it especially appealing for beginners and hobbyists. It runs directly in the browser, and there is a downloadable version as well, making it easier for you to work anywhere, anytime.
It includes powerful tools like image-to-3D conversion, interactive tutorials, and built-in slicing for preparing models for printing. It is also affordable, and comes with a free version that makes it easier for you to try the software.
