Lithophane in 3D Printing: What You Need to Know
Light-activated visuals called lithophanes are an interesting mix of art and science. Since the 1800s, ceramic and other see-through materials have been used to create lithophanes. Lampshades, frames, and other decorative items are examples of 3D-printed lithophanes. Anyone with the right tools and skills can now make their lithophane with the help of 3D printing technology. Lithophanes change the thickness of the material to develop three-dimensional grayscale pictures. Thinner parts let more light through, while thicker parts stop it. There is a lot of variety and depth in how lithophane and 3D printing work together.
How Are Modern Lithophanes Created with 3D Printing?
More people can now use lithophanes thanks to the progress in 3D printing. This means that both beginners and pros can make works of art that are truly stunning. The first step is to add a digital picture to a 3D model. The image's brightness levels show the print's different thicknesses in this model. In a picture, thicker material stands for darker areas and thinner material represents lighter areas. Utilizing a 3D printer to complete the model is the next step. The final result is a real lithophane that looks beautiful when lit from behind.
How Is Choosing the Right Image Important?
The picture pick makes or breaks a lithophane. Not every shot looks good in this format, which is important to keep in mind. Pick photos with a lot of contrast and depth for the best results. If you want the embossed effect to stand out, use a picture with a clear center and background. A lot of people really like landscapes with dramatic lighting or pictures with distinct features. Aside from that, black-and-white photos can sometimes work better than color photos because they have more contrast.
What Makes Lithophanes Ideal for 3D Printing?
- Care and attention to detail
The lithophanes produced by modern 3D printers are highly accurate. Grayscale pictures are sharp and clear, even if the width of the lines changes slightly. In contrast to more traditional methods, 3D printing always produces high-quality results. When you use a high-resolution setting, small facial traits and other complicated details can stand out.
- Customization
When you use 3D printing, you can adjust the sizes to suit your needs. Use images, logos, or drawings uploaded by users to make one-of-a-kind lithophanes. Design tools can improve the contrast of an image and let you make your own shapes, like hearts and circles. People of all skill levels can utilize this flexibility to make unique things for any event.
- Easy Accessibility
There are more and more cheap 3D printers on the market, which have made lithophane printing easier to do. With today's simple tools and methods, anyone can get good results, even if they've never done it before. Plug-and-play machines, free modeling tools, and affordable filaments have made 3D printing accessible to everyone.
Lithophane-Friendly Materials for 3D Printing
1. PLA (Polylactic Acid)
The fact that PLA is easy to access and use has helped it become famous. Because it's see-through, it makes bright lithophanes, especially when painted white or other natural colors. Producing PLA from eco-friendly materials, such as cornstarch, is also beneficial for the environment.
2. PETG (Polyethylene Terephthalate Glycol)
When it comes to strength and longevity, PETG lasts longer than PLA. It works best outside or in places with a lot of humidity. This material is great for making lithophanes that last longer, but it's not quite as clear as PLA.
3. White or Translucent Filaments
Lithochanes work well with white or see-through wires because they let light pass through evenly. With colored strands, it's harder to see and understand the details. Use lithophanes-specific fibers for the best results.
Methods for Creating Lithophane Models
Which method works best depends on how detailed and customized a 3D model needs to be to be ready for lithography. These are the most common ways to do things:

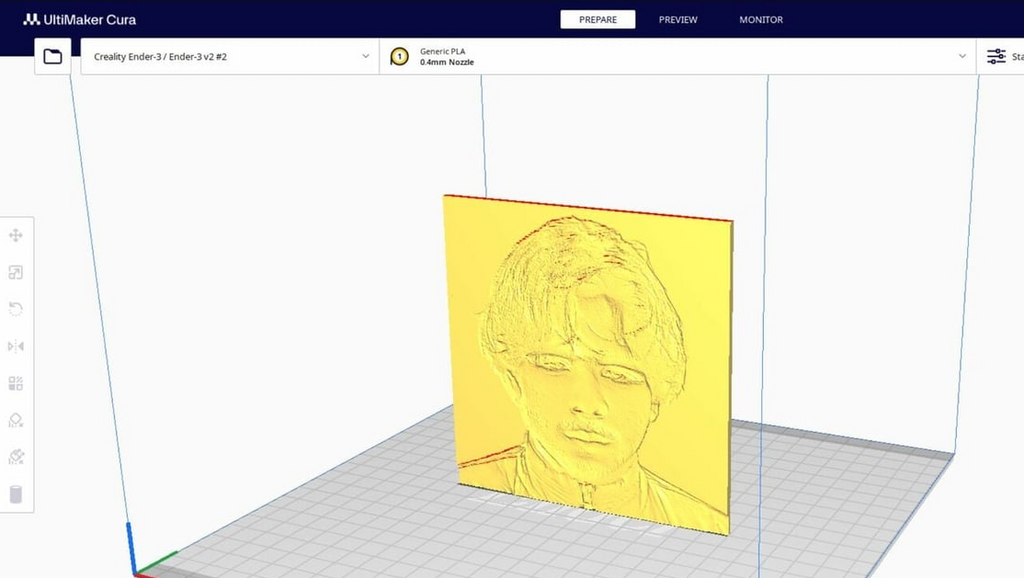

1) Using Slicer Software
One slicer for 3D printing that has tools to turn pictures into lithophane models is Cura. This method is ideal for people who are just starting because it is easy to understand. The user only needs to upload an image and change the settings for size and thickness. The slicer will then make the 3D model instantly. On the other hand, options might give you more ways to make it your own.

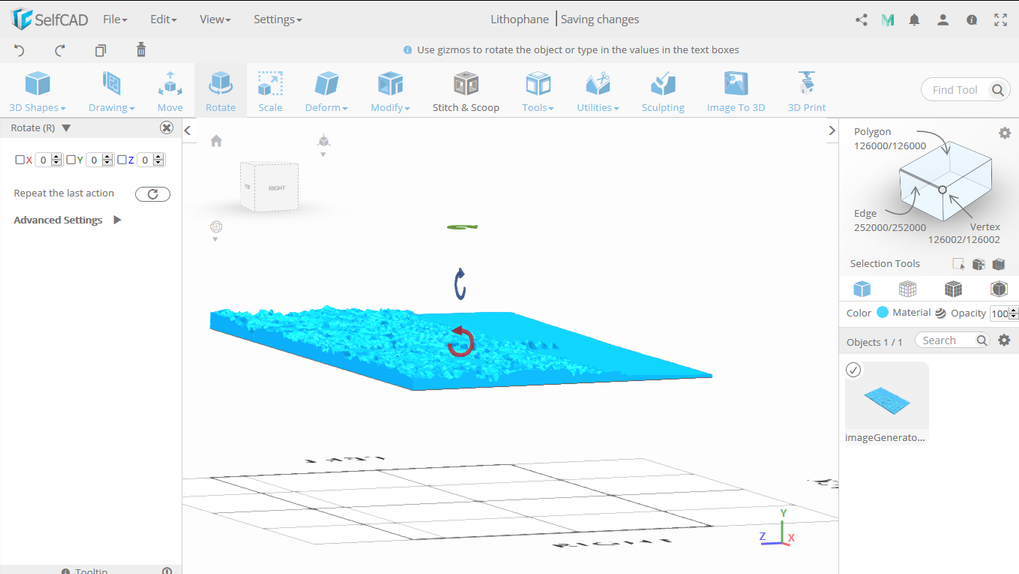

2) Making use of CAD or 3D modeling software
SelfCAD is the best choice for beginners and professionals alike in 3D modeling. You can make fine adjustments to the model with these tools, like adding frames, borders, or your own designs. The video below demonstrates the overview of the software.
There is a steeper learning curve for this method, but it is perfect for people who want to make unique lithophanes.
3) Online Generators for Lithophane
Web-based tools like ItsLitho and 3DP Rocks make it easy and quick to make lithophane models. People can add their own pictures, pick from different shapes (like flat, curved, and spherical), and change the sizes to suit their needs. These services are excellent for artists of all skill levels because they have easy-to-use layouts and ample space for personal expression.
Printing Lithophanes: Important Things to Keep in Mind
The printer and materials used significantly impact the quality of the finished lithophane. Consider the following:
i) Resin 3D Printing
Because it is of such high quality, a resin printer is a fitting choice for lithophanes. The fine details of a lithophane can be better captured by resin printing. When it comes to contrast, lithophanes work best with flat writing that is 4.5 to 5 mm thick. Use a white or gray plastic to make it stand out more. The silky smooth surface of resin pictures makes the lithophane look better.
ii) Building with FDM
FDM printers, which use filament, are another popular way to create lithophanes. The best results are achieved by printing lithophanes vertically. This technique uses the printer's higher Z-axis sharpness. Print more slowly and with a lower layer height (like 0.1 mm) if you want much finer details. Also, white or light-colored solid filaments give better contrast, and 100% infill makes sure that light spreads evenly.
Applications of Lithophanes
Lithophanes are helpful in many ways besides looking nice because of their special properties:
- Personalized Gifts
Personalized lithophanes with pictures or memories that are important to the recipient are thoughtful gifts. Lithophanes add a unique and special touch to any kind of picture, like a family photo, a wedding picture, or a snap of a pet that you love.
- Interior Design
Linoleum lampshades, window panels, and wall art are all great ways to enhance the look of any space. Light and shadow work together to create a look that changes as the day goes on.
- Tools for learning
Lithophanes are pictures that people who are blind or have low vision can touch and use to learn about visual ideas. This software has the potential to change the way we learn, as it makes it easier to convey visual knowledge.
How to Improve the Quality of Lithophane?
- Backlighting changes the game. Light up your space. The even spread and adjustable brightness of LED lights make them perfect for this job.

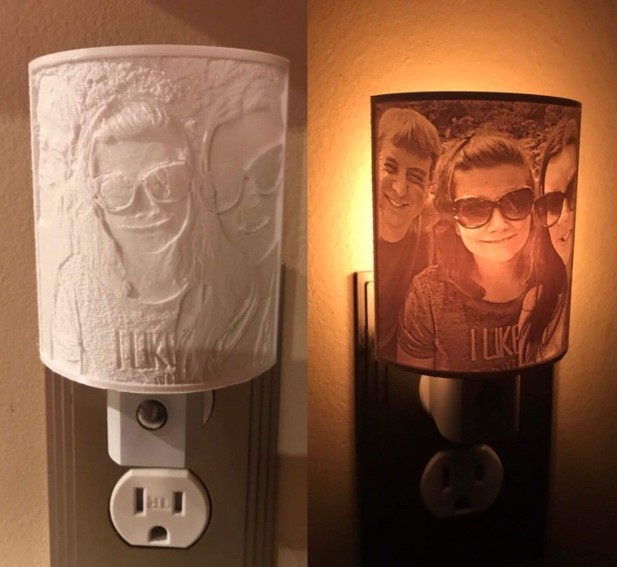

- Try Different forms. Instead of flat lithophanes, think about curved or cylindrical forms if you want to make a nightlight or an ornament that is unique.
- Set the printer up in different ways until you find the best balance between speed and quality. Little changes can make a big difference in the end.
Elevate Your 3D Printing Practice with Lithophane Applications
By combining traditional lithophane methods with modern 3D printing technology, this art form has become more accessible and versatile in various applications. Lithophanes are a great way to bring pictures to life for personal gifts, home decor, or teaching purposes. By learning how to select images, create models, and print them, anyone can produce lithographs that are both interesting and inspiring. Every time you make this amazing art form, the way light and shadow interact changes, showcasing its timeless appeal.
