Robotics 3D Models for Classroom Competitions to Download and 3D Print
The use of 3D printable models that successfully combine inventiveness, practicality, and instructional value is a formidable obstacle to the widespread adoption of robotics contests in schools. Students and educators alike frequently lose precious time due to poorly formatted files or designs that do not adhere to school printer specifications or project deadlines. Because of this irritation, hands-on STEM activities might become less enjoyable and less educational.
For that reason, we have assembled a selection of the best STL files with a robotics theme for school contests and have posted them here on the blog.

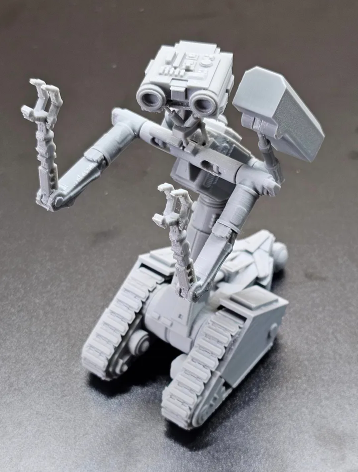

1. Johnny 5 Robot – Short Circuit
For children participating in robotics contests, Chad Stokes has created an STL file for the Johnny 5 Robot, an iconic yet practical model. The iconic 1986 film Short Circuit served as inspiration for this intricately detailed model, which features nineteen individual pieces. Standard supports are required for printing with PLA filament at 15% infill and 0.1 mm layer height for fine detail. If you want better visibility and easier assembly, scale the robot to 150% of its normal size, which makes it stand about 6 inches tall.
Students can learn a great deal about post-processing, multipart assembly, and support removal using this robot, which is more than just a toy. Johnny 5, a robot that combines elements of pop culture and engineering in an entertaining and aesthetically appealing manner, is perfect for classes on design and articulation. It has been a class favorite for displaying 3D printing talent, with over 1,000 downloads and wonderful feedback.
Download file: Printables.

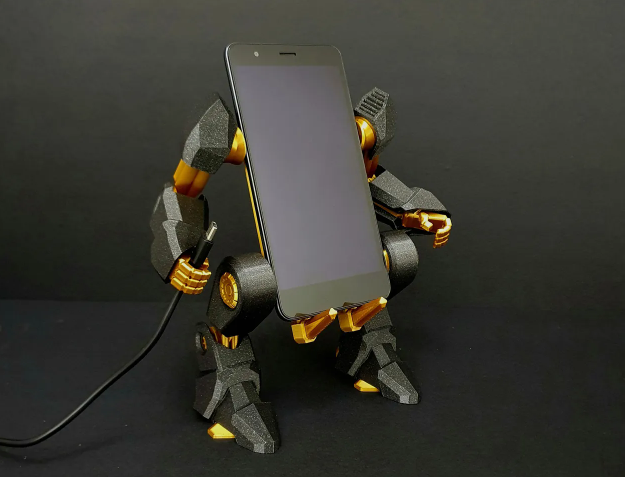

2. Mobile Exo-Suit Phone Stand
An innovative blend of functionality and aesthetics, the Mobile Exo-Suit STL file is the brainchild of jajaum3d and draws inspiration from robotics. The 27 pieces that make up this phone stand with an exoskeleton motif resemble a robotic armour suit. It's more than meets the eye; it doubles as a sturdy phone stand suitable for phones of varying sizes. Learners can practise concepts such as mechanical aesthetics, weight distribution, and structural integrity with this futuristic, sturdy design.
It works fine with PLA and the typical 0.2 mm layer height with very little infill. The ability to customize the stand with optional armor pieces promotes customization and iterative design thinking. Students studying computer-aided design (CAD), mechanical engineering (ME), or product prototyping will find this STL both informative and entertaining, as it features approximately 500 community creations and 7,900 downloads. Competitions in the classroom that emphasize practicality and creative design would benefit greatly from this.
Download file: Printables.

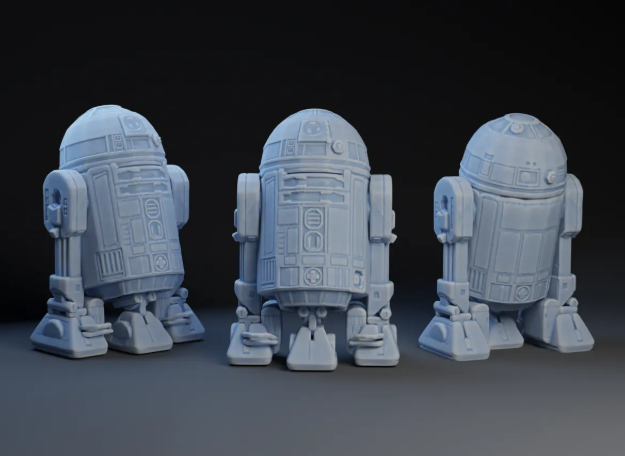

3. R2D2
Peter Farell's R2D2 STL is an accurate recreation of the legendary Star Wars droid in 3D. This design is ideal for long-form classroom competitions that emphasize visual accuracy, endurance printing, and detail, despite its very simple form. Using 316g of PLA filament and 33 hours at 100% scale, this print requires a Prusa MK3/S/S+ printer.
You can cut the print time in half, to about 9 hours, by scaling it down to 65% for shorter projects. You can use the two print files that come with the model, with a nozzle size of 0.4 mm and a layer height of 0.20 mm. Students learn slicing and printer calibration while having fun creating a famous pop culture character—R2D2 is a classroom staple. For contests that call for both aesthetic and technical evaluation, it works wonders.
Download file: Printables.

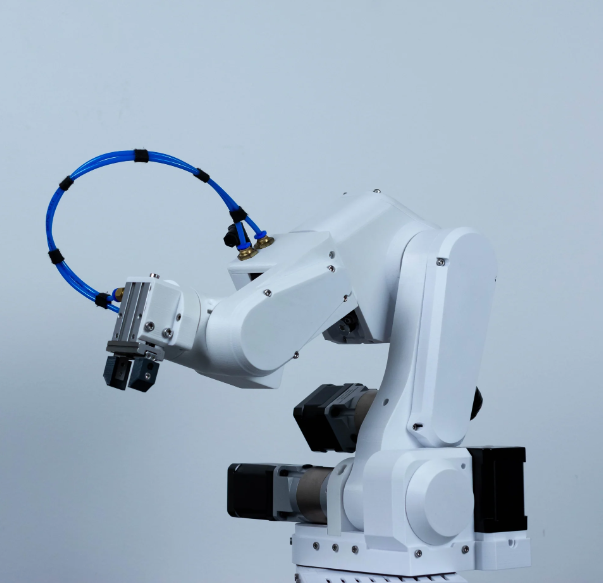

4. PAROL6 – 6-Axis Desktop Robotic Arm
When it comes to open-source robotic arms for 3D printing, the PAROL6 from Source Robotics is among the best. With its modular design that supports closed-loop drivers, belt-driven mobility, and precision planetary gearboxes, this 6-axis robotic arm is ideal for real-world instructional applications. Competitions in robotics involving programming, real-time control, and automation are perfect fits for this.
Among its features are a simulator for use during offline testing, support for control at both the Cartesian and joint levels, and software inspired by industrial GUIs. This is a great tool for teaching robotic kinematics, motor control, and mechanical design, with assembly instructions provided via GitHub. Schools with limited resources can nevertheless benefit from this technology because it allows students to replicate complex tasks without requiring the full physical equipment. This project is ideal for advanced-level mechatronics students because it includes CAN bus connectivity and a compliant gripper.
Download file: Makerworld.

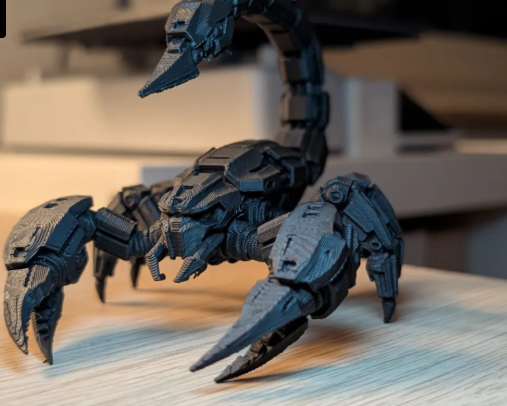

5. Highly Detailed Robotic Scorpion
Stunning biomimetic robotics is on display in this mechanical scorpion sculpture by Dexter. Even though it doesn't move, this model is perfect for aesthetic and accuracy printing contests thanks to its elaborate design and complex exoskeleton. With regular PLA filament, a 0.2 mm layer height, two walls, and 15% infill, the print time is approximately 4.3 hours.
Prints flawlessly on even the most diminutive 3D printers, such as the A1 small, and is pre-oriented for optimal results. Even though it can't move or grasp objects, this model is great for demonstrating how robotics may draw inspiration from nature. Students learn about mechanical and ornamental detailing from this scorpion, which makes a big splash in visual judging categories. For classroom presentations or competitions, including static displays, the larger version is better because it is more sturdy and easier to manage.
Download file: Makerworld.

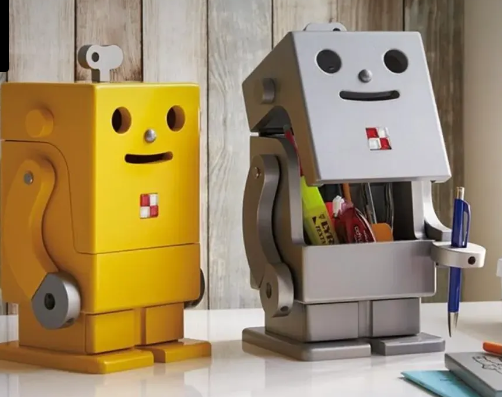

6. Robot Desk Organizer
The Robot Desk Organizer, an inventive and helpful STL file by RestoreDoctor, integrates robotics with commonplace practicality. Using these four plates, you can make a cute little robot that can contain things like pencils, sticky notes, and tiny tools. Not only is it a great conversation starter, but it also teaches kids about hinge mechanics and multi-part assemblies with its movable arms and head compartments. Printing with PLA or PETG at a 0.2 mm layer height, three walls, and 15% infill yields the best results for this model.
To put the hands and arms together, you'll need some standard hardware, such as cylinder head screws with M3 and M6 threads. A newer version of the feet doesn't require any supports, so students can experiment with other slicing methods. When practicality, aesthetics, and mechanical comprehension are the primary criteria for evaluating classroom design projects, this model is perfect.
Download file: Makerworld.

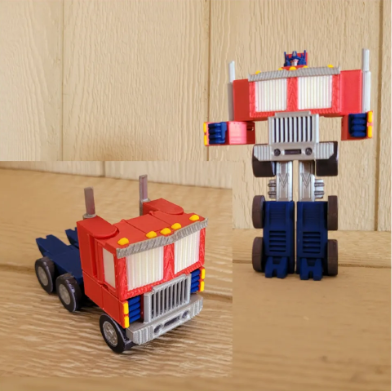

7. Transformable Truck Robot (Print in Place)
For a master class in print-in-place engineering, check out Mocodroid's Transformable Truck Robot STL file. Designed after a popular transformable character, this model prints as one piece and can be delicately bent and twisted afterward, eliminating the need for assembly. Students can easily experiment with print tolerances and practical design without the requirement for supports.
It works with up to eight different colors in a multi-color configuration and prints nicely in PLA with a 0.2 mm layer height, 10-15% infill, and a 0.4 mm nozzle. After printing, you can release the joints by gently dragging them back and forth. Depending on the quality and color combination, the printing process can take anywhere from 2.4 to 38 hours. Competitions that value mechanical motion, originality, and minimal post-processing will find this model an excellent fit. This engaging and instructive exercise allows students to investigate how to incorporate movement into the model.
Download file: Makerworld.

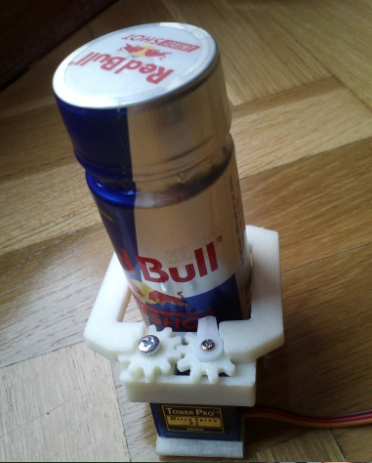

8. Robotic Claw
Designed with simplicity and functionality in mind, Kepler's Robotic Claw is perfect for classroom use and prototyping. Created to work with a tiny servo, it can pick up common grasping objects like a Red Bull Shot can. This project is ideal for novices studying robotics, electronics integration, and actuator motion, thanks to its compact, easy-to-understand design. The three printable parts that make up the claw are two pincers and a servo box.
Using rubber bands or other friction-enhancing devices can help students strengthen their grips. Before you can attach the pincer arms with M3 screws and servo accessories, you need to insert a nut into the servo box. The project teaches students the fundamentals of mechatronics and functional 3D printing in an easy-to-understand way. As a stepping stone to more complex robotics creations, this claw is perfect for classroom contests that emphasise practicality and small size.
Download file: Thingiverse.

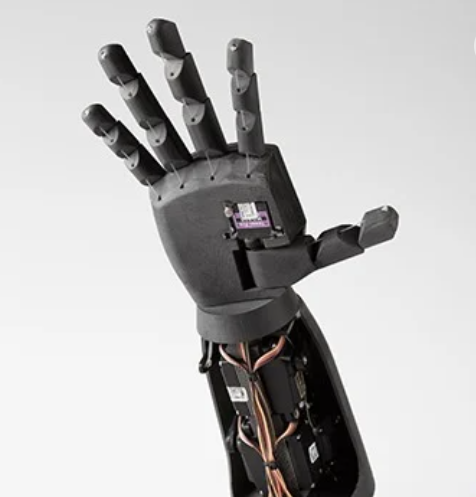

9. Humanoid Robotic Hand
As a sophisticated STL file, grossrc's Humanoid Robotic Hand is ideal for students who want to develop realistic robotic limbs. This hand, part of a larger humanoid project, has better grip mechanics and an opposable thumb than previous designs, such as InMoov. Completely 3D printable, it has been fine-tuned for dependability and ease of use. Extensive testing has shown that the hand can run for extended periods under duress, making it a viable option for research and classroom competitions.
The full arm is still in the works, but the hand is ready to go with detailed instructions and YouTube tutorials that show you how to put it together. Biomimetic design, mechanical articulation, and servo integration are well-suited to classroom use. By expanding the capabilities of desktop 3D printers and open-source mechanical design, this model offers students an immersive learning experience in robotics and engineering classes.
Download file: Thingiverse.
Safety tips for downloading STL files
When downloading STL files from online repositories like Thingiverse or Cults3D for classroom use, it's important to prioritize safety - especially in shared school networks. Public file-sharing sites can sometimes expose your device's IP address to trackers or potential risks. To protect student privacy and secure your connection, consider using a reliable VPN while accessing and downloading these resources.
