Texture Mapping in Computer Graphics: Everything You Need to Know

The process of mapping textures is a crucial aspect of modern computer-generated images. Now, developers and artists can add complicated parts to 3D models without making them more complicated geometrically. By placing 2D images or textures on top of 3D objects, the process of texture mapping adds depth and realism to the scene. This guide delves deeply into texture mapping and discusses the concepts, types, process, challenges, and applications of the technique.

What Is Texture Mapping in Computer Graphics?

Adding a 2D picture on top of a 3D model to make it look better is what texture mapping is all about. Inventor Edwin Catmull came up with this idea in 1974, and it completely revamped computer-generated images. Before texture mapping, the only way to develop realistic images was to make very accurate geometric models, which took a lot of computer power. It was a lot easier to do this with texture mapping, which let you simulate complexity without having to add more polygons.

Utilize a brick wall as an example. It is possible to use a single picture of a brick wall as a texture instead of drawing each brick and bit of mortar. We might be able to get the right amount of realism with this method while also saving time and processing power.

Types of Texture Maps

Different types of texture maps do different things when it comes to rendering, but they all help make a 3D object more lifelike and adaptable:

1. Diffuse Maps

Sometimes called color maps, diffuse maps show what an object's main color is. The diffuse map controls every aspect of a character, including their skin tone, clothing patterns, and even the rooms they live in. A 3D table model might have a diffuse picture of the grain pattern to make it feel like real wood.

2. Specular Maps

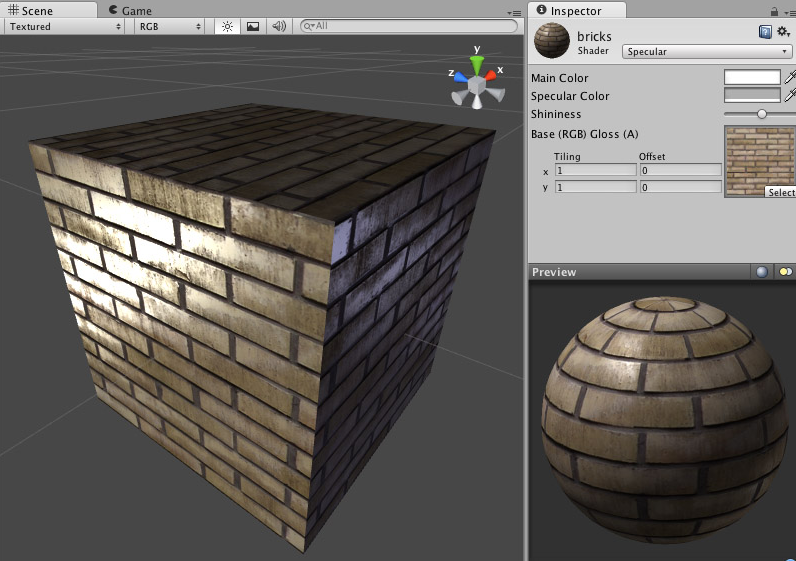

Special maps called specular control both surface refraction and shine. For a matte concrete floor, a low-intensity specular map would be more suitable, while for a polished marble floor, a high-intensity specular map would be more effective.

3. Normal Maps

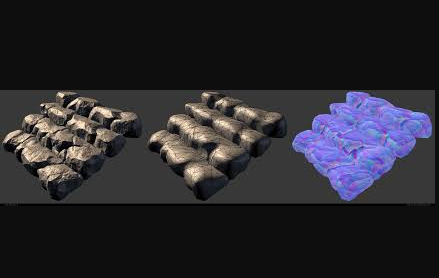

Normal maps, for instance, can make minor surface flaws like dings and scratches look real. These maps create the illusion of depth by altering how light bounces off objects. For example, the scales on the skin of a virtual dragon could be a normal map.

4. Displacement Maps

To put it simply, displacement maps, not regular maps, change the model's shape literally. These maps are great for making faces or things that are very complicated and have a lot of small details. One way to make a model of a mountain range look more real is to add lines and grooves that move around.

5. Emissive Maps

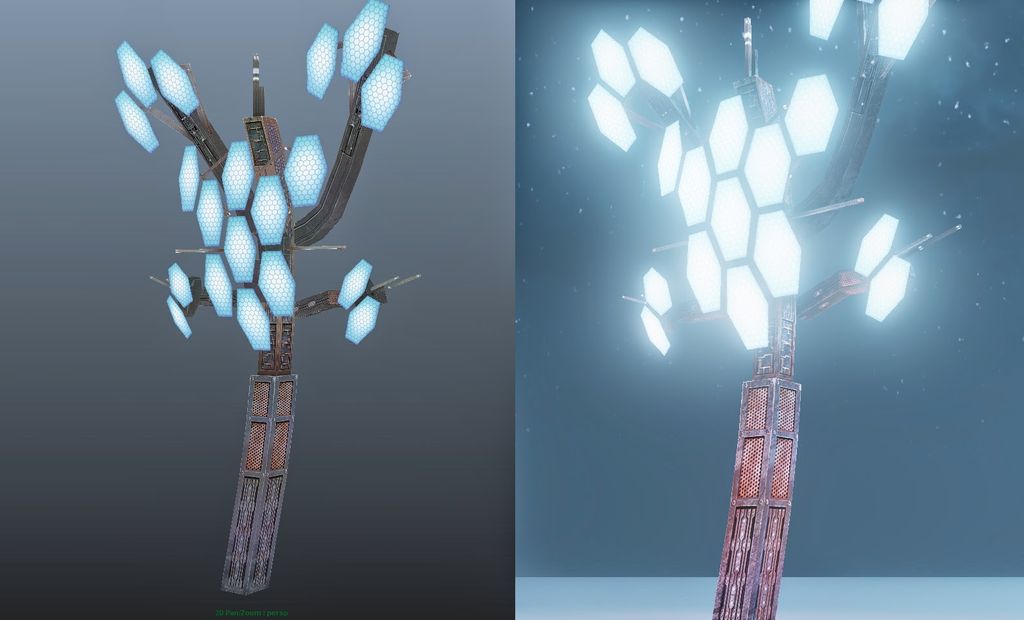

On an emissive map, you can mark places that give off light, like neon signs in a town or lights on a control panel.

Each map brings a scene to life by accurately representing the features of real surfaces.

The Texture Mapping Process

To get accurate and aesthetically pleasing results in texture mapping, you need to go through several steps:

• UV Mapping

With UV mapping, you can turn the surface of a three-dimensional model into a two-dimensional picture. With the U and V values, you can see how the two-dimensional texture fits into the three-dimensional model. UV mapping is akin to turning a globe into a picture of the whole world. You can use UV mapping to make your image wrap around a sphere without changing its shape.

• Texture Application

After the UV mapping is done, a background is added to the model. At this point, you need to make sure that the texture is perfectly straight across the model's surface. If you want the wood grain texture on your tabletop to look realistic, for example, you need to make sure that the grain runs parallel to the sides of the table.

• Rendering

When the computer renders, it looks at things like reflections, shadows, and perspective to figure out how light affects the rough surface. For instance, a car with a metallic texture will mirror its surroundings in real-time, making it look more real.

Challenges in Texture Mapping

When you use image mapping, you might run into issues. It takes skill and attention to detail to get past these problems:

• Seams and Distortion

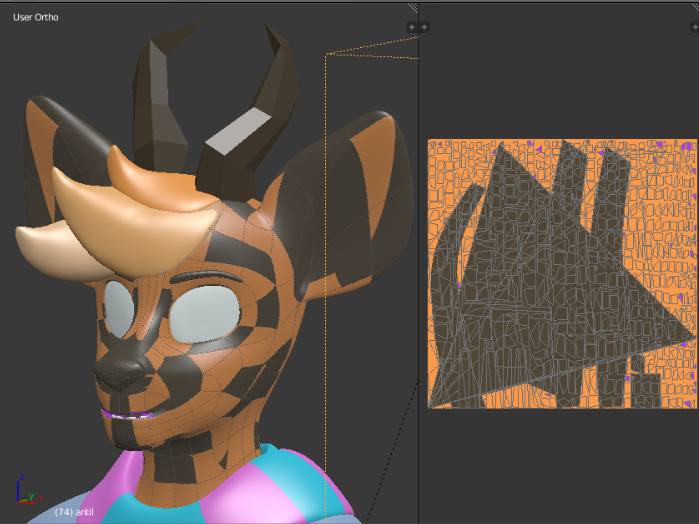

UV mapping that isn't done well can cause gaps or textures to look stretched. Not aligning UV maps correctly can make textures, like a character's clothes, look torn or detached. Such tools as Blender and Maya help lessen the effects of these issues by letting artists see previews of images in real-time.

• Resolution Problems

The model doesn't look as real when the textures aren't clear because they have low quality. However, high-resolution images can use a lot of memory, which could make virtual reality or video games run more slowly. One way to balance resolution and speed is to use 4K textures on hero assets and lower resolutions on background elements.

• Perspective Correction

It can be hard to make sure that textures look right from any angle, especially when the landscape is changing. For example, in a driving simulator, it's important that the road graphics look real both up close and far away. Perspective mipmapping is one way to fix this issue. It changes the texture size based on the camera's distance.

Advancements in Texture Mapping

Fresh new ideas have taken texture mapping to a whole new level:

1. Mipmapping

You can make a texture at different resolutions with this process. Show this with a tree in a game. There could be a high-resolution texture for close-ups and a low-resolution texture for views from far away. This gets rid of aliasing and speeds up processing.

2. Multitexturing

By stacking different images on top of each other, multitexturing lets you make complex effects. One map might show the base color of a character's armor, another might show scratches, and a third might show a shiny shine.

3. Procedural Texturing

Procedure-based textures don't use static pictures; instead, they use algorithmic generation. Some simulations, like those of a snow-covered mountain, might use a generative material to change how deep the snow is on different slopes. This way lets you add as much complexity as you want while using less memory.

Applications of Texture Mapping

Multimedia uses texture mapping in many areas, such as:

Ⅰ. Video Games

Video games use texture mapping to make virtual worlds that are interesting to explore. Texturing can make a game better by adding more realism to the characters and making the forest scenes look better.

Ⅱ. Video and movies

Texture mapping is a crucial aspect of creating computer-generated figures in movies that appear realistic, like Gollum in "The Lord of the Rings."

Ⅲ. The Virtual Reality

Quality textures are important for virtual reality (VR) because they let you make places that look and feel real, like museums or classrooms.

Ⅳ. Architecture

Architects use texture mapping to show materials like marble, wood, and glass in three-dimensional building models so that clients can better picture their ideas.

The Best Texture Mapping Software

SelfCAD is a comprehensive 3D modeling software that offers robust texturing capabilities, enabling users to apply and edit various textures directly onto their 3D models. With an intuitive interface, it allows for seamless integration of materials and textures, enhancing the visual realism of designs.

Users can choose from a diverse library of textures or import their own, adjusting parameters such as projection type, dimensions, and UV tiles to achieve the desired effect. This flexibility facilitates the creation of intricate and detailed models suitable for both digital presentations and physical 3D printing.

Additionally, SelfCAD's rendering tools provide photorealistic previews, allowing designers to visualize the final appearance of textured models in various lighting conditions. By streamlining the texturing process within a single platform, SelfCAD enhances workflow efficiency, making it a valuable tool for designers seeking to bring their creative visions to life.

This tutorial might help you understand how to add textures in SelfCAD by showing you how to do it visually.

Explore the Role of Textures in 3D Model Optimization

Texture mapping is a significant aspect in computer graphics because it enables artists to express themselves and engineers to be precise. It is possible to be very good at art in many different areas if you study its various forms, learn how to do it perfectly, and get past its problems. In all kinds of digital art, from games and movies to virtual reality apps, texture mapping keeps pushing the boundaries of what is possible.
