What You Need to Know About Sinta-Based Metal 3D Printing
Sinter-based metal 3D printing is transforming manufacturing by offering a cost-effective and efficient method to produce complex metal parts. This technology builds objects layer by layer using metal powders bound together and subsequently sintered to achieve the desired properties. Unlike traditional manufacturing methods, sinter-based 3D printing allows for the creation of intricate geometries without the need for specialized tooling, reducing both production time and costs. Additionally, it minimizes material waste, as unused metal powder can often be recycled, further enhancing its cost-effectiveness. As industries seek innovative solutions to meet the demands of modern production, sinter-based metal 3D printing stands out as a promising approach that combines precision, flexibility, and economic efficiency.
Sinter-Based Metal 3D Printing: An Overview
At its core, sinter-based metal 3D printing involves creating objects from metal powders that are bound together and subsequently sintered to achieve the desired properties.
Unlike direct metal laser sintering (DMLS) or selective laser melting (SLM), which use lasers to fuse metal powders, sinter-based methods typically employ a binder to hold the metal particles together during printing. After printing, the binder is removed, and the part is sintered in a furnace to achieve its final density and strength.

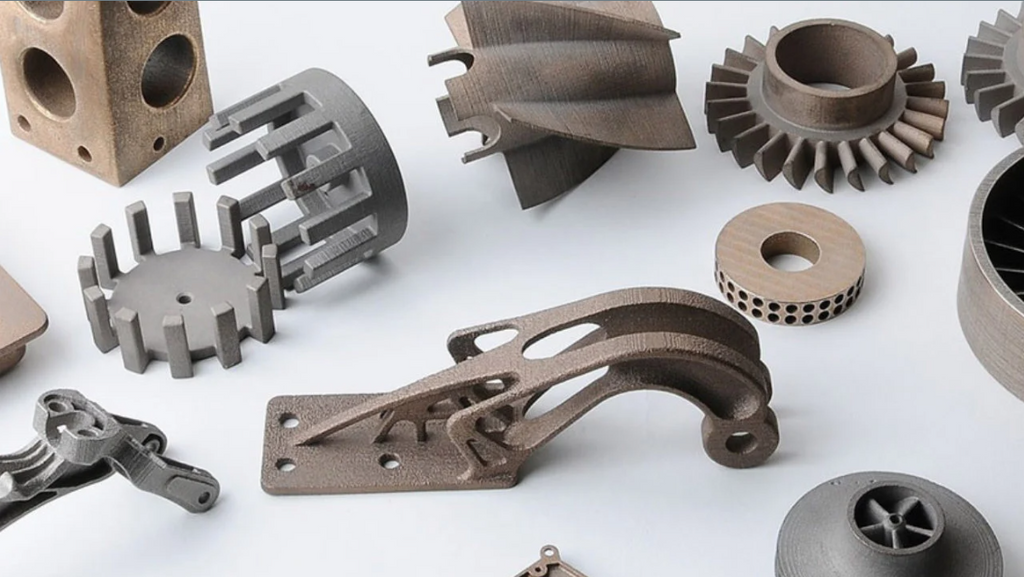

Sinter-based metal 3D printing is used to create various items across multiple industries. In aerospace, it's employed to produce lightweight structural components and intricate turbine blades. The medical field utilizes this technology to manufacture patient-specific implants and surgical instruments.
In the automotive sector, complex engine parts and customized tools are crafted using this method. Additionally, the defense industry benefits by rapidly producing replacement parts and specialized equipment, such as wrenches and vehicle exhausts, directly in the field.
Advantages of Sinta-Based Metal 3D Printing
Design Flexibility
This method enables the production of complex geometries that are challenging for traditional manufacturing techniques. Intricate internal structures and undercuts can be achieved without the need for specialized tooling. This flexibility allows for innovative designs and the consolidation of multiple components into a single part, enhancing performance and reducing assembly requirements.
Material Efficiency
The process minimizes waste, as unused metal powder can often be recycled. This efficiency not only reduces material costs but also aligns with sustainable manufacturing practices by decreasing overall resource consumption.
Cost-Effectiveness
For low to medium production volumes, sinter-based metal 3D printing can be more economical than traditional methods. It eliminates the need for expensive molds and tooling, reducing initial setup costs. Additionally, the ability to produce parts on-demand reduces inventory costs and allows for rapid prototyping, accelerating the development cycle.
Safety
Operating at lower temperatures during printing reduces risks associated with high-power lasers used in other metal 3D printing techniques. This aspect enhances workplace safety and reduces energy consumption, contributing to a safer and more efficient manufacturing environment.
Sinta-Based Metal 3D Printing: Challenges
Shrinkage
Parts can shrink during the sintering process, requiring design adjustments to compensate. This shrinkage can lead to dimensional inaccuracies and potential warping, especially in larger components. Accurate prediction and compensation for shrinkage are essential to ensure the final part meets the desired specifications.
Surface Finish
The final surface may require post-processing to meet specific quality standards. The inherent roughness of parts produced through sinter-based methods can necessitate additional finishing processes, such as machining or polishing, to achieve the required surface smoothness and dimensional accuracy.
Material Limitations
Not all metal alloys are suitable for sinter-based processes. The range of compatible materials is currently limited, which can restrict the application of this technology in industries requiring specific material properties. Ongoing research aims to expand the variety of materials that can be effectively used in sinter-based metal 3D printing.
Sinta-Based Metal 3D Printing: The Process Explained
Design and Slicing: The journey begins with a 3D model, usually created using computer-aided design (CAD) software. This model is then sliced into thin layers, guiding the printer on how to build the part layer by layer.
Printing: The printer deposits a mixture of metal powder and a binding agent, constructing the part layer by layer. Technologies like Bound Metal Deposition (BMD) and Metal Binder Jetting (MBJ) are commonly used in this step. In BMD, a filament composed of metal powder and binder is extruded, while MBJ involves jetting a binder onto a bed of metal powder.
Debinding: Once printing is complete, the part undergoes a debinding process to remove the binding agent. This step is crucial to ensure that the final part achieves the desired mechanical properties.
Sintering: The debound part is then placed in a high-temperature furnace. Here, the metal particles fuse together without melting entirely, resulting in a dense and robust final product.
Materials and Technology Used for Sinta-Based Metal 3D Printing
Sinter-based metal 3D printing employs a variety of metal materials to create complex and functional parts. Commonly used metals include stainless steels, such as 17-4PH, known for their strength and corrosion resistance. Tool steels like H13 and D2 are utilized for their hardness and durability, making them suitable for manufacturing tools and dies. Nickel-based superalloys, such as Inconel 625, are chosen for applications requiring high-temperature resistance and strength. Copper is also used for its excellent thermal and electrical conductivity. These materials are typically processed in a bound powder form, where metal powders are combined with a binding agent to facilitate printing and handling.
Several 3D printers are designed specifically for sinter-based metal additive manufacturing. The Markforged Metal X system is notable for its ability to print a range of metals, including stainless steels, tool steels, Inconel, and copper. It utilizes a bound powder filament extrusion process, enhancing safety and ease of use.
Another example is the Desktop Metal Studio System 2, which offers an office-friendly solution without the need for loose metal powders or lasers. It supports various metal alloys and features a straightforward workflow from printing to sintering. These systems exemplify the advancements in sinter-based metal 3D printing technology, providing accessible and efficient tools for producing high-quality metal parts.
Similarities Between Sinter-Based AM and Metal Injection Molding (MIM)
Sinter-based additive manufacturing shares similarities with Metal Injection Molding (MIM). Both processes involve mixing metal powders with a binder, shaping the mixture, and then sintering the part. However, while MIM uses molds to shape parts, additive manufacturing builds parts layer by layer without the need for molds, offering greater design flexibility. Companies like Alpha Precision Group (APG) are exploring the integration of sinter-based additive manufacturing alongside traditional MIM and press-and-sinter techniques to enhance production capabilities.
Emerging Technologies in Sinter-Based Metal 3D Printing
1. Lithography-Based Metal Manufacturing (LMM)
Pioneered by companies like Incus, Lithography-Based Metal Manufacturing (LMM) utilizes lithography to produce high-resolution metal parts with exceptional surface quality. This powder-free process offers a clean and safe working environment, making it suitable for various industries seeking precision and safety in production.
2. Cold Spray Additive Manufacturing
Cold spray technology is gaining traction as a method to rapidly produce metal parts without melting the material. This technique involves accelerating metal powders at high velocities to adhere them onto a substrate, building up the desired component. Companies like SPEE3D have developed cold spray 3D printers capable of fabricating metal parts in minutes, offering a solution for on-demand production in various settings, including military applications.
3. Integration with Metal Injection Molding (MIM) Processes
Some manufacturers are exploring the integration of sinter-based additive manufacturing with traditional Metal Injection Molding (MIM) processes. This hybrid approach leverages the design flexibility of 3D printing and the scalability of MIM, enabling efficient production of complex metal parts. Companies like Alpha Precision Group (APG) are adopting this strategy to enhance their manufacturing capabilities, allowing for rapid prototyping and flexible production runs.
