Single vs. Multi-Material 3D Printers: What You Need to Know
A lot of schools would love to use 3D printing in the classroom, but they can't seem to get a suitable machine. Do you think they would be better off with a basic printer that uses one material or a more sophisticated one that uses multiple materials?
Printers that are too complicated for new users or equipment that restricts students' creativity could result from a poor decision. This guide will provide a detailed comparison of 3D printers that can handle several materials. Discover their inner workings, see how they stack up against one another in practical school assignments, and find the printer that best suits your needs.
Introduction to Single-Material and Multi-Material 3D Printing
Educators and lab coordinators sometimes encounter the dilemma of deciding between two radically different methods: single-material printers, which use a single extrusion, and multi-material printers, which employ many extruders or filaments.

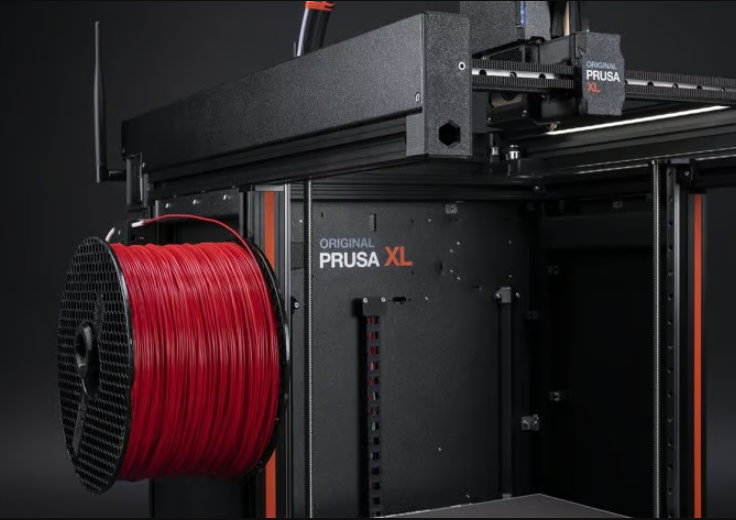

Single-Material 3D Printers
Single-material printers like Prusa i3 MK3S+, FlashForge Finder, and Dremel Digilab 3D45 have a simple process, one filament feed, and one nozzle. Their simplicity and dependability make them ideal for classrooms that value little maintenance and ease of use. Avoiding complicated hardware configurations allows students to concentrate on the essentials, which include CAD modeling, part alignment, support structures, and iterative design.

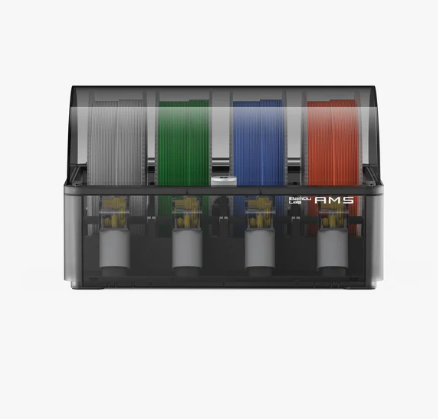

Multi-Material 3D Printers
In contrast, multi-material printers make it possible to combine filaments with varied properties, such as color, flexibility, or material composition, into a single print job. There are a variety of configurations available for these machines. Some have twin or multiple independent extruders, while others let you feed various filaments into one nozzle and switch between them with filament-combing attachments. New possibilities arise, such as the ability to print in full color, include flexible connections into otherwise inflexible components, or provide soluble supports for complex shapes. The good options for multi-material printing could be FlashForge Creator Pro, Stratasys J850 Pro / Prime, and BIBO2.
Single-Material vs. Multi-Material in School Projects
1. Ease of Setup and Daily Use
Single-Material 3D Printer
The simplicity is the strength of single-material printers. After you put in one filament and set the bed leveling, you're good to go in terms of calibration. Designed for high-use situations where students can jump in, print, and iterate fast, daily activities are typically basic, repetitive, and predictable.
Multi-Material 3D Printer
Systems using many materials add complexity. Setup necessitates precise calibration, whether you're coordinating the alignment of two nozzles or the flow of filaments via a combiner. There are more potential failure spots and additional preparation required when instructors and students are required to manage filament routing, tool-change scheduling, or purge towers to guarantee clean transitions.
2. Reliability and Maintenance
Single-Material 3D Printer
In general, single-material printers require less maintenance, have fewer mechanical failure points, and are less prone to clogging because there is only one filament and nozzle to handle. In classrooms with little technical staff, this dependability is a significant plus.
Multi-Material 3D Printer
Maintenance is more of a hassle with multi-material installations. The constant calibration of dual extruders is essential, and spool combiners have additional challenges with filament tension, diameter variation, and synchronization. The likelihood of print failures and possible downtime due to misfeeds, blockages, or calibration drift increases as the number of parts added to the system increases.
3. Workflow and Filament Use
Single-Material 3D Printer
Design, slicing for one filament, and printing are the simplified steps in the workflow of single-material printers. Efficient consumption of materials results in less waste, which facilitates planning and budgeting.
Multi-Material 3D Printer
There are extra processes in multi-material workflows. To print using specific filaments or extruders, designers must divide the model into its component sections. As slicer settings get more intricate, structures like wipe sequences and purge towers become necessary, which in turn use more filament and lengthen the print time. Expertise in both technical areas and careful allocation of resources is required for the management of such operations.
4. Cost Considerations
Single-Material 3D Printer
Generally speaking, single-material printers are less expensive, both initially and in the long run. Filaments such as PLA are inexpensive and require fewer replacement parts due to their reduced mechanical complexity.
Multi-Material 3D Printer
There are greater monetary concerns associated with multi-material systems. Projects requiring several filaments demand more resources, and dual-extruder machines or splicing accessories are expensive. Specialized filaments (flexible, soluble, color variants) may add additional expenses to the mix, and schools may find it difficult to allocate funds due to the increased waste from purging and calibration processes.
5. Print Speed and Time Management
Single-Material 3D Printer
The elimination of the need to change tools or filament allows single-material printers to finish work more quickly. In a classroom situation with a long queue of kids waiting to print, this may be necessary.
Multi-Material 3D Printer
The purging, filament switching, and wipe-sequence running times of multi-material printers are often longer. Scheduling issues in a busy lab could arise from the fact that complex multi-material models can take much longer.
6. Model Complexity and Design Freedom
Single-Material 3D Printer
Printing with just one material restricts some design possibilities. Visually complicated color work, overhangs that require support, and internal moving elements sometimes necessitate post-processing or assembly.
Multi-Material 3D Printer

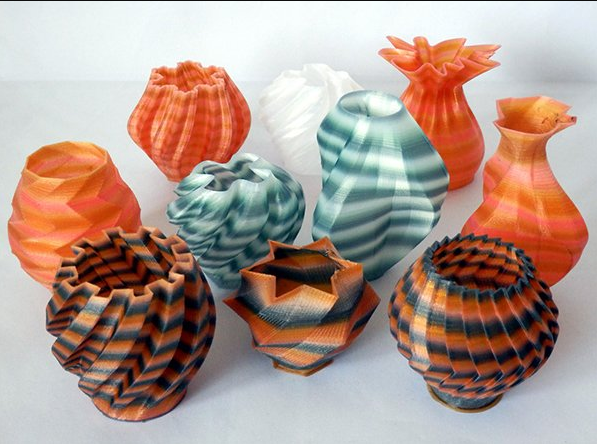

Complex mechanical models printed in their entirety or graphically segmented learning aids with integrated color coding are just two examples of the kinds of designs made possible by multi-material printing that would be unfeasible or unsuitable with single-material setups.
7. Filament Storage and Management
Single-Material 3D Printer
One or two spools of a single material are much simpler to store and organize than a multi-material system.
Purchase link: Amazon.
Multi-Material 3D Printer
A multi-material system calls for a variety of colored and material spools. This highlights the significance of well-labeled containers, controlled humidity (particularly for hygroscopic compounds such as PVA), and orderly storage.
Purchase link: Ultimate3dprintingstore.
8. Post-Processing and Finishing
Single-Material 3D Printer
Post-processing single-material prints may necessitate additional hand-eye work, such as adding color by painting or creating mixed-material effects by gluing together several portions.
Multi-Material 3D Printer
The integration of colors and materials during printing makes multi-material prints ideal for reducing or eliminating the need for painting and assembly. Adding another post-processing step that necessitates specific treatment is the removal of soluble support materials.
9. Safety and Operational Readiness
Single-Material 3D Printer
There are usually fewer issues when operating a printer that just uses one material. It is easier to keep pupils safe when they use standardized filaments like PLA and work in enclosed, well-ventilated spaces.
Multi-Material 3D Printer
Additional safety issues arise when working with multiple materials. There is a higher chance of jams or filament accidents with more complicated hardware setups, and new filament kinds may release more particles or fumes. In addition, the necessity for supervision to guarantee adherence to safety rules, such as the correct use of enclosures, proper handling of supports, and hot-end precautions, grows in proportion to the complexity of the workflow.
Software and Slicing Complexity
For both single and multi-material 3D printers, you need a CAD program for creating your 3D models and a 3D slicing software for preparing the designs for 3D printing. There are many that are available, but we recommend using SelfCAD. It is an easy to use CAD software that comes with all the necessary tools that you need to create both simple and complex 3D models. SelfCAD also comes with an in-built online slicer that you can use to slice your files without having to switch to a different software. The video below shows the overview of the software.
Picking the Right 3D Printer for Your Classroom
Overall, single-material 3D printers are great for basic classes and high-use maker classrooms because they are simple, dependable, affordable, and provide a solid groundwork for learning important design and engineering skills. But, multi-material printers open up more instructional options (color, material contrasts, integrated functionality, etc.); however, they are more expensive, require more maintenance, and necessitate a deeper level of technical understanding. Educational objectives should be considered when choosing between the two.
Frequently Asked Questions
1. Single-material or multi-material printers—which is best for beginners?
Most newbies would be better off with a printer that only prints one material. They are perfect for teaching kids the basics of 3D printing without requiring them to learn complicated processes because they are easier to set up, maintain, and run.
2. Can a single-material printer be upgraded to multi-material later?

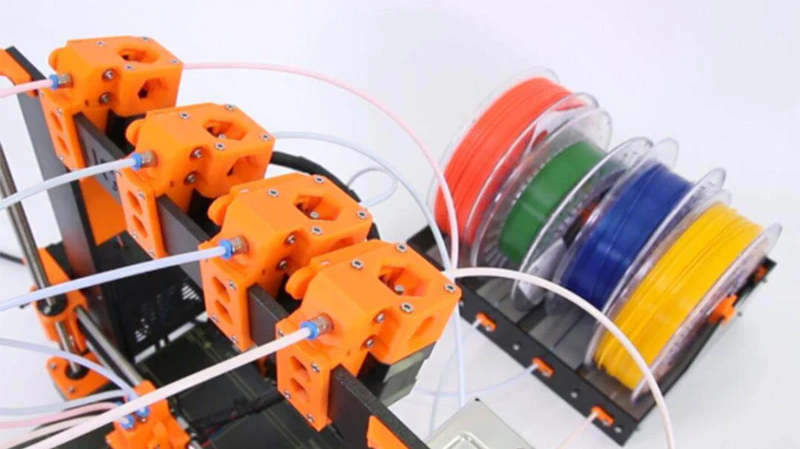

It is possible to add multi-material modules or filament combiners to some printers that only print one material. Some Prusa printers, for instance, have accessories that let you use a single nozzle to print with various filaments.
3. Is it necessary to use specific filaments for multi-material printers?
In some cases, yes. For multi-material printing, you can use PLA, PETG, or ABS filaments. However, for some sophisticated features, such as dissolving supports, you'll need specialty filaments like PVA or HIPS. Proper handling and storage of these may be required.
4. Is printing with many materials slower than printing with only one material?
It usually takes more time for prints that use many materials. Filament changes, purge cycles, and more involved tool changes all add time to the process. When classes have limited time for printing, this can be an issue.
5. Can a printer that only uses one material help kids master complex skills?
Sure thing. Even with a single-material printer, students can learn a lot about computer-aided design (CAD), print troubleshooting, and iterative prototyping. The use of many materials in a single print job just increases the complexity and scope for innovation.
