Rules of 3D Printing: Everything You Need to Know
Amazing technology called additive manufacturing, or 3D printing, lets computer drawings become actual objects. Still, effective 3D printing depends on following several rules and closely observing details. These rules act as a road map from the first notion to the last handling. Additionally, laws governing 3D printing regulate the suitable application of 3D printing in several spheres, including safety rules and intellectual property protection. This blog will help you understand the rules of 3D printing if you want to achieve better prints and avoid common mistakes.
1. Design Considerations
3D printing begins with the creation of a detailed design. Taking care of the digital model's accuracy will determine your print, so it is crucial. Use a CAD program to create your model. Correct the geometry; it must be a manifold with a flat, continuous surface. Non-manifold geometry causes the slicer—the program that prepares the file for printing—to misread the model, producing a poor print.
Remember bridging and overhangs also when you are planning. Overhangs are projecting sections of the model that, left unsupported, would sag. Extensive overhanging designs call for support structures, which accentuate the print and could leave defects upon removal. Whenever possible, simplify your design to reduce the need for supports.

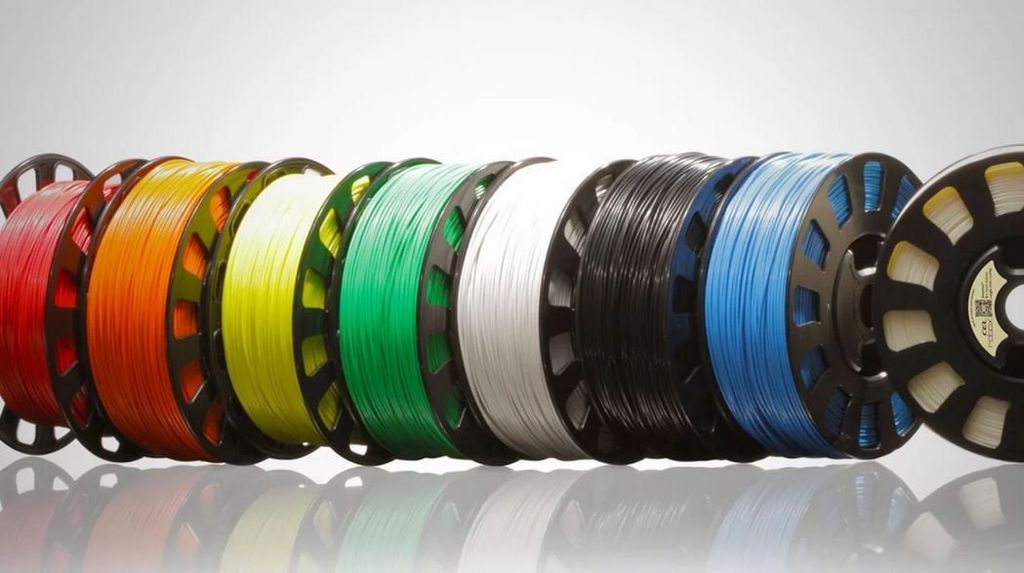

2. Material Selection
Regarding a 3D project, the choice of material is just as important as the design. The special features of different materials define their best application in different environments. For prototypes, for example, PLA (polylactic acid) is ideal since it is readily worked with, biodegradable, and a novice-friendly material. Printing ABS (acrylonitrile butadiene styrene), a material both stronger and heat-resistant, calls for a heated bed and proper air.
Check out PETG, TPU, or nylon if you're looking for a material with unique qualities, such as chemical resistance, flexibility, or durability. Consider the mechanical qualities, environmental impact, and aesthetic appeal of the material before deciding on one for your project. Review the printer's specifications to ensure your chosen materials are compatible with it.
3. Adjusting the Printer
Professionals in printing absolutely must have a correctly calibrated printer. Calibration guarantees perfect performance of the printer's mechanical and electronic components. Level the printer bed first. An uneven bed can result in inadequate first-layer adhesion, leading to defective prints. Set the proper distance between the nozzle and the bed using a filter gauge or a piece of paper.
Change the extruder settings then. This ensures proper filament flow and extrusion rate. Incorrect extrusion settings can lead to under-extrusion, resulting in gaps and weak layers, or over-extrusion, which causes blobs, stringing, and rough surfaces. The printer also stays in good shape through routine maintenance, including belt tightening, z-axis alignment checks, and nozzle cleaning.

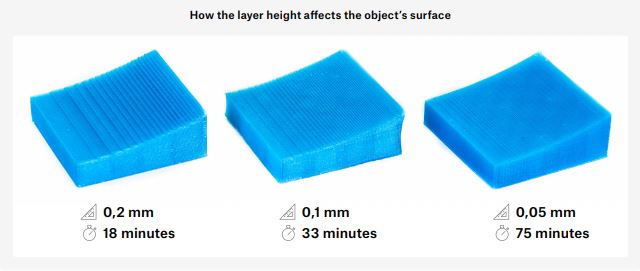

4. Layer Height and Resolution
Layer height in a print is the thickness of every layer. This environment influences the general quality and resolution of the print. Although it takes longer to print, a reduced layer height produces smoother surfaces and better detail. On the other hand, a higher layer height diminishes detail but speeds printing.
For most uses, the sweet spot for layer heights falls between 0.1 and 0.2 mm. For large objects or operational prototypes, thinner layers may be better; for complicated designs or display models, thicker layers may be faster. Adjust this parameter to meet your project's requirements and the printer's capabilities.

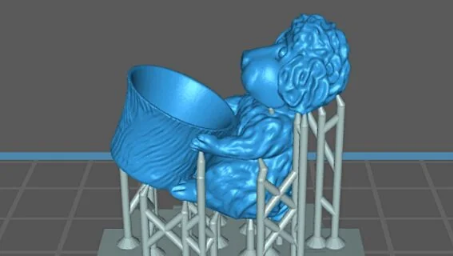

5. Support Structures
Temporary additions, called support structures, provide overhanging areas of solidity for your print. Overhangs and bridges could droop or collapse without them. Remove supports from a print carefully, as they may leave marks; therefore, utilize slicer software only occasionally.
Choose the kind of help that will benefit your project. One such is the relative simplicity and lightness of tree supports as compared to grid supports. After precisely removing the supports using tools like cutters or pliers, sand the areas to smooth the surface.

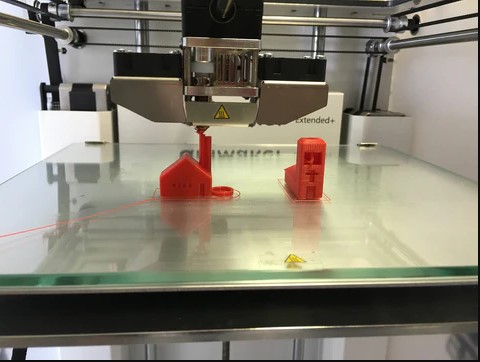

6. Adhesion to the Print Bed
The bed adhesion determines whether a print turns out successfully. Insufficient first-layer adhesion to the print bed can cause the print to shift or detach during the printing process. The first step in increasing adhesion is to clean the bed of any dust or oil using isopropyl alcohol. If needed, use adhesives including specialist sprays, glue sticks, or painter's tape.
Print bed type also affects adherence in several ways. For materials like ABS or PETG, for example, heated beds perform rather well. PEI sheets give great grip; glass beds have a flawless texture. To acquire the best adhesion, experiment with numerous combinations of bed temperature and z-offset.

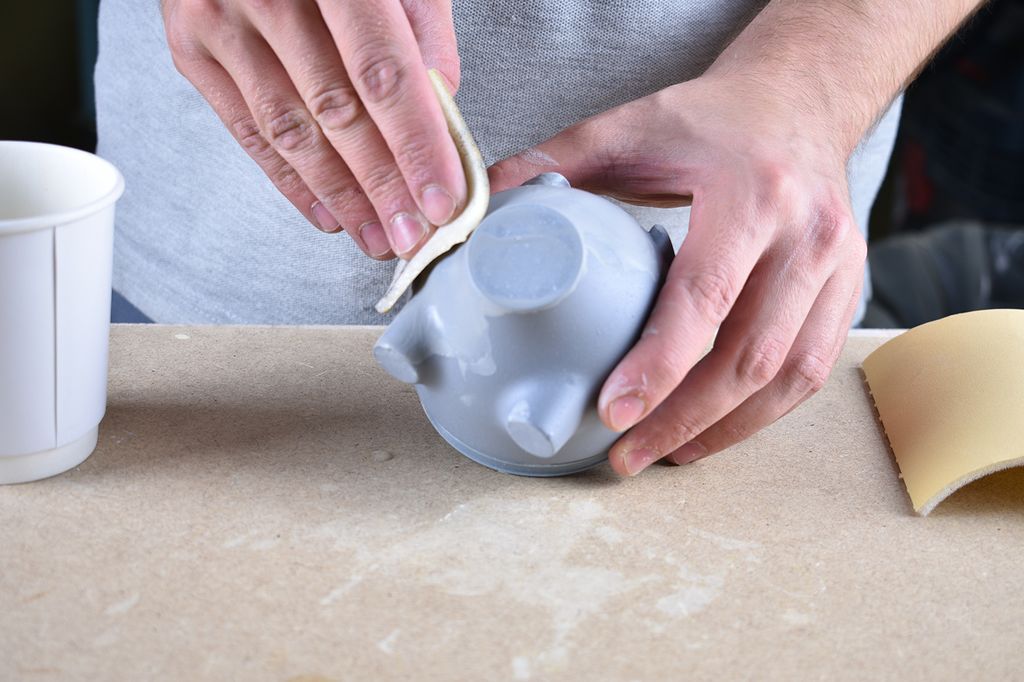

7. Post-Processing
The object may need post-processing to achieve the desired polish once printing is finished. First, remove any possible support structures using sandpaper or cutting tools. Sanding is your best choice when you have to level off some sharp edges. Try higher-grit sandpaper or acetone vapor smoothing to get ABS prints a more polished finish.
If you are working with functional parts, clean and clear any debris from mechanical connections or holes. Painting, dyeing, or coating your print will make it even more unique. Spend some time at this point, as post-processing will greatly raise the general caliber of your project.
8. Safety Measures
Safety is sometimes an overlooked aspect of 3D printing. Certain materials used in printing can produce fumes; hence, you should work in a well-ventilated area or use an enclosure with adequate air filtration. Be careful anytime you handle the heated bed or nozzle to avoid burning. Keep flammable objects far from the printer to reduce the possibility of a fire beginning.
Wear gloves also when handling some post-processing chemicals or resins. Maintain filament quality by storing it in a dry, cold, moisture-free environment. These guidelines will help make 3D printing safer and simpler.
Laws for 3D Printing: Understanding the Legal Landscape
1) Intellectual Property (IP) Rights
Legally, safeguarding intellectual property presents a significant challenge for 3D printing. Digital designs used in 3D printing usually fall within the protections of copyright, patent, and trademark.
Downloading or distributing a copyrighted 3D model without permission, for example, is against the law. The same is true of replicating patented items without permission; such activity could lead to legal disputes. A 3D-printed product violating another company's branding or logo would be an instance of trademark infringement.
To ensure that any digital files you want to use don't violate anyone's intellectual property rights, review their licenses. Designs either open-source or licensed under the Creative Commons banner are excellent candidates for private, non-commercial use.
2) Product Liability
Product liability rules suggest that the manufacturer might be legally liable if their goods have a defect. Regarding 3D printing, this accountability can extend from the digital model creator to the printer operator, and even to the material supplier.
For instance, if a 3D-printed object causes injury to someone due to a design flaw, the creator might face legal action. In the same vein, the printer operator can be held legally liable if they use hazardous materials or settings. Businesses applying 3D printing for profit should adhere to all relevant safety guidelines and conduct thorough testing to reduce risks.
3) Weapon Manufacturing
Now that it is possible to create completely functional weapons through 3D printing—including those that are not—raising grave ethical and legal issues. Many countries prohibit the manufacture of firearms without proper authorization, regardless of the technique employed.
For example, the Undetectable Firearms Act restricts American manufacturers from producing firearms that are invisible to US security scanners. Certain areas have implemented stricter bans prohibiting the production or dissemination of 3D-printed gun designs. Before you engage in 3D printing firearms, be sure you are familiar with local regulations.
4) Counterfeiting and Fraud
Using 3D printing allows anyone to create a copy of a branded good, a valuable item, or a spare part, therefore opening the path to counterfeiting. The brand's creators or owners might so choose to file legal claims.
Though these regulations vary from one nation to another, manufacturing or distributing counterfeit goods usually carries severe fines. Two anti-counterfeiting practices that companies should use to protect their goods are unique IDs or serialization.
5) Privacy and Bioprinting
Given its potential use in the biotechnology and medical domains, 3D printing raises increasing concerns about privacy. In medicine, bioprinting—the technique of creating organs or tissues from cells and biomaterials—raises significant ethical and legal concerns.
Developing patient-specific medical devices using personal data calls for both compliance with privacy rules, such as the General Data Protection Regulation (GDPR) in Europe and the Health Insurance Portability and Accountability Act (HIPAA) in the US. Unauthorized access to sensitive data for 3D printing could have dangerous legal consequences.

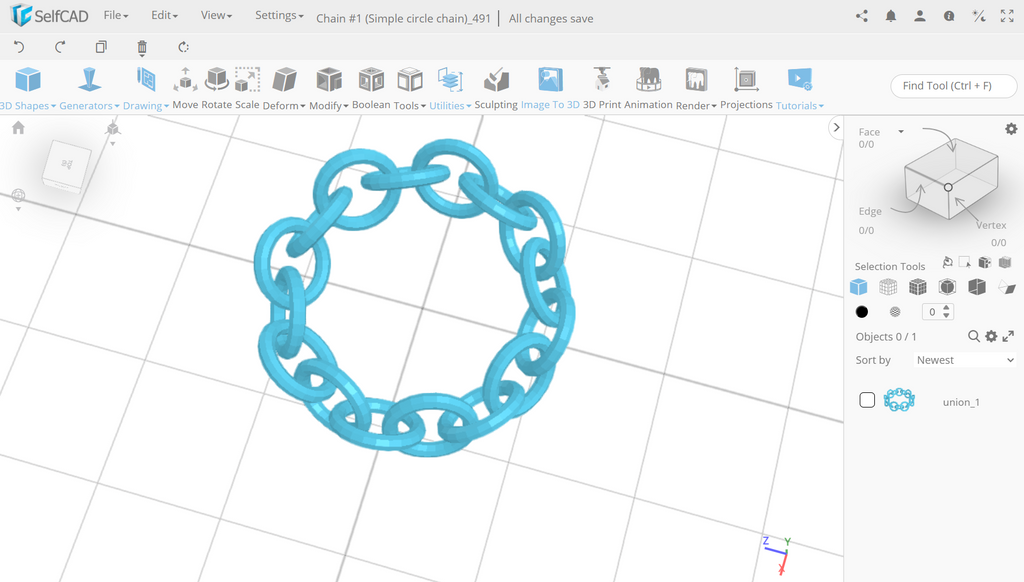

Which Is the Best 3D Modeling Software?
There are many 3D modeling software applications available, each designed to meet different design needs and skill levels. For this guide, we recommend using SelfCAD because it provides a complete set of 3D design tools in one intuitive platform. From creating precise mechanical parts to sculpting organic models and preparing them for 3D printing, SelfCAD offers a smooth workflow without requiring multiple applications. Its user-friendly interface, built-in online slicer, and cloud-based accessibility make it an excellent choice for both beginners and experienced designers.
Navigating Legal and Safety Norms in 3D Printing
You have to understand and use 3D printing principles if you want excellent prints. From designing exactly and choosing the right material to changing your printer's settings and ensuring everyone is safe, every action counts. Following these guidelines could help you lower mistakes, improve print quality, and completely explore 3D printing's creative capabilities. Learning these guidelines will enhance your abilities, regardless of your experience level as a maker, and help your projects reach their full potential.
