Everything You Need to Know About Polymer Powder Bed Fusion

A state-of-the-art 3D printing method is polymer powder bed fusion or PBF. Layer by layer it creates objects from fine polymer particles. Like a laser, a heat source fuses these granules selectively to create solid constructions. This approach lets one create intricate and detailed parts without using moulds. Precision and efficiency of PBF are driving industries including aerospace, automotive, and healthcare to embrace it more and more. Those engaged in modern production and design must first understand PBF.

Polymer Powder Bed Fusion: How It Works?

In PBF, a build platform has a thin layer of polymer powder laid over. Usually a laser or an infrared lamp, a heat source then fues particular portions of this powder layer depending on the digital design of the item. The builds platform lowers and a fresh layer of powder is sprayed once a layer is fused. This cycle keeps on until the whole component takes shape. The unfused powder around the part serves as a support system, therefore saving the need for further supporting materials.

Polymer PBF Key Variants

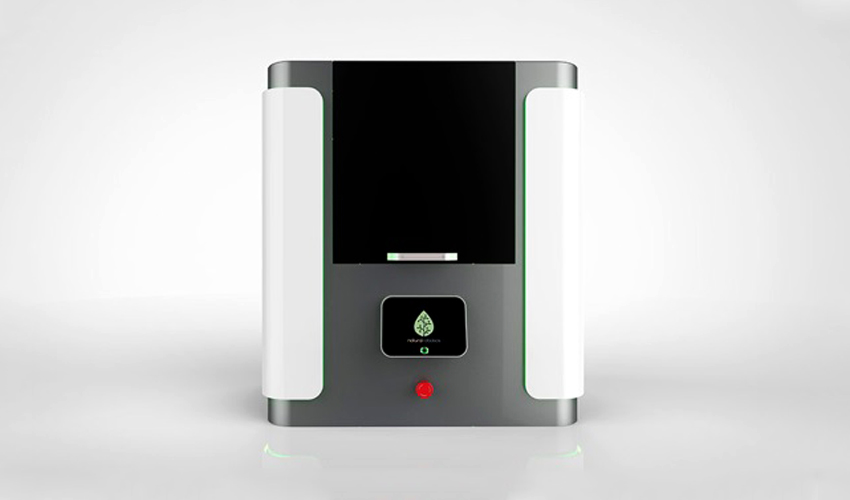

Selective Laser Sintering (SLS)

SLS layer by layer builds parts using a high-powered laser to selectively fuse powdered polymer particles. A laser beam moves across the powder bed sintering the particles to create a solid construction. The unsintered powder around the portion serves as a support, enabling the construction of intricate geometries free from further support structures. Applications in aerospace, automotive, and consumer industries would find this method perfect since it is well known for generating extremely accurate parts with complex designs.

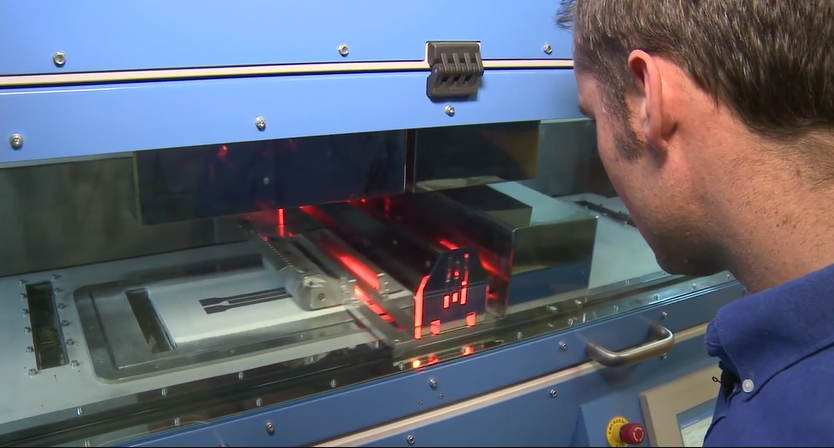

High-Speed Sintering (HSS)

HSS deposits an infrared-absorbing ink onto a layer of polymer powder just where it absorbs using an inkjet printhead. The inked sections then absorb heat and melt the powder particles when an infrared lamp moves across the bed. Layer by layer this process is repeated until the portion is completely developed. Rapid prototyping and low to medium-volume production runs fit HSS since it is well-known for its speed and efficiency in generating functioning plastic parts.

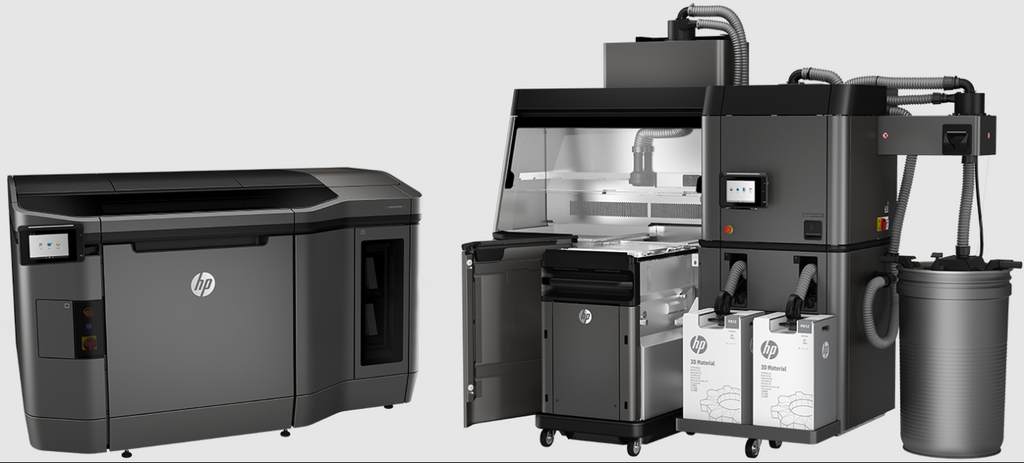

Multi-jet fusion (MJF)

Designed by HP, MJF applies fusing and detailing agents onto a bed of polymer powder using a variety of inkjet nozzles. While the detailing agent guarantees precise feature resolution and smooth surfaces, a heating element runs over the bed after the agents are applied melts the powder and forms a solid layer. The portion layer is developed layer by layer by repeated this technique. Applications needing high aesthetic and practical quality would find MJF appropriate since it can produce pieces with precise detail and outstanding surface gloss.

Advantages of Polymer PBF

1. Design versatility

With conventional production techniques, the layer-by- layer approach enables the development of intricate and tough to attain designs.

2. Not requiring support structures

Natural support from the surrounding unfused powder helps to produce overhangs and intricate features without further support materials.

3. Material Efficiency

Often recycled and used in next projects, unused powder helps to lower material waste.

4. Fast Prototyping and manufacturing

For prototype and small to medium batch production PBF is perfect since it allows rapid turnaround times from design to final part.

Difficulties and Challenges

Though polymer PBF has benefits, there are drawbacks as well:

1. Because of the powder-based technique, parts may have a rough surface finish; often, post-processing is necessary to get the intended smoothness.
2. Not all polymers are fit for PBF, thus the thermal procedures involved can influence the material qualities.
3. Some companies may find it difficult because PBF equipment's initial outlay might be significant.



Polymer Powder Bed Fusion Materials

1. Polyamide 12 (PA12)

PA12 is preferred for its simplicity of production, chemical resistance, and balanced mechanical characteristics. Producing functional prototypes and end-use components across several sectors calls for it.

Offering INFINAM® PA12 powders tailored for PBF technologies, Evonik Industries guarantees high quality and performance.

2. Polyamide 11 (PA11)

Greater ductility and impact resistance than PA12 make PA11 a bio-based polymer of interest. For uses calling for adaptability and durability, it's perfect.

Arkema offers outstanding mechanical qualities and sustainability and Rilsan® PA11 powders fit for PBF operations.

3. Polypropylene (PP)

PP is prized for flexibility, low density, and chemical resistance. Applications in consumer products and automobile industries abound for it.

Offering Ultrasint® PP, a specialist powder for PBF with good mechanical qualities and chemical resistance, BASF Forward AM

4. TPU: Thermoplastic Polyurethane

Elasticity, abrasion resistance, and durability make TPU appropriate for flexible parts including seals, gaskets, and footwear components.

Designed for PBF, Evonik Industries offers flexibility and impact resistance with INFINAM® TPC, a thermoplastic copolyester powder.



5. Polyether Block Amide (PEBA)

Sports equipment and medical tools benefit from PEBA's flexibility, impact resistance, and energy return.

Offering high-performance powders fit for PBF, Arkema provides Pebax® Rnew® elastometers, therefore combining lightweight qualities with great flexibility.

Applications and Real-world Examples

1. Automotive Industry

PBF is rather important in the automotive industry for the manufacturing of unique components and working prototypes. Rapid iteration made possible by technology during the design process helps engineers to test and polish components quickly. Companies like BMW have incorporated PBF, for example, to produce lightweight brackets and housings, therefore improving vehicle performance and fuel economy. Ford has also used PBF to make intricate ducting and engine parts difficult to manufacture with conventional techniques.

2. Aerospace Industry

PBF's capacity to create light-weight components with complex geometries—necessary for maximising aircraft performance—helps the aerospace sector PBF has been used by Airbus to produce structural brackets and cabin components, hence reducing weight. In a similar vein, MT Aerospace has added PBF technology to create intricate rocket components, hence improving performance and lowering cost.

3. Medical Field

PBF helps in the medical profession to provide personalised prosthesis and implants fit for each patient. Customising helps to increase patient comfort and outcomes. For instance, Materialise specialises in employing PBF to create patient-specific surgical guides and implants, therefore enabling more exact surgical operations. Stryker has also embraced PBF to produce porous-structured orthopaedic implants that encourage bone in-growth, hence improving implant integration.

4. Consumer Goods

PBF is used by the consumer goods industry for design and manufacturing of bespoke items including eyewear and shoes. Using PBF, companies such as Adidas have produced 3D-printed midsoles for running shoes with custom cushioning and support. Likewise, PBF has been used by eyewear company JINS to create personalised eyeglass frames so that consumers may select designs that complement their facial traits and tastes.

Conclusion

With continuous research targeted on extending the variety of printed materials, improving process efficiency, and raising part quality, polymer PBF has bright future prospects. Process control and machine technology developments should confirm PBF's importance in both production and prototyping settings.

All things considered, Polymer Powder Bed Fusion is a transforming additive manufacturing technique with unmatched design freedom and efficiency. Its ongoing growth and acceptance are likely to inspire creativity in other spheres.
