PETG Smoothing: What You Need to Know

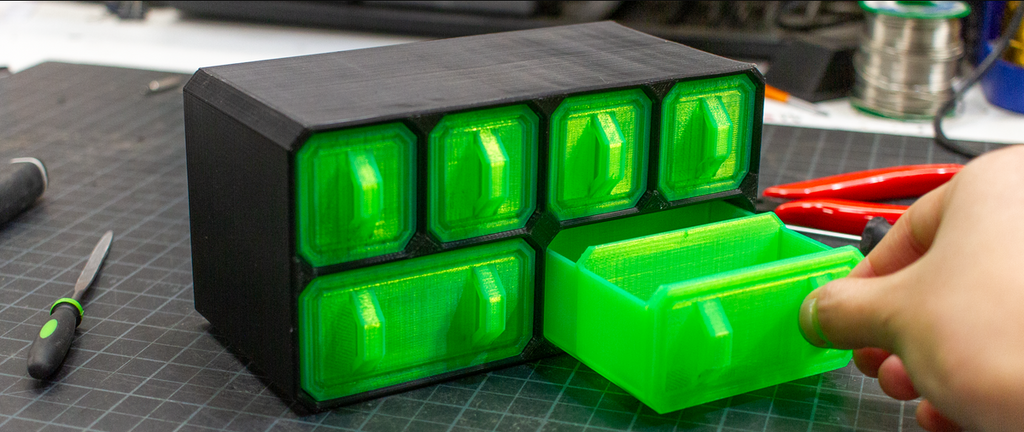

A widely used 3D printing filament is PETG. Strong, reasonably flexible, and reliably printable, that's what it is. Its material qualities also cause it to have a naturally shiny finish. It could be difficult to smooth PETG prints in order to hide layer lines or provide a better finish. When it comes to solvent vapor smoothing, PETG isn't as responsive as ABS or PLA mixes. Learn the ins and outs of PETG's behavior, the challenges of smoothing, and the best approaches for PETG prints with this comprehensive guide.
What Makes PETG Different from Other Filaments?
PETG stands for Polyethylene Terephthalate Glycol-modified. It is a more print-friendly variation of PET. PETG is resistant to crystallization when heated because of the glycol groups it contains in its structure. The result is prints that are both clear and durable. What this means is that the substance is not very soluble in typical solvents. Thus, the chemical smoothing choices that are compatible with ABS are limited. Because of the inherent shine and little texture of PETG, most printed images will have a glossy finish.
Parts begin to soften at temperatures close to 85 °C, which is the glass transition temperature of PETG. Since its melting point is at 245 °C, printing with it requires substantially higher temperatures than with PLA. This thermal behavior affects the efficacy of heat application and other methods for smoothing surfaces.
Why Smoothing PETG Is Hard?
Chemical Smoothing Isn’t Effective on PETG. Vapor smoothing with acetone is effective for ABS, as many 3D printing fans are aware. In doing so, it gently melts the surface and blends the layer lines into a more uniform surface. On the other hand, PETG can withstand the majority of the solvents used to dissolve ABS. Because PETG's molecular linkages are resistant to most solvents, chemical smoothing techniques are ineffective. While this resistance is fantastic for long-term usage in outdoor applications, it does preclude the use of chemical vapor to smooth PETG's surface, as is possible with ABS.
Chemical smoothing attempts generally fail to considerably diminish layer lines due to PETG's poor solubility. Some do-it-yourselfers have reported minor smoothing effects after extended exposure to solvents like cyclohexanone. The results show that chemical smoothing is an untrustworthy method for PETG prints.
Layer Height and Print Settings That Improve Surface Finish
1. Fine Layer Heights
Starting with a finer layer height is one of the greatest approaches to achieve a smoother surface on a PETG print. The nozzle can develop each layer more slowly and with less obvious steps if the layers are thinner. With a layer height ranging from 0.10 mm to 0.30 mm, depending on the nozzle diameter, the majority of PETG users have reported satisfactory results. For a balanced print time and surface quality, a typical default is 0.20 mm with a 0.4 mm nozzle. While thinner layers, such as 0.10 mm, take more time to apply, they help to conceal texture.

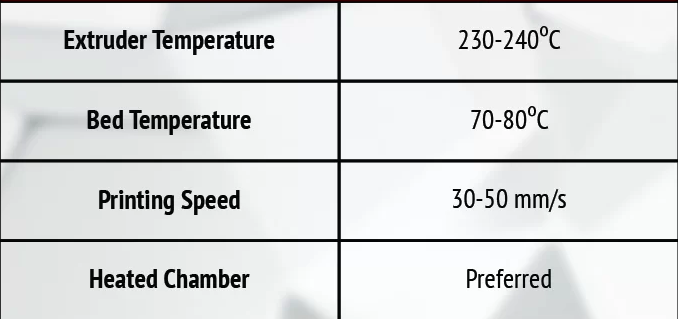

2. Temperature Settings for Smoother PETG
When it comes to surface texture, the extrusion temperature is crucial. 230–250 °C is the sweet spot for printing most brands of PETG. Improving surface flow and interlayer cohesiveness is often as simple as starting at 245 °C and changing in tiny stages. Reducing stringing and blobs at lower temperatures, at 230 °C, enhances surface quality. When the temperature rises over 250 °C, the filament becomes too fluid and the surfaces become rough.
3. Bed Temperature and First Layer
The first layer bonds more uniformly with a firm print substrate, which stops surface issues from ruining the print at an early stage. In most cases, a heated bed set between 70 and 85 degrees Celsius works best for adhering PETG. As a general rule, some printers use 80°C. This guarantees solid initial layers with minimal bending, resulting in a later, more consistent top surface.
4. Print Speed and Cooling
For PETG to lay down material consistently, slower print speeds are ideal. When printing on smooth walls, aim for a speed between 40 and 60 mm/s. Detailed components can benefit from a slower speed below this range for improved finish, while quicker speeds can lead to stringing or rough textures. When working with multiple layers, it is best to keep the cooling fan speed moderate, often between 30% and 60%. Inadequate cooling can amplify the appearance of strings and blobs, while excessive cooling can degrade bonding.

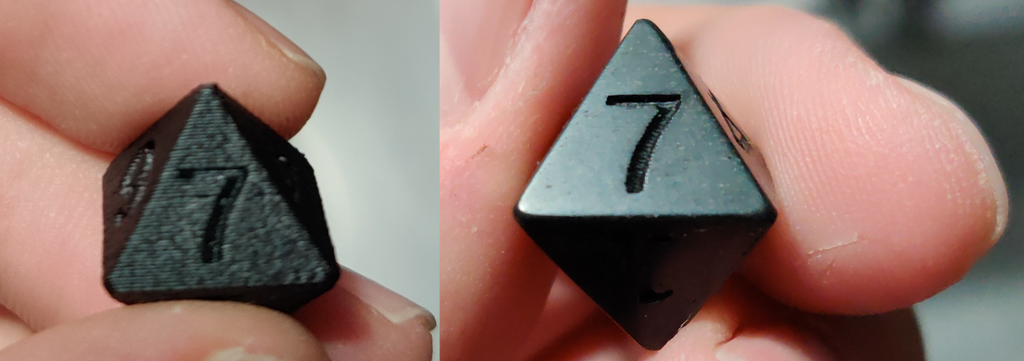

Post-Processing Techniques That Help Smooth PETG
If you want a better surface finish on your PETG prints but chemical smoothing isn't cutting it, try these alternatives:
1. Sanding
For PETG, mechanical sanding is a tried-and-true method. Gradually work your way up to finer grits of sandpaper, starting with coarser ones like 400 grit. Less dust and more uniform removal of flaws are two benefits of wet sanding. The surface loses some of its roughness and refines as you work your way down to finer grits. Avoiding surface-unnatural directional patterns is another benefit of using circular strokes while sanding.
2. Applying Heat to Smooth Surfaces
Skilled artisans may delicately smooth PETG surfaces with a heat gun. Applying heat at approximately 230 °C to 240 °C using a regulated heat gun can melt a very thin exterior layer of PETG, since the material weakens near its printing temperature. If done carefully and from a distance, this can help minimize layer lines without deforming the part. Excessive heat will distort features and damage the surface, so finding the right balance is crucial. Before applying heat to completed components, make sure the heat gun is moving and that you test on scrap prints.
3. Filling and Priming
Use fillers or primer putty before painting for prints where surface quality matters. The tiny spaces in between layers can be filled with a thin layer of putty. Sand it smooth and paint it after it has cured. While this does not alter the PETG material in any way, it does provide a smooth appearance by disguising the layer lines. Combining it with sanding makes it function better.
Tips to Prevent Rough Surfaces in the First Place
1. Proper Bed Level and Nozzle Height
PETG is easy to work with; if the nozzle is too close to the bed, it can squish the material in an uneven fashion. A little bigger initial layer gap than you would for PLA is a common recommendation. Preventing excessive squish that creates rough surfaces or blobs on the first layer is as easy as adding a tiny offset increase, say +0.02 mm to +0.06 mm, over the typical settings.
2. Dry Filament
PETG is able to soak up atmospheric moisture. When filament is wet, it will create air bubbles, uneven layers, and a subpar final product. Seal PETG in a container and add desiccant to keep it from drying out. Before printing with troublesome filament, try drying it in an oven or filament dryer.
Best 3D Printing Software
SelfCAD is a powerful and easy-to-use 3D modeling software that is ideal for beginners and professionals alike. It runs directly in your browser and combines modeling, sculpting, and slicing tools in one platform, which makes it a complete solution for 3D design and 3D printing. One of its strongest features is its simple but precise transformation tools. The Move tool lets you position objects freely, move them along a single axis, or place them exactly using number values. The Rotate tool allows you to turn models around any axis, pivot point, or fixed world direction, making alignment quick and accurate. The Scale tool helps you resize objects evenly or stretch them in specific directions while keeping control over proportions. Together, these tools make it easy to arrange, orient, and size models with accuracy, which is why SelfCAD is considered one of the best 3D modeling software options for efficient and professional workflows.
Conclusion
Strong and long-lasting, PETG is perfect for utilitarian prints thanks to its material qualities. But when contrasted with prints made from ABS or SLA resin, those very characteristics make smoothing a struggle. Because PETG isn't compatible with chemical vapor smoothing, optimizing print settings and making cautious use of post-processing procedures like sanding and heat treatments are the way to go.
To get the smoothest surfaces achievable right after printing, it is important to pay attention to layer height, temperature control, cooling, and bed adherence. For a more polished look, you can add sanding and filling as desired. You can get far better results without using chemical smoothing on PETG prints if you're patient and use the correct approach.
