Outer Wall Wipe Distance: What You Need to Know
Many people who enjoy 3D printing find it difficult to get perfect prints, particularly about the surface quality. An obvious flaw that runs vertically through the printed item, known as the Z-seam, is a typical occurrence. The popular slicing program Cura has a built-in tool to fix this called Outer Wall Wipe Distance. But what is this option, and how do you get the most out of it? So that you may make educated choices, let's explore this subject thoroughly.
What is the Outer Wall Wipe Distance?

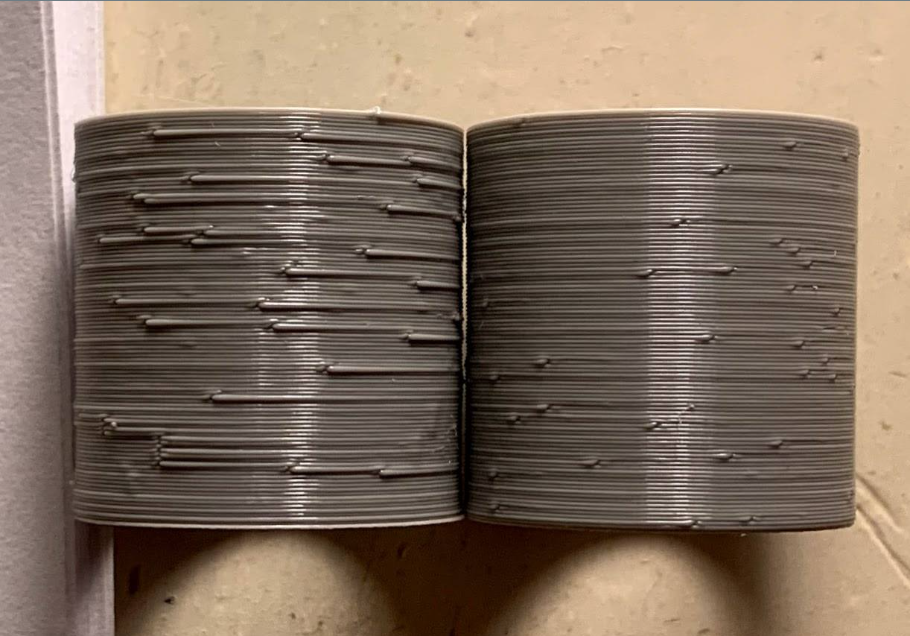

To prevent the printer nozzle from extruding filament for a brief period after finishing an outer wall, you can adjust the Outer Wall Wipe Distance in Cura. By transferring material from the nozzle onto the previously printed wall, this motion helps conceal the Z-seam. Because the nozzle stops extruding at the end of each layer, a little blob of filament forms, resulting in the Z-seam. These blobs form an observable line along the Z-axis over several layers. Adding a wipe distance makes the seam less obvious by smearing the excess filament with the nozzle.
When it comes to decorative prints, this feature really comes in handy because the surface quality is quite crucial. Having said that, it isn't a panacea. Properly configuring the Outer Wall Wipe Distance is essential for its efficiency; misconfiguration might result in under-extrusion or other problems.
How Does Outer Wall Wipe Distance Work?

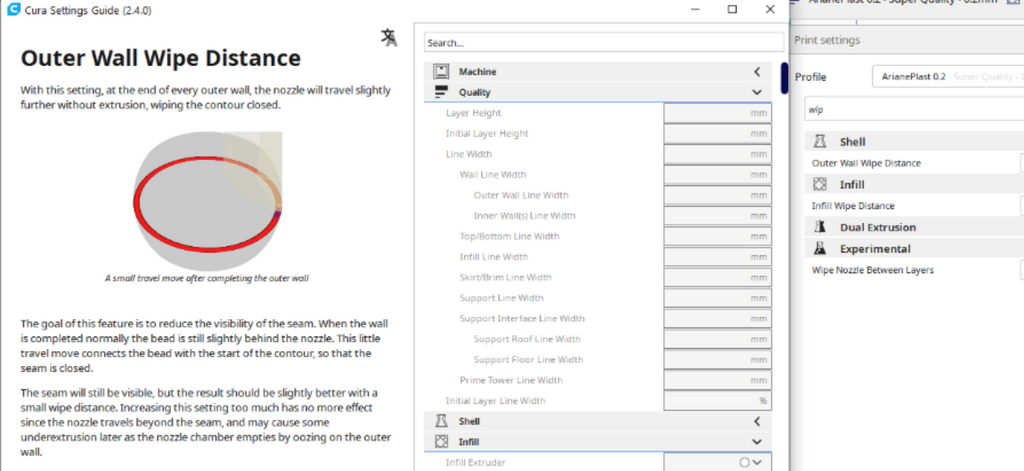

Image source: GitHub

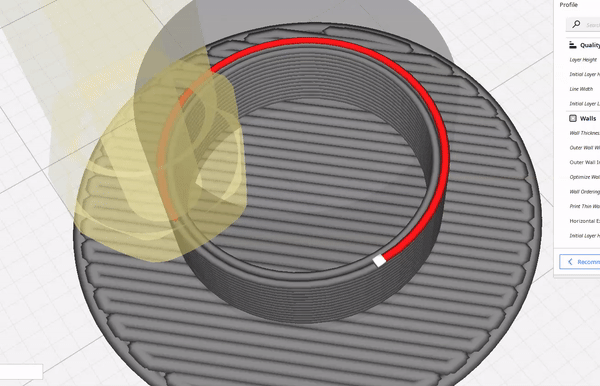

The printer usually stops extruding and moves on to the beginning point of the following layer when it finishes printing an outer wall. During this changeover, a little filament may seep out of the nozzle due to residual pressure, creating a blob. Following the completion of the wall, the Outer Wall Wipe Distance option adds a little travel move that does not involve extrusion. This action decreases the possibility of blobs accumulating at the Z-seam by enabling the nozzle to wash off the extra filament onto the produced wall.
The maximum distance the nozzle can go before extruding is defined by the user. Setting the wipe distance too high can lead to under-extrusion or print gaps, while setting it too short will further hide the Z-seam. On the flip side, a shorter distance might not be enough to conceal the seam.
How to Configure Outer Wall Wipe Distance?
Thorough adjustment is required while configuring the Outer Wall Wipe Distance. For the majority of prints, the default value in Cura—which is usually between 0.2 mm and 0.4 mm—is sufficient. Nevertheless, you might have to try out a few various settings until you find the one that works best for you.
Take 0.2 mm as a starting point and raise it by 0.2 mm each time. After making any changes, print out a test model to see how the Z-seam looks. Typically, a range of 0.2 mm to 0.6 mm is considered appropriate. Cut back on the wipe distance a little if you see under-extrusion or print gaps.
Retraction, coasting, and flow rate are a few additional parameters that affect the Outer Wall Wipe Distance, so keep those in mind as well. Increasing the wipe distance might not work if your retraction settings aren't perfect, for instance.
Outer Wall Wipe Distance vs. Coasting
Although they operate in distinct ways, coasting and Outer Wall Wipe Distance both have the common goal of hiding the Z-seam. By halting extrusion just before a print line's end, coasting lets the remaining pressure in the nozzle finish the line. Because of this, there is less filament that could bunch up at the Z-seam.
On the other hand, after the wall is finished, the Outer Wall Wipe Distance adds a travel move to remove any excess filament from the printed wall. Coasting may be more efficient in some situations, but it needs exact calibration so there are no gaps in the print. There are less potential problems and easier configuration options for the Outer Wall Wipe Distance.
When to Use Outer Wall Wipe Distance?
Prints with smooth surfaces, like ornamental pieces or models, benefit greatly from the Outer Wall Wipe Distance. Changing this parameter may not be necessary if the Z-seam does not impact the print's functioning or is not visible.
Nevertheless, the exterior Wall Wipe Distance can greatly enhance the surface finish for prints featuring intricate geometries or numerous exterior walls. It's also a solid choice if you're having problems with coasting or any other method for reducing Z-seams.
Common Mistakes and Troubleshooting
Setting the Outer Wall Wipe Distance too high is a typical mistake that can cause under-extrusion or print gaps. Lower the wipe distance and double-check the retraction settings if you have these problems.
Another common error is not considering how the Outer Wall Wipe Distance interacts with other variables like print speed and flow rate. One issue that can arise from a high flow rate is the accumulation of filament at the Z-seam, which can reduce the effectiveness of the wipe distance. In a similar vein, if you reduce the print speed, the nozzle will have more time to remove excess filament, making the wipe distance work better.
