STL Files for Engineering Students to Download and 3D Print
Have you been having trouble locating practical 3D printing models that can aid in your engineering education? Countless engineering students waste time and energy downloading pointless models just because they seem cool. This results in squandered filament, time, and chances to acquire practical skills.
Imagine you could learn mechanical design, fluid dynamics, material strength, and more by printing out practical, interactive models without ever leaving your workstation. You can turn your 3D printer into an effective educational tool by using the correct STL files. These prints provide an engaging and accessible approach to learning about engineering principles, such as tensile-strength testing, planetary gear assembly, and hydraulic-arm construction. Here is a list of ten STL files that any engineering student should print out.
1. Retro Oscillating Fan – Redux

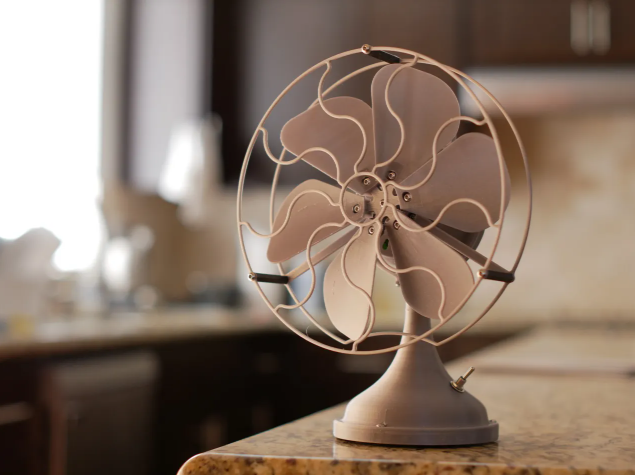

Redesigned from an earlier model to greatly enhance silence and ease of assembly, the Mini Retro-Styled Desk Fan - Redux is a superbly crafted, miniature fan with an oscillation mechanism that fully operates. Constructed with a normal 130-size brushed hobby motor and designed to fit a regular 18650 battery in its base, it is completely portable. A bigger internal gear with curved spokes and a motor pinion gear with cutouts both contribute to the redesign's goal of reducing noise. To make construction and maintenance easier, all fasteners are standardized to use M3×10 bolts with locknuts. More airflow and less noise are the results of the fan blades' broader and cambered design. For reduced friction and noise, you can select for TPU versions of critical sections like gears, motor mounts, and shaft components. The main body, on the other hand, works just as well in PLA, PETG, or ABS.
Download file: Printables.
2. Basic Wind Turbine Model

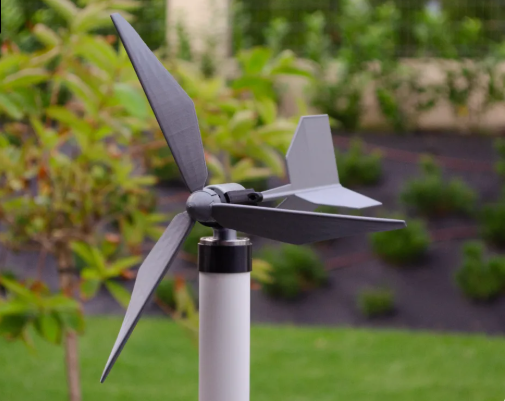

A modest horizontal-axis turbine, the Basic Wind Turbine STL can produce enough energy to run a single LED. Featuring rotor blades, a hub, a motor mount, and base components, it is designed to be printed totally on a stock Ender 3 using PLA. Print the rotor blades with 30% infill at the base and tapering to 5% further out to save weight while keeping strength. The instructions mention PLA, PETG, or ASA filament. The infill for the other components is around 30%. The design calls for standard hardware, including three short M3 screws, a 24 mm DC motor with a 2 mm shaft, a 32 mm PVC pipe segment, and a 15 × 32 mm bearing, and it doesn’t require any support material.
With the exception of the rotor and motor holder, which require a little push to press-fit into place, all other pieces snap-fit. Students learn about rotor dynamics, wind turbine physics, and renewable energy demonstration in an easy-to-understand way with this instructional tool.
Download file: Makerworld.
3. Bridge Strength (Truss) Project Model

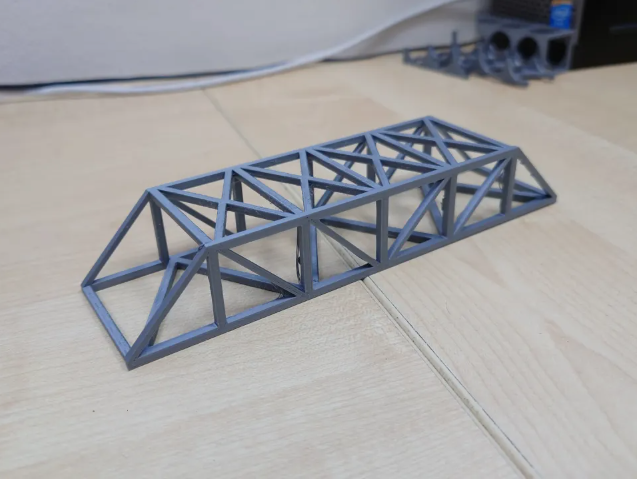

For students interested in exploring structural mechanics, the Bridge Strength Truss model is an excellent STL to use. After creating a bridge using geometric shapes such as triangles and arches using 3D printing, participants put it through its paces under weight to determine which design is most resistant to deformation. The model is advanced enough to facilitate investigations into load distribution, compression and tension, and failure modes in upper-level engineering courses, despite its initial development for lower-level learners. It offers a user-friendly method to link CAD design with actual force testing.
Download file: Printables.
4. NUT JOB – Bolt, Nut, Washer & Threaded Rod Factory

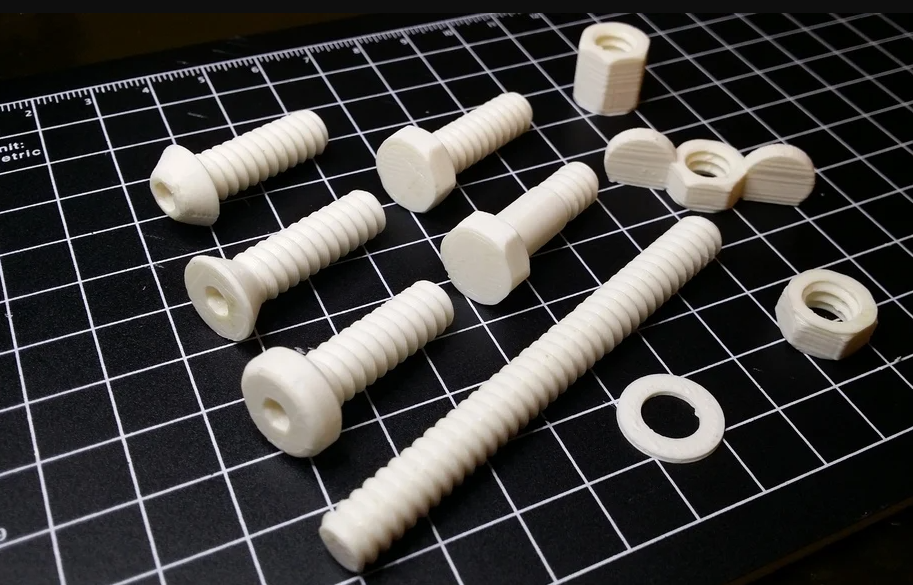

Students can create their own unique nuts, bolts, washers, and threaded rod sections of any size with the help of NUT JOB, a robust parametric STL generator. Dimensions, thread pitch, head style (socket cap, countersunk, button), drive type (Phillips, slot), and facet count are some of the user-specified parameters that shape the model's underlying construction using the PolyScrewThread library. You can personalize them with wingnuts, expanded joiner nuts that let you make threaded rods of any length, and snug fittings that are reliable and require little cleanup when printed with FDM. For classes on thread mechanics, tolerance, and file-based CAD modeling, this STL is perfect.
Download file: Thingiverse.
5. Vernier Caliper (Printable)
A vernier scale, sliding jaw, depth gauge, and thumb screw are all hallmarks of the traditional analogue measuring device, which the Vernier Calliper STL faithfully recreates. The design is reminiscent of models made in Germany or Japan; it has a measurement capability of around 150 mm and uses mechanical interpolation through the vernier scale. Printed and assembled, it may teach engineering students the basics of metrology and precision measurement by showing them how the vernier scale separates readings from the main scale into finer increments.
The printed calliper can attain an accuracy of roughly 0.1 mm when using PLA or PETG materials, which give enough rigidity. Even while digital callipers are still the gold standard for professional calibration jobs, they show how measurement theory and mechanical calibration work. However, mechanical engineering and fabrication laboratories can greatly benefit from this printed device as a hands-on instructional tool.
Download file: Myminifactory.
6. ASTM D638 Tensile Strength Test Pieces (5 Types)
If you want to know how strong 3D-printed materials are under tension, you can get five different kinds of standardized test bars in the ASTM D638 Tensile Strength Test Pieces kit. Engineers studying materials science, mechanical stress, or failure analysis will find these Atom's Lab models useful, since they conform to the ASTM D638 standard for polymer testing. Learners can print specimens for use in lab tensile testers using the five geometries, Type I through Type V.
Students can use this component to calculate yield strength, elasticity, and breaking point from their own prints, which is based on real-world data. You can use these files with any FDM printer that uses PLA, PETG, or ABS since they are accurate, precisely sized, and meticulously made. You can use the publicly accessible models without worrying about rafts or supports.
Download file: Printables.
7. Scissor Lift
A small mechanical replica of an industrial lifting platform, the Scissor Lift STL mimics its operation. You can print this model in its entirety or in sections, and it comes in both a completely elevated and lowered form. Donya Quick designed it. The height state determines how the middle component changes, allowing for interactive demonstrations. Ideal for demonstrating and discussing links, elevation mechanisms, and load-bearing geometry, its basic linear motion is reminiscent of a real scissor lift.
The base platform is designed to accommodate small figures (15-17 mm) but can be expanded to accommodate larger uses, such as 32 mm figurines or scaled-down robotics. While supports aren't required, they can assist in keeping pieces stable while printing in the STL format, which is compatible with most resin or FDM printers.
Download file: Myminifactory.
8. Herringbone Planetary Gear

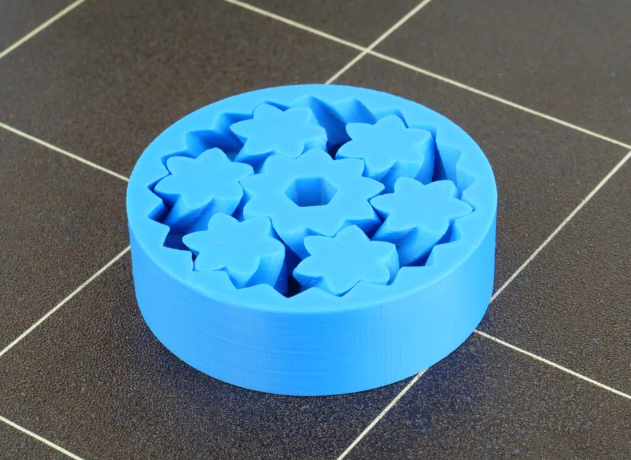

For example, Emmett Lalish's Herringbone Planetary Gear is an additively manufactured, one-of-a-kind gear system. It is a compact system that incorporates the sun, planet, and ring gears; it has interlocking herringbone teeth on a planetary arrangement. This design's strength is in the fact that it doesn't require assembly; after printing, the gears spin freely without the need for post-print assembly.
An excellent tool for teaching complex gear theory, the herringbone tooth design gets rid of axial thrust and makes gears run more smoothly than their straight-cut counterparts. Using PLA with a layer height of 0.1-0.2 mm and no supports, the print takes about three hours. This gear, which is compatible with the Prusa MK3/S+ and most printers, exemplifies the power of 3D printing to produce intricate, functional components that would be inconceivable using conventional machining techniques.
Download file: Printables.
9. Hydraulic/Pneumatic Arm with Syringes

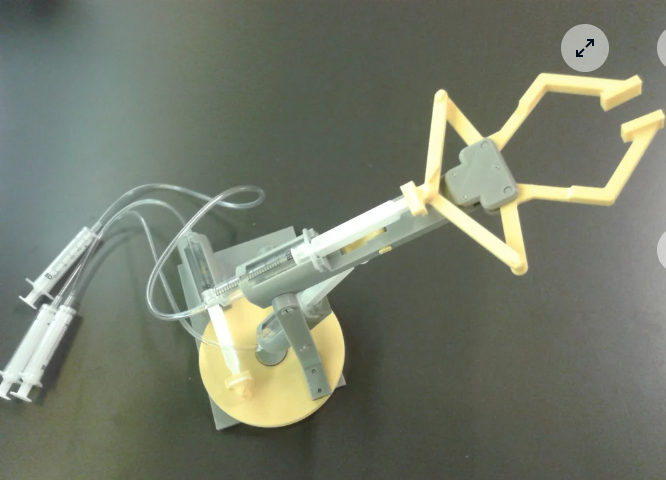

Using commonplace objects like tubes and syringes, the Hydraulic/Pneumatic Arm STL dynamically recreates hydraulic and pneumatic systems as they exist in the actual world. Claws, pistons, a base, and rotary joints are just a few of the more than twenty printable components that make up this multi-axis robotic arm that Mewalela designed.
Students set up the arm by assembling its components, which include six 5 ml syringes and approximately one meter of intravenous or medical-grade tubing. Ideal for showing fluid mechanics and force transfer, the device operates with smooth and obvious actuation when filled with water. For assembly, you'll need screws with a diameter of M1.8 × 8 mm. To ensure tight-fitting joints, slightly grind the parts after printing. This little model is a great teaching tool for topics like precision control, Pascal's Law, and lever motion.
Download file: Thingiverse.
