Microfluidic 3D Printing: What You Need to Know

Microfluidic 3D printing is a novel method that has revolutionized the manufacture of microscale devices. Often smaller than human hair, this technology helps to create highly precise structures utilized for microscale fluid manipulation and control. In biology, medicine, chemistry, and diagnostics, where conventional manufacturing techniques like photolithography long dominated, these devices find extensive use. However, traditional methods are sometimes expensive, time-consuming, and constrained in the degree of design complexity they can produce. Overcoming these constraints, microfluidic 3D printing offers a more affordable, faster, and more flexible solution.

Fundamentally, microfluidic 3D printing blends the ideas of additive manufacturing with the particular needs of microfluidics. Layer-by-layer assembly of objects enables complex geometries and multi-material integration formerly impossible. Offering a complete guide to grasp this revolutionary technology, this article investigates the principles of microfluidic 3D printing, its techniques, materials, advantages, problems, and possible applications.

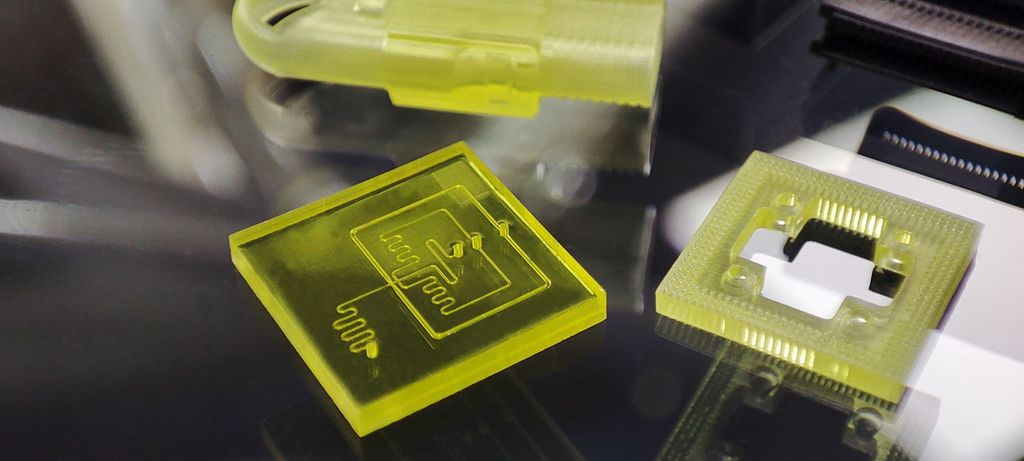

What Is Microfluidic 3D Printing and How Does It Work?

One specialist type of additive manufacturing is microfluidic 3D printing. It is mostly concerned with building small channels and structures. On a microscale, they are commonly utilized for fluid manipulation. Photolithography was used in conventional microfluidic devices. This takes time and money.

Microfluidic 3D printing is efficient because it allows for unmatched accuracy and customization in producing microfluidic devices. Conventional building techniques, such as photolithography or soft lithography, often require difficult, time-consuming, and expensive operations. On the other hand, 3D printing reduces the requirement for molds or masks by directly building constructions layer by layer.

This process makes it possible to create complex geometries, such as curving channels or multi-layered designs, which are difficult or impossible with more traditional techniques. Furthermore, 3D printing lets researchers quickly prototype and iterate solutions, thereby dramatically lowering development time. An invaluable tool for innovation in disciplines such as diagnostics, chemical analysis, and biological research, researchers may build, test, and change devices in a few days instead of waiting weeks for manufacturing.

Optimal Materials for Microfluidic 3D Printing

1. Photopolymers

Particularly for applications needing high resolution and complex details, photopolymers are among the most often utilized materials in microfluidic 3D printing. With great accuracy in producing microfluidic channels, they are compatible with SLA (Stereolithography) and 2PP (Two-Photon Polymerisation) technologies.

Because of their chemical resilience, these resins are perfect for fluid-based applications. However, not all photopolymers are biocompatible, which restricts their usage in some biological settings. Popular choices are the E-Shell series from EnvisionTEC, which is well-known for its dependability in producing consistent microfluidic devices, and Formlabs' Clear Resin, which provides both transparency and high detail resolution.

2. PDMS (polydimethylsiloxane)

Popular in conventional microfluidics, PDMS, or Polydimethylsiloxane, is flexible and optically transparent. Although not often utilized directly in 3D printing, hybrid techniques combine 3D-printed components with PDMS to produce devices needing both accuracy and adaptability. Because of its outstanding biocompatibility and ability to manage small, fragile samples without distortion, PDMS is perfect for scenarios involving biological fluids.

For biosensors and lab-on-a-chip systems, especially, it is quite helpful. Among the notable products are Sylgard 184, a PDMS resin applied extensively in 3D-printed constructions to create intricate microfluidic systems.

3. Hydrogels

In microfluidics, a class of materials especially suited for biological and medicinal uses is hydrogels. Ideal for investigating cell development, tissue engineering, and drug delivery systems, they are soft, water-absorbent, and resemble the behavior of genuine tissues.

Microfluidic devices needing contact with biological fluids or the growth of live cells can be created from hydrogels. Microfluidic research, including 3D cell culture and organ-on-a-chip systems, extensively employs materials like GelMA (Gelatine Methacryloyl). These are highly flexible and customizable for a range of biological uses.

Applications of Microfluidic 3D Printing

1. Biological Research

Molecules and cells are studied using microfluidic devices. Small-scale mimicking of organ operations is possible for researchers. This advances illness research and medicine testing.

2. Diagnostics

Microfluidics underlies point-of-care diagnostic tools. These tools examine microscopic fluid samples, require few reagents, and are quick.



3. Chemical Analysis

Microfluidic systems catalyze complicated chemical reactions. Labs apply them for synthesis and analysis. Their accuracy guarantees correct outcomes.

4. Education

Microfluidic low-cost gadgets are used in education nowadays. Students can experiment with material characteristics and fluid dynamics, which promotes creativity and education.

3D Printers Used in Microfluidic 3D Printing

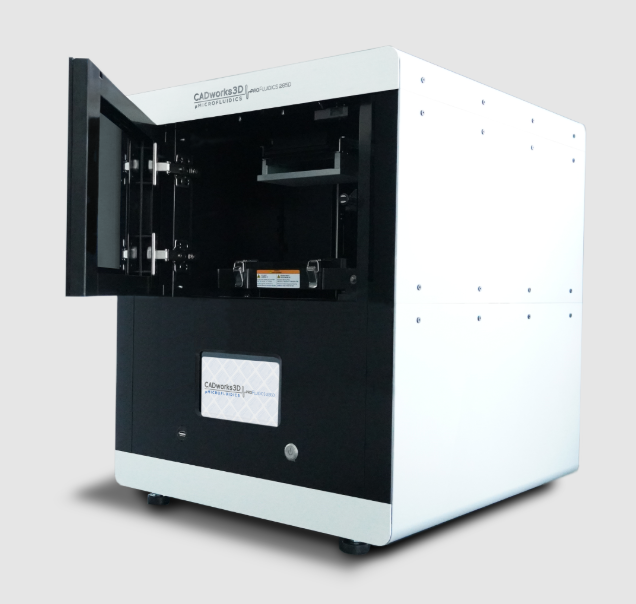

The emergence of specialized 3D printers able to create complex microscale structures has notably driven the progress of microfluidic 3D printing. One such noteworthy example is the ProFluidics 285D, designed especially for microfluidic use by CADworks3D.

This printer allows in-house design, printing, and testing of microfluidic layouts, thus enabling quick model iteration in hours. Such capacity removes the need for outsourcing and is essential for achieving strict research deadlines, thereby hastening the progress of science.

Stratasys, which 3D prints microfluidic devices using PolyJet technology, also makes another major contribution. This method makes use of flexible materials that enable pressure-based sealing, necessary for microfluidic devices to operate as they should. PolyJet technology's material flexibility and accuracy make it fit for manufacturing intricate microfluidic components with remarkable realism.

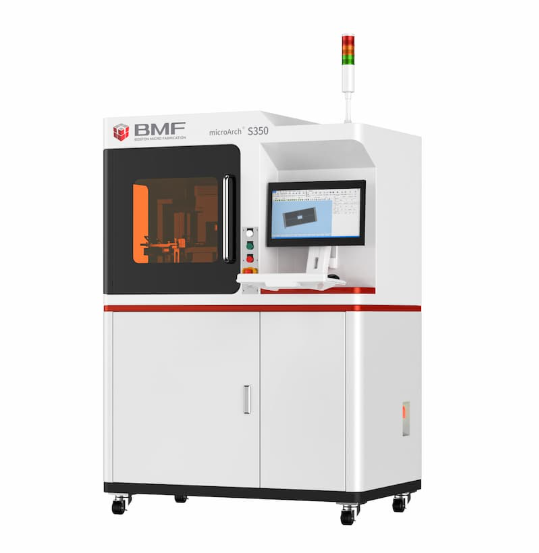

Boston Tiny Fabrication (BMF) has also advanced this industry by creating tiny 3D printing solutions for microfluidics.

Their approach eliminates the need for assembly by allowing whole microfluidic devices to be printed in one step, hence boosting production efficiency. This method improves the structural integrity of the gadgets in addition to streamlining manufacture.

Prominent Microfluidic 3D Printing Projects

Many innovative initiatives have demonstrated how 3D printing can help advance microfluidic technologies. Using multi-material 3D printing, researchers at the Massachusetts Institute of Technology (MIT) developed a fabrication method to generate self-heating microfluidic devices in a single step. Built-in heating components in these devices provide exact temperature control of fluids passing through tiny channels. Applications requiring controlled heat settings, such as biological reactions and diagnostics, can greatly benefit from this invention.

Full story: MITnews

In another innovative effort, a Brigham Young University (BYU) team effectively 3D-printed a feasible microfluidic device tiny enough to be functional at a size considerably less than 100 micrometers. Given that past attempts to 3D print microfluidic devices had not achieved such a small scale, this accomplishment represented a major turning point. The capacity to create devices with such minute features opens new directions for lab-on-a-chip technologies and exact microscale fluid manipulation.

Full story: BYUnews

Best 3D Printing Software

There are many 3D printing software programs available that can prepare designs for 3D printing, and a good example is SelfCAD. It is an easy-to-use 3D design software that you can use not only to create 3D models but also to edit meshes and slice designs. It comes with interesting 3D modeling tools, such as freehand drawing and sketching, that you can use to create designs from scratch.

There are also easy-to-use selection modes as well as various modification tools to help you modify your designs based on your requirements. It has an image-to-3D feature that makes it easier to turn photos into 3D models. You can also import STL files and modify them based on your needs.

The software comes with a built-in online slicer that one can use to prepare designs for 3D printing. The video below shows how to slice STL files and generate the G-code to send to the 3D printer.

Pioneering with Microfluidic 3D Printing

Microfluidic 3D printing is enabling the design and fabrication of microscale devices faster, more personalized, and more accurately than ever before. Using advanced materials such as hydrogels, photopolymers, and PDMS, this method enables the creation of highly useful tools that can be applied in various fields, including chemistry analysis, diagnostics, and healthcare. As 3D printing technology continues to improve, it will become easier to create complex microscale systems from a wider range of materials. This will spur innovation and open up new fields of scientific study. Microfluidic 3D printing is a significant development in the field of microfluidics and beyond. It can work with a wide range of materials, produce prototypes more quickly, and use less material.
