K1 Max 3D Printer: What You Need to Know
Among consumer 3D printers, the Creality K1 Max has received a lot of attention recently. According to Creality, its Core XY rapid 3D printer has artificial intelligence sensors, a large build volume, and modern performance. The printer claims to be far quicker than the average desktop computer. Not found on most low-cost printers, it also has connectivity choices, automated leveling, and AI failure detection. But how well does it perform when put into practice? We take a look at this printer from every possible viewpoint in this post. We discuss the product's design, performance, actual outcomes, typical user comments, and overall quality.
Overview: What the K1 Max Is

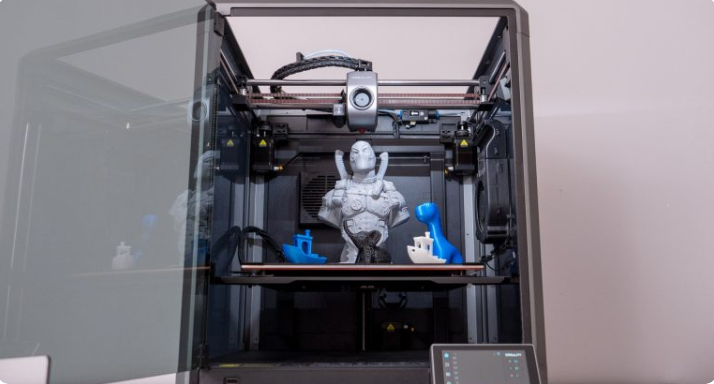

One big format FDM 3D printer that revolves around the Core XY motion mechanism is the Creality K1 Max. Both speed and accuracy are priorities in the design of this motion system. According to Creality, the machine can print at speeds of up to 600 mm/s and accelerate to 20,000 mm/s², allowing it to complete numerous models considerably quicker than ordinary hobby printers.
It can accommodate large or many small pieces simultaneously because of its 300 × 300 × 300 mm construction capacity. When printing with materials that are sensitive to temperature, such as ABS or ASA, the printer's enclosed design is a big aid. It employs a LIDAR scanner for initial layer inspections and automated bed leveling using strain sensors. It has an AI camera that can detect prints and alert you if anything goes wrong.
Design and Build Quality

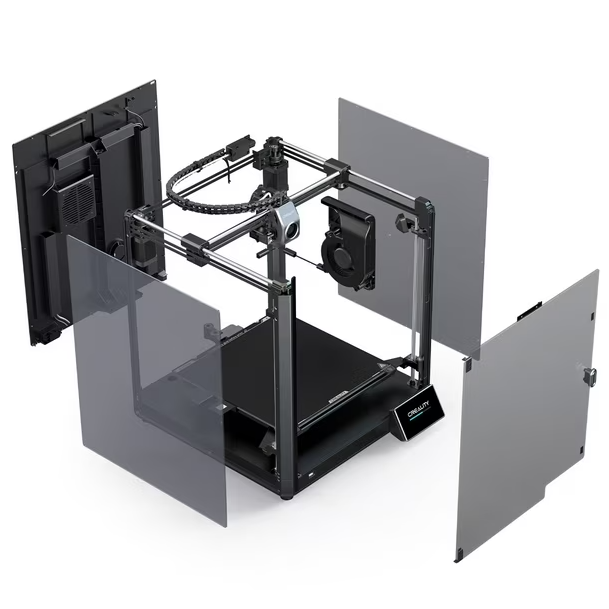

Just by looking at it, the K1 Max exudes an air of contemporary utility. The robust construction of the enclosure aids in keeping the interior at a constant temperature. Because of its stiff frame, the movement remains precise even when traveling at fast speeds. A flexible steel PEI plate improves adhesion and makes part removal easier on its big hot bed.
Most of the machine ships are ready to go. Before printing, all you have to do is take it out of the packaging, attach the filament holder, and plug in a few of the connectors. This simplifies the setup process.
The networking is adaptable. Many methods exist for transmitting print files, including Creality Cloud, local area networks (LANs), and USB flash drives. You may also see a history of printed jobs on the printer.
There are some issues, nevertheless, with the sturdy construction. Due to the rear-mounted spool holder and the tight curve for the filament channel, loading filament can be a bit of a pain. Because of this, filament feeding could be difficult.
Speed and Real-World Performance
The key selling feature of the K1 Max is its speed. It delivers as promised with striking outcomes in actual testing. As an example, it took 17 minutes and 38 seconds to print a basic 3D Benchy at 300 mm/s. Not only is that faster than the average desktop printer, but it also outpaces a lot of its rivals.

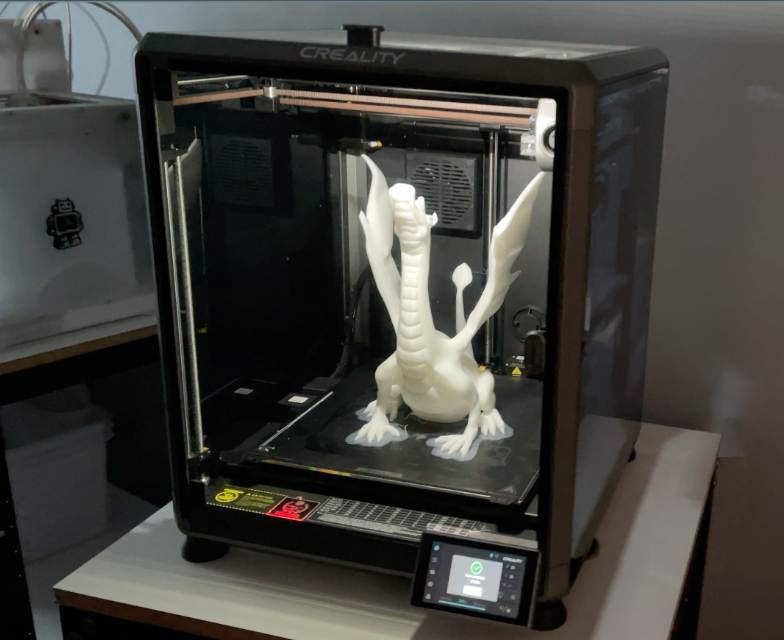

Large, practical parts and prototypes print beautifully on this printer. Using the default settings, prints of realistic objects, such as a life-size skeleton foot, big ABS components, and PETG models, were smooth and had excellent surface finishes.
But quick isn't necessarily better. Slower rates and fine-tuning may be necessary to reveal finer details in highly complex models. Variations in the model need a trade-off between speed and quality when dealing with intricate details at high speeds.
Print Quality: Strengths and Fine Details

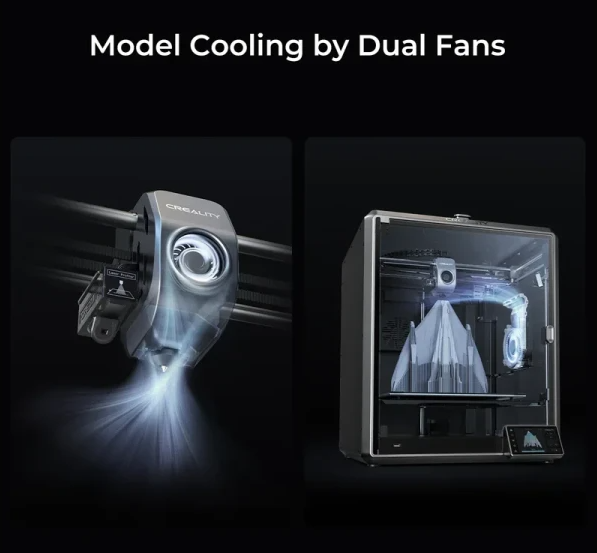

When you adjust the settings according to the task at hand, the printouts might be of good quality. Clean overhangs and smooth bridges are results of the K1 Max's enhanced hotend and powerful cooling system. This machine's functional components and well-defined curves demonstrate its capability in daily use.
When fine-tuned, independent testing demonstrates good dimensional accuracy and generally solid performance on most benchmarks. Substances like ABS and PETG benefit from the enclosure's ability to keep the interior at a consistent temperature.
Results, however, can differ. Vertical fine artifacts (VFAs) and uneven initial layers are two examples of the little surface artifacts that some people see. It may be necessary for the owner to make adjustments in order to remedy these issues, which typically arise from inadequate bed leveling, firmware tuning, or slicer settings.
AI Sensors and Monitoring Features
To help identify issues like spaghetti prints (where the filament wraps around the hotend) and interference from foreign objects, Creality included AI into this printer. You may make time-lapses and record prints with the AI camera.
Theoretically, this feature is very impressive. When it comes down to it, the outcomes are user-dependent. The AI notifications are helpful for some owners in spotting mistakes early on. While some find the detection to be extremely sensitive, others find it to be unreliable. The quality of the setting and the arrangement determines the real-world performance.
Ease of Use: Assembly and Software
There isn't much assembly required for the printer straight from the box. Beginners or those moving up from older, less powerful devices will like this. You will rarely need to manually modify the first layer thanks to the automatic bed leveling technology.
The user interface is simple and easy to use on the touchscreen. When you pair it with Creality Slicer, you can see model previews, and it will remember your prints from before. Users are able to better manage print tasks with ease.
However, even for experienced users, the slicing software may feel lacking or awkward. There is an additional learning curve associated with using third-party slicers such as Cura or PrusaSlicer, which many hobbyists employ for greater control.
User Feedback: Real Experiences
There is a wide variety of opinions about the K1 Max in online forums. After getting the hang of the machine and adjusting the settings, many customers rave about the results. Regularly, some owners print with different filaments without any big problems.
Contrarily, there are others who feel the same way. Some people have issues with filament feeding, components wearing out sooner than anticipated, or frequent blockages. Sometimes printed parts break down in the middle of the printing process, necessitating replacements more frequently than normal. In these instances, manufacturer support can be delayed or useless at times.
Noise, Vibration, and Environment
When printing, the K1 Max makes a lot of noise. Quick prints are characterized by audible noise from the cooling fans and rapid speeds. Because of this, it isn't the best choice for places where you really value stillness, such as bedrooms or workplaces.
Fast-moving objects also cause vibrations. During fast movements, the machine could wiggle. Even with rubber feet, there is still considerable trembling during heavy printing.
Best 3D Printing Software
Having reviewed the Creality K1 Max AI Fast 3D Printer, it's also important to have a look at the best 3D printing software. There are many that are available, but we recommend using SelfCAD. It's an easy to use 3D design software that comes with all the tools that you need to create both simple and complex 3D models. It also comes with many resources for learning, including the interactive tutorials that makes it easier for you to get started with the software with ease. The video below shows the overview of the software.
Preparing models for 3D printing is a breeze because of the program's online slicer that you can use to slice your designs.
Conclusion
In many important respects, the K1 Max lives up to its billing. Impressively, it's quick. It gets big pieces printed. Included in this state-of-the-art innovation is flexible connectivity, artificial intelligence monitoring, and automatic leveling. When compared to other consumer printers, it can drastically reduce print times.
Still, it has its flaws. Performance when not in use can differ. Some customers have complained about problems with dependability, blockages, or help. You need to know your way around slicing profiles and calibration to get the most out of your printer, because speed and detail don't always line up without adjustment.
A strong and satisfying machine may be yours with the K1 Max if you're ready to study tuning and firmware adjustments and prioritize speed and huge build volume. There may be alternatives to think about or a learning curve to anticipate if you desire flawless plug-and-play performance with little tweaking.
Finally, you should pay attention to the K1 Max. The performance claims are mostly true, but using it in the real world shows that some areas still require patience and ability from the user.
