How to Spot Wet Filament Problems in 3D Printing Easily?
When it comes to 3D printing, filament moisture is a major pain point. As time passes, a lot of filaments soak up atmospheric moisture. Many print errors and completed items weaken due to this water. To avoid wasting time, filament, and irritation, learn to recognise damp filament quickly. So that you can readily recognise wet filament issues, we have outlined the telltale indicators here.
What Happens When Filament Is Wet?
The majority of filaments used in 3D printing are able to absorb moisture. In other words, they're like a sponge—they soak up all the water in the air. Until it reaches the hotend, moisture is trapped inside the filament. The condensation of water vapour into steam occurs rapidly in the hotend. As the filament melts, the steam tries to escape and expands. Bubbles, pops, and uneven extrusion can result from these microscopic steam explosions. Your printer will make strange noises, have weak components, and produce low-quality prints as a result.
Audible Signs: Nozzle Sounds You Shouldn’t Ignore
Noisiness is a telltale indicator of moist filament. Depending on the material, wet filament can extrude with a popping, crackling, hissing, or sizzling sound. Steam is escaping from the hotend's filament when water boils, causing these noises. If the motor and fan are operating normally, the dry filament should pull out without a hitch. Be wary of dampness if the nozzle makes strange noises. These noises are common in the initial stages of a print, particularly in the top layers.
Visual Clues at the Nozzle and in the Print
You might also notice steam or bubbles surrounding the tip of the nozzle during printing. Because of this, we can tell that water is evaporating. Under well-lit conditions, the filament extrusion process may reveal a whitish mist or small droplets. The uneven outward push of steam from within the molten plastic causes these bubbles to form. There can be small craters, pits, or foamy spots on your printed model's surface where bubbles have popped. Distinct from the usual surface roughness are these flaws. If the filament is wet, the extrusion process could be erratic, leading to thin lines or blobs from extruding too much material.
Surface Quality: Rough, Fuzzy, or Blotchy Finishes

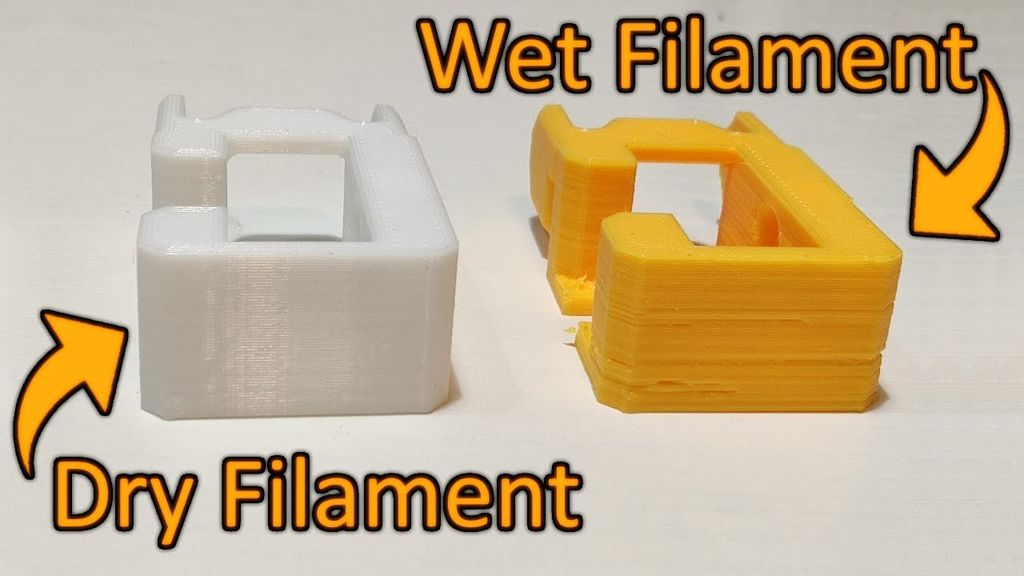

Wet filament prints seldom have a perfectly smooth surface. What you're really feeling is a rough or fuzzy surface. An uneven surface can be the result of extrusion-related steam bubbles. A layer that should be shiny and smooth turns matte and scratchy. It all depends on how much moisture the filament absorbed; depending on that, these flaws can show up everywhere or only in certain places. It is easy to see the difference between prints created with dry filament and those created with wet filament.
Stringing and Oozing Between Print Features

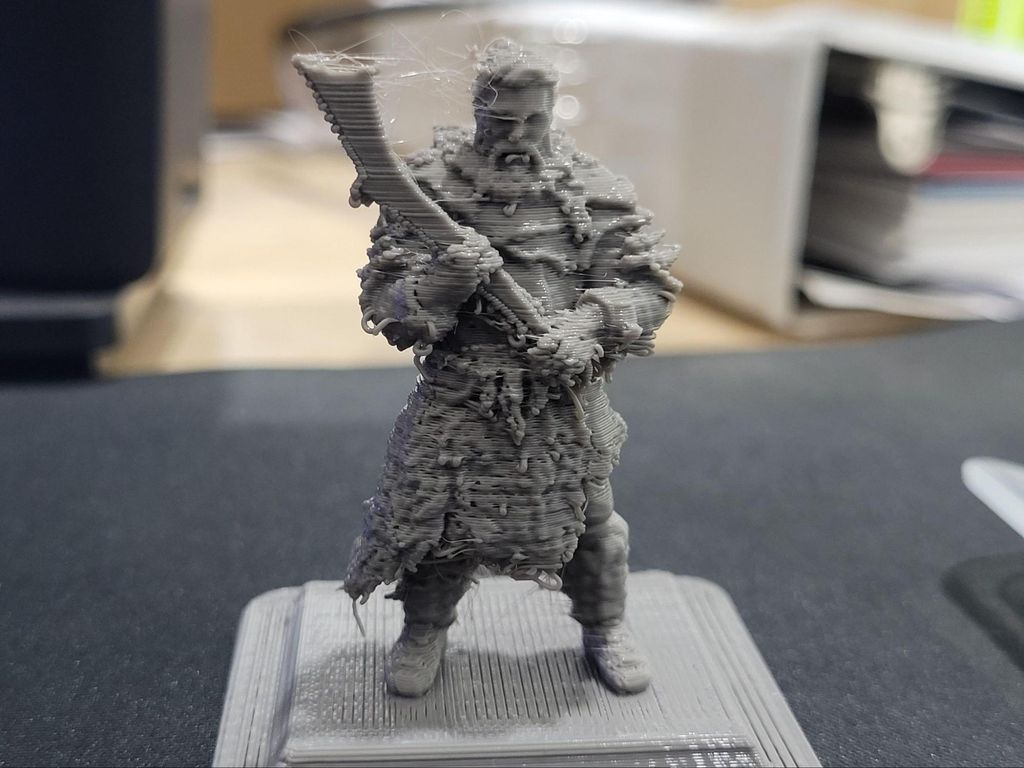

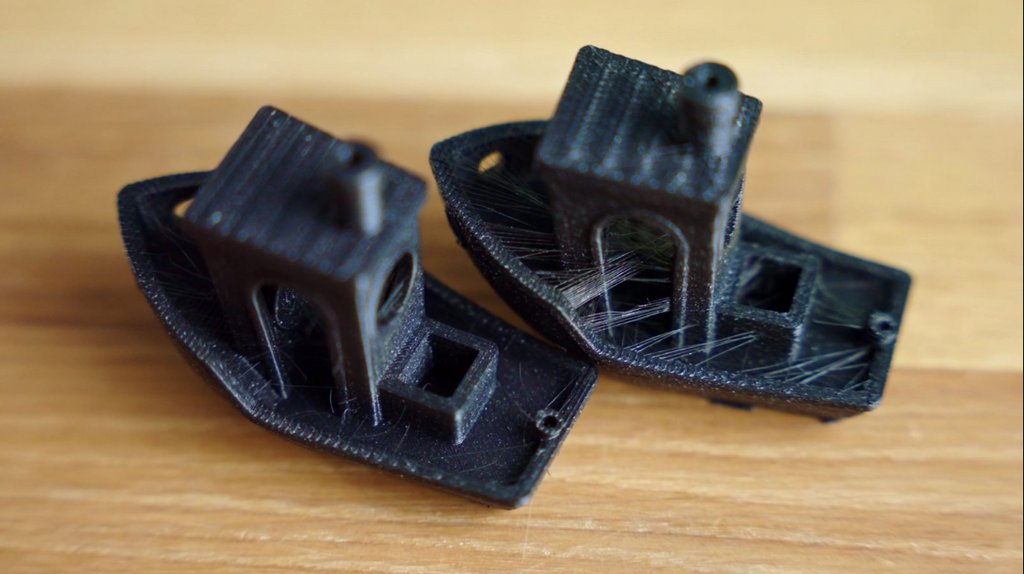

Wet filament issues typically manifest as excessive stringing or fine threads connecting model components. When the filament is wet, it flows through the nozzle differently. The plastic may ooze more than intended due to the steam's unpredictable flow. Consequently, filament strands that are too long and too thin end up connecting parts of the print that shouldn't be. If the stringing continues after you've tried changing the retraction settings, dampness could be to blame. Despite having adequate printing settings in the past, this issue often appears.
Weak Prints: Brittleness and Poor Layer Adhesion
Wet filament printing could result in brittle and weaker finished components. Layers may not adhere well if there is moisture between them. Under stress, this weak link can cause pieces to snap easily. When bent or twisted, even pieces that appear adequate can fail at the layer lines. Elamination, unexpected breaking, or peeling away of components are all symptoms of poor layer adhesion. Particularly with nylon, PETG, and TPU filaments, printing with wet filaments might weaken the print's mechanical strength.
How the Filament Itself Can Show Moisture Issues
Even before printing, it is usually possible to detect if the filament has absorbed moisture. Feeling a wet filament in your hand could be strange. Depending on the situation, it may feel brittle, more flexible, or softer than usual. The filament may break instead of bending easily if it has absorbed water. When wet, certain see-through filaments reveal microscopic bubbles within the strand. Water that becomes trapped inside the filament causes these little bubbles. You should also be wary of filaments that appear dull or have a sticky texture.
Why Different Filaments Behave Differently?
The rate at which different filaments absorb water varies. Among the most delicate materials, nylon also has a high absorption rate for water. Similar to Nylon, PETG, and TPU, soak up water, albeit at a slower rate. Even in very humid conditions, PLA can eventually absorb water. After prolonged exposure to air, even polymers like ABS might begin to exhibit dampness symptoms. Locating issues sooner is possible if you are aware of how your particular filament responds to dampness.
How to Solve Wet Filament Problems?

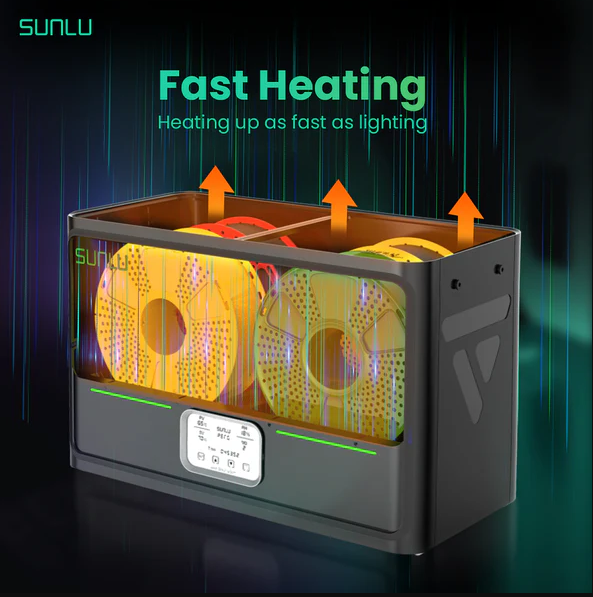

In most cases, a few easy procedures will fix wet filament problems. To get the best results, make sure the filament is completely dry before printing. Depending on the filament's safe temperature range, you can use a food dehydrator, a low-temperature oven, or a specialised filament dryer. To keep filament from getting wet again, store it in an airtight container with some new desiccant. When spools are not in use, be sure to seal them, particularly in damp areas. For nylon, PETG, and TPU, which are materials that are sensitive to moisture, it is best to print straight from a dry box if at all possible. Printing at a little slower speed can assist minimise surface imperfections, but it won't solve moisture problems by itself. Instead of constantly altering the slicer settings, you should always dry the filament first. When filament dries, extrusion smoothes out, surfaces get better, and pieces get their strength and layer adhesion back.
Best 3D Design Software for 3D Printing
After fixing issues like wet filament, having the right 3D design software is just as important for achieving clean, reliable prints. SelfCAD provides an all-in-one environment where you can design, modify, and prepare models for printing without switching between multiple programs. Its intuitive drag-and-drop tools make modeling simple for beginners, while advanced features like freehand drawing and sketching, powerful sculpting brushes, and various modification and deformation tools help make it easier to create 3D models with ease. Because it is cloud-based and there is a downloadable version too, your projects are saved online and can be accessed or shared easily from anywhere.
SelfCAD also includes interactive tutorials that guide you step-by-step through the modeling process, making it easier to understand how designs translate into physical prints. To see how the platform works in action, you can watch the official SelfCAD demo video below:
Spotting Wet Filament Early Saves Time
You can avoid wasting filament and time by noticing these indicators early on. Make sure you listen for any strange noises before you begin printing. Keep a careful eye on the model's surface quality in the initial stages. Keep an eye out for irregular extrusion, stringing, and abrasive textures. Moisture could be the culprit if you observe these issues with filament that typically prints smoothly. Wet filament can masquerade as other problems, such as calibration or temperature, on occasion. To avoid protracted failed prints, dry the filament or replace it early.
Frequently Asked Questions
1. What happens if I use wet filament in 3D printing?
When you use wet filament, the moisture in the material is heated to steam. As the filament exits the nozzle, the steam prevents extrusion and causes bubbles to form. Consequently, surface imperfections, excessive stringing, and poor layer bonding are common in printed materials. The printed product is often not as strong or durable as anticipated, even when it appears to be of sufficient quality.
2. How do I know if my filament is too wet for printing?
When printing with wet filament, you should be able to tell right away. From the nozzle, you might pick up crackling, popping, or hissing noises. While extruding, you may also see bubbles or steam emerge. Issues with layer adhesion or excessive stringing, as well as fuzzy surfaces, are common in finished prints. Wetness is probably the blame if these problems suddenly appear in filament that printed fine before.
3. Can I dry my filament at home without special equipment?
The answer is yes, you may use household items to dry filament. As long as the temperature stays within the material's safe range, a food dehydrator or low-temperature oven can efficiently remove moisture. To keep the filament from becoming pliable or bent, it needs constant attention. Although specialised filament dryers provide more precise control, cautious home drying methods can nevertheless produce satisfactory results.
4. How can I prevent the filament from getting wet again?
To avoid moisture issues, proper storage is essential. Place the filament in an airtight container or place it in a sealed bag with new desiccant packs inside. Keeping filaments out of damp environments helps keep their quality over time. Another way to lessen the chances of moisture absorption when printing with materials that are sensitive to it is to print straight from a dry storage box.
5. Which filaments are most vulnerable to moisture problems?
It takes a lot longer for some filaments to absorb moisture than others. Because of its great sensitivity, nylon gets wet quite easily. Not drying TPU, PETG, or polycarbonate might cause print imperfections because they absorb water. Even though PLA has a slower absorption rate, it can still become problematic when stored incorrectly or left in humid environments for extended periods of time.
