How to Design Medical Prototypes in 2026
Medicine stopped waiting on manufacturers a while ago – now it dictates terms to them. Surgeons want tools built around a specific patient's anatomy, regulators expect documented compliance before the first physical sample even exists, and the gap between idea and prototype has shrunk from months to days. The number of people involved has grown too: designers and clinicians now share the table with regulatory specialists, materials engineers, and simulation analysts – all of whom need to speak the same language. Medical device prototyping has become its own discipline, with its own rules, dead ends, and toolkits. What follows is a look at what's changed in how prototypes get built, which technologies are actually driving the field, and where teams keep making expensive mistakes.
What's Happening in the Market Right Now
New Tech, Shifting Roles
Not long ago, prototyping a surgical instrument took months – hand sketches, a machinist, weeks of back-and-forth with the clinical team. Now the cycle runs in days, sometimes hours for well-organized teams. That speed didn't come from faster printers alone. It came from rethinking the entire chain: how patient data gets collected, processed, and turned into geometry.
Large IT vendors have quietly repositioned themselves inside that chain. Companies focused on IT healthcare solutions have expanded well past EHR management into AI-driven clinical platforms. The practical result: a patient scan can automatically convert into print-ready 3D geometry, with EHR data feeding directly into the personalization layer. Hospitals in the UK and Singapore have been piloting exactly this kind of pipeline, and it cuts the manual handoff between clinical and engineering teams significantly.
Key shifts defining the market today:

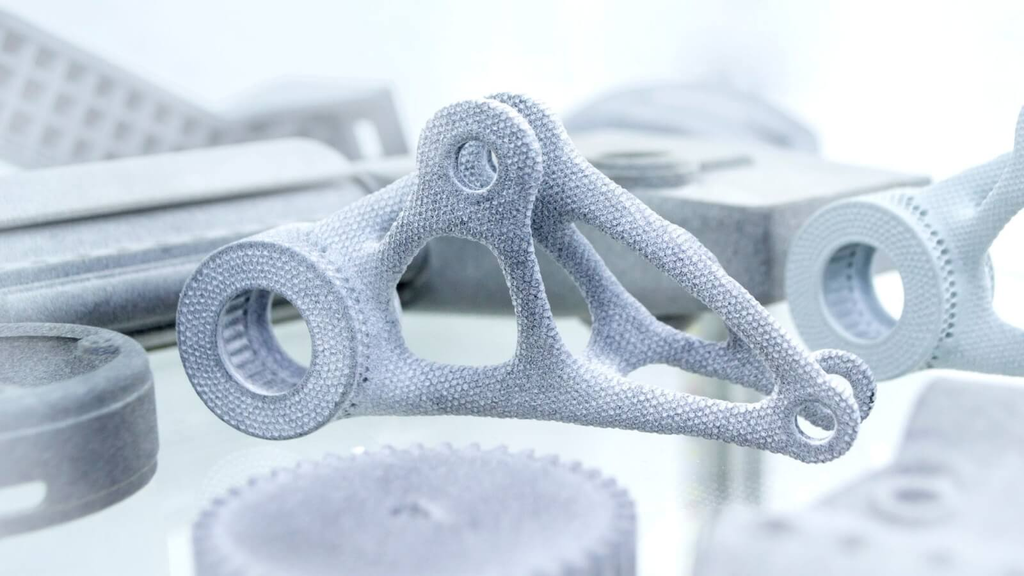

- Generative design and topology optimization – rather than a designer sketching shapes from intuition, software generates structural variants based on defined load conditions and constraints. Autodesk and nTopology pushed these approaches hard into medical applications, and pricing dropped noticeably through 2025–2026. At this point the real-world use cases are well past proof of concept.

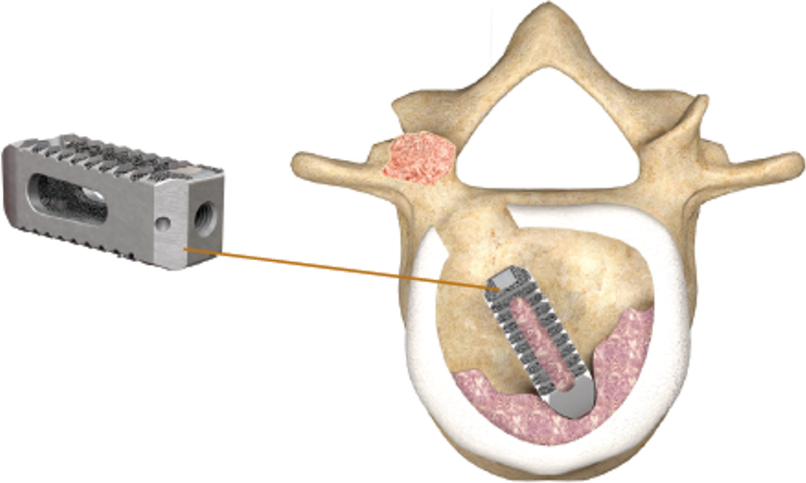

Stryker's Tritanium spinal cages are probably the most cited example. The internal lattice geometry came out of load simulation – the goal was a porous titanium structure that behaves closer to cancellous bone than a machined surface ever could. It worked: the cage promotes bone ingrowth while staying light enough for the surgeon to actually handle.

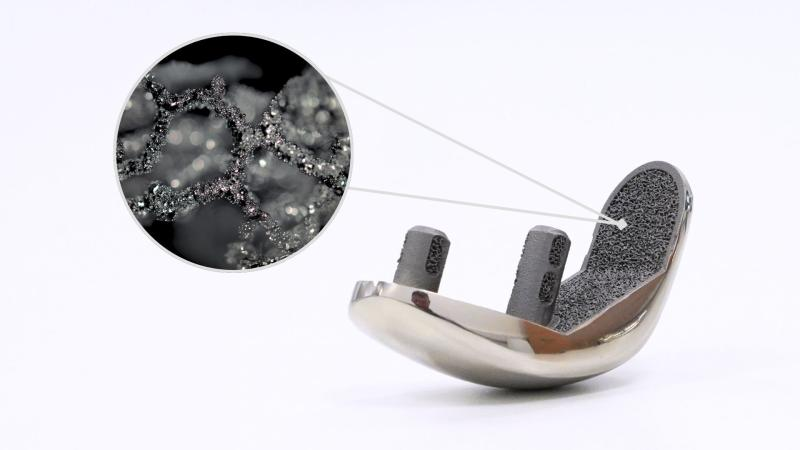

DePuy Synthes (a division of Johnson & Johnson) did something similar with acetabular cups for hip replacement. Their bone-facing surface uses a trabecular-like structure that had to balance porosity for osseointegration against the demands of a load-bearing joint – two targets that earlier hand-designed versions consistently failed to hit at the same time. The software-generated geometry threaded that needle.
nTopology's collaboration with GE Additive on cranial plates shows a different side of the same capability. Their field-driven tools let engineers define variable-density lattices across a single part – stiffer near the fixation screw perimeter, more compliant toward the center to handle impact transfer. You can't draft that kind of spatially graded structure by hand in any practical sense. And LimaCorporate used FEA-driven topology optimization on patient-matched tibial trays to strip out material wherever stress was consistently low – the resulting shapes look almost arbitrary on a drawing board, but from a load-path perspective they're entirely rational.

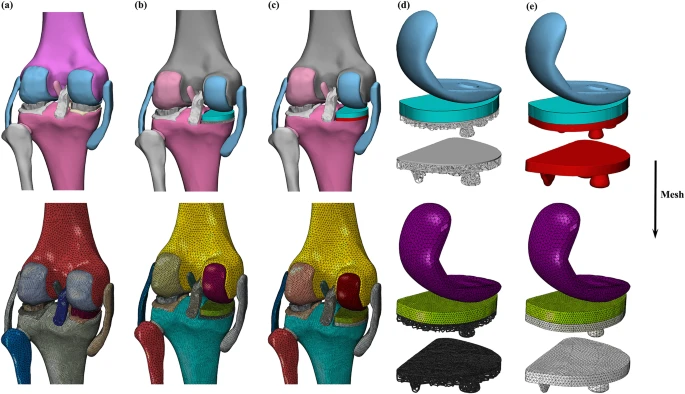

Finite element (FE) models: (a) Native knee model; (b) Porous UKA knee model; (c) Conventional UKA knee model; (d) Porous UKA prosthesis components; (e) Conventional UKA prosthesis components

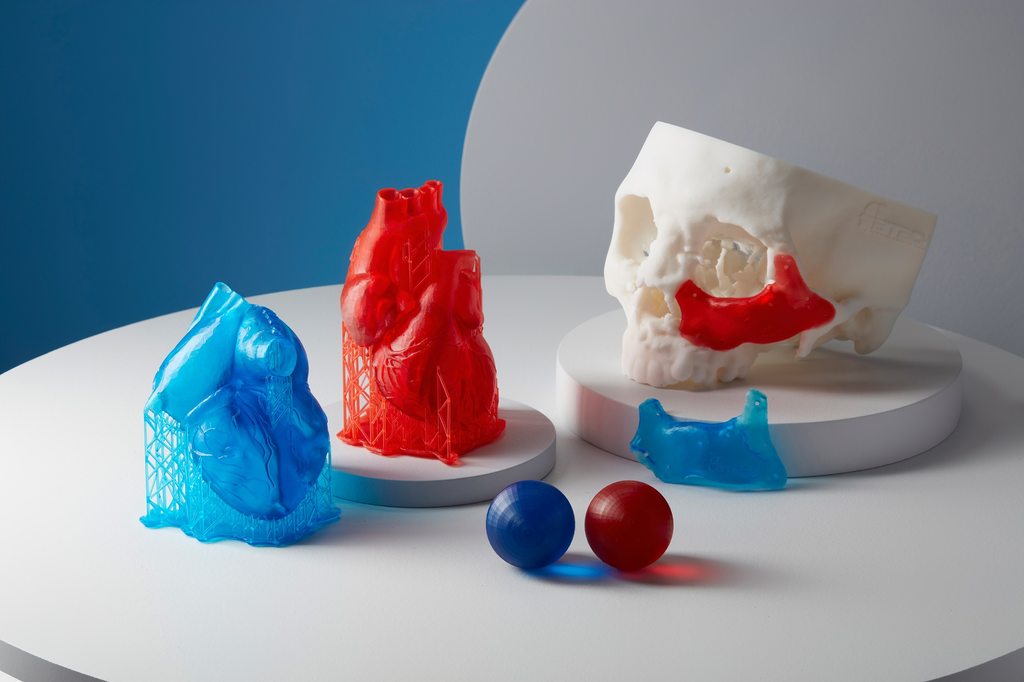

- Multi-material printing – the Stratasys J5 MediJet can print anatomical models where the aorta flexes and calcified sections stay rigid, in a single run. Stanford Medical Center has used exactly this for complex aortic dissection cases: the soft portions respond like tissue under a surgeon's hands, while the hard plaques push back the way they would in an actual procedure. That changes how pre-surgical planning actually works.

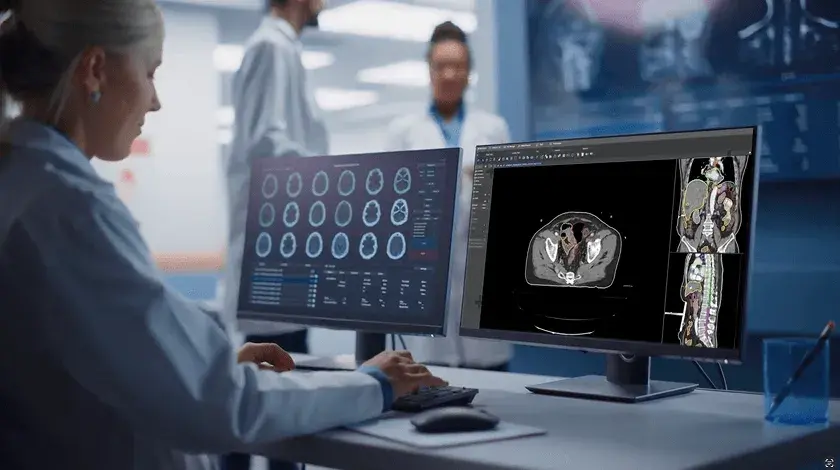

- AI-assisted DICOM meshing – turning CT or MRI scans into print-ready meshes used to take most of a workday in Mimics or 3D Slicer. Now semi-automated pipelines handle the bulk of it. Materialise's Mimics Flow and Synopsys Simpleware ScanIP both added AI segmentation that auto-identifies bone boundaries and soft tissue margins, cutting manual correction from several hours to under one on routine cases. For high-volume labs like the 3D printing operation at Hospital for Special Surgery in New York, segmentation time was the main bottleneck – these tools have genuinely moved that.
- Digital twins – a live computational copy of a prototype that lets teams run simulations before a single physical part gets made. The Dassault Systèmes Living Heart Project is the standard reference here: a computational cardiac model that device companies license to test implants under simulated hemodynamic loading. Medtronic has used it for structural heart devices, running virtual bench tests early enough in development to actually affect design decisions rather than just validate them after the fact.
What Leading Companies Are Actually Showing
At MEDICA 2025 in Düsseldorf, hip endoprostheses with porous lattice structures optimized for bone ingrowth were on display – printed on metal SLM machines with parameters dialed in per patient.
All of these examples clearly demonstrate how modern IT healthcare solutions are becoming deeply embedded in product design, validation, and clinical readiness workflows.
Medtronic runs FEA verification on robotic surgical instrument prototypes at the CAD stage, before anything gets manufactured. Osso VR took a different angle: instruments go through a full VR surgical simulation cycle first, and only then move to physical production. The approach cuts material iterations and saves real money on titanium and CoCr blanks.
Regulatory Ground: The Part Nobody Wants to Think About First
A medical prototype is a documented object, not just a nice-looking part. After a string of implant scandals – the PIP case, multiple metal-on-metal hip failures in the US – regulatory frameworks tightened considerably, and ignoring that at the prototyping stage is an expensive oversight.
The standards a team will realistically encounter:
- ISO 13485 – the quality management system for medical devices; without understanding this standard, serious work in the field simply can't happen
- FDA 21 CFR Part 820 – US manufacturing process requirements, relevant for any team targeting the American market
- EU MDR 2017/745 – fully in force since 2021, raised the bar on clinical evidence and post-market surveillance requirements significantly
- ISO 10993 – biocompatibility of materials for anything that contacts the patient's body
What gets documented at prototype stage: materials and their relevant properties, manufacturing method and print parameters, every change between iterations, test and simulation results. Pushing documentation "to later" is one of the most common ways prototype projects balloon in cost – often requiring complete redesigns to meet requirements that were known from day one. For class IIb and III devices, FEA/CFD documentation isn't optional; it's part of the regulatory submission.
The Actual Process: Step by Step
Step 1 – Define Requirements Before Touching the Software
Good prototypes don't start in CAD – they start in a meeting room. The team needs clinical requirements nailed down (what does the device actually do?), engineering constraints established (materials, load cases, sterilization conditions), and a clear picture of regulatory expectations (device class, target market). Skip this and prototyping becomes an expensive guessing game.
Step 2 – Getting Geometry
Where the 3D data comes from depends entirely on the device type:
- DICOM data (CT/MRI) – for patient-specific implants and surgical guides; processed through 3D Slicer, Materialise Mimics, or Simpleware ScanIP, then exported as STL or STEP
- Manual CAD modeling – for new instruments not tied to specific anatomy
- Reverse engineering – 3D scanning an existing device to improve or replicate it
Step 3 – Modeling and Print Preparation
Geometric accuracy is non-negotiable in medical prototyping – a 0.1 mm deviation matters for a surgical guide. So does print orientation, which affects material anisotropy and mechanical behavior. Support placement can make or break a complex organic form.
Browser-based tools like SelfCAD fit specific scenarios well: rapid concept validation, team collaboration without license headaches, and quick iteration without committing to full desktop CAD setups. That's not a compromise – it's the right tool for the job in certain workflows.
Common mistakes here: wall thickness outside printable ranges, ignoring post-processing tolerances, missing escape channels for unfused powder in SLS parts.
Step 4 – Choosing a Technology and Materials
- FDM – concept models, training aids (PLA, ABS, TPU)
- SLA/DLP – surgical guides, dental applications (biocompatible resins, Class IIa)
- SLS – functional components in small batches (PA12, PA11)
- Metal SLM – orthopedic implants, surgical instruments (Ti-6Al-4V, CoCr, 316L SS)
- Polyjet/MJF – anatomical models with varied mechanical properties in one part
For early form checks, FDM or SLA is usually enough. Once functional testing starts, materials need confirmed biocompatibility data.
Step 5 – Testing and Verification
The physical sample is where the test cycle begins, not ends. Mechanical properties (load, compression, fatigue), sterilization resistance (autoclave, gamma, EtO), ergonomics, and geometric accuracy via GD&T analysis against 3D scanning – all of these need to run before anything moves toward production.
Materials in 2026: What's New
The materials question has grown past "print it and check the shape." Functional performance demands are higher, and suppliers have responded.
Biocompatible Polymers and PEEK
Dentistry has leaned on certified photopolymer resins for years – Formlabs' Dental series and NextDent from 3D Systems set the benchmark for intraoral applications. Orthopedics is catching up: PEEK and carbon-fiber-reinforced CFR-PEEK increasingly appear in high-temperature FFF printers like the Apium P220. Biocompatible, radiolucent, and autoclave-safe, the material works well for spinal cage and bone plate prototypes.
Bioprinting: Reality vs. the Hype Cycle

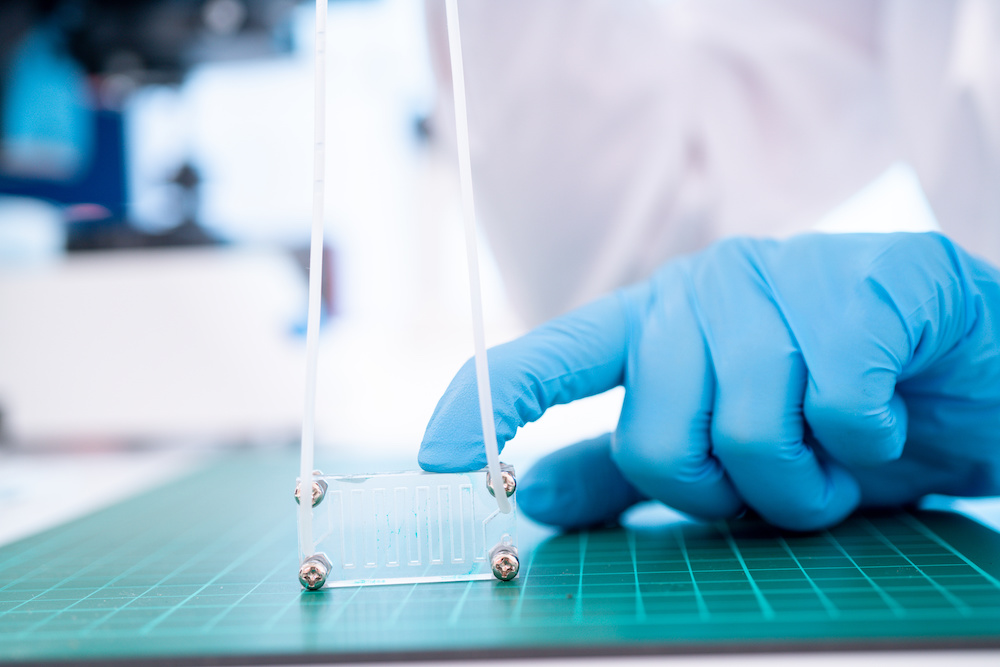

BICO (formerly Cellink) and Organovo have moved bioprinting out of pure academia – tissue-like structures are now being printed primarily for pharmaceutical testing, not implantation, as a way to reduce animal studies at the pre-clinical stage. In 2025, the FDA approved first protocols using printed organoids as an alternative to animal models. It's still expensive and technically demanding, but the direction is set.
Antimicrobial Materials
Filaments and resins with built-in antimicrobial properties – silver or zinc additives – are in R&D or EU clinical testing at several companies, targeting surgical instruments in contact with open wounds. The first approvals are expected somewhere in the 2026–2027 window.
Software: The Real Stack
CAD and Simulation
At enterprise scale: Siemens NX and CATIA. Mid-size teams typically run SolidWorks or Fusion 360. For simulation, Ansys Mechanical and Fluent are the industry standard; COMSOL Multiphysics is common in research labs; SimScale removes the need for in-house HPC infrastructure; nTopology combines topology optimization with print preparation in one environment.
Slicers
- Materialise Magics – industrial standard for file prep and repair
- PreForm (Formlabs) – for their SLA lineup
- Chitubox / Lychee Slicer – for DLP machines
- PrusaSlicer / Cura – for FDM
Where Teams Keep Going Wrong
- Saving documentation for later – ignoring the regulatory path from day one turns into months of rework and budget overruns that didn't have to happen
- Wrong material for the test – a PLA prototype won't give you mechanical conclusions about a steel final product; even early iterations should use materials in the right ballpark
- No clinical input early on – an engineer's mental model of how a surgeon holds a tool is almost always wrong. Getting clinicians involved early isn't courtesy, it's efficiency.
- Overbuilding the first prototype – a concept sample validates one or two assumptions, nothing more; complexity at this stage costs time and obscures what's actually being tested
- Skipping post-processing – surface roughness off the printer directly affects function for anything contacting tissue, and that's not a cosmetic issue
Where the Field Is Heading

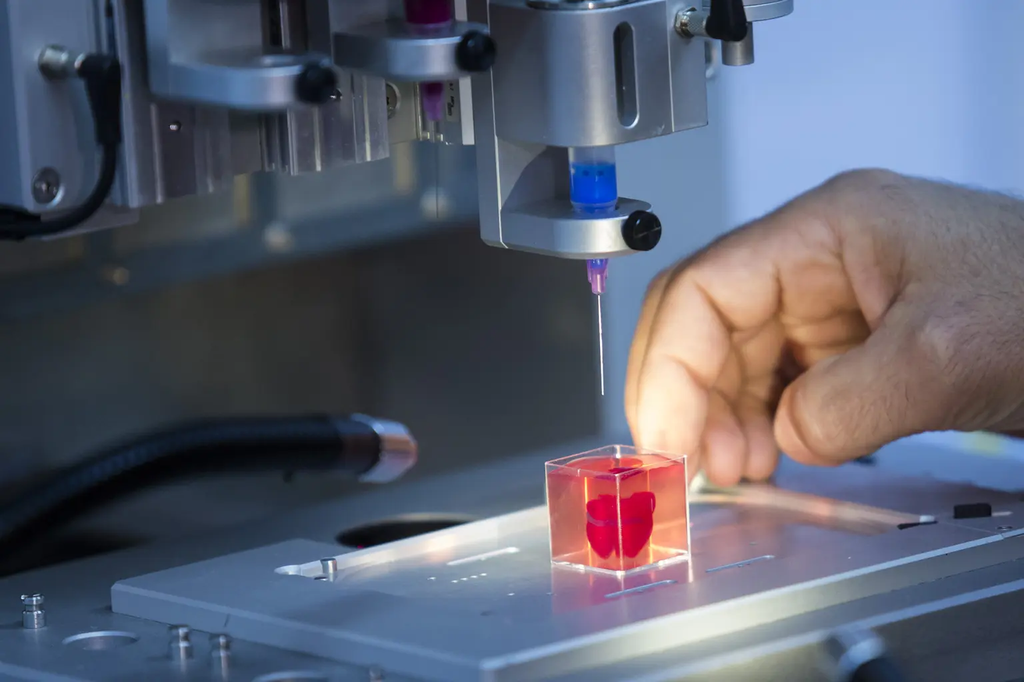

At Tel Aviv University, Tal Dvir presents a 3D-bioprinted heart engineered from human biological matter.

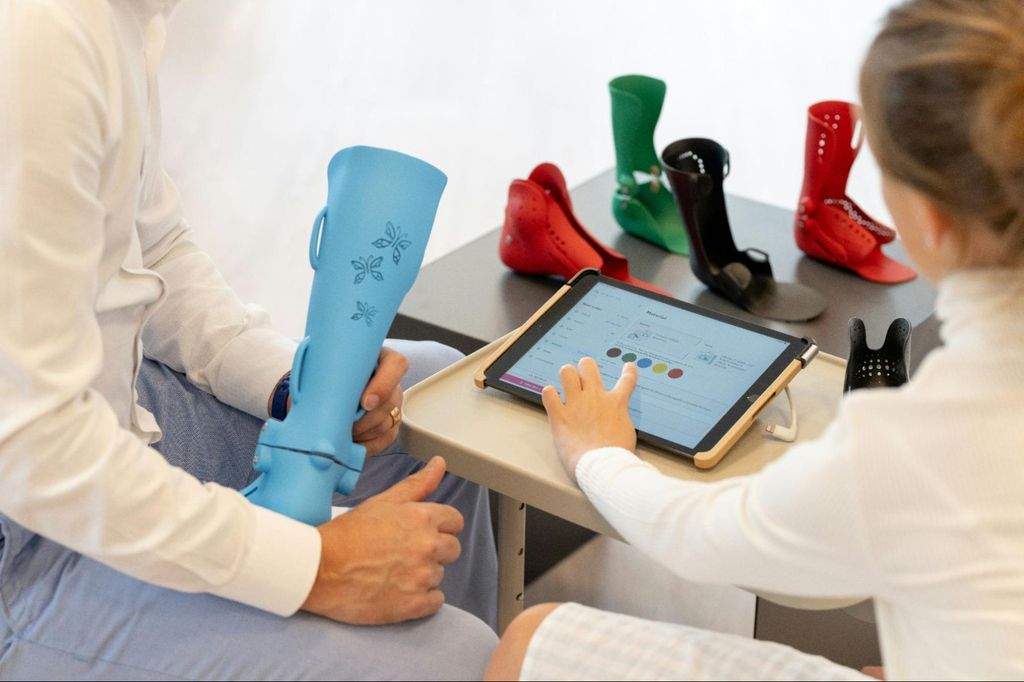

Personalization is now a baseline expectation, not a differentiator. Orthopedic implants, dental restorations, surgical guides – more of these get designed for a specific patient rather than a size range. 3D technology is the only realistic path to making that scalable.
Generative design keeps producing geometries that no human designer would have sketched from scratch – and in medicine, where the body doesn't forgive irrational structures, that matters. Cloud collaboration has restructured how teams organize: a designer in Warsaw, a clinical consultant in London, and a regulatory specialist in Boston can work off the same digital prototype in real time, with no version-control chaos.
What's actually shifted most over the past few years isn't any single technology – it's the access. Tools that only large corporations could afford five years ago are now within reach of small teams and individual specialists. The complexity of the work hasn't gone away, but the barrier to getting started with the right tools has dropped considerably. For a field built on precision and personalization, that's the change with the longest tail.
