How to Create an Office Chair Using SelfCAD AI
In the past, an office chair may be made by hand by creating, situating, and perfecting the overall shape of the seat, backrest, armrests, base, wheels, and other parts. You can describe your ideal office chair with SelfCAD AI Modeling, and AI will assist in creating the first geometry.
A variety of 3D designs, including functional goods and organic forms, are supported by SelfCAD's AI modeling procedures. The desired shape, dimensions, and details can then be achieved by reviewing, modifying, and refining the created office chair using SelfCAD's standard modeling tools.
Note: SelfCAD is constantly improving its AI features, which are experimental. It is recommended that users test the functionality and offer comments.
Design an Office Chair Using SelfCAD AI Features: Step by Step Guide
In this guide, we will create a realistic and useful office chair using SelfCAD AI Modeling. The procedure will show a key idea of AI-assisted modeling: the more completely you define the chair's dimensions, shape, construction, materials, components, and functional qualities, the more precisely the AI can produce a model that satisfies your design specifications.

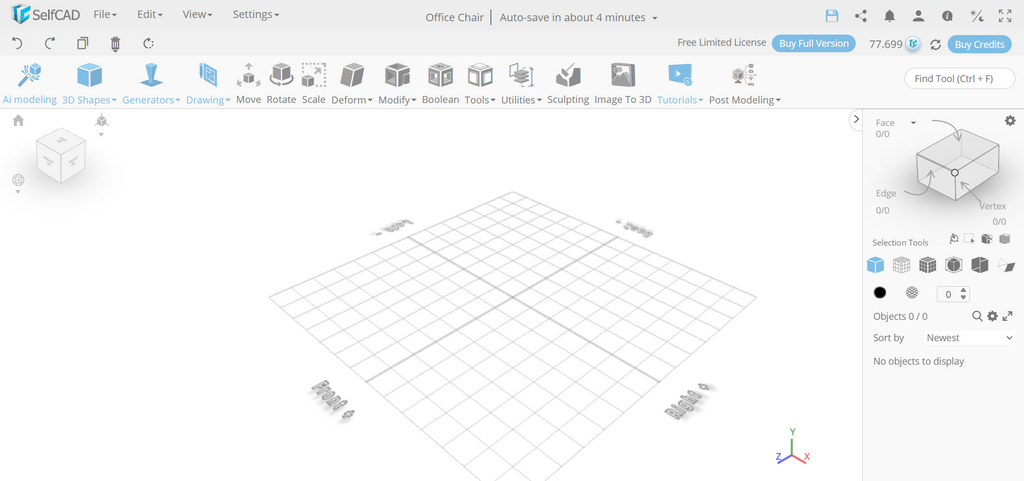

Step 1: Launch the 3D modeling workspace in SelfCAD.

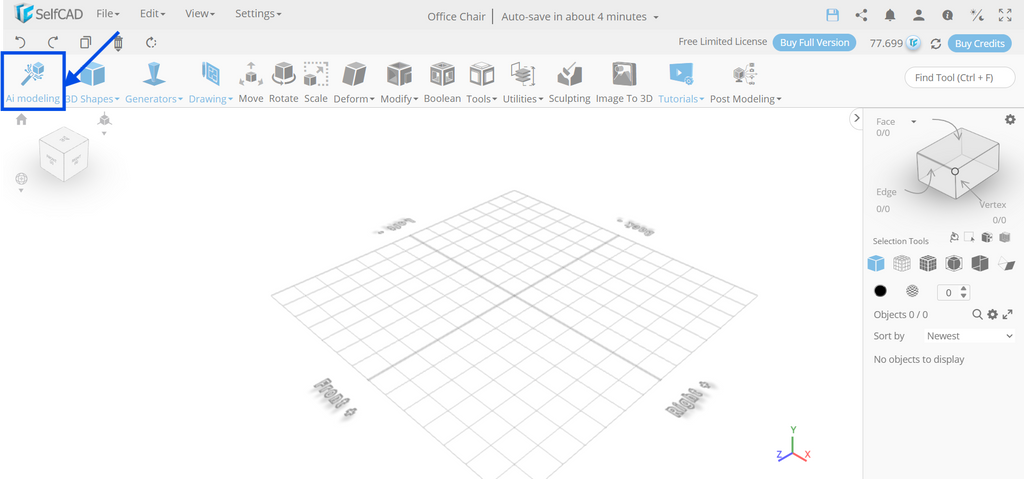

Step 2: Navigate to the toolbar's AI Modeling feature.
The AI Modeling interface allows you to define your design needs via a text prompt. Depending on the kind of thing you like to design, SelfCAD offers a variety of AI generating techniques.
The objective is to design an office chair that is both practical and realistic, with distinct parts, dimensions, and details. The AI may create a model that closely resembles your ideal office chair design by giving a clear and comprehensive description of the seat, backrest, armrests, base, wheels, and other elements.
Step 3: The AI Assistant window will appear when you select AI Modeling Feature.
The model creation mode will be available to you. Write a model description, and then create the model.
There are three possibilities for the Model Creation Mode selector in the AI Assistant:
- Functional Assembly
- Organic Model
- Profile
Every mode is designed for a particular type of model.

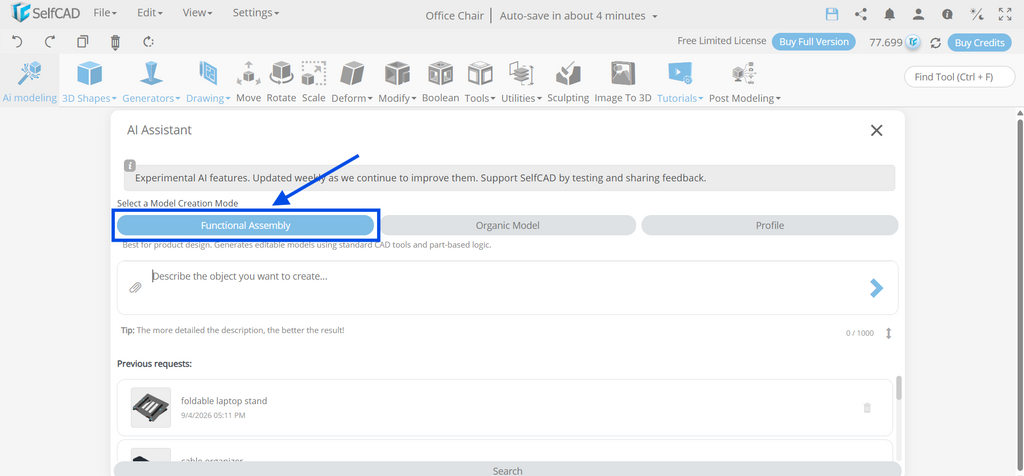

Choose Functional Assembly for the creation of Designing an Office Chair.
Mode since it is designed for items composed of several different parts. The seat, backrest, armrests, support column, base, and wheels that make up an office chair must all fit together properly.
An adjustable, part-based office chair type can be made with Functional Assembly. The chair's overall proportions, seat height, backrest shape, armrest design, wheel arrangement, and other parameters can be easily adjusted without impacting the relationships between the various pieces because each component can be built and modified independently.

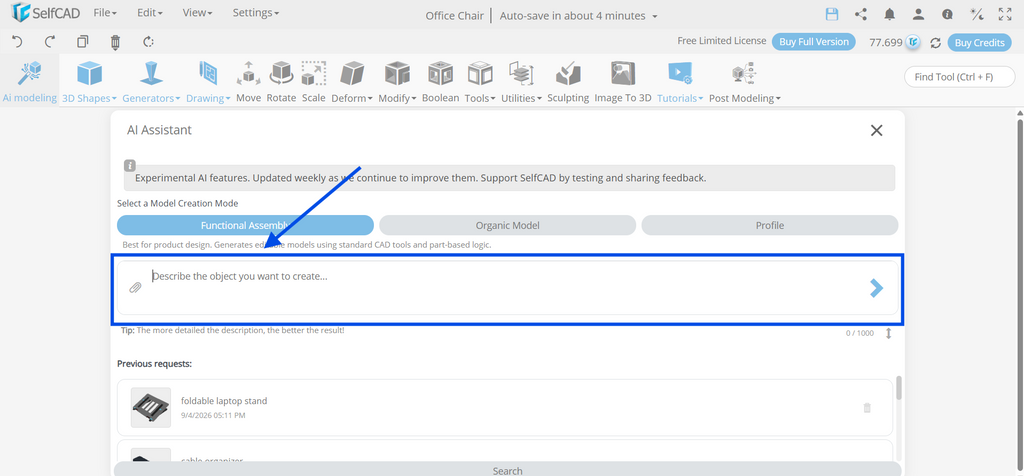

Step 4: Describe the Object you want to create
Give a thorough description of the office chair's dimensions, construction, materials, parts, style, and functional aspects. Give specifics on the seat, backrest, armrests, base, wheels, support column, adjustable height mechanism, and general design. The AI will produce a realistic office chair that closely resembles your intended design if you provide a clear and comprehensive description.
Step 5: Write a Prompt for Designing a Custom Sofaset
Describe the office chair you would like SelfCAD to create. As it gives the AI details on the chair's style, dimensions, shape, components, seating arrangement, seat and backrest design, armrests, base, wheels, and overall appearance, a detailed prompt is very beneficial. The AI can produce the desired model more precisely if you provide a more detailed description.

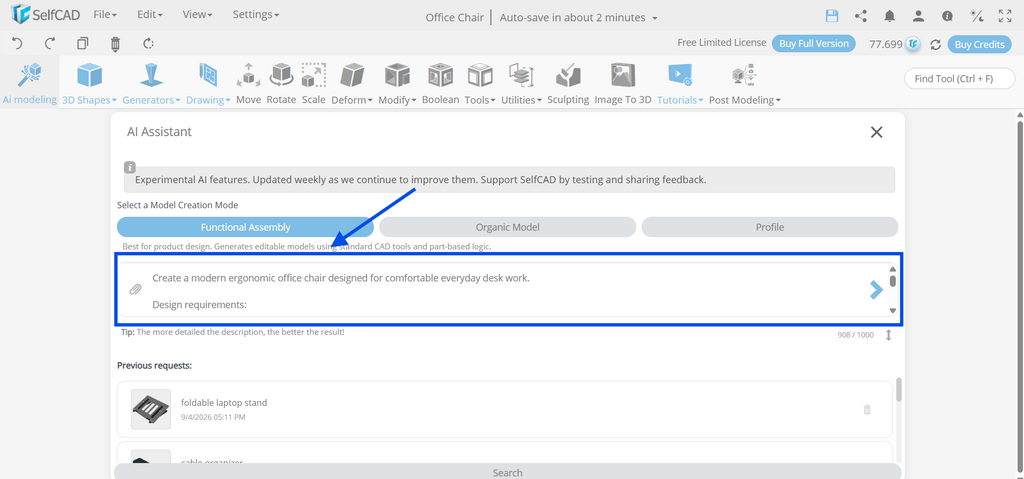

You can use the following prompt, as an example:
Create a modern ergonomic office chair designed for comfortable everyday desk work.
Design requirements:
- Create an ergonomic high-back seat with a gently curved backrest that supports the user's lower and upper back.
- Include a wide, cushioned seat with a slightly curved front edge for comfort.
- Add adjustable-looking armrests with comfortable padded tops.
- Include an adjustable headrest integrated with the upper backrest.
- Add a five-star wheelbase with five caster wheels for stability and smooth movement.
- Include a central height-adjustable gas-lift column beneath the seat.
- Add a reclining backrest mechanism with a visible hinge/pivot point.
- Give the backrest a subtle breathable mesh pattern or ventilation openings.
- Use smooth, rounded edges throughout with no sharp corners.
- Maintain realistic proportions for an adult-sized office chair.
- Make the chair visually balanced and structurally stable.
Prepare a Reference Image:
By including a reference image, you can enhance the AI's understanding of your office chair design. Together with your written description, the image offers more visual details that aid the AI in comprehending the design, style, and general appearance of the chair.
But your prompt shouldn't be replaced with the reference image. Note: It is not required to include a reference image. With just a thorough written prompt, the AI Assistant can create the office chair model.

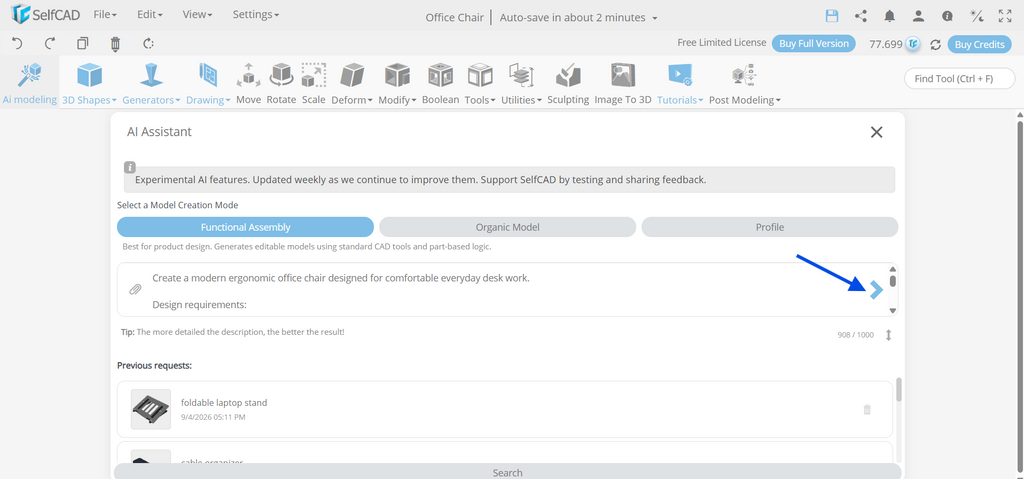

After entering a prompt, click on the below arrow to generate the element

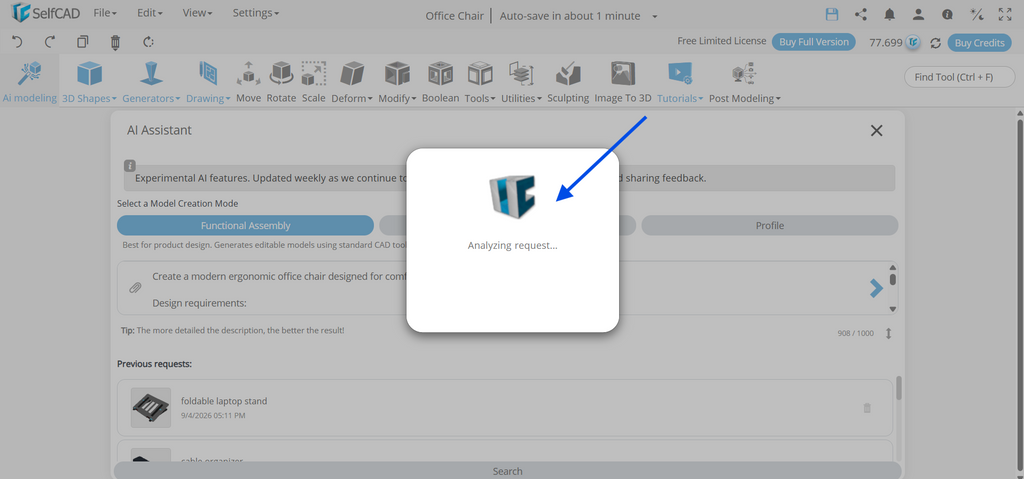

Step 6: Analyzing Request
The AI will evaluate your request and take into account the overall design, proportions, shape, construction, and components of the office chair. It will produce the required 3D components based on this data in order to produce a preliminary model that satisfies your requirements.
Step 7: Prepare Parts
The AI will analyze your request, identify the required components, and generate each part separately to create the complete 3D model of the office chair.

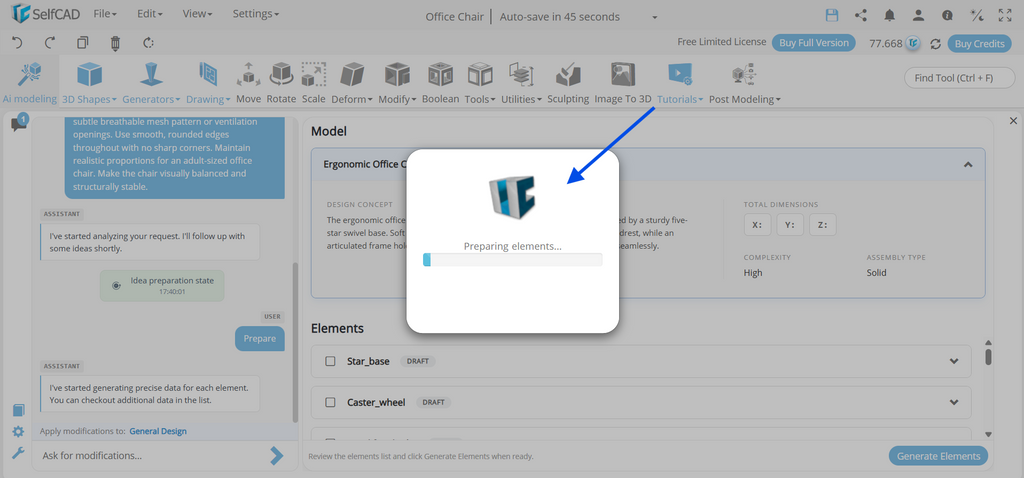

After clicking Prepare Parts, the AI will process the analyzed request and prepare the elements.
This is where AI-assisted modeling and conventional manual modeling diverge. You explain your intended office chair design first, and the AI determines and generates the proper geometry instead of making simple forms and putting them together by hand. This method can streamline the initial modeling process and give you a foundation that you can further modify using the normal modeling tools in SelfCAD.

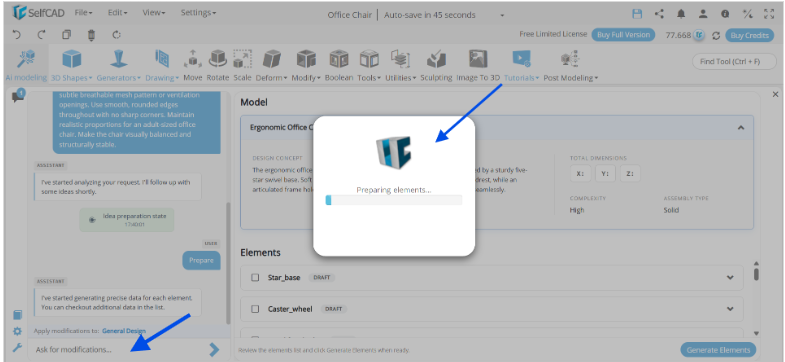

Ask for Modification:
Once your elements are ready, you can take your design a step further by using AI to make any modifications you need. Whether you want to resize, reshape, reposition, or customize a particular element, simply describe the changes you have in mind. The AI will refine the selected element based on your instructions, making it easy to achieve the exact look and functionality you want, as illustrated in the image above.
Step 8: Generate Elements

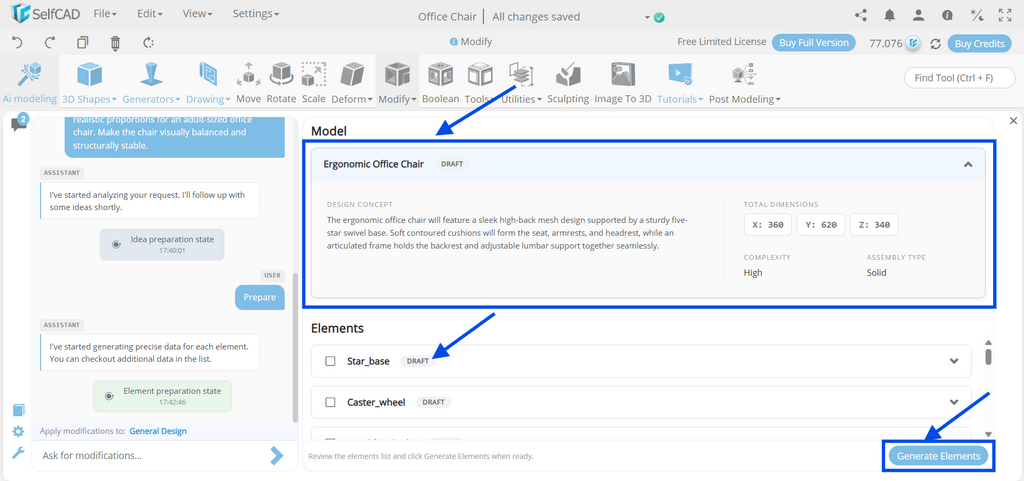

Before generating the geometry, the system presents a design overview that includes the design concept, overall dimensions, complexity, and assembly type. The model is then divided into individual components, such as the star base, caster wheel, etc and other design-specific features. Users can select the elements they want to generate.
Once you have reviewed the proposed elements, use the checkboxes next to each element to pick the components you wish to add. After finalizing your choice, pick Generate Elements from the Assistant panel.

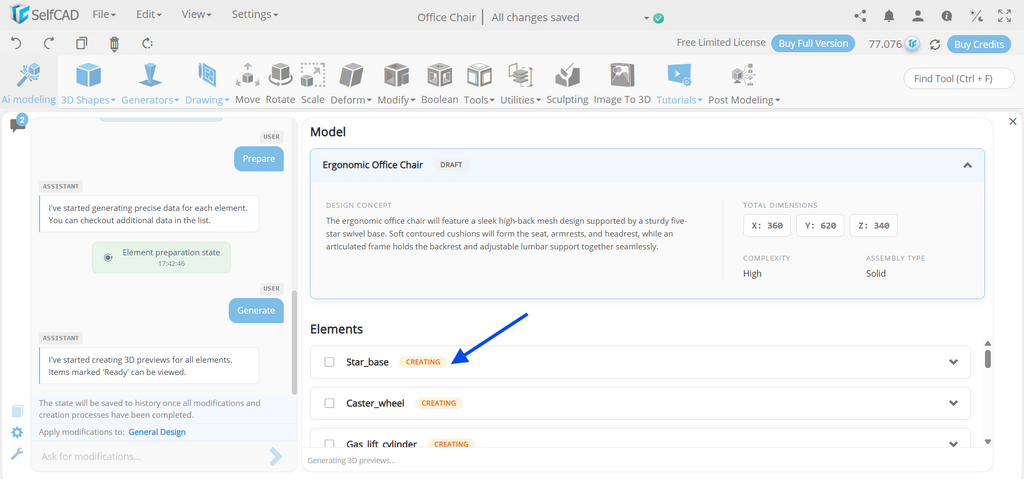

The interface is modified during this process to display each element's generation status.
As each element finishes processing, its status changes from Creating to Ready.
Step 9: Assemble Model

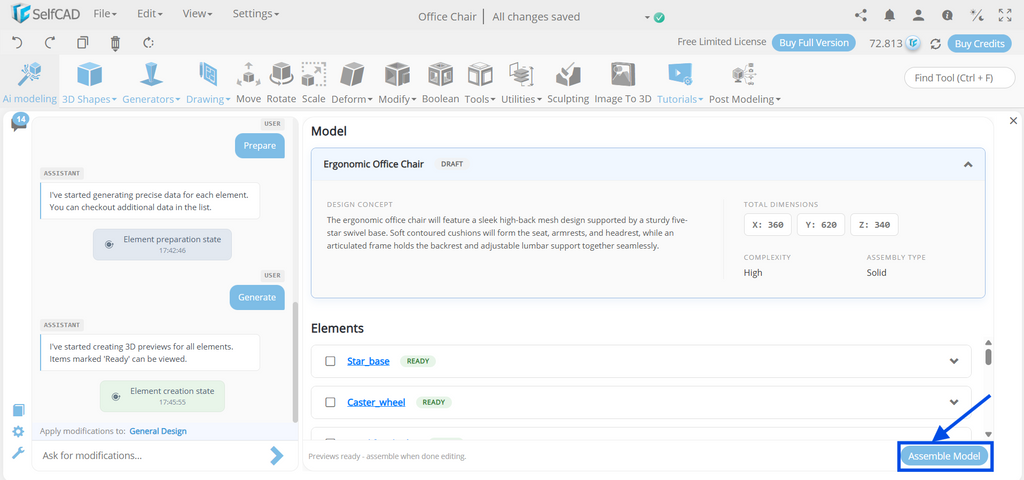

Once all of the elements are ready, click Assemble Model.

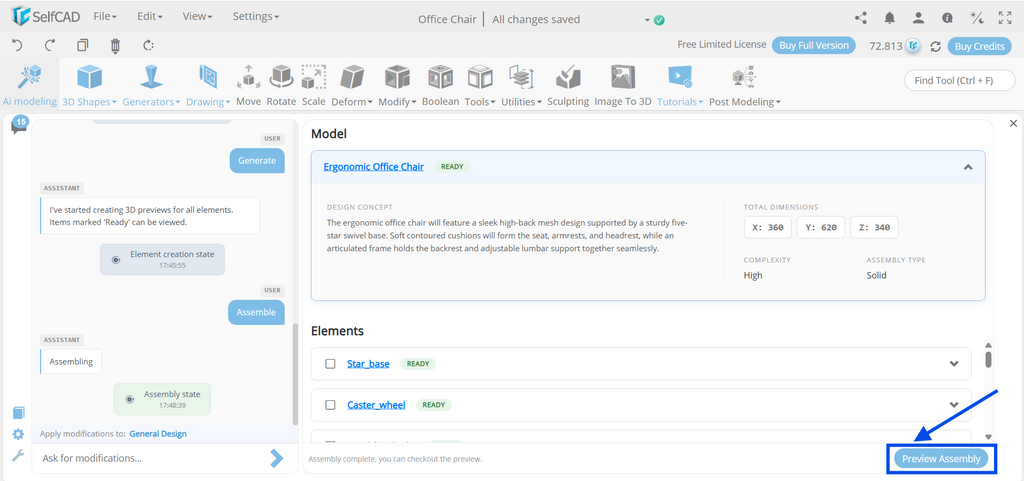

The model is ready once you click Assemble Model. After that, select Preview Assembly to see your model.

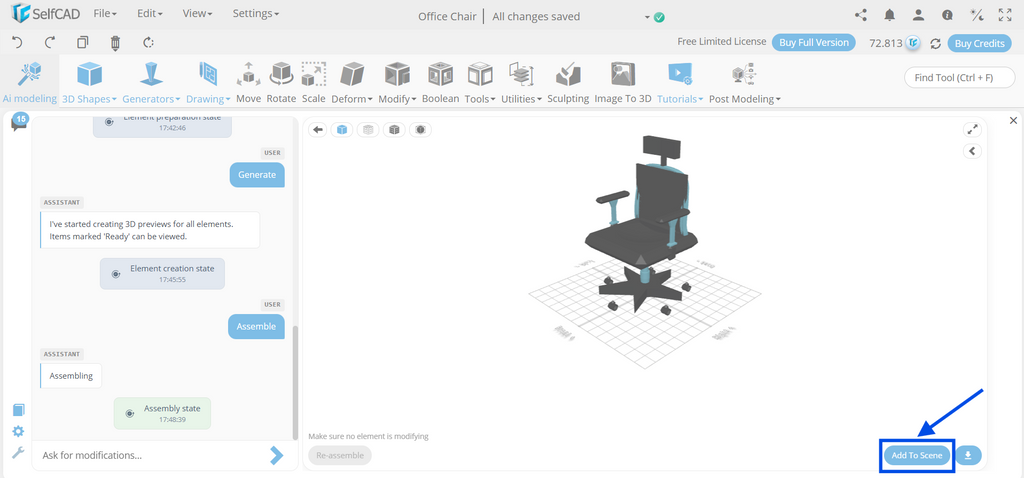

Step 10: Add to Scene the model
When you're happy with the created office chair, you may insert it into the SelfCAD scene. After that, the AI-generated model is integrated into your ordinary SelfCAD workspace, where you may use the conventional modeling tools to continue tweaking and improving it.
This change is a crucial step in the process. SelfCAD's standard tools allow you more control over the final design, while AI modeling supplies the basic geometry. To get the desired effect, you can change the chair's dimensions, proportions, parts, and other elements.

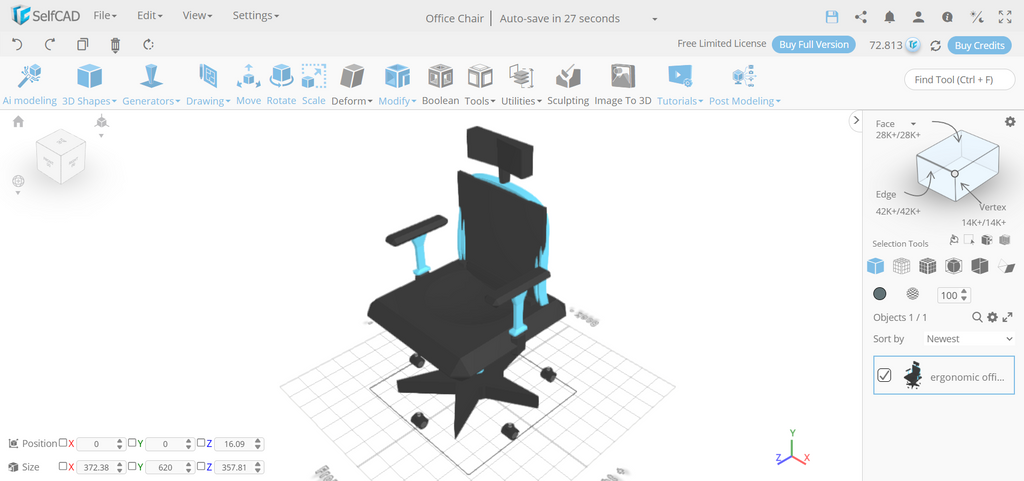

Final Model:
Understanding the AI Modeling Workflow:
An office chair concept can be easily and consistently turned into a digital model using AI-assisted 3D modeling. The steps in the workflow are as follows:
Describe → Reference → Generate → Inspect → Modify → Refine.
Start by describing the size, characteristics, shape, and parts of the chair. If necessary, include a reference image. Examine the base, wheels, armrests, seat, and backrest after generation. Make changes and improve the design with SelfCAD's modeling tools.
Conclusion
AI can make the initial phases of 3D furniture design simpler by using SelfCAD AI Modeling to create an office chair. Rather than starting from zero with the seat, backrest, armrests, base, wheels, and support structure, you may describe your ideal design, supply a reference photograph, and let AI create a preliminary model.
The ability to refine and iterate is the primary benefit. You can give additional detailed directions to improve the outcome if the chair's measurements, proportions, shape, comfort characteristics, or general style need to be adjusted.
After you're pleased, add the AI-generated chair to the SelfCAD scene and use regular 3D modeling tools to continue customizing it to create a final design that is both detailed and configurable
