How to 3D Design a Headphone Holder Using SelfCAD AI

In the past, you could manually construct a wall-mounted headphone holder by making hooks, mounting plates, placing them, mixing the shapes, and honing the edges. Instead, you can describe your idea and let AI assist in creating the basic geometry with SelfCAD AI Modeling.

The AI modeling procedures in SelfCAD can assist in producing useful 3D designs, such as a wall-mounted headphone holder. AI can create the basic model if you describe features like rounded edges, mounting holes, curved headphone support, and a strong mounting plate. SelfCAD's standard modeling tools can then be used to examine and improve the resulting design's dimensions, strength, fit, and look.

Steps of Designing the Wall Mounted Headphone Holder Using SelfCAD AI Modeling

In this guide, we will build a wall-mounted headphone holder with a solid mounting plate, curved support hook, and rounded edges. The procedure will also show a key AI modeling principle: the more precisely you define an object's shape, structure, and intended usage, the more valuable your prompt becomes.

Step 1: Launch the SelfCAD Editor

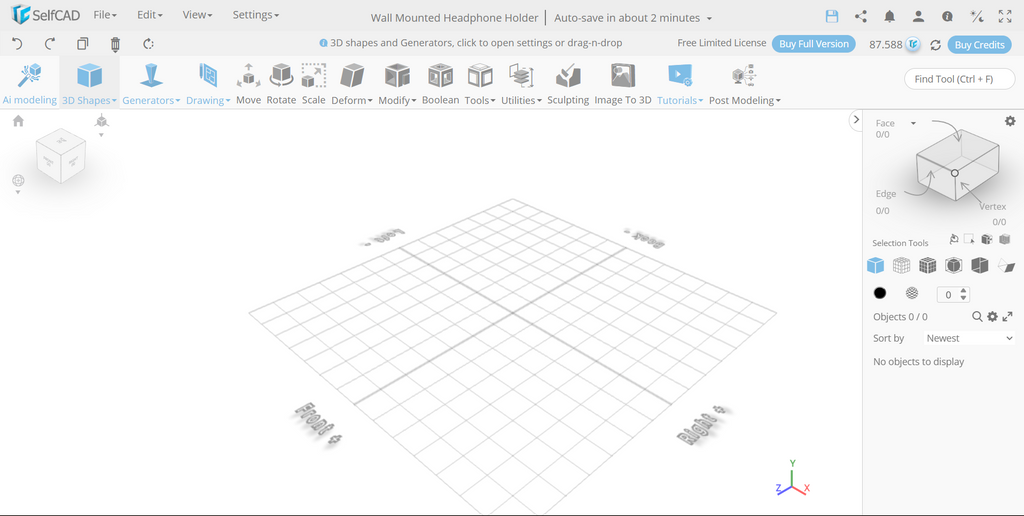

To begin, launch the SelfCAD Editor and start a new project:

The primary geometry of the wall-mounted headphone holder will be determined for this project using the AI Modeling capability before any further adjustments are made.

Step 2: Open AI Modeling

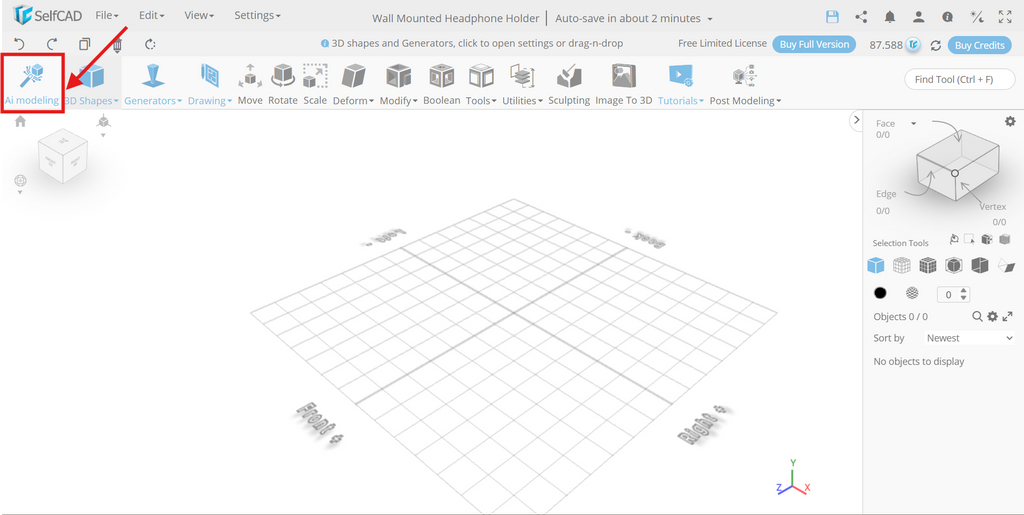

Go to the SelfCAD Editor and choose AI Modeling:

You can use a text prompt in the AI Modeling interface to express your design specifications. SelfCAD offers many AI generation methods based on the kind of thing you're making.

Instead of making an organic sculpture for a wall-mounted headphone holder, we want to create a useful item with a distinct structure. A strong mounting plate, a curved headphone support, and appropriate dimensions for safe wall mounting should all be included in the design.

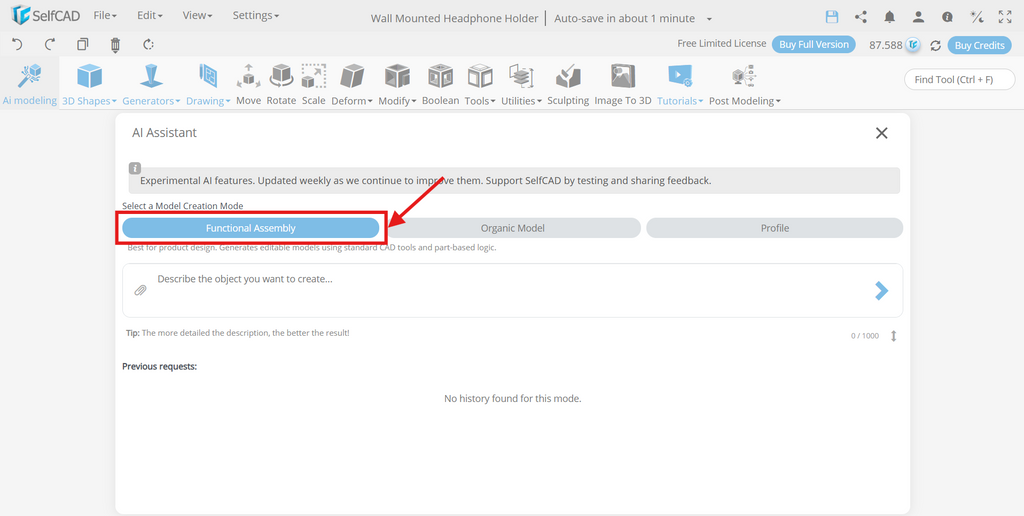

Step 3: Pick the Right Creation Mode

A wall-mounted headphone holder consists of three distinct components: a mounting plate, a curved support hook, and a connector between them. Designs where the item can be considered as a collection of functional components and relationships are meant to use functional assemblies. Since it pushes you to consider the object in terms of what each part accomplishes and how the parts work together to support and hold the headphones firmly, this method is also beneficial from an academic point of view.

Step 4: Prepare a Reference Image

Adding a reference image is completely optional. It is not required. If you have a reference image, you can provide it to help the AI assistant better understand your idea, style, or desired result.

However, the prompt is the most important part. The AI assistant should be able to understand and complete the task mainly from the written prompt, even without a reference image.

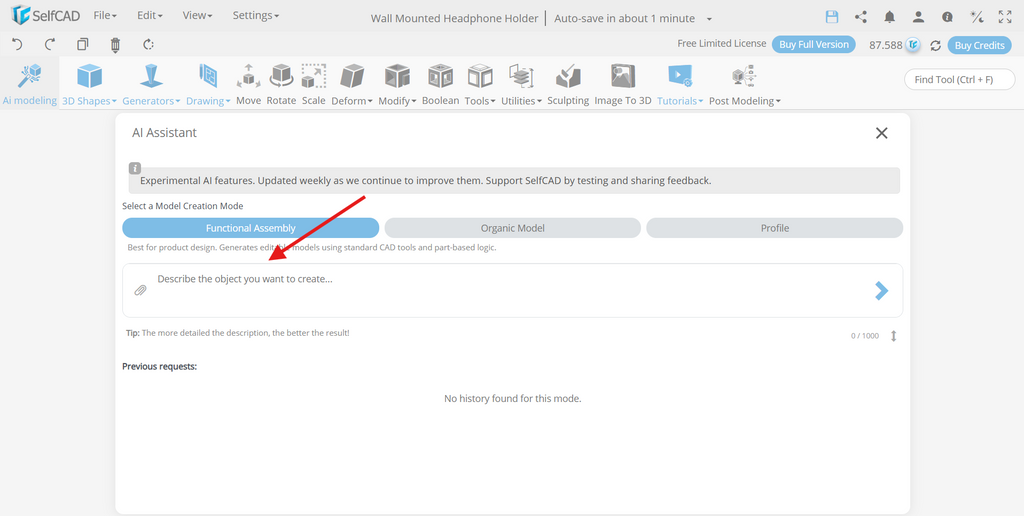

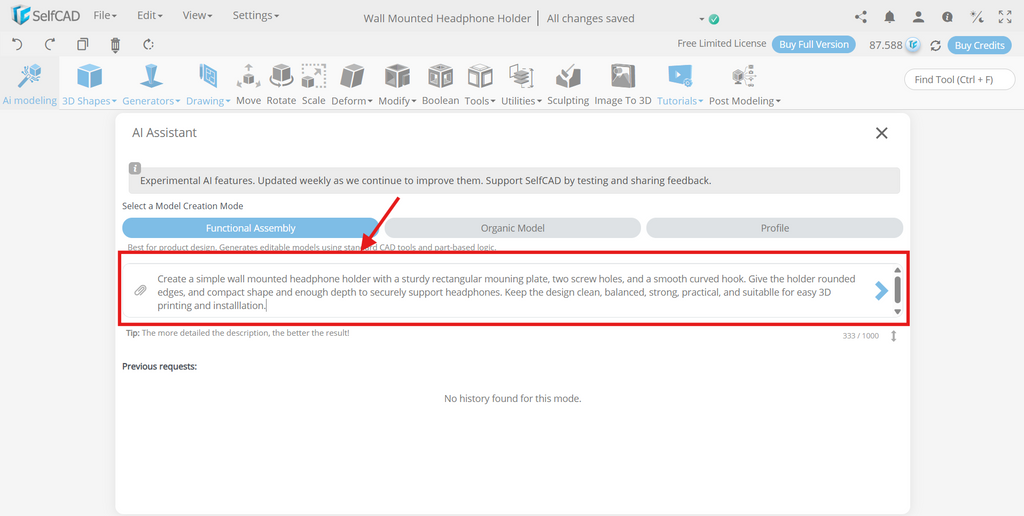

Step 5: Write the AI Modeling Prompt

Now describe the wall-mounted headphone holder that you wish to have made with SelfCAD. A thorough prompt is very valuable because it informs the AI about the object's function, dimensions, components, shape, mounting holes, connections, and orientation.

You can use the following prompt, as an example:

"Create a simple wall-mounted headphone holder with a sturdy rectangular mounting plate, two screw holes, and a smooth curved hook. Give the holder rounded edges, a compact shape, and enough depth to securely support headphones. Keep the design clean, balanced, strong, practical, and suitable for easy 3D printing and installation."

This type of structured description makes it easier for the AI to produce a useful wall-mounted headphone holder that satisfies your needs by explicitly communicating the design goal.

Step 6: Generate the Model

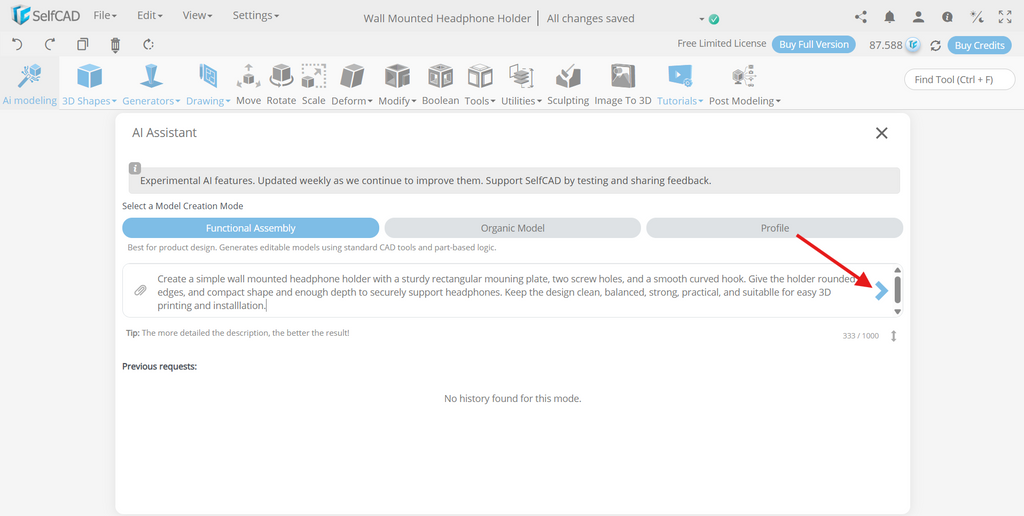

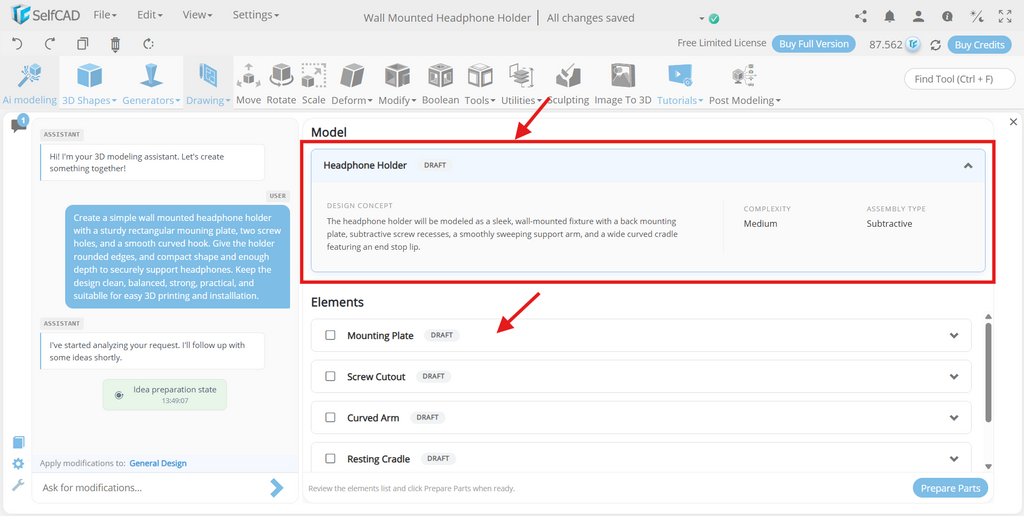

Once you've entered the prompt and attached the reference image(not a must), click Generate:

This is where AI-assisted modeling and conventional manual modeling diverge. AI creates the first geometry when you explain your intended design, saving you the trouble of manually designing and altering fundamental shapes.

The wall-mounted headphone holder's main mounting body, headphone support hook, attachment points, and other practical characteristics will all be included in the design concept and draft created by the AI assistant. You can review the produced model in the SelfCAD editor, make adjustments, and customize the design to suit your requirements.

Step 7: Prepare Parts

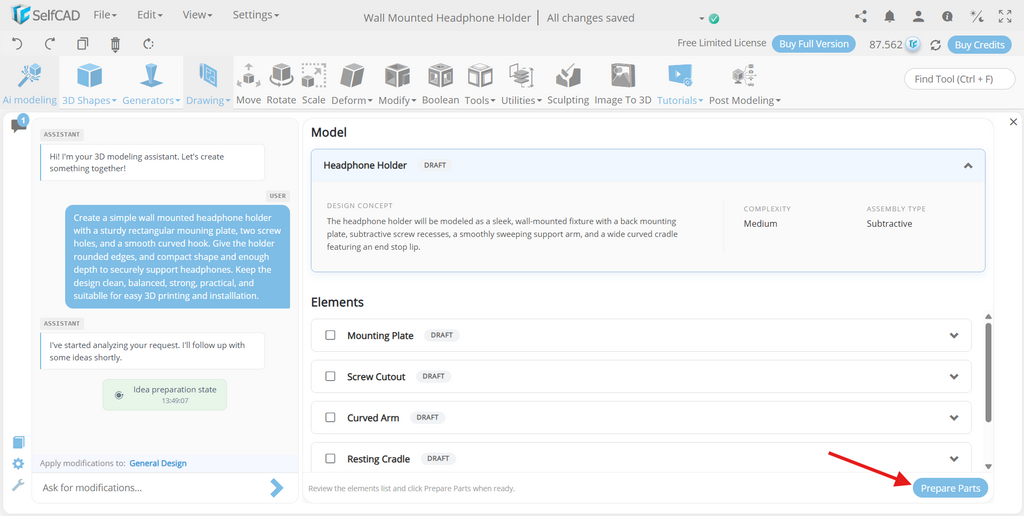

Go ahead and click prepare parts:

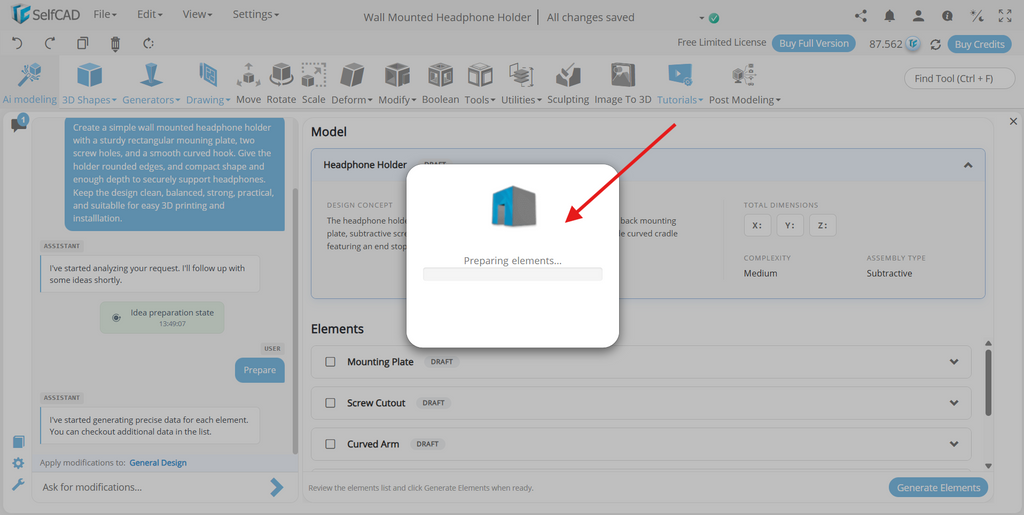

You can now see the tool is preparing elements:

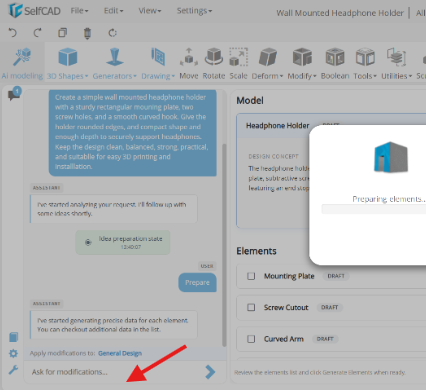

Ask for Modification:

Once all the elements are ready, you can further refine your design using AI. If you need to change the shape, size, position, or any other aspect of an element, simply provide the AI with your instructions. It will make the requested adjustments based on your requirements, allowing you to easily fine-tune the design and achieve the desired result, as shown in the image above.

Step 8: Generate Elements

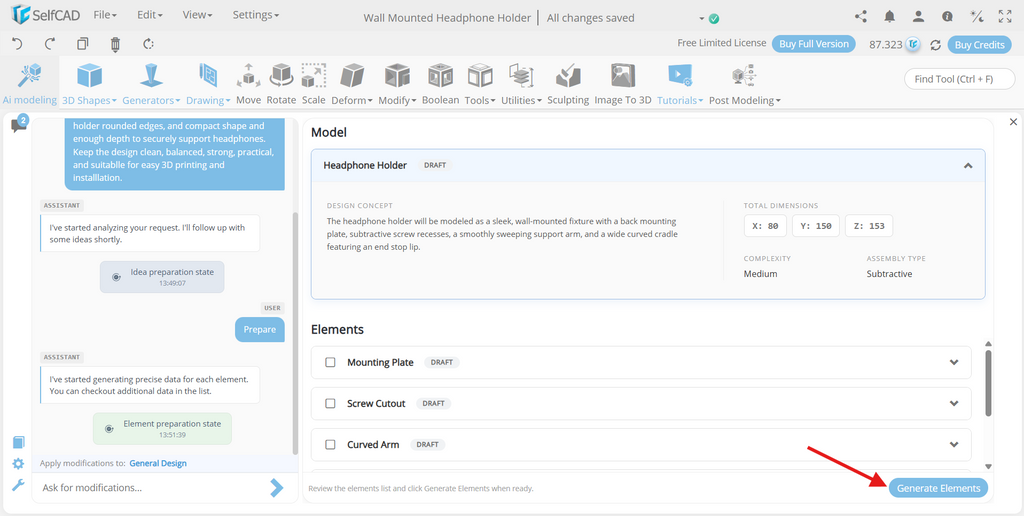

Click Generate Elements:

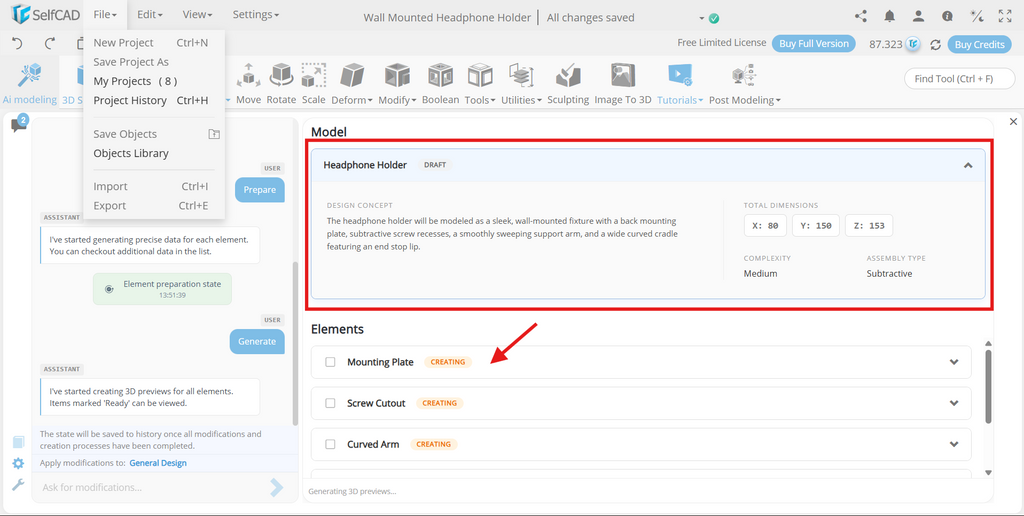

The tool will indicate that it is Creating the elements:

Step 9: Assemble Model

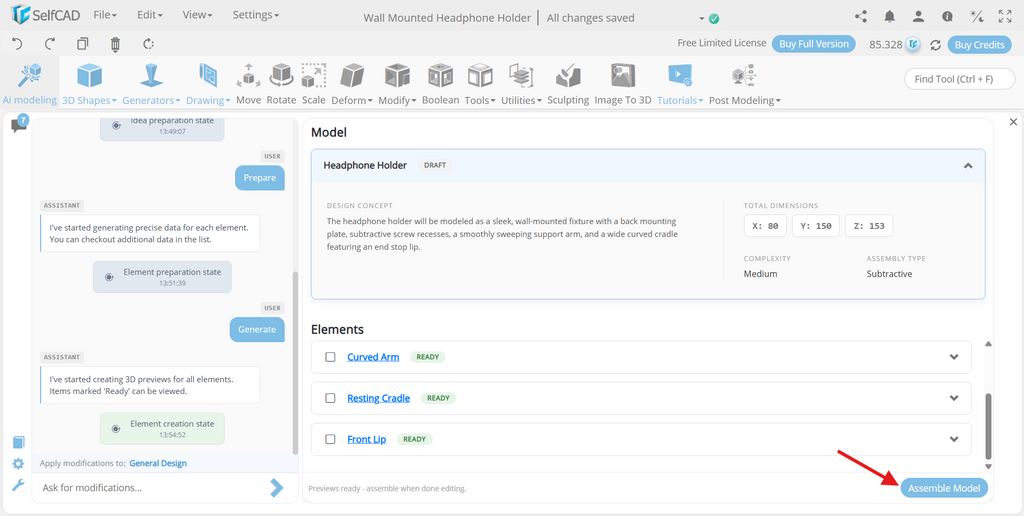

Once the elements are ready, click Assemble Model:

Step 10: Add the Wall Mounted Headphone Holder to the Scene

When you're happy with the results, place the model in the SelfCAD scene. At this point, you can continue customizing the AI-generated wall-mounted headphone holder using the conventional modeling tools in your regular SelfCAD workspace.

This change is crucial since the workflow doesn't have to finish with AI modeling. Alternatively, it can supply the initial geometry, and you have more control over the final design with SelfCAD's traditional tools. To properly position the holder for wall hanging, for instance, you can use the Rotate Tool to change its orientation.

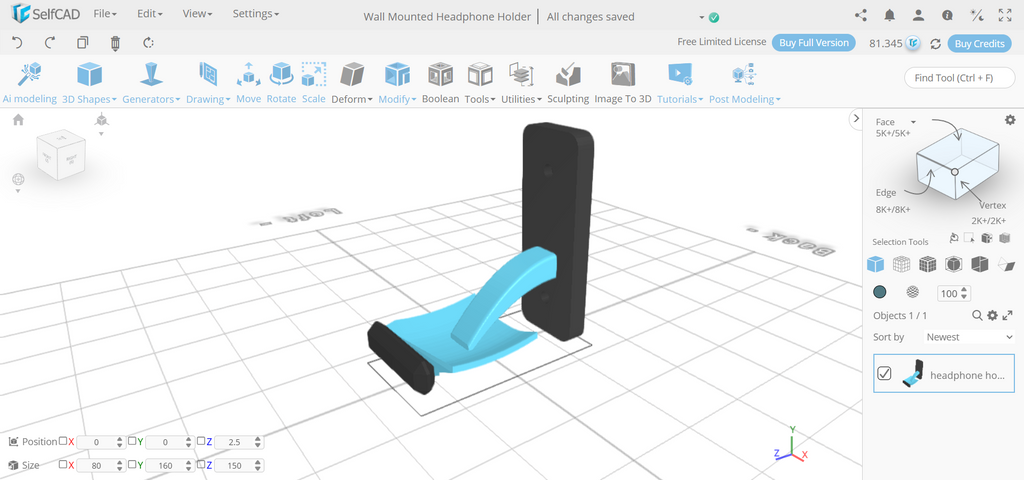

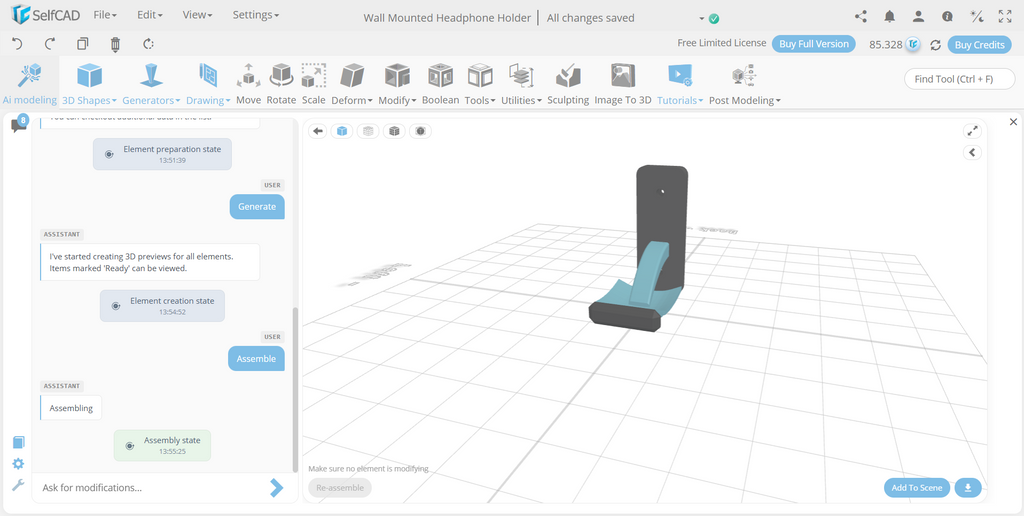

The model has been generated and is as  follows:

The model is now ready:

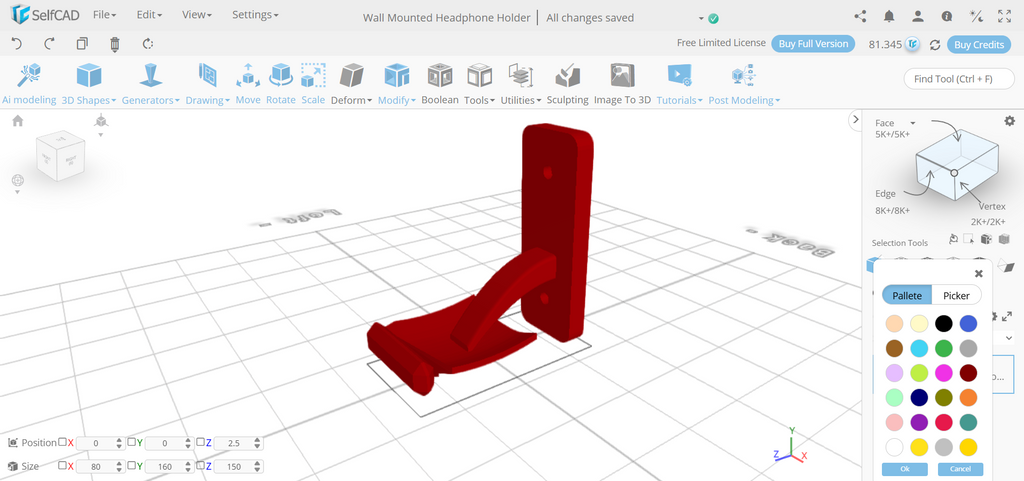

You can also change the colour and texture as per your requirement.

Understanding the AI Modeling Workflow

A simple and consistent method of AI-assisted 3D modeling is shown by the wall-mounted headphone holder:

Describe → Reference → Produce → Examine → Adjust → Enhance

Every step in this process is crucial to transforming an idea into a functional 3D model. You begin by outlining the object's function, form, size, parts, mounting technique, and other crucial design specifications. A precise and comprehensive prompt makes it easier for the AI to comprehend what you wish to produce.

If you have a reference image, you may then share it. The reference provides the AI with more visual details about the intended appearance, proportions, or general structure. It is optional, though, and a well-crafted prompt can be utilized alone.

SelfCAD AI produces the first 3D geometry during the Generate stage after processing your instructions. Instead of creating each component by hand from primitives, you start with an AI-generated design concept that serves as a basis for additional work.

It is crucial to thoroughly inspect the model after generation. Verify that the mounting plate, headphone support, curves, apertures, dimensions, and general orientation all meet your needs. Reviewing the geometry is a crucial step in the process because the initial generated result might not always be flawless.

The normal modeling tools in SelfCAD can be used to modify the model if necessary. You might tweak the support's thickness, improve the mounting features, rotate or reposition components, or alter the dimensions.

Finally, you refine the design by making minor changes that increase its beauty, functionality, robustness, and suitability for 3D printing or real-world application. This could involve fine-tuning the connections between various components, altering clearances, or smoothing edges.

Conclusion

Using SelfCAD AI Modeling to create a wall-mounted headphone holder is an effective example of how AI may streamline the initial phases of 3D design. Instead of building the mounting plate, curved support, hook, and connecting elements by hand, you can describe the object, supply a reference image if necessary, and let AI create a preliminary model.

The capacity for iteration is where the true power lies. You can give additional detailed directions and improve the design if the first result has too-sharp edges, a short headphone support, an excessively thin mounting plate, an improperly positioned hook, or a need to change the proportions.

When the AI-generated model is complete, you may import it into the SelfCAD environment and go on using traditional 3D modeling tools. A functional final result can be achieved by making the necessary adjustments to the size, shape, mounting features, edges, and other aspects.

SelfCAD AI Modeling thus becomes a component of an interactive 3D design workflow rather than just a model generator. It keeps the designer in charge of the finished product while assisting you in transforming your original concept and optional reference image into a useful, elegant wall-mounted headphone holder.
