How to Create a 3D Printable Phone Stand Using SelfCAD
A phone stand could be made by hand using the traditional method, which involves creating individual shapes, modifying their locations, assembling parts, and meticulously perfecting the finished construction. With SelfCAD AI Modeling, all you have to do is describe the phone stand you have in mind, and AI will help create its initial 3D form.
From basic desktop stands to more intricate and ergonomic designs, SelfCAD's AI modeling skills can assist in realizing effective product ideas. After the model is created, you may use SelfCAD's standard modeling tools to examine its shape, make changes, and refine the details.
Planning the Phone Stand
It is helpful to consider how the phone stand will work before opening the modeling workspace. The objective is to build a model that can physically sustain a smartphone, not just an appealing shape.
Three functional areas comprise a basic phone stand:
- Base: Offers stability and keeps the stand from toppling over.
- Back support: Provides comfortable viewing by holding the phone at an angle.
- Front lip: Prevents the phone from moving away from the surface of support.
SelfCAD AI Modeling
Describing the phone stand you wish to make is one of the simplest ways to start the design process. SelfCAD AI Modeling can assist in creating the initial geometry based on your instructions rather than building each component by hand.
The clarity of the design description has a significant impact on the quality of the generated model. Instead of just requesting "a phone stand," describe its dimensions, form, structure, and useful functions.
Steps of Designing the Phone Stand Using SelfCAD AI Modeling
In this guide, we'll build a sleek phone stand with smooth, rounded corners while also learning an important aspect of AI modeling: the more specific and detailed your description of an object's shape, structure, and design, the more realistically AI can bring your vision to life.

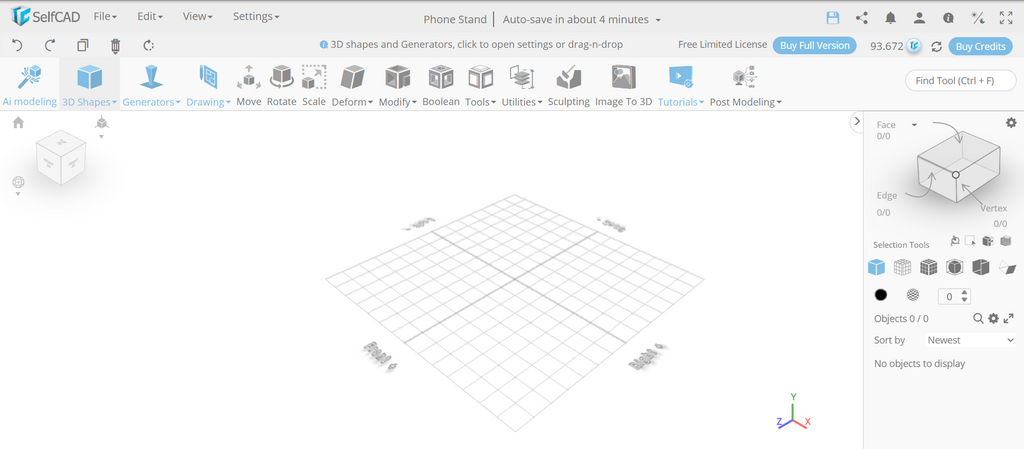

Step 1: Launch the SelfCAD Editor
To begin, launch the SelfCAD Editor and start a new project:
Before making any further adjustments, we will use the AI Modeling function for this project to determine the phone stand's primary geometry.
Step 2: Open AI Modeling

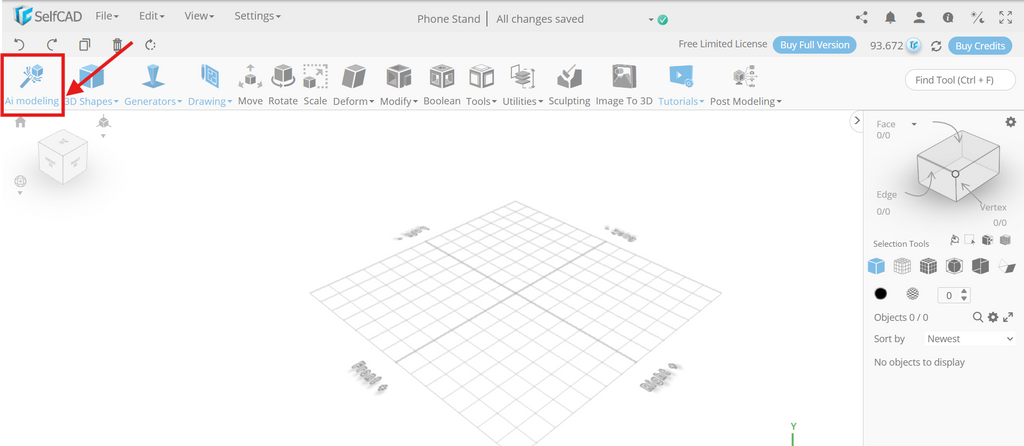

Go to the SelfCAD Editor and choose AI Modeling:
You can use a text prompt in the AI Modeling interface to express your design specifications. SelfCAD offers many AI generation methods based on the kind of thing you're making.
For a phone stand, we’re aiming to create a practical and well-structured object with a stable base, supportive form, and smooth rounded edges, rather than an abstract or purely decorative design.
Step 3: Pick the Right Creation Mode

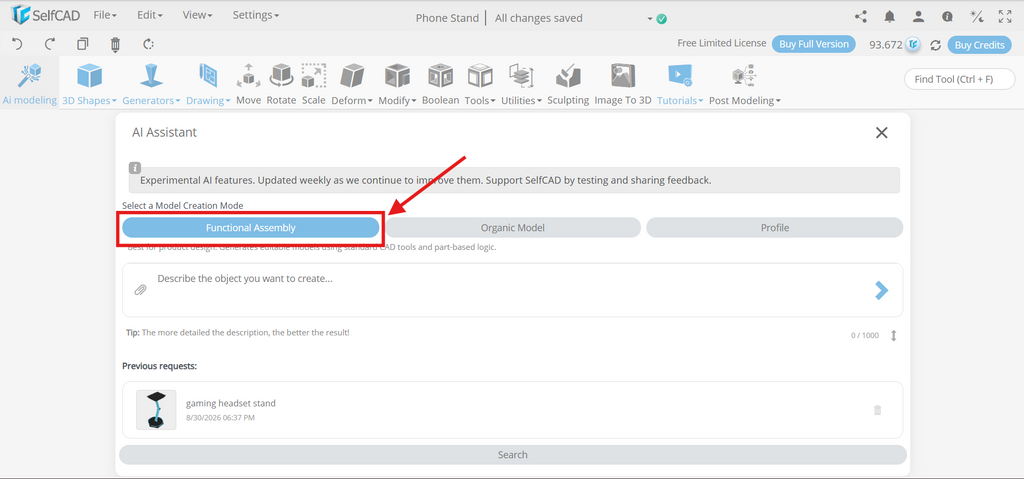

For the phone stand, choose the Functional Assembly:
A phone stand consists of multiple functional components, including a solid base, an angled support surface, and a thin front lip that secures the phone in place. Functional Assembly is perfect for designs like this, where each component serves a defined purpose and collaborates to produce a practical, balanced product. From an academic point of view, this method also makes it easier for you to comprehend how each component affects the overall design, stability, and usability of the stand.

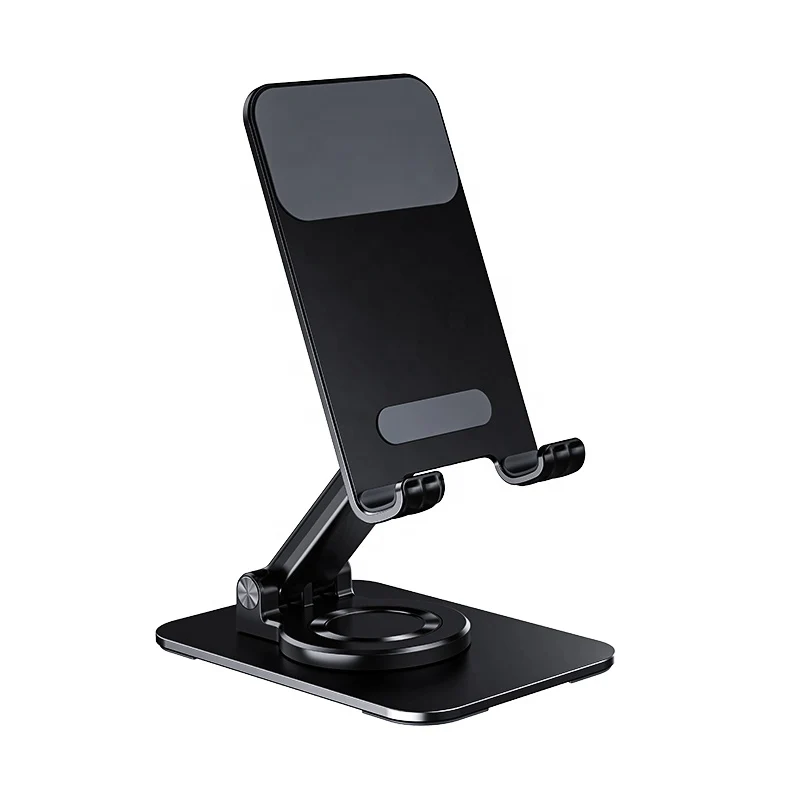

Step 4: Prepare a Reference Image
You can get more visual details about the design you have in mind by using a reference image. You can help convey the appropriate appearance if you already have an image of a phone stand with the desired shape or dimensions.
In addition to your written description, a reference image offers more visual details. The reference image in this case is optional, but it shouldn't take the place of the prompt. The AI assistant is limited to working with prompts.

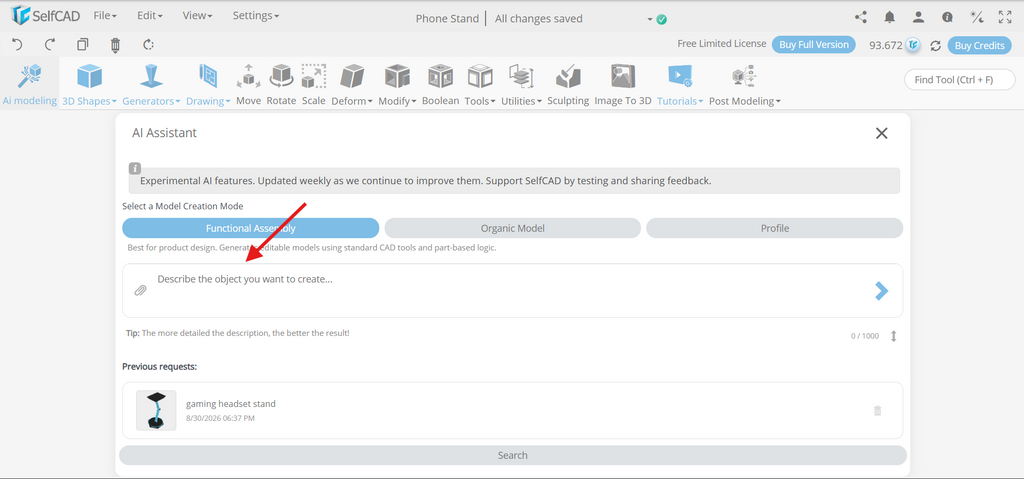

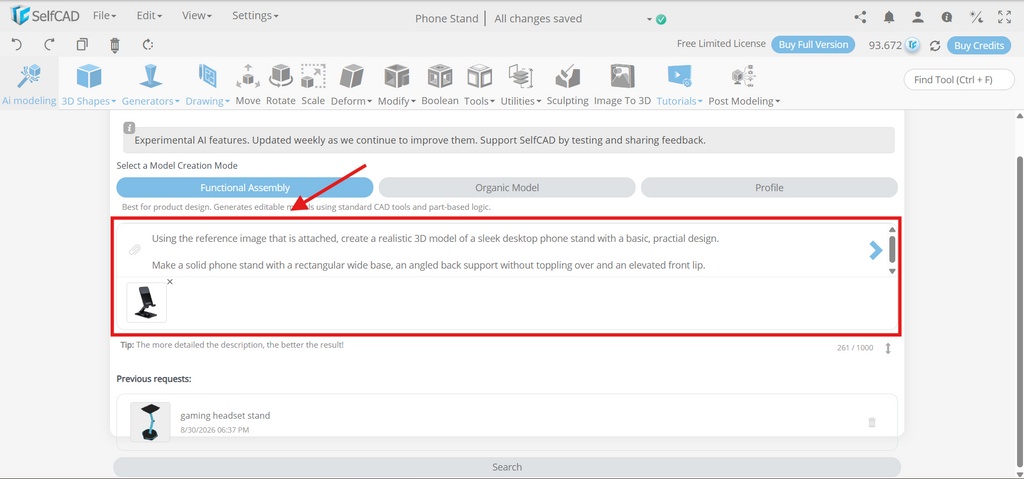

Step 5: Write the Prompt for AI Modeling
Now describe the phone stand you wish to have made with SelfCAD. A descriptive prompt is particularly useful because it informs the AI about the object's function, dimensions, components, shape, apertures, connections, and orientation:
You can use the following prompt, as an example:
Using the reference image that is attached, create a realistic 3D model of a sleek desktop phone stand with a basic, practical design.
To safely hold a smartphone, make a solid phone stand with a wide rectangular base, an angled back support, and an elevated front lip. The stand should have seamless transitions between all of its parts and rounded, smooth corners.
This type of organized description makes it easier to convey the design idea.

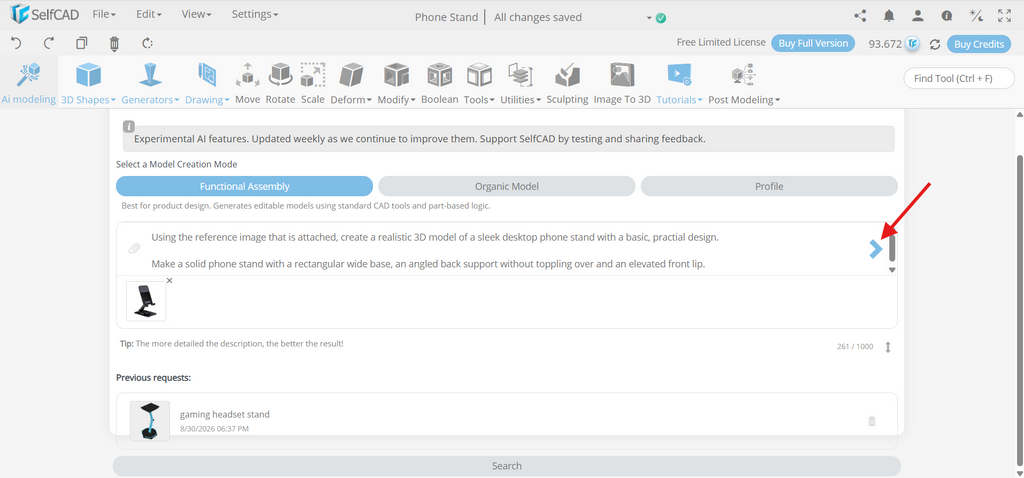

Step 6: Generate the Model
Click Generate after entering the prompt and attaching the reference image (which is optional).
This is where AI-assisted modeling and conventional manual modeling diverge. You describe your intended design and let AI create the initial geometry, as opposed to quickly producing simple forms and altering them yourself.

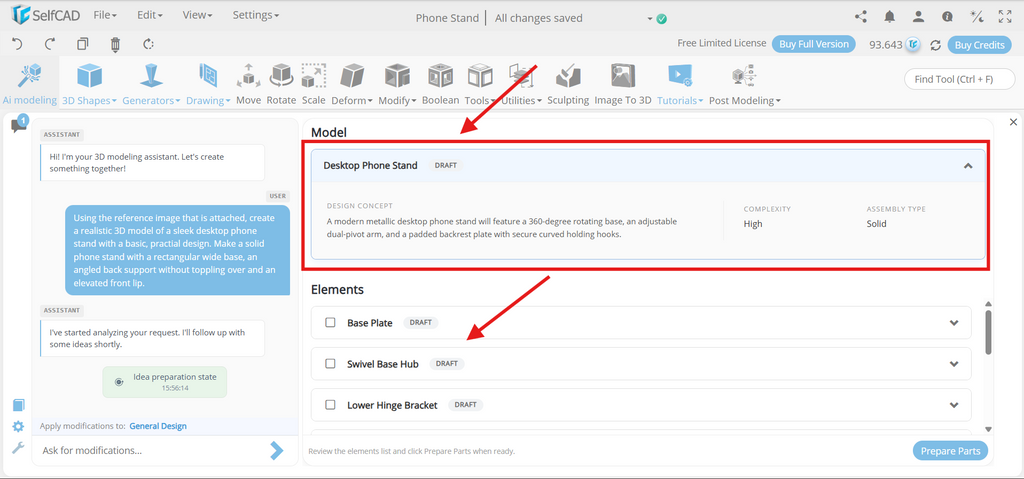

The phone stand's main support body, phone holder area, viewing angle, and other practical elements will all be included in a draft created by the AI assistant. You can review, refine, and further customize this starting point in the SelfCAD editor.
Step 7: Prepare Parts

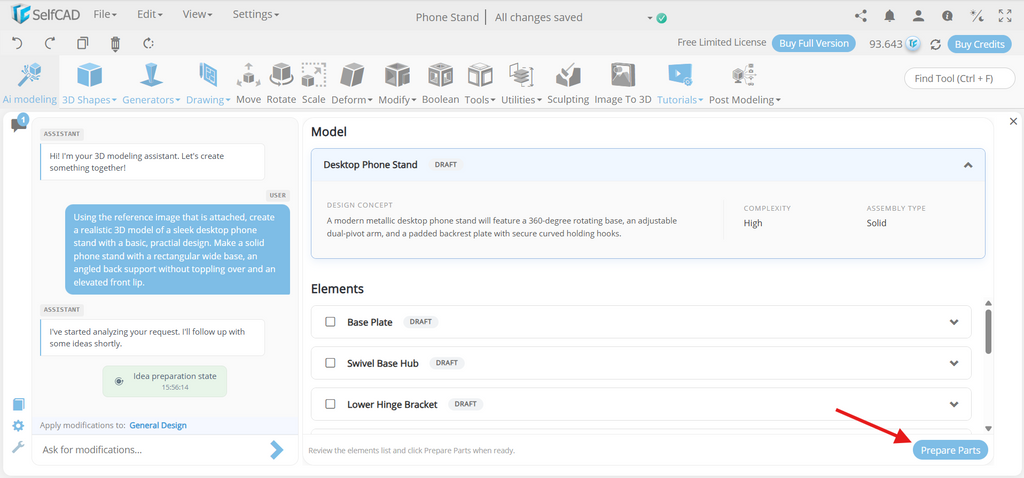

Click "prepare parts" now:

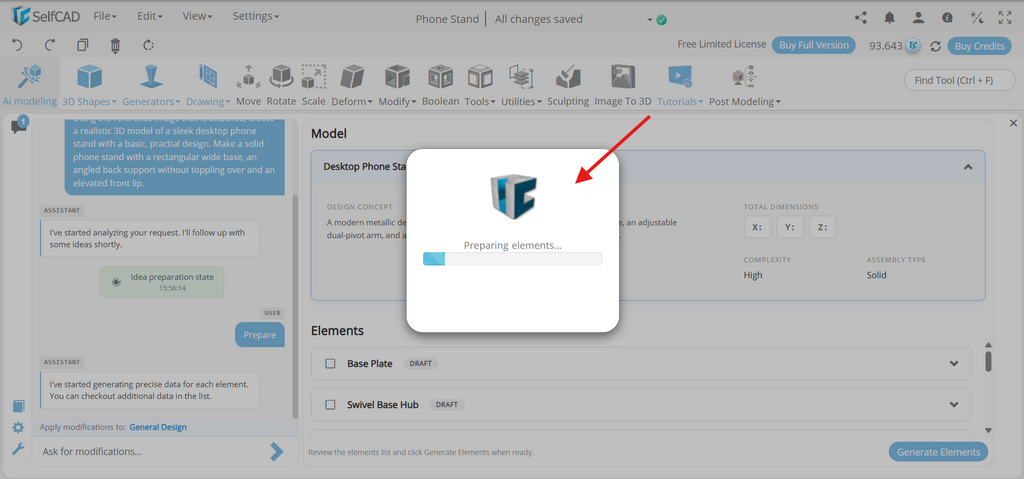

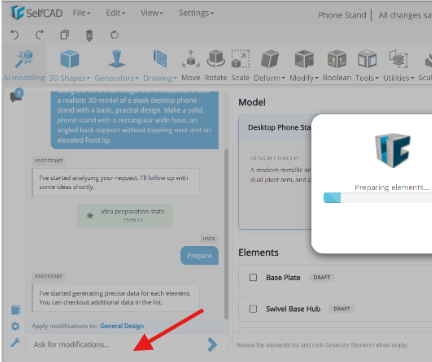

The tool is currently preparing the elements:
Ask For Modification:
Once your elements are ready, you can take your design a step further by using AI to make any modifications you need. Whether you want to resize, reshape, reposition, or customize a particular element, simply describe the changes you have in mind. The AI will refine the selected element based on your instructions, making it easy to achieve the exact look and functionality you want, as illustrated in the image above.
Step 8: Generate Elements

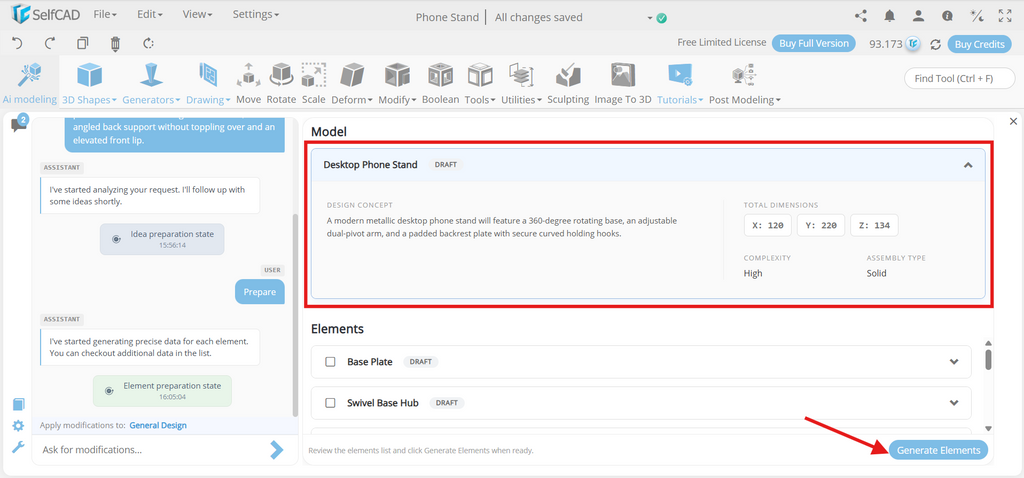

Click Generate Elements:

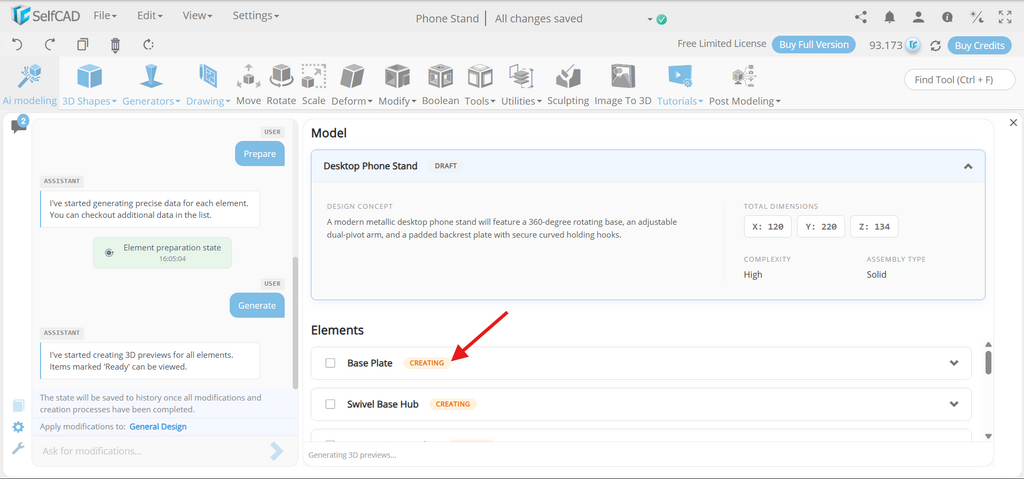

The tool will show that the following items are being created:

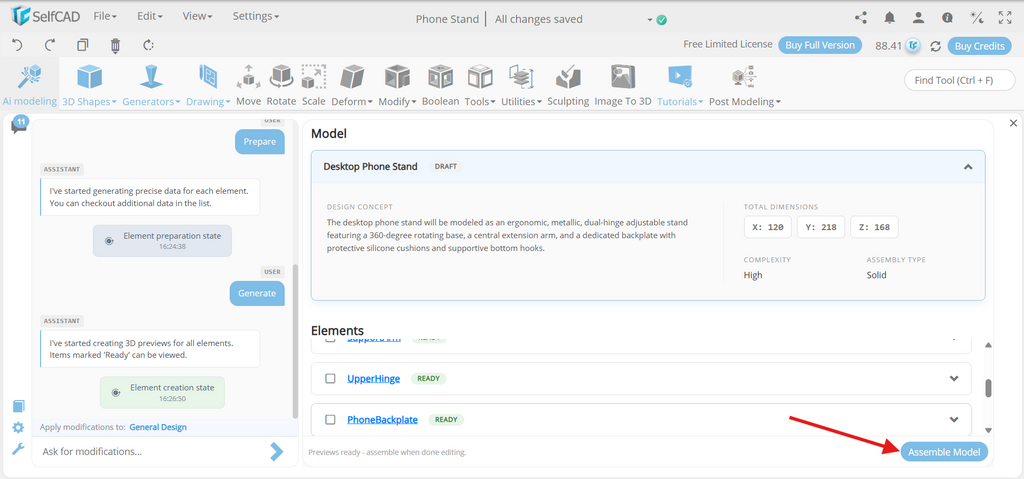

Step 9: Assemble Model
Click Assemble Model when the components are prepared:
Step 10: Add the Phone Stand to the Scene
When you're happy with the results, add the model to the SelfCAD scene. At this point, you can continue customizing the AI-generated phone stand using the conventional modeling tools in your regular SelfCAD workspace.

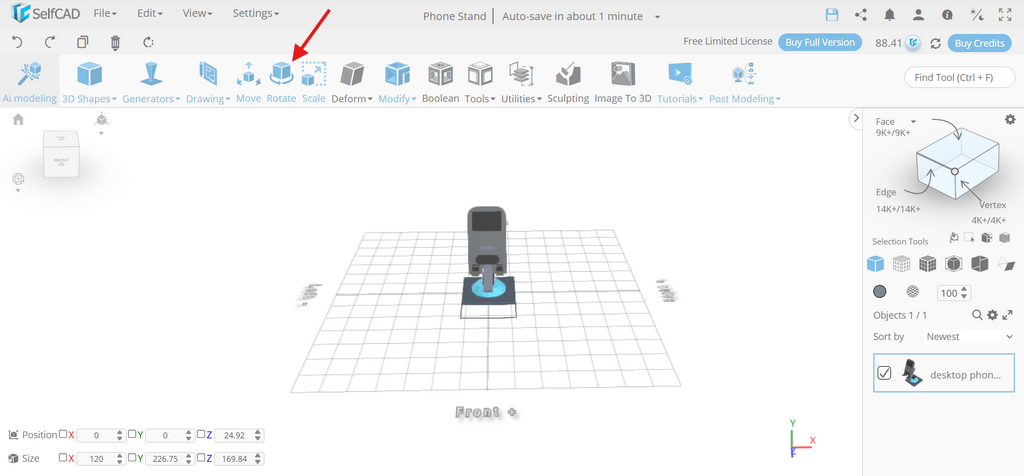

This change is crucial since the workflow doesn't have to finish with AI modeling. Alternatively, it can supply the initial geometry, and you have more control over the final design with SelfCAD's traditional tools. For example, you can rotate it using the Rotate Tool:

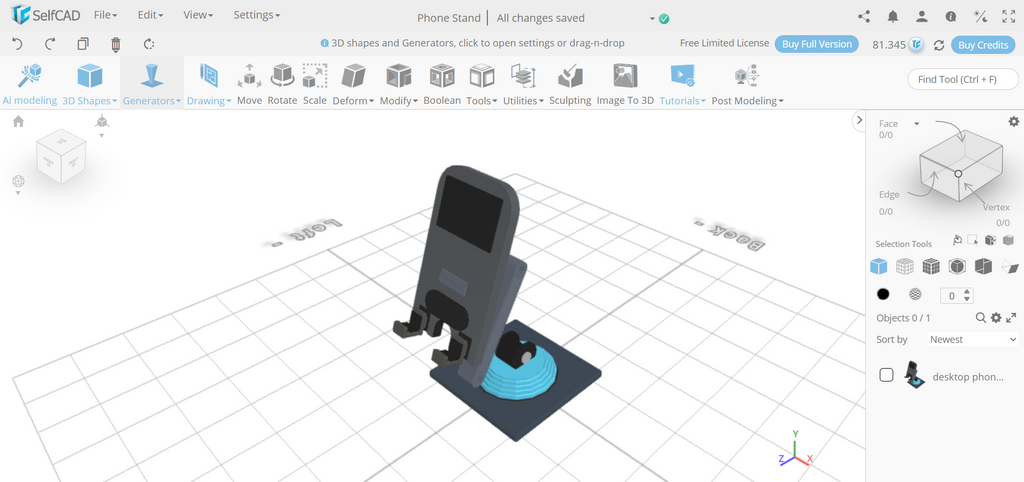

Now the model is ready:
Understanding the AI Modeling Workflow
The phone stand serves as an example of a simple and consistent method for AI-assisted 3D modeling:
Describe → Reference → Generate → Examine → Adjust → Refine
The key takeaway is that AI modeling involves more than just clicking "Generate." Throughout the process, the designer stays involved by giving guidance, assessing the geometry, and determining how the model should change.
Conclusion
Using SelfCAD AI Modeling to design a phone stand is an effective example of how AI may streamline the initial phases of 3D design. Instead of building the curving body, arms, and pole sections by hand, you can describe the thing, supply a reference image, and let AI create a preliminary model.
The capacity for iteration is the source of true power. You can give more detailed directions and improve the design if the initial outcome is too angular, the hole is too small, the poles are not aligned, or the proportions need to be adjusted.
When the AI-generated model is complete, you may import it into the SelfCAD environment and go on using traditional 3D modeling tools.
This helps you go from an idea and reference image to a finalized 3D model, making SelfCAD AI Modeling more than just a model generator. Instead, it becomes a part of an interactive 3D creative workflow.
