How to Swap Filament During a 3D Print Without Ruining the Print
Imagine you're deep into a complicated 3D printing project and all of a sudden, either your filament runs out or you choose a different colour. You risk losing time and materials if you don't know how to change filament mid-print. When you want your final output to be perfect, this circumstance can be very frustrating. You can avoid possible failures, accomplish multi-color designs, and keep printing smoothly if you learn how to change filament while a print is underway. With the steps outlined here, you'll be able to confidently make filament changes mid-print.
Changing the Filament Midprint: Why is it Necessary?

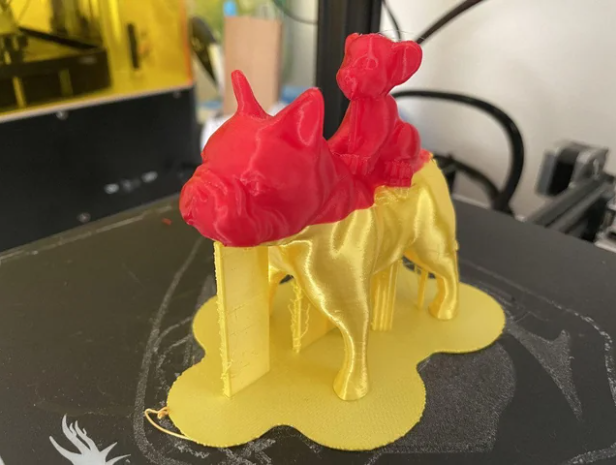

There are a number of situations in which it is essential to swap out the filament while 3D printing is underway. Adding a variety of materials or colours to a single print is a major motivator. Making intricate, multi-colored drawings or combining materials with different qualities to improve the product's functioning and beauty is as easy as halting the print and swapping filaments.
The present filament spool running dry is another typical cause. You can save time and material by switching to a fresh spool mid-print instead of starting over if a spool runs out.
Also, some 3D printers have sensors that can detect when the filament is running low or if the printer is jammed. If these sensors detect an issue, they can halt the print process and initiate a filament change to avoid printing failures or flaws.
Step-by-Step Guide to Changing Filament Mid-Print
Setting Up for Manual Filament Replacement
Get your printer ready to show the current layer number while printing before you start a manual filament change. You can see how far along the print is and when to swap filaments thanks to this function. You can accomplish this by including a post-processing script in the widely used slicing program Cura.
By going to "Extensions" > "Post Processing" > "Modify G-Code," you may access the following options: "Add a script" and "Display Filename and Layer on LCD."
Make sure the "Initial layer number" is zero. By modifying the G-code, this script will ensure that your printer's LCD screen displays the current layer number while the print is underway.
It is also critical to know the layer you wish to alter the filament at. After you've sliced your model in Cura, go to the "Preview" mode and find the layer you want to alter the filament on using the layer slider. Before you start printing, make a mental note of this layer's number.
Manually Changing Filament: How to Do It
If your printer can show you the layers, then you can change the filament on the specific layer you've chosen. After that, you can continue printing. Keep a careful eye on the screen as the print gets close to the specified layer. When you get to the layer you want, do the following:
1. Stop printing by navigating to your printer's interface.
2. As soon as you stop, check the temperature of the nozzle and the bed. Make sure the nozzle is always heated to the right temperature for the filament you're using. Modify the nozzle temperature as needed when changing filaments, especially those with different melting points. To keep the print from coming loose during the pause, keep the bed temperature constant.
3. Gently pull the current filament taut from the extruder. In most cases, you can accomplish this by hand, by pulling it out while releasing tension on the extruder lever.

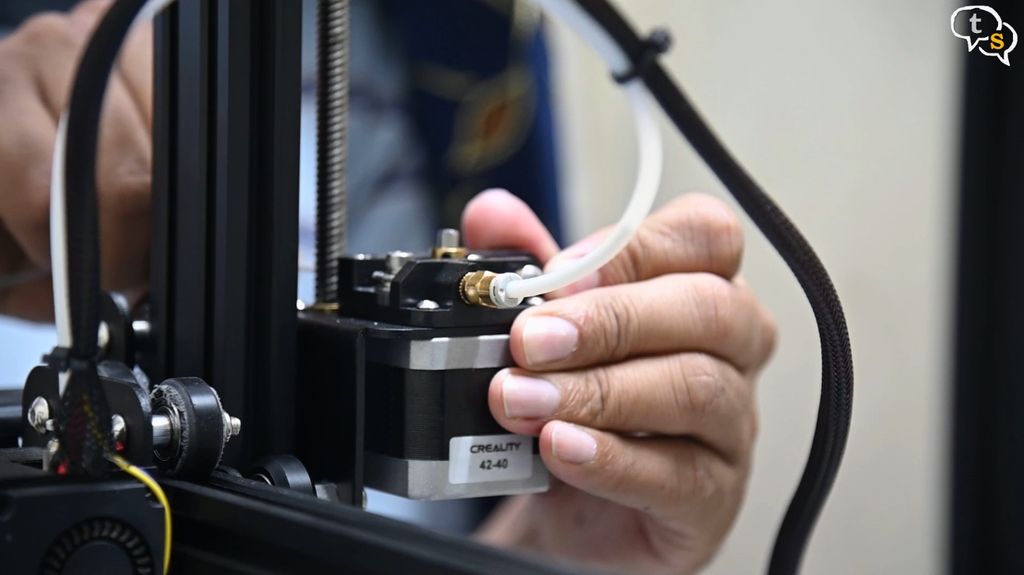

Fourth, thread the extruder with the fresh filament. Carefully insert it into the hot end via the PTFE tube, pushing gently until you encounter resistance.
5. Carefully extrude the new filament until it runs smoothly out of the nozzle, making sure to completely remove any residues of the old filament.
6. Pick up where you left off printing after loading new filament and purging the nozzle.
Firmware Commands for Filament Change
It is possible to swap out filaments mid-print using a number of 3D printer-specific G-code commands. To start the filament changing procedure, one often used command is M600. After running the command, the printer will stop, remove the print head from the model, and ask the user to remove the old filament and insert the new one. Upon successful loading of the new filament, the printer will continue printing from the previous position. This technique shines when used to layers where specific colour alterations or material substitutions are required. Keep in mind that the M600 command's availability and behaviour can differ based on the firmware and configuration of the printer.
Automated Filament Changers
Automated filament changes are a great option for people who want things done quickly and easily. These machines can seamlessly transition between different spools of filament while printing, allowing for the effortless completion of intricate multi-material or multi-color projects.
Consider the 8-Track Filament Changer, a remarkable example of an open-source, modular device that can manage eight distinct filaments. For safe and consistent feeding and storage, each spool has its own dry box with a filament feeder. Printing complex designs with less chance of failure owing to human mistake is now possible because to the system's ability to coordinate with the printer and execute filament changes at the exact right times.
The Automated Filament Changer by Box Turtle is another creative option. The goal of this open-source project is to create a filament swapping system that is both easy to use and very efficient. If you want to improve your 3D printing skills, this design is a good option because it prioritises simplicity and stability.
Also, you can find commercial 3D printers that have the ability to automatically swap filaments built right in. For example, some versions come with a Material Station that can store numerous spools and will automatically swap out one spool for another of the same kind when the one you're using finishes. Large or complicated prints that use a lot of filament will benefit greatly from this feature, which guarantees ongoing printing.
Challenges to Overcome
Layer Shifting
The misalignment of succeeding layers causes layer shifting, which happens when the printhead or bed moves along the X or Y axis while printing. This problem frequently occurs when the printer is hit by accident while it is halted or when changing filaments. When changing filaments, be careful not to move the printer too much as else layers could shift.
Poor Layer Adhesion
When changing materials, switching filaments might cause layers to not adhere properly. In order to fix this, raise the temperature of the nozzle by 5°C in between filament switching and keep the Z-axis height constant.
Bumps from Pausing
If you pause the print before changing the filament, excess filament will drip out of the nozzle and leave print surface blemishes. To avoid this, make sure there is no material on the nozzle before restarting the print and swiftly pull the filament by hand whenever the print stops.
Height Changes
Incorrect Z-axis adjustments during filament changes are a common cause of print height variations, in which the print resumes at an incorrect height relative to the original print. Print flaws and poor layer adhesion might result from this mismatch. One way to deal with this is to level the bed or make sure the Z-axis stays steady while changing filaments.
Warping or Prints Detaching
Warping or detachment of prints, particularly on glass beds, can occur if the heated bed loses temperature while changing filaments. Quick action during filament replacements and constant bed temperature maintenance will prevent this.
Best 3D Printing Software
There are many 3D modeling software available that you can use to prepare your dental designs and prepare them for 3D printing and a good example is SelfCAD. SelfCAD is a powerful 3D modeling software that you can use to create 3D models from scratch or edit existing designs and customize them based on your needs.
After preparing your files, you can then use the in-built online slicer of the software to slice your files and generate the Gcode to send to your 3D printer.
In addition to being easy to use, SelfCAD also comes with many resources to help you get started with ease. There are many interactive tutorials to help you learn by actually creating 3D models. 3D modeling 101 series and 3D modeling for beginners videos on YouTube are also great resources to help you learn how SelfCAD works and how you can use it to create your 3D models.
Conclusion
You may achieve multi-color graphics and material transitions in one print by changing the filament mid-print. It's a valuable technique in 3D printing. On the other hand, it brings difficulties such nozzle bumps, poor layer adhesion, warping, and layer shifting. You may improve print quality and accomplish more complicated and visually beautiful products by learning about these problems and taking precautions.
To reduce the likelihood of typical issues, be careful while changing filaments, keep the bed and nozzle at constant temperatures, and keep the Z-axis steady. If you want to avoid nozzle bumps, you should also quickly retract the filament after pausing the print. If you follow these steps, you should have no trouble making filament changes mid-print and end up with better 3D prints.
