Nozzle Clogs in 3D Printing: Key Tips for Avoiding Them

A major annoyance with 3D printing is the possibility of nozzle blockages. The filament abruptly stops flowing, or the printed layers are too thin or irregular, after you've started the print. This has the potential to squander materials and hours of labor. The bright side is that a few easy methods may usually clear clogged nozzles in no time. Find out how to unclog your 3D printer's nozzle quickly and easily with the help of this guide.

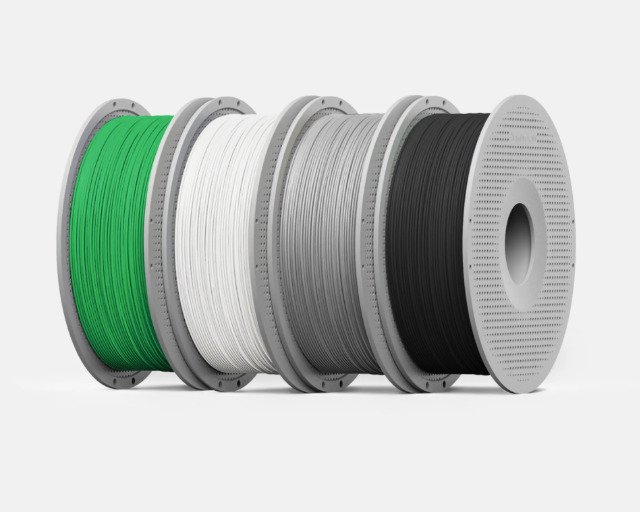

1. Use Clean and High-Quality Filament

Inconsistent diameter, dust, or contaminants are common in low-quality filament. As they settle into the nozzle, these particles can obstruct the plastic melt from flowing out.

Stick with trusted brands while shopping for filament. Keep the filament dry and protected from dust by storing it in airtight bags or containers. Before inserting the filament into the printer, clean it if it gets dusty or falls to the floor.

Another option for preventing dust from entering the extruder is to use a tiny filament cleaner, which consists of a sponge clipped onto the filament path.

2. Keep the Nozzle at the Correct Temperature

When printing at a low temperature, the filament may not melt properly. Clogs can occur when partially melted material accumulates inside the nozzle. Keep the material within its specified temperature range at all times. For instance, PETG frequently requires 220-250°C for printing, but PLA typically prints at roughly 190-220°C. Raising the temperature a notch should help with erratic extrusion.

Maintaining a constant temperature allows the hotend to more easily process filament.

3. Use the Correct Print Speed

Rapid printing outstrips the hotend's ability to melt the filament. The result is a buildup of partially melted plastic within the nozzle. To get the filament melted through, reduce the print speed. Standard materials typically perform reliably with most consumer printers between 40 and 60 mm/s. Lower speeds alleviate pressure within the hotend, hence avoiding obstructions.

4. Clean the Nozzle Frequently

The accumulation of minute residues can occur even when all systems are functioning as they should. Those remnants won't build up into a full blockage if you clean them regularly.

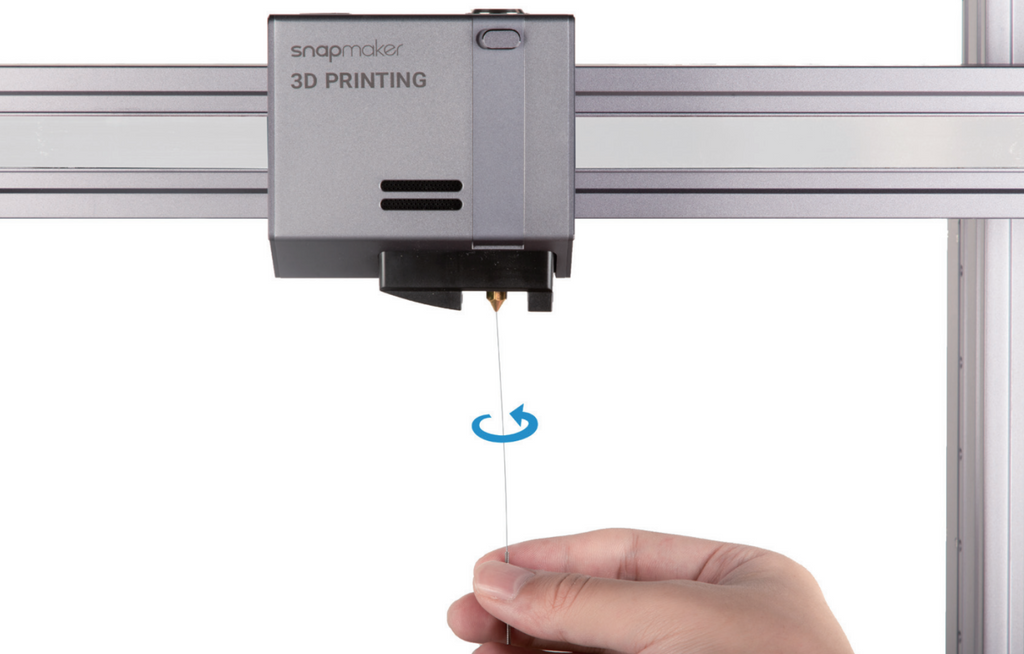

One of the best methods for cleaning the inside of the nozzle is with a cold pull. As a result, it frees the melt chamber of any obstructions. Get the nozzle hot enough to print before anything else. After inserting the nylon or PLA filament, let it melt. After that, bring the nozzle down to a temperature of about 90 to 120 degrees Celsius. Rapidly remove the filament as soon as it solidifies a little. There is a good chance that the filament will carry residue and burned particles. For the purpose of cleaning the nozzles, many 3D printers include a thin needle. These needles are capable of removing tip-level obstructions.

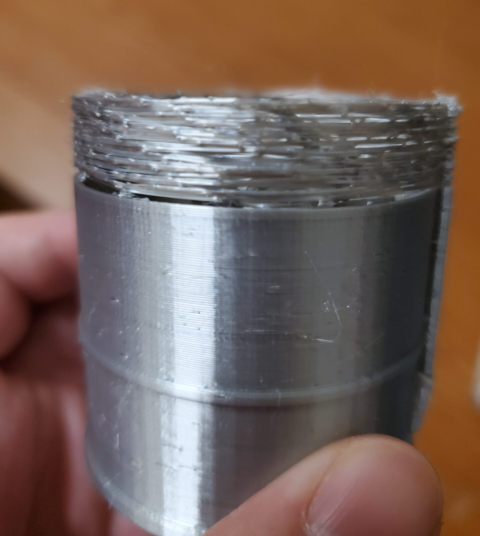

5. Prevent Heat Creep

In a process known as heat creep, heat moves from the hot end into the cooler part of the system. As a result, the filament may become overly pliable and become stuck within the heat break.

Check the hotend cooling fan to ensure it is functioning correctly. In order to keep the hotend cool, the fan must be running at all times. Also, make sure the heatsink is always dust-free and clean. The melting zone remains precisely where it should be due to adequate cooling.

6. Check Retraction Settings

To move molten plastic to a cooler part of the hotend, use a very high retraction setting. A clog could form if the filament cools to that point and solidifies. Minimize the pace and distance of excessive retraction. The majority of direct drive printers only require a retraction of 0.2 to 2 mm. Bowden systems could necessitate 4–6 mm. Filament jamming is less likely to occur when the retraction parameters are balanced.

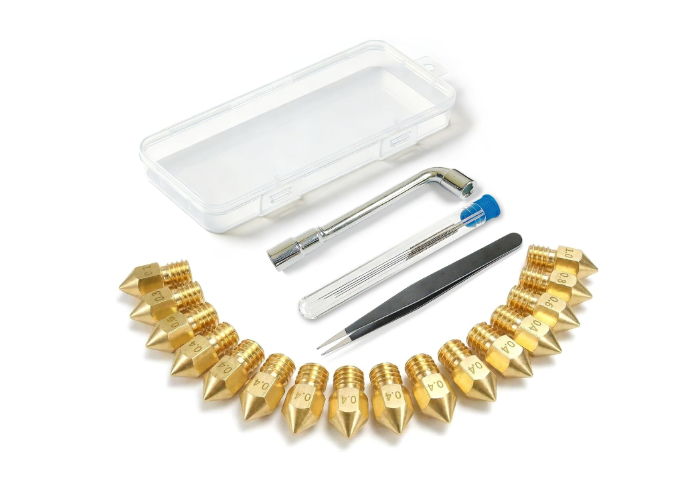

7. Replace Worn Nozzles

Particularly when printing with abrasive materials like carbon fiber or glow-in-the-dark filaments, nozzles eventually wear out. Uneven flow and more blockages are the results of a worn nozzle.

Changing up the brass nozzles on a regular basis is a smart preventative maintenance measure because they are cheap. Think about using hardened steel nozzles if you print with abrasive filaments frequently.

Purchase link: Amazon.

Price: $5.49

Best 3D Design Software for 3D Printing

Having discussed how to avoid nozzle clogs, it's important to learn about the best 3D modeling software that you can use to create your designs and even prepare them for 3D printing. There are many that are available, but we recommend using SelfCAD. It is an easy to use program that comes with all the tools that one needs to create both simple and complex 3D models.

SelfCAD comes with interesting tools like freehand drawing and sketching, image to 3D model, easy to use selection tools, and powerful sculpting brushes. In addition to that, SelfCAD also comes with an in-built online slicer that you can use to slice your files and generate the G-code to send to your 3D printer.

Conclusion

It all boils down to using high-quality filament, maintaining the proper temperatures, and doing routine maintenance to keep nozzles clear. Avoid using very high or low print settings, keep the filament dry, and clean the nozzle every so often. Maintaining your 3D printer in this way will keep it functioning smoothly and cut down on faulty prints.

Frequently Asked Questions

1. How to stop a nozzle from clogging?

Using clean, high-quality filament and storing it in a dry environment will prevent nozzle blockage. Make sure you print at the ideal temperature so the filament melts evenly in the hotend. Further considerations include avoiding extremely high retraction settings and maintaining a clean nozzle. To keep the nozzle clean and free of buildup, do routine maintenance and cold pulls as needed.

2. How to stop nozzle clumping?

The most common cause of nozzle clumping is filament adhesion and subsequent buildup around the nozzle. Increasing bed adhesion and checking the initial layer height are two ways to lessen this. You can further reduce the likelihood of material gathering around the nozzle by regularly cleaning it and removing any plastic residue before beginning a print.

3. Why does my filament keep getting clogged?

There are multiple causes of filament clogging. Low printing temperature, filament that is dirty or wet, damaged nozzles, and excessive retraction settings are the most prevalent causes of this issue. Heat creep, caused by inadequate hotend cooling, prematurely softens filament and creates obstructions within the hotend.

4. How to reduce clogging?

By sticking to the suggested temperature range and printing at moderate speeds, you can lessen the likelihood of clogging. On a regular basis, clean the extruder gear and check that the hotend cooling fan is functioning correctly. Another way to lessen the likelihood of blockages is to use high-quality filament and to periodically run cleaning filament through the nozzle.

5. What is the correct way to clean a clogged nozzle?

When clearing a clogged nozzle, it's best to heat the hotend and then pull the debris out with a cold pull. If there are any little obstructions at the tip, you can clean them with a nozzle cleaning needle. In extreme cases of blockage, it may be required to remove the nozzle and either soak it in a cleaning solution or replace it.
