3D Print From a Picture: What You Need to Know

Has the idea of transforming your favorite 2D designs into real 3D prints ever felt too complicated or intimidating? Problems that a lot of people have with 3D modeling software include unrealistic results, a steep learning curve, and a loss of information. What if, instead of guessing, you had a simple manual that could turn your 2D images into stunning 3D works of art? If you're looking for a demonstration of how to turn 2D pictures into 3D models, this blog could be just what you need.

What Are the Methods to Convert Images to 3D Models?

1. Extrusion Method

The extrusion technique adds depth by stretching a 2D image along a new axis, thereby making flat images more resemble three-dimensional objects. Clear outlines of logos and silhouettes fit particularly nicely with this approach. You can use various programs to achieve this. A good example is SelfCAD. You can use the image to 3D model tool to achieve it, as shown in the video below.

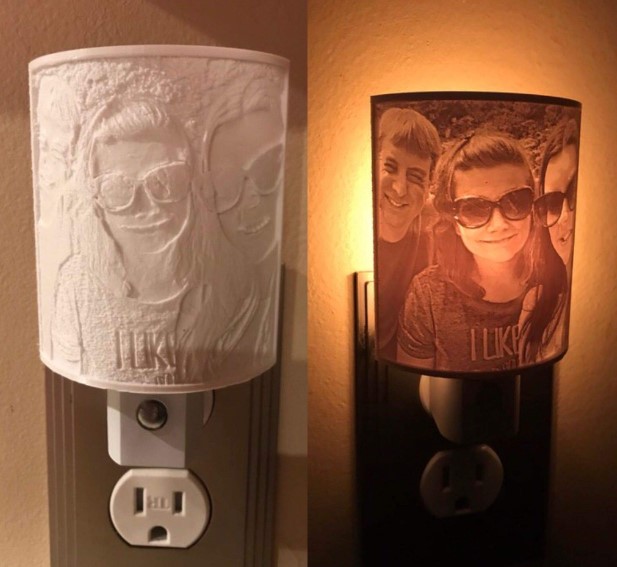

2. Lithophanes

One-of-a-kind 3D-printed objects called lithophanes show complex designs when lit from behind. Because the different thicknesses of the print mirror the tone range of the source image, light highlights minute features in the picture.

Dedicated tools like the "Image to Lithophane" converter enable one to create a lithophane. These tools can process your pictures and generate 3D lithophane models by examining the grayscale values in the picture and translating them into suitable thicknesses in the 3D model. 3D printing the lithophane with translucent materials will help you to get the desired effect while it is backlit.

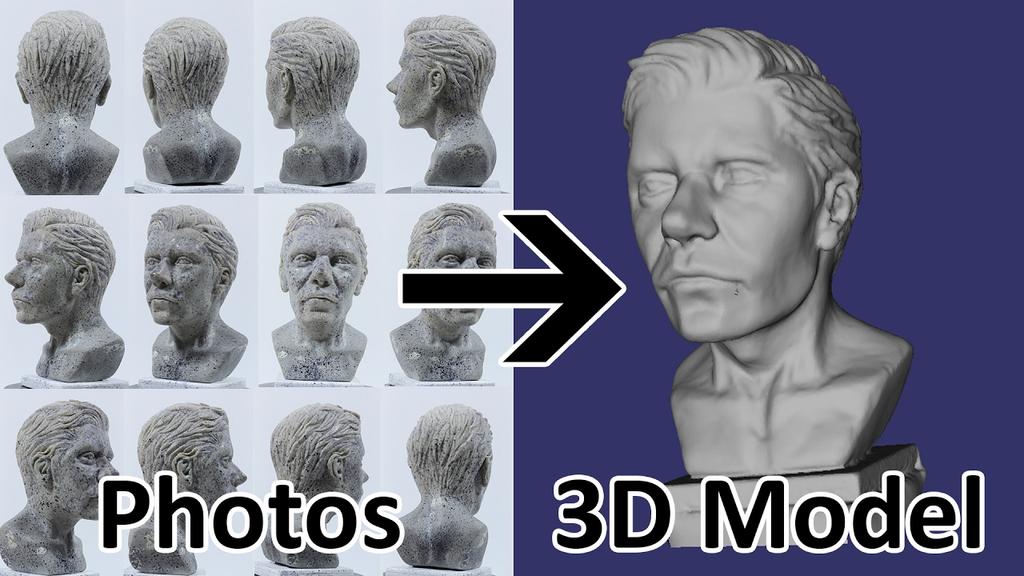

3. Photogrammetry

Three-dimensional models can be produced with photogrammetry by means of a sequence of photos taken from several angles. This method has several possible applications in fields such as virtual reality, gaming, and the preservation of cultural legacy, given the vast degree of information it records.

For their photogrammetry needs, many consumers would rather use Agisoft Metashape and RealityCapture. This kind of software creates a 3D model by overlaying images, enabling it to capture all the textures and fine characteristics of the original object. Though photogrammetry requires a lot of images and is computationally demanding, the finished models are typically rather realistic representations of actual objects.



Other Software Tools for Converting a 2D Image to 3D Prints

i) Inkscape

Regarding turning bitmap images into scalable vector graphics, the free and open-source tool Inkscape truly excels. This function is especially helpful when preparing images for 3D modeling software to import them into it.

Using Inkscape's "Trace Bitmap" tool, raster pictures can be exported to formats fit for 3D modeling tools by transforming them into vector paths. This approach ensures the picture's scalability and quality, making it simpler to enter 3D modeling.

ii) Blender

Go no farther than Blender, an open-source 3D modeling application, for people seeking a strong collection of tools to create and alter 3D models. It lets users straight extrude images into 3D models or import them for reference.

Blender allows one to import a 2D photo, trace its outline to create a mesh, then extrude the mesh to give it depth. Both professionals and beginners in the 3D modeling field love Blender because of its versatile feature set.

iii) Fusion 360

Go no farther than Fusion 360 if you want free, professional-grade 3D CAD software. Its tools and ability for precise modeling help to convert 2D images into 3D models.

In Fusion 360, import a 2D image, place the vector image on a plane using the "Insert SVG" function, and then add depth with the extrusion tools from a 2D design. Utilizing Fusion 360's comprehensive toolkit, you may customize and fine-tune the model to the particular requirements of your project.

Transform Your Drawings into Tangible Designs

Converting flat images from 2D files into 3D printed objects is an interesting approach to making them more lively. One-of-a-kind 3D prints from your beloved memories are created with the right technique and tools. Whether your goal is a highly detailed portrait or a simple logo, 3D printing technology opens up a world of possibilities.
