How does Spacex Use 3D Printing in the Production of their Rockets?
One shining example of modern invention is SpaceX. Aiming for universal internet access and Mars colonisation, the organisation has regularly accomplished formerly thought unattainable goals. SpaceX's achievements are revolutionary from becoming the first private company to launch an orbital rocket to effectively land a first-stage rocket straight on a barge in the ocean. The adoption of additive manufacturing, sometimes known as 3D printing, is fundamental to these successes. This paper explores SpaceX's use of 3D printing to transform rocket manufacturing and challenge industrial limits by means of innovative technologies.
The Role of Additive Manufacturing in SpaceX's Production
Additive manufacturing has grown ever more important for SpaceX's manufacturing operations. Adopting 3D printing can help the business maximise designs and generate difficult or impossible to make components with conventional techniques. This method not only increases efficiency but also enables the design of intricate geometries improving performance and lowering weight.
Because SpaceX is committed to vertical integration, they manage much of their manufacturing internally. One end of their facility receives raw materials; completely built rockets come from the other. Additive manufacturing fits exactly this approach. Making a cast part historically entails designing it in CAD, building a complex mould, doing test castings in a foundry, and making required changes before full-scale manufacture. 3D printing expedites this process. Designs can be straight printed in metal within SpaceX's buildings, therefore removing the need to contract other vendors. This method greatly lowers lead times, guarantees strict quality control, protects intellectual property, and helps to save costs.
Advanced 3D Printing Technologies at SpaceX
SpaceX uses cutting-edge 3D printing methods, most importantly direct metal laser sintering (DMLS). Thin metal powder layers are laid in a heated chamber in DMLS. After that, a laser follows the 2D cross-section of the component melting the powder to create solid metal. Layer by layer, this process is done till the whole portion is created. Cyclical cooling guarantees structural integrity.
SpaceX revealed in 2024 that optimising its Raptor 3 engine mostly depends on metal 3D printing and Design for Additive Manufacturing (DfAM). Founder Elon Musk pointed out that SpaceX has some of the most sophisticated metal additive manufacturing technology available worldwide. Significant part consolidation made possible by this technology helps to lower engine component count and possible point of failure count.
How Spacex is Using 3D Printing in the Production of Their Rockets?
1. SuperDraco Engine

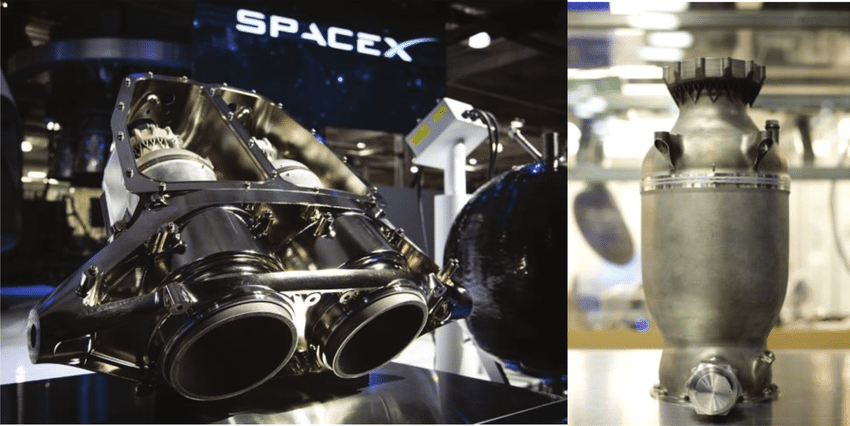

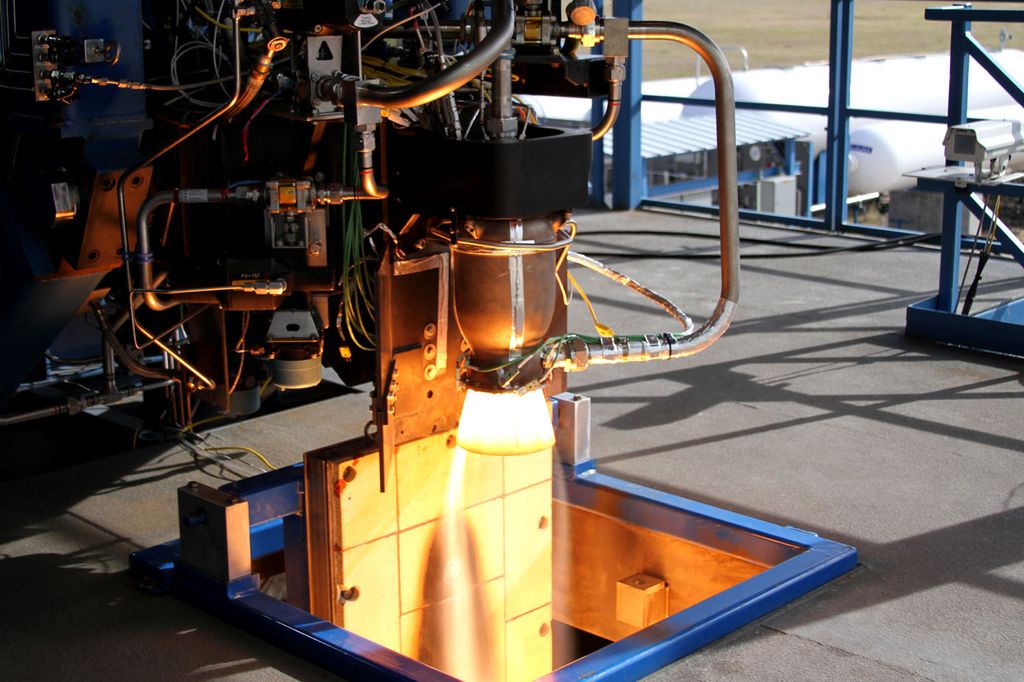

Essential parts of SpaceX's Dragon spaceship, the SuperDraco engine mostly acts as the launch escape system to guarantee crew safety in case of an emergency. The SuperDraco's design is notably innovative in that its combustion chamber is completely 3D printed via direct metal laser sintering (DMLS). Using a laser, this advanced manufacturing method layers metal powder into the required form layer by layer. Inconel, a nickel-chromium superalloy well-known for its extraordinary strength and high temperature resistance, is the choice for the combustion chamber. SpaceX cut lead time ten times by using 3D printing for this important component instead of conventional machining techniques. Just over three months saw the road from first idea to the first hotfire test completed, highlighting the speed and efficiency additive manufacturing offered.
2. Raptor Engine

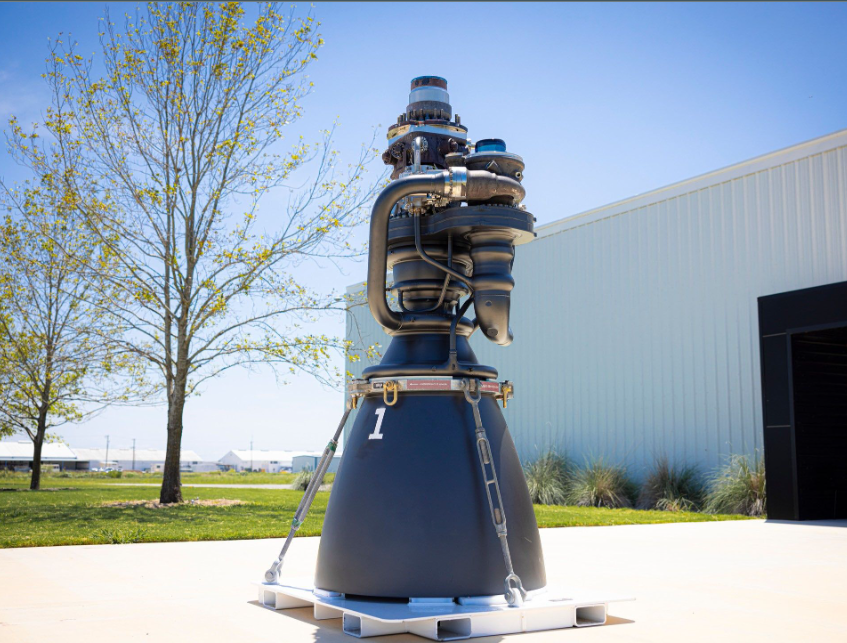

Designed to run the Starship launch system for trips to places like Mars, the Raptor engine is SpaceX's next-generation propulsion source. With its most recent version, SpaceX has utilised additive manufacturing even more in order to maximise the design. To combine several parts into more intricate, integrated components, the firm applied metal 3D printing and Design for Additive Manufacturing (DfAM) techniques. By cutting the number of individual components through this consolidation, possible sites of failure are minimised and the assembly process is expedited. Elon Musk has underlined that SpaceX has some of the most advanced metal 3D printing technologies available worldwide, so enabling major developments in engine design and performance.
3. Partnership with Velo3D
SpaceX teamed with California-based metal additive manufacturing business Velo3D to improve its 3D printing capacities even more. This partnership gives SpaceX access to Velo3D's sophisticated 3D printing technology, which is likely to be rather important for the manufacturing of intricate rocket parts. The alliance highlights SpaceX's dedication to using innovative manufacturing technologies to increase efficiency, lower costs, and hasten manufacturing timescales.
Pioneering Additive Manufacturing Projects at SpaceX
SpaceX has worked on some noteworthy projects highlighting their creative application of additive manufacturing:
SuperDraco Engine Chamber
Designed mostly as emergency launch escape rockets, the SuperDraco engines can safely push the crew capsule away from threat with a thrust of 120,000 pounds. 3D printed from Inconel, a superalloy famed for its strength and heat resistance, the SuperDraco's engine chamber Multiple starters, high-temperature exposures, and long firing times were among the severe tests this part endured. These tests verified its fit for use in the Dragon 2 capsule, rated for human flight.
Main Oxidizer Valve (MOV) Body
SpaceX tested a 3D-printed Main Oxidiser Valve body in one of the nine Merlin 1D engines on the Falcon 9 rocket in 2014. This part survived strong vibrations, high pressures, and cryogenic temperatures. It was produced remarkably just two days, a great advance over the usual two-month cycle needed for conventional mold-making and casting. On every Falcon 9 flight, this part replaced cast versions following thorough testing and certification.
The Future of Additive Manufacturing in Space Exploration
One important facilitator of space exploration is likely to be additive manufacture. The ability to create intricate parts on-demand, maybe even in space, could help to lessen dependency on manufacturing and transportation grounded on Earth. Long-term expeditions to the Moon, Mars, and beyond especially might benefit from this.
Other businesses, such as Relativity Space, are investigating 3D printing's possibilities for rocket manufacture and producing almost entirely 3D-printed rockets. SpaceX's collaboration with Velo3D reveals that additive manufacturing is fast becoming a necessary instrument for lowering costs, improving efficiency, and hastening spaceship manufacture. Materials and techniques will probably witness further innovations as this technology develops; AM will become increasingly important for next space exploration initiatives.
Best 3D Printing Software
There are many 3D printing software available that can prepare designs for 3D printing, and a good example is SelfCAD. It is an easy-to-use 3D design software that you can use not only to create 3D models but also to edit meshes and slice designs. It comes with interesting 3D modeling tools like freehand drawing and sketching that you can use to create designs from scratch.
There are also easy-to-use selection modes as well as various modification tools to help you modify your designs based on your requirements. It has an image-to-3D feature that makes it easier to turn photos to 3D models. You can also import STL files and modify them based on your needs.
The software comes with a built-in online slicer that one can use to prepare designs for 3D printing. The video below shows how to slice STL files and generate the G-code to send to the 3D printer.
Conclusion
Ultimately, SpaceX's embrace of additive manufacturing shows their dedication to efficiency and creativity. Using 3D printing has allowed them to rethink manufacturing techniques, hence improving performance, lower cost, and shorter production timelines. The growing uses of technology will affect not only aerospace but also other sectors, therefore impacting not only their influence. Given firms like SpaceX leading the way, additive manufacturing has bright future prospects.
