3D Printing Functional Prosthetics: A Case Study
Because of financial constraints, many individuals are unable to acquire prosthetic limbs, severely limiting their freedom of movement and autonomy. It breaks our heart to think that kids and teens are growing up without the resources they need to thrive. Access, awareness, and the absence of tailored solutions are more pressing issues than price alone.
Students all around the world are making a difference through their compassion, creativity, and 3D printers. Meaningful invention doesn't have to wait for education or career: they're printing low-cost, functional prosthetics for individuals in need. Read this blog to find out how a group of high school students is making 3D-printed prosthetics to improve people's lives.
Young Makers Are Making Prosthetics More Accessible
Staple High School students established a club centered on e-NABLE designs; they printed limbs for those in need and learnt about the financial and psychological effects of low-cost prosthetics, particularly for kids in low-income families.
Courses in engineering technology, robotics, or three-dimensional design often serve as the inspiration for these final projects. Students in eighth grade at Almaden Country Day Middle School built a prosthetic hand for a fellow student after they learnt about e-NABLE online and taught themselves computer-aided design (CAD) and manufacturing procedures. They were scared of the complexity at first, but they rose to the challenge and brought their peer a functional prosthesis, which improved their lives and encouraged them to stay involved in STEM.
Interns from university biomaterials labs have also worked with high school students in week-long workshops, teaching them about 3D printing and having them build prosthetic hands from scratch. This way, the students have learnt about the design and ethical aspects of assistive technology.

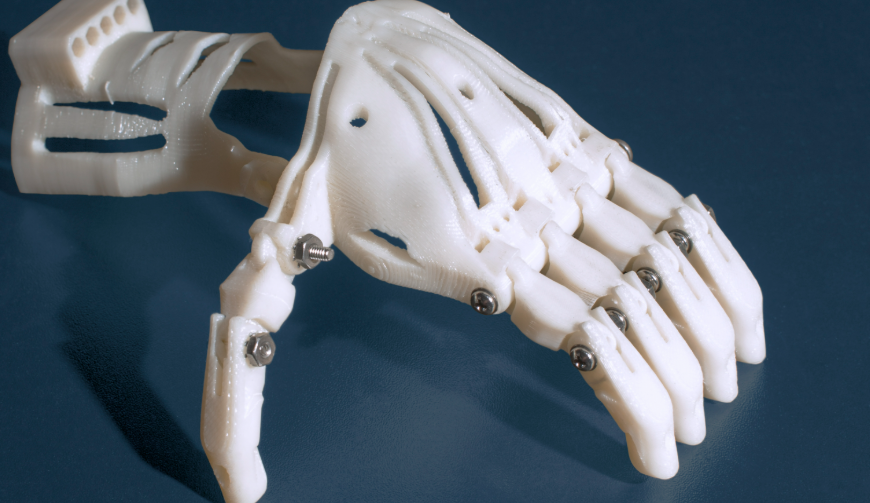

Inside the Mechanics: How 3D-Printed Prosthetics Work
Building structural components of functional 3D-printed prosthetics usually involves using long-lasting plastics like ABS or PLA, together with more pliable materials like TPE (NinjaFlex) for joints, and cords (like fishing line or Kevlar) to transmit force through tension. A lot of designs don't need batteries or electronics since they use body-powered mechanics, which means that moving the wrist or elbow opens or closes the fingers. If the wearer's size changes, they may simply digitally resize the print and order more.
More sophisticated versions use electromyographic (EMG) electrodes and other myoelectric sensors to detect grip motions triggered by muscle impulses. Although more challenging, these are nonetheless doable for certain student projects under the guidance of an advisor.
Innovative academic prototypes such as the "Print‑N‑Grip" hand enable tendon-based grasping with minimal post‑print assembly. On the other hand, other research details prosthetics for children that are AI vision-enabled and capable of accurate object detection and grasping, all achieved through affordable additive manufacturing and embedded computation.
Examples of High School Students Printing Functional Prosthetics
1. Hendersonville High School (Tennessee) – Prosthetic Hand for Sergio Peralta
Read full story: Washingtonpost.
Hendersonville High School in Tennessee gained worldwide attention in 2023 when a group of engineering students built a prosthetic hand for Sergio Peralta, a sophomore at the school. Sergio had adjusted his life to compensate for his undeveloped right hand since birth—that is, until his engineering instructor matched him with three other students.
In class, students utilized a 3D printer to create a model of a hand that could open and close its fingers in response to motions made with the wrist. Using PLA and some simple 3D CAD modeling, the build took around four weeks. The moment Sergio made his first successful catch with the new hand was both humbling and motivating. The impact that engineering education can have on students' lives was on full display in this endeavor.
After the story went viral, many kids were motivated to pursue majors in science, technology, engineering, and mathematics (STEM), particularly in fields such as mechanical and biomedical engineering.
2. Gulfport High School (Mississippi) – Prosthetics Mission to Peru
Read full story: Wlox.
Students from Mississippi's Gulfport High School put their 3D-printed prosthesis to use in a global service project in early 2024. Members of the school's Robotics and Engineering club went on a mission to Peru, where they distributed forty fully working prosthetic limbs to those in need. Their STEM program took the lead on the project, which required months of CAD work, testing, and revisions. Students used FDM 3D printers to fabricate ankle, knee, and elbow prosthetic joints from durable thermoplastics such as ABS and TPU. Local Peruvian NGOs were involved in the mission's planning to help find recipients and make sure everything fit properly.
Many patients relied on these gadgets as their primary means of movement assistance; some were even double amputees. Biomedical design, logistics, and global health were some of the areas where students obtained practical experience. One of the most significant projects in the school's history, the mission not only gave students advanced design skills but also emphasized empathy and service.
3. Hardin-Jefferson High School (Texas) – Dremel Prosthetics Program
Read full story: BeaumontEnterprise.
Students at Hardin-Jefferson High School in Sour Lake, Texas, are making a difference by creating affordable prosthetic limbs using Dremel DigiLab 3D printers. As a component of their STEM program, the school's Engineering Design class initiated the effort by incorporating computer-aided design (CAD) tools such as Autodesk Fusion 360 into their coursework. The students use long-lasting PLA filament to create unique digits and hands. People, even kids, with limb differences can get their hands on these custom prosthetics made right here in the house.
Notable among these cases is the one involving a little child who had never used his right hand and needed a hand that was red and blue and had a "superhero" theme. To make sure it fit comfortably, the student-led design team took precise measurements, modeled hand movements, and went through several revisions. Students gained more than just technical know-how; interacting with real people helped them hone their communication and empathy abilities. Case studies published by Dremel at the national level attest to their achievements, and they serve as an example to other programs around the country.
4. San Angelo ISD (Texas) – Phoenix Hands for West Texas Patients
Read full story: Sasid.
Texan students in the San Angelo Independent School District's CTE program have been making prosthetic hands out of 3D-printed Phoenix models and donating them to clinics in West Texas that treat orthopaedic injuries. They use the open-source designs from e-NABLE and 3D printers like the Prusa and the FlashForge to make hands out of PLA and NinjaFlex.
The Phoenix design enhances utility for those with partial hand loss by enabling wrist-activated finger movements. In addition to anatomy, biomechanics, and tension systems, students also learn 3D modeling. Patients who would not have been able to afford the prostheses otherwise are able to get them through the network of clinics and rehabilitation centers that work with them. Made specifically for each recipient based on their age, hand size, and grip needs, these hands often have a material cost of less than $50.
In addition to promoting community service, this real-world initiative helps students develop skills that are essential for engineering and healthcare careers. The students are even more driven to broaden the effort after hearing positive feedback from patients and medical professionals.

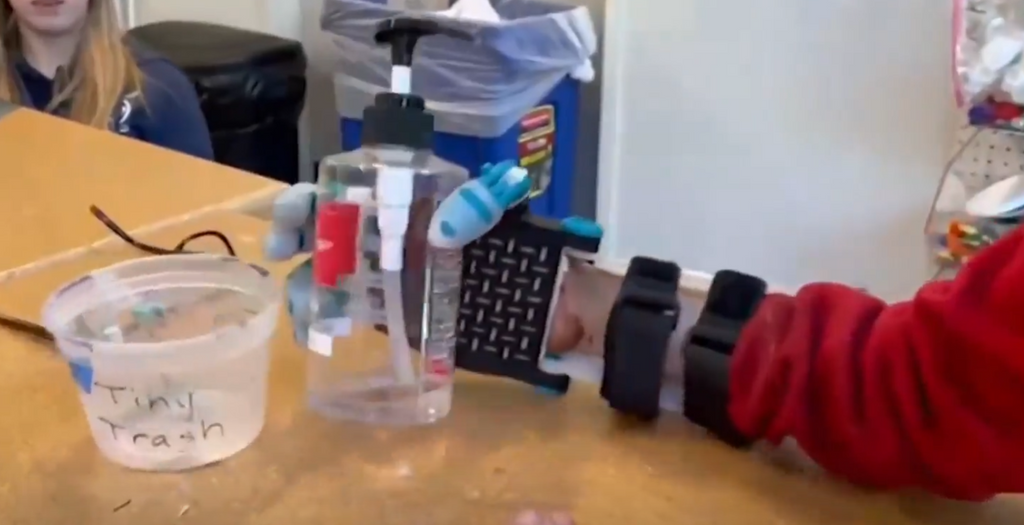

5. Almaden Country Day School (California) – Prosthetic Hand for Classmate
Read full story: Almaden
In 2021, eighth graders from San Jose, California's Almaden Country Day School undertook an incredible task: they were to construct a fully working 3D-printed hand for a fellow student. Students self-taught CAD software and tendon-driven prosthetic mechanics after coming across the open-source e-NABLE project. They used their classroom 3D printer for a few weeks to design and build a multi-part hand out of PLA and flexible filament. The last gadget demonstrated actual grasping capability by allowing the user to bend their wrists to open and close their fingers. A classmate's confidence and ability to take part in everyday activities were both boosted by the prosthetic, and the recipient was ecstatic.
Practical problem-solving, teamwork, and empathy were the project's guiding principles. Additionally, it rekindled students' passion for biological engineering, leading some to enrol in more rigorous STEM high school programs. The school recorded the trip, which served as an example of how middle schoolers can use maker tools and empathy to solve real-world problems.
Best 3D Design Software for Education
There are various 3D design software available for education, but we recommend using SelfCAD. It is an excellent choice for designing low-cost, personalized prosthetics because it combines powerful 3D modeling tools with an easy-to-use interface for students and teachers. Educators may easily create and print custom classroom resources like geometric shapes, molecular models, and braille alphabet tiles using the integrated slicer and cloud-based access.
No special software or expertise is required. Schools on a tight budget will find it particularly useful due to its low cost and integrated platform. Making 3D printing more approachable and effective in regular classrooms, SelfCAD enables instructors and students to learn through interactive tutorials.
Frequently Asked Questions
1. How do students start designing 3D-printed prosthetics?
Most students start by looking at open-source tools like e-NABLE or RoboHand. They learn to use CAD (computer-aided design), print in 3D, and understand how prosthetics work. They often get help from schools, universities, and mentors. A lot of people utilize slicing software and printers like Prusa, Ender 3, or Ultimaker to manufacture working parts.
2. Is it safe to utilize prostheses that have been 3D-printed?
Yes, if they are developed and tested correctly, prosthetics produced by students can be safe for mild movement or gripping. Teachers, biomedical engineers, or health experts are in charge of most projects. People generally think of these devices as "assistive" instead of medical-grade.
3. What do students use to make 3D-printed limbs?
PLA, ABS, or PETG filament is what most students use. They are light, cheap, and long-lasting. Some more advanced teams employ flexible TPU for grip or materials that are safe for skin contact.
4. How much do prostheses made with 3D printing cost?
Prices vary from $20 to $200 based on how complicated, big, and what materials are used. This is a lot less expensive than regular prosthetics, which can cost thousands of dollars. Many student clubs work with nonprofits to give these away for free to people who need them.
