Hard-Surface Modeling for Games: What You Need to Know
Hard-surface modeling for games is the discipline of building man-made, rigid objects – weapons, vehicles, architecture, armor – that run efficiently inside a real-time engine without sacrificing visual quality. It sits at the intersection of artistic skill and technical constraint, and it demands a different mindset than modeling for film or 3D printing. The polygon budgets are tight. The silhouettes need to read from 30 meters away. And everything has to survive a PBR shader under harsh in-game lighting.
Most 3D designers already understand the basics of mesh editing. The gap, more often than not, is in the pipeline logic – knowing which decisions to make, and when. This article walks through the core techniques that separate competent hard-surface work from genuinely game-ready assets.
Why Hard-Surface Is Its Own Discipline
There is a persistent myth that hard-surface modeling is simply "organic modeling, but easier." That is not accurate. Organic forms forgive messy topology because the eye reads flowing curves as natural. Hard surfaces do not forgive anything – a stray edge loop on a vehicle door panel will catch every lighting pass and break the illusion instantly.
Hard-surface objects are defined by intentional geometry. Every edge has a purpose: to hold a crease, define a panel line, or support a bevel. The moment a modeler adds geometry without a functional reason, performance drops and shading artifacts appear. This is why topology planning – thinking about edge flow before touching a single polygon – is the foundational skill.
"Topology is the grammar of 3D. You can have all the vocabulary in the world, but if your grammar breaks down, nobody understands what you built." – Ian Robinson, Senior Environment Artist, speaking at GDC 2023
The discipline also intersects directly with rendering budgets. A AAA game might allow 80,000 triangles for a hero weapon. An indie mobile title might cap an entire character at 6,000. Knowing how to achieve visual fidelity inside those constraints is a skill that takes deliberate practice to develop – and one that formal tuition in video game design at schools like Vancouver Film School addresses systematically, covering both the artistic and the technical sides of asset production.
The High-Poly / Low-Poly Workflow: Still the Industry Standard
Ask any veteran technical artist how game assets are built, and the answer will almost always start with a high-poly sculpt or model. This is not about showing the high-poly to anyone – the player will never see it. It exists entirely as a baking source.
Step 1 – Build the High-Poly Without Limits
At this stage, polygon count is irrelevant. The goal is accurate surface information: tight chamfers, clean panel gaps, small screw heads, surface wear. Tools like boolean operations, bevel modifiers, and subdivision surfaces are all valid here. The surface must be physically plausible – a metal panel should look like it was stamped from sheet metal, not drawn by hand.
Step 2 – Retopologize for the Engine
Retopology is the process of building a new, low-polygon mesh over the high-poly surface. The new mesh must:
- Respect the silhouette of the original at the intended camera distance
- Use quads wherever possible to ensure predictable deformation and subdivision
- Concentrate polygon density only where surface curvature requires it
- Maintain clean UV seam placement to minimize texture distortion

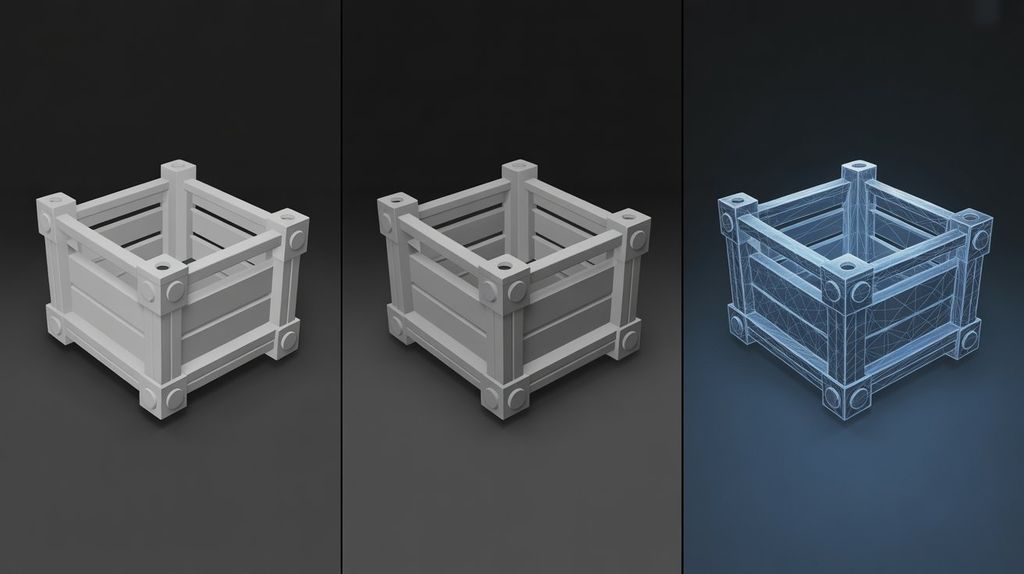

A common mistake is retopologizing by eye without a reference polygon count. Before starting, define the budget. A crate prop might warrant 200 triangles; a hero rifle might justify 8,000. Working backward from the budget forces intentional decisions rather than arbitrary ones.
Step 3 – Bake the Normal Map
Normal map baking is the process of projecting the surface detail from the high-poly onto a texture that the low-poly mesh reads at render time. It is the mechanism that allows a 500-triangle fuel drum to appear to have bolts, dents, and weld seams – without those details existing in the actual geometry.
The quality of a bake depends on two things: cage accuracy and ray distance. A poorly configured cage – the invisible mesh that controls bake projection distance – produces artifacts along silhouette edges that no amount of post-processing can fix cleanly. Getting this right requires patience and methodical testing, particularly on convex surfaces like armor plates or industrial machinery.
Edge Flow and the Hidden Logic of Clean Meshes
Edge loops control how light travels across a surface. On a hard-surface model, supporting edge loops – tight parallel edges placed near a crease – define how sharp or soft a transition appears under PBR lighting. Too far apart, and the edge catches light like putty. Too close together, and the mesh becomes artificially dense.
The industry benchmark is a 2–3 pixel bevel on most game assets. At typical render distances, this reads as a crisp physical edge without inflating polygon counts. Wider bevels are appropriate for larger, slower-reading geometry – the corner of a shipping container, for instance – while narrower bevels suit precision machined parts like firearm components or sci-fi armor clasps.
Triangles (tris) are not inherently bad in game assets – engines convert everything to triangles at runtime anyway. What matters is where tris appear. An isolated tri in a flat area causes no issues. A tri placed at a crease or a curved surface creates a pinch that no normal map can hide. The practical rule: allow tris in flat or convex areas, eliminate them from any geometry that will be seen under grazing light.
LOD Strategy: Building Assets That Scale
Level of Detail (LOD) is one of the least glamorous parts of hard-surface work and one of the most important. A single game asset typically ships with three to five LOD stages – progressively simplified meshes that the engine swaps based on camera distance.

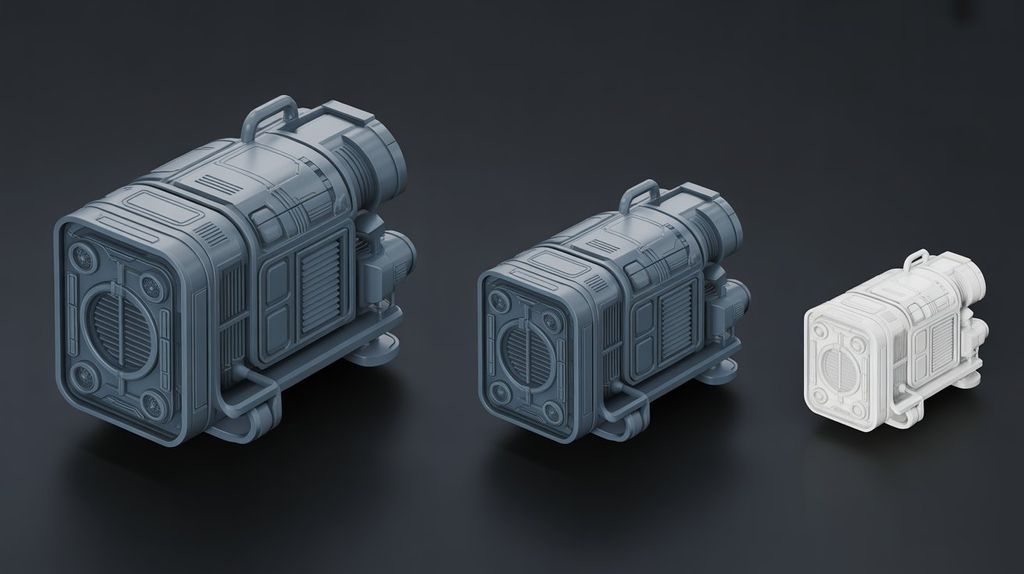

Effective LOD strategy is not just about removing polygons. It is about preserving the visual read of the object at each distance. Consider a detailed industrial generator:
- LOD0 (hero view, 0–8 meters): Full detail, all edge loops, complete UV layout, full texture set
- LOD1 (mid distance, 8–20 meters): Simplified panels, merged small components, reduced normal map detail
- LOD2 (far, 20–50 meters): Silhouette-only geometry, single merged mesh, possibly an impostor billboard beyond this range
The transition distances vary by engine and platform. Mobile games use aggressive LOD switching because GPU bandwidth is constrained. PC and console titles can afford softer transitions. Regardless of platform, the habit of building with LOD in mind from the beginning – rather than retrofitting it at the end – saves substantial rework time.
Automated LOD generation tools have improved significantly in recent years. Unreal Engine's Nanite system, for example, handles micro-polygon geometry with a different paradigm entirely. But automated systems still struggle with hard-surface assets that have intentional panel lines and defined silhouettes – those still benefit from hand-crafted LODs in most production pipelines.
Texture Density and UV Discipline
Hard-surface assets fail in two ways texturally: blurry surfaces that look like they belong to a different decade, and inconsistent texel density that makes assets look mismatched when placed together in a scene.
Texel density – the number of texture pixels per unit of surface area – must be standardized across a project. A common industry standard for mid-range game production is 512 pixels per meter for hero objects and 256 pixels per meter for background assets. Establishing this early and enforcing it throughout production avoids the jarring visual inconsistencies that plague otherwise technically solid game environments.
UV layout discipline compounds this. Shells with similar surface characteristics – flat panels, curved pipes, cylindrical objects – should share texture space efficiently. Overlapping UVs are acceptable for symmetric objects where both sides share identical surface treatment, but must be documented clearly so the baking step handles them correctly.
Sharpening the Craft: Self-Teaching vs. Structured Learning
Self-directed learning has produced exceptional hard-surface artists – there is no disputing that. The internet offers a remarkable volume of free tutorials, breakdowns, and critique. But there is a structural gap that self-teaching rarely closes on its own: understanding how individual skills connect into a professional pipeline.
A modeler who learns topology, baking, and LOD as separate topics often struggles to make decisions under production conditions – when a lead artist sets a polygon budget and a deadline simultaneously. Pipeline thinking, asset management, and iteration under constraint are skills developed through structured feedback and real project pressure.
This is the argument for complementing self-taught skills with formal study. Studios that review portfolios are often less interested in raw technical ability than in evidence of pipeline awareness – can this person deliver assets that integrate cleanly into an existing production? Structured programs address this by simulating production conditions, teaching version control, and building the professional vocabulary that accelerates team collaboration.
Having looked at hard surface modeling for games, it's also important to have a look at the best 3D modeling software that you can use to create your 3D models and even prepare them for 3D rendering. There are many that are available, but we recommend using SelfCAD.
It's an easy to use program that comes with all the necessary tools that one needs to create both simple and complex 3D models. It also comes with a 3D rendering software that you can use to render your 3D models.
Conclusion
Hard-surface modeling for games is a discipline where craft and engineering overlap completely. A beautiful mesh that destroys frame rate is as problematic as an efficient mesh with broken shading. The techniques covered here – high-to-low baking, clean retopology, intentional LOD strategy, and consistent texture density – are the framework that holds everything together.
The artists who advance fastest are those who build habits, not just skills. Defining polygon budgets before modeling. Testing bakes at every step rather than at the end. Checking LOD transitions in-engine rather than in the modeling viewport. These habits compress feedback loops and make every subsequent project faster.
Hard-surface work rewards patience and precision. The geometry that looks effortless in a shipping game is almost always the result of careful planning, multiple revision passes, and an honest understanding of the technical constraints involved. That understanding is worth investing in – whether through dedicated practice, peer critique, or structured study.
