From Text to 3D Print: Using SelfCAD AI Features to Create a Custom Tooth Brush Holder
To create a 3D model, you have to first understand shapes, dimensions, transformations, and other modeling techniques. Even a basic everyday product can require several manual processes for beginners before the final design takes shape. An alternate method is provided by SelfCAD AI Modeling, which lets users describe an object in natural language and uses AI to produce its basic geometry.
Using a text prompt, we will make a customized toothbrush holder in this guide. The project will show the entire process, from launching the AI modeling program and crafting a compelling prompt to creating, modifying, and getting the model ready for 3D printing. SelfCAD's AI features allow users to modify the created design using traditional 3D modeling tools, but they also make the initial modeling process more approachable.
Steps of Creating the Custom Tooth Brush Holder With SelfCAD AI Modeling
Step 1: Launch the SelfCAD Editor

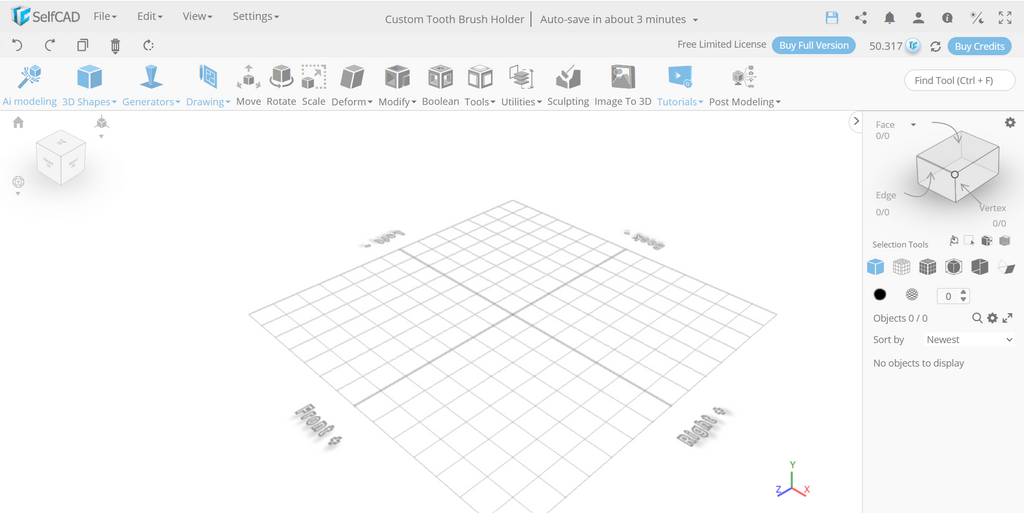

Start by launching the SelfCAD Editor and creating a new project.
For this project, we will use the AI Modeling feature to generate the main geometry of the custom toothbrush holder before making any additional refinements or adjustments.
Step 2: Open AI Modeling

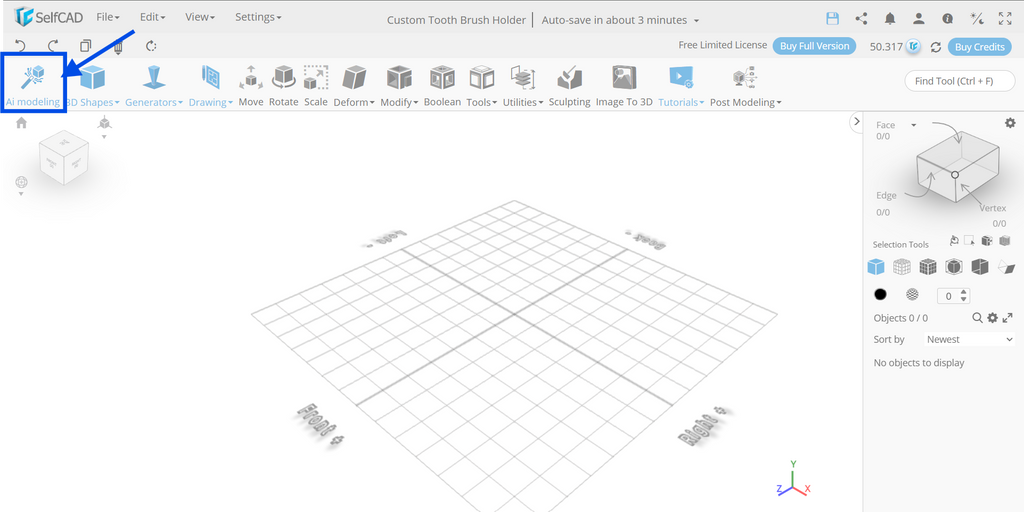

To use the AI-powered modeling tool, choose AI Modeling within the SelfCAD Editor. You can use a text prompt in the AI Modeling interface to clearly express your design specifications. SelfCAD offers different AI generation methods depending on the type of product you want to create.
Instead of creating an organic or decorative object, we want to design a practical toothbrush holder with a clear and functional structure. The design should include a stable base, multiple toothbrush slots, sufficient spacing between the slots, and drainage openings to allow excess water to escape. The holder should also have smooth, rounded edges and appropriate dimensions to keep the toothbrushes securely positioned while making them easy to remove and use.
Step 3: Choose the Correct Creation Mode

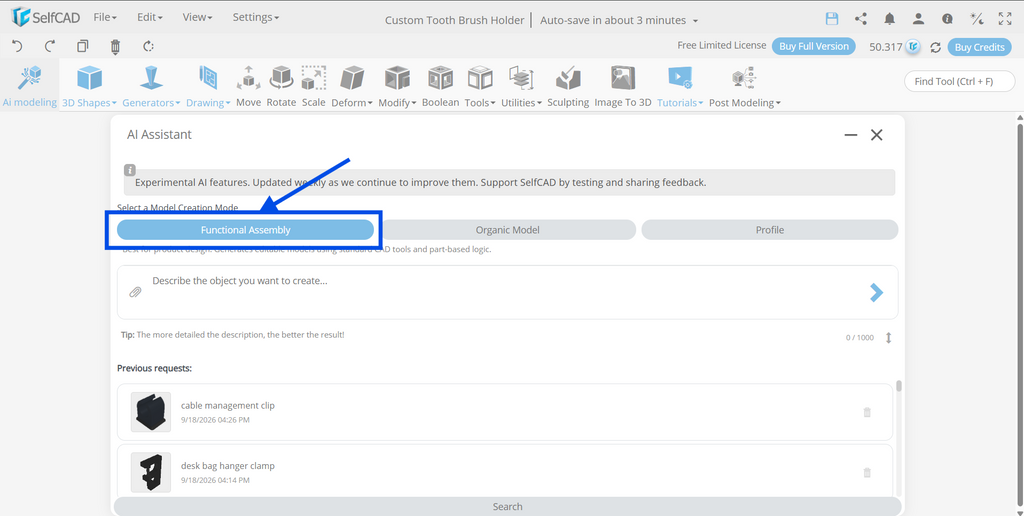

Choose a Functional Assembly for the toothbrush holder.
A toothbrush holder is made up of several parts that function as a single unit. These could comprise the base, drainage apertures, toothbrush slots, and the main holder body.
The Functional Assembly method works well because each part has a distinct function. The drainage openings help avoid water from building up inside the holder, the slots keep toothbrushes arranged, and the main body provides support.
Step 4: Add a Reference Image
Adding a reference image is entirely optional and not necessary.
To help the AI assistant better understand your desired shape, style, structure, or general appearance, you can include a reference image.
However, the written prompt remains the most important feature. The AI assistant should be able to comprehend and generate the tooth brush holder mostly from your description, even in the absence of a reference image.

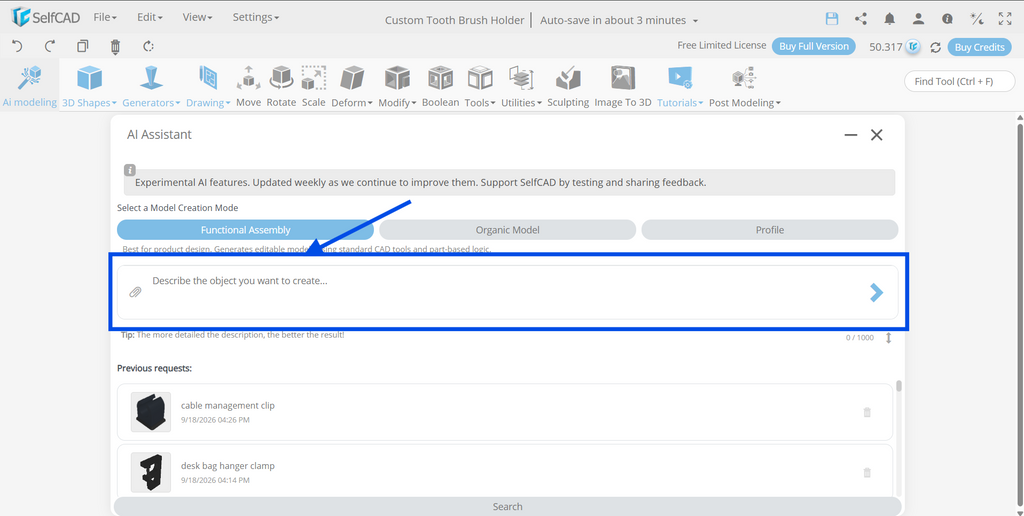

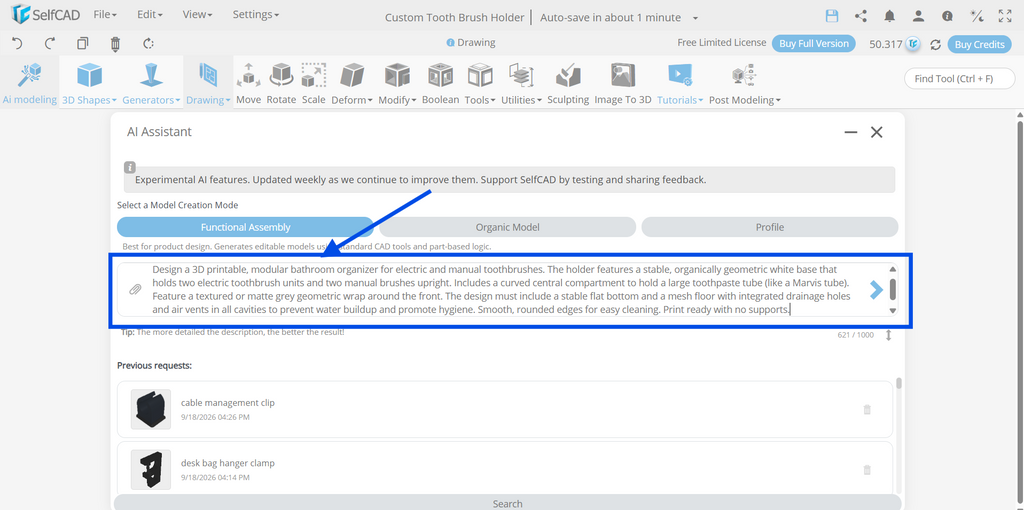

Step 5: Write a Prompt for AI Modeling
Now describe the toothbrush holder that you wish to have created with SelfCAD. A thorough prompt is very valuable because it informs the AI about the object's purpose, dimensions, components, shape, toothbrush slots, drainage openings, stability, and overall orientation.
For example, you can use the following prompt:
Design a 3D printable, modular bathroom organizer for electric and manual toothbrushes. The holder features a stable, organically geometric white base that holds two electric toothbrush units and two manual brushes upright. Includes a curved central compartment to hold a large toothpaste tube (like a Marvis tube). Feature a textured or matte grey geometric wrap around the front. The design must include a stable flat bottom and a mesh floor with integrated drainage holes and air vents in all cavities to prevent water buildup and promote hygiene. Smooth, rounded edges for easy cleaning. Print ready with no support.
This systematic description gives AI a better understanding of the desired object and lays a solid foundation for model generation.
Step 6: Generate the Model

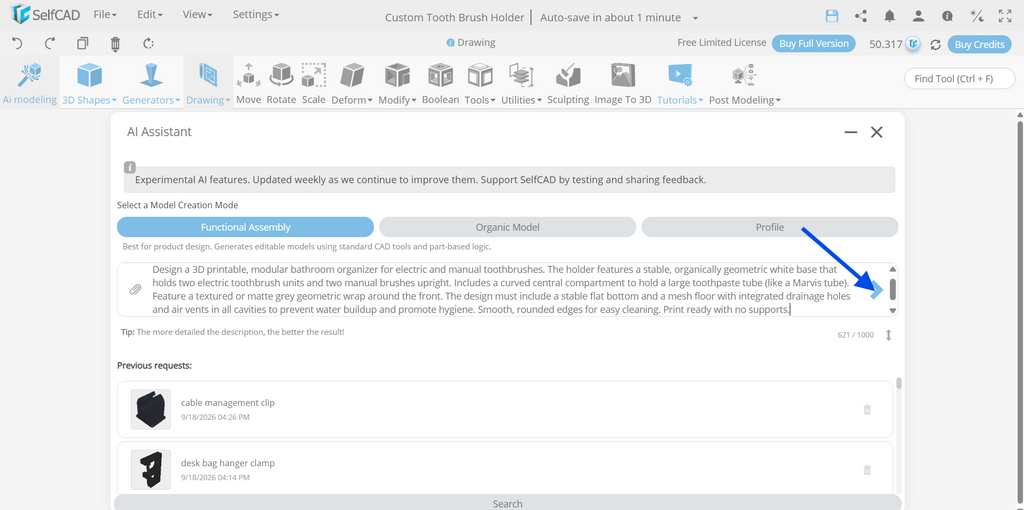

Once you've entered the prompt and attached the reference image(not a must), click Generate:

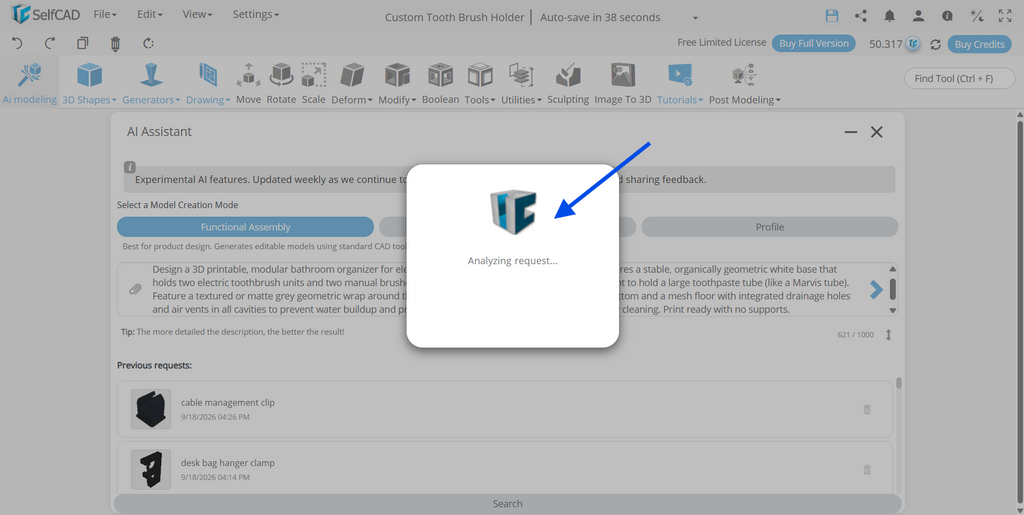

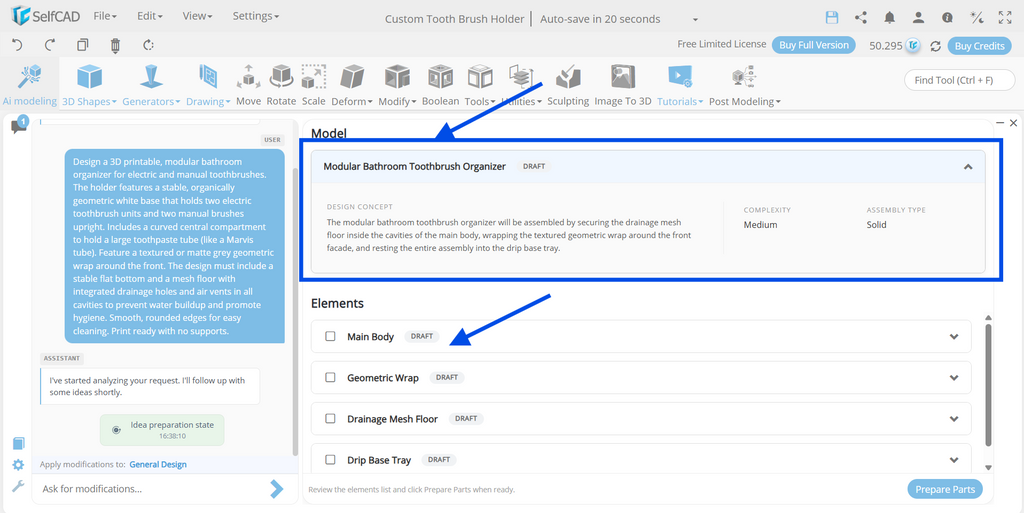

Here you can see SelfCAD AI analyzing the request and identifying the key elements needed to create the toothbrush holder.
This is where AI-assisted modeling and conventional manual modeling diverge. AI creates the first geometry based on your design description, saving you the effort of manually creating and modifying the fundamental shapes.
The AI assistant will create the initial concept and draft of the toothbrush holder, including the main holder body, stable base, toothbrush slots, drainage openings, and other practical features described in the prompt. You can then review the generated model in the SelfCAD Editor, make adjustments, and customize the design to meet your specific requirements.
Step 7: Prepare the Parts

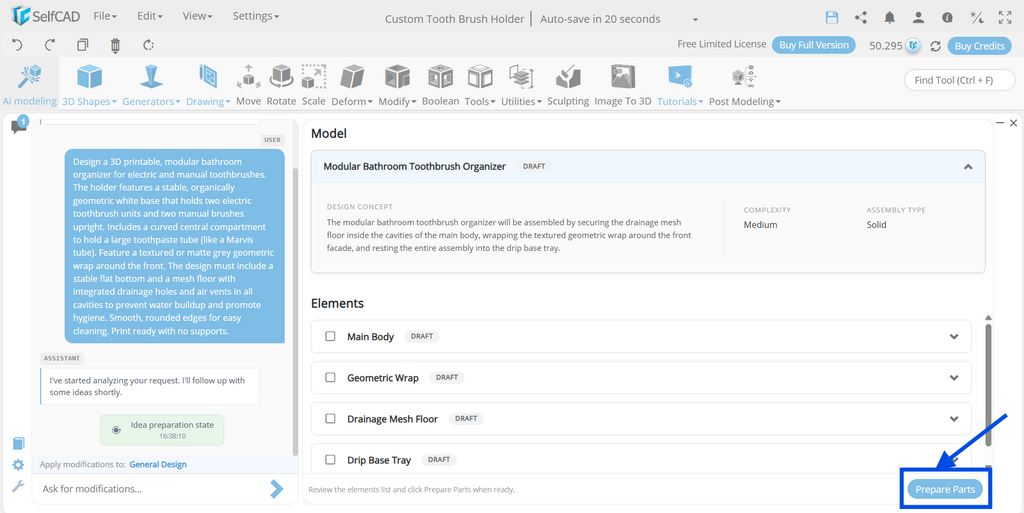

When the draft looks good, click on Prepare Parts.

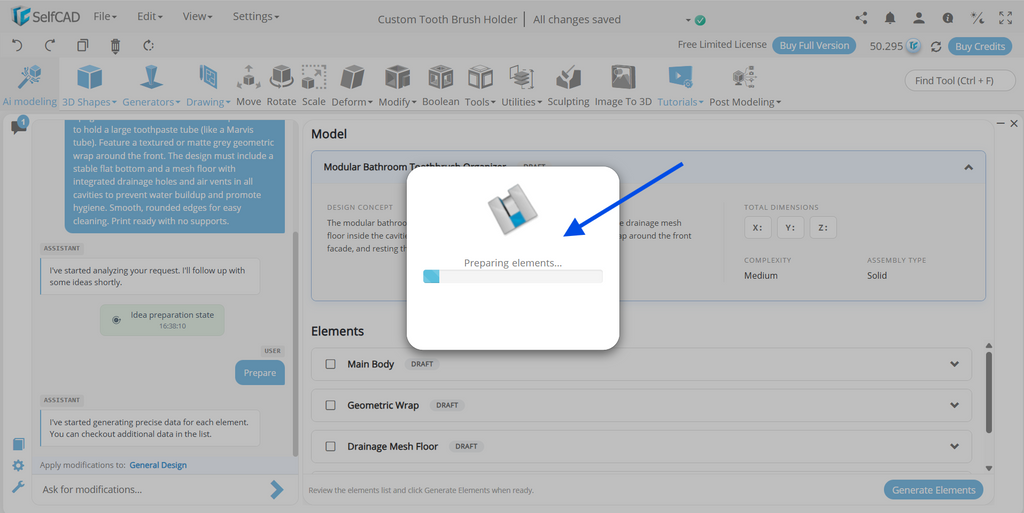

You can now see the tool is preparing elements:

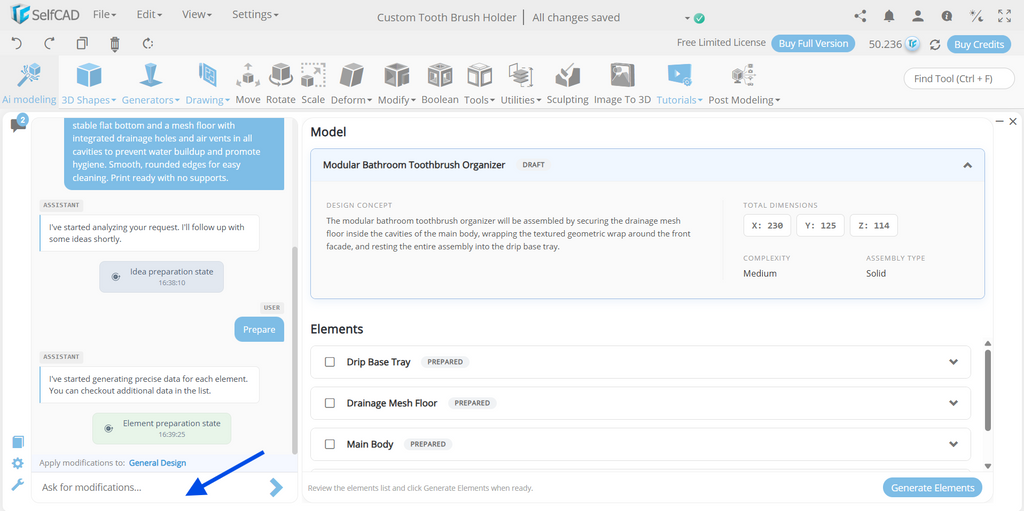

Ask for Modification:
When everything is prepared, you can use AI to further improve your toothbrush holder. Give the AI precise instructions if you need to alter an element's size, shape, position, spacing, or any other feature.
The AI will perform the requested changes depending on your specifications, allowing you to effortlessly adjust the holder body, toothbrush slots, base, drainage apertures, and other components until the design satisfies your requirements, as illustrated in the image above.
Step 8: Generate Elements

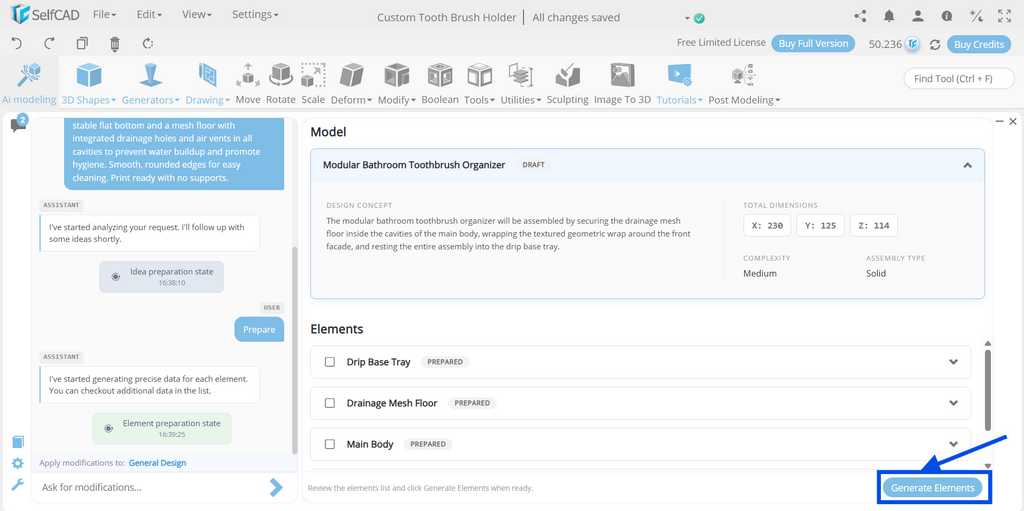

Click Generate Elements:

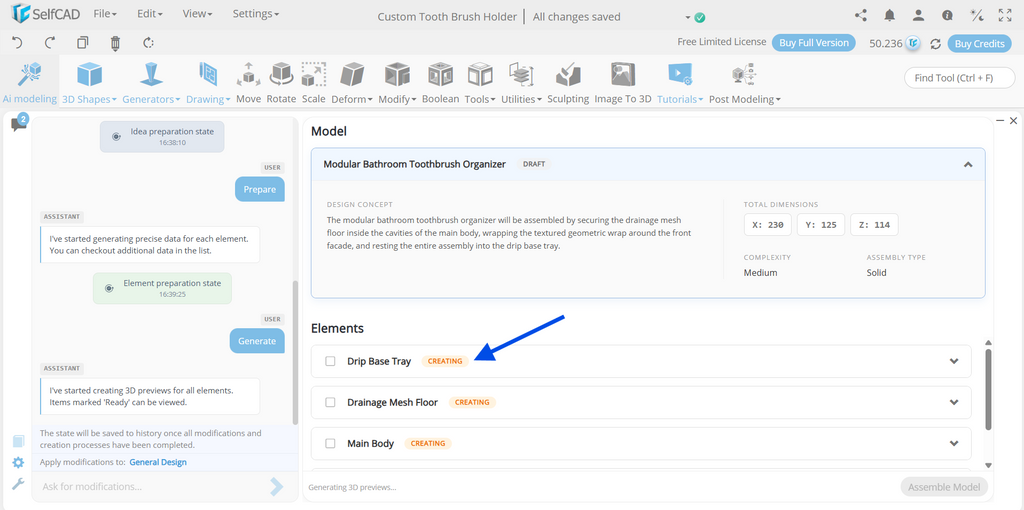

The tool will indicate that it is Creating the elements:
Step 9: Assemble Model

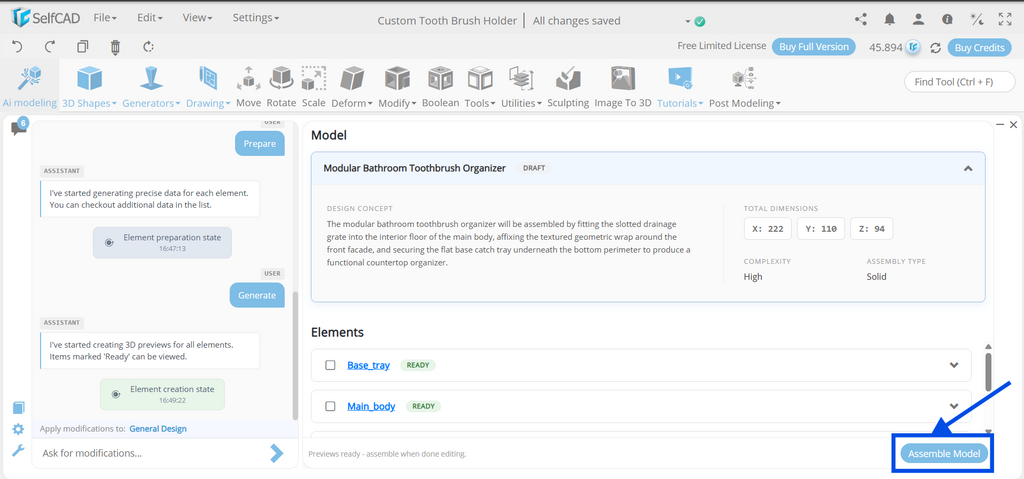

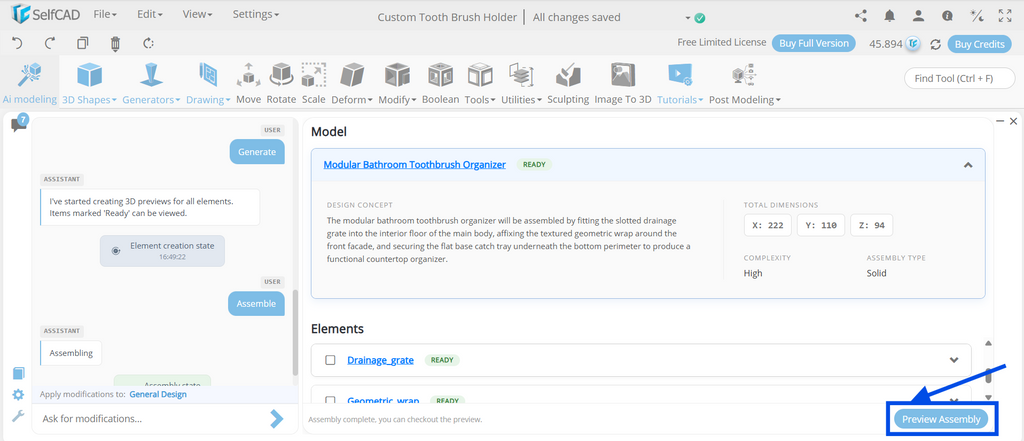

Once the elements are ready, click Assemble Model:
The completed toothbrush holder construction is assembled from the produced elements during the assembly stage.
The toothbrush slots should be placed vertically on the upper portion of the holder, and the base should offer a sturdy basis. The drainage openings should be located at the bottom to allow excess water to escape. Examine the built model from various perspectives to verify the connections between each of its parts.
Before moving on to the usual SelfCAD workspace, this evaluation helps detect difficulties with positioning, proportions, stability, spacing, and connections.

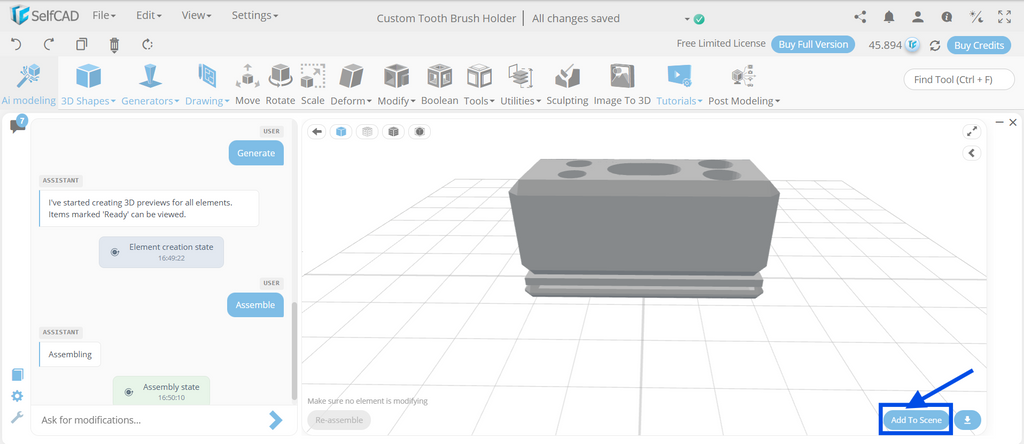

Step 10: Add the Tooth Brush Holder to the Scene
Once you're satisfied with the outcome, add the toothbrush holder to the SelfCAD scene. At this stage, you can use the standard modeling tools in your standard SelfCAD workspace to continue modifying the AI-generated holder.
The workflow does not have to stop with AI modeling, which makes this change crucial. SelfCAD's conventional tools allow you more control over the final design, while AI may supply the initial geometry. For instance, you can modify the holder's size, position, orientation, and specific features using tools like Scale, Move, Rotate, and Stitch & Scoop.

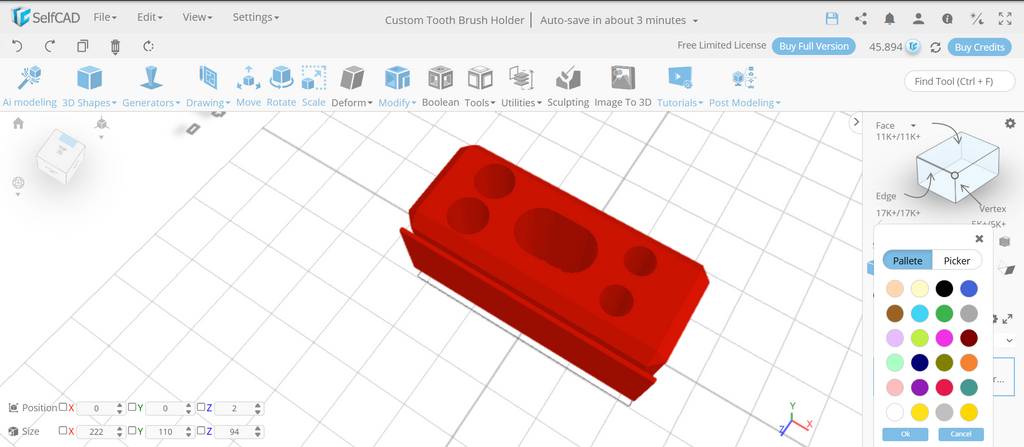

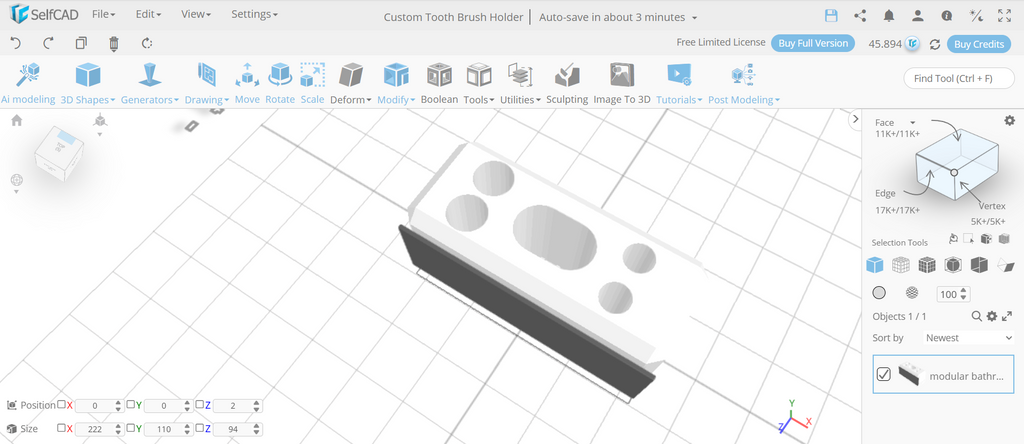

The resulting model looks like this:
The model is now ready:
You can also change the colour and texture as per your requirement.
Understanding the AI Workflow:
The toothbrush holder serves as an example of a simple and reliable technique for AI-assisted 3D modeling:
AI Modeling → Describe → Reference → Ask for Modification → Generate → Review → Modify → Final Model
Describe the holder's function, shape, size, base, drainage apertures, number of toothbrush slots, and other key design elements first. SelfCAD AI can more easily understand your needs with a clear prompt.
If you have a reference image, you can provide it to communicate the desired appearance, proportions, or structure. However, a reference is optional.
SelfCAD AI generates the initial 3D geometry according to your directions during the Generate step. After that, you can thoroughly inspect the model to verify its dimensions, slot location, stability, drainage, and general structure.
If necessary, alter the design using AI or the conventional modeling tools in SelfCAD. Finally, modify the model's edges, spacing, connections, and proportions to improve its functionality, attractiveness, durability, and appropriateness for 3D printing.
Conclusion
Using SelfCAD AI Modeling to make a toothbrush holder exemplifies how AI may help with the early stages of 3D design. Rather than constructing the base, holder body, toothbrush slots, and drainage apertures by hand, you can describe the device, include a reference image if necessary, and allow AI to create an initial model.
The capacity to improve and iterate is the true benefit. You can give further directions and make the design better if the first result has small slots, an unstable base, thick walls, inadequate drainage, or improper proportions.
After the AI-generated model is finished, you can continue using conventional 3D modeling tools by bringing it into the SelfCAD workspace. To get the desired effect, you can change the size, shape, spacing, edges, and other elements. As a result, SelfCAD AI Modeling becomes a component of an interactive design process that keeps you in charge while assisting in turning your concept into a useful and functional toothbrush holder.
