Direct Drive vs. Bowden Extruders: What Teachers Should Know
Assuming the printer meets all of your requirements, 3D printing in the classroom has the potential to be a fantastic tool for encouraging student innovation and practical application of classroom concepts. Educators often have the challenge of choosing between the two most prevalent extruder configurations: direct drive and Bowden. Pick the wrong one, and instead of motivating pupils, you can find yourself dealing with blocked nozzles, unsuccessful prints, and irate students. Guess what? You may avoid wasting time, energy, and resources by learning the differences between the two systems and deciding which one is ideal for a school setting. To help you confidently choose one for your classroom, we will compare and contrast each option in this guide.

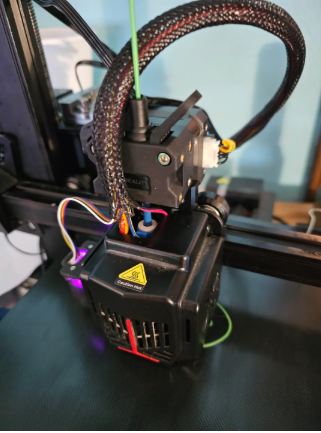

What Is a Direct Drive Extruder?
The printhead, right adjacent to the hotend, houses the extruder motor in a Direct Drive system. By establishing a brief and straight route for the filament to traverse from the driving gears to the nozzle, this configuration permits exact regulation of extrusion and retraction.
Advantages of Direct Drive
Because of its short travel distance, Direct Drive provides better filament control. This leads to faster retraction and smoother, more accurate extrusion, which drastically decreases problems like leaking and stringing.
The low friction, stability, and short feed path make it ideal for working with composite filaments, as well as flexible and abrasive filaments. Furthermore, smaller stepper motors are possible because of the decreased motor torque required by the shorter filament path.
Disadvantages of Direct Drive
On the other hand, mechanical inertia could cause print speeds to decrease and vibrations to increase when the printhead's mass grows with the extra weight of the motor. The tight arrangement surrounding the hotend makes access less convenient, which can make maintenance more complex.
What Is a Bowden Extruder?
Separate from the hotend, the Bowden system mounts the extruder motor on the printer's frame. The extruder feeds filament into the hotend via a Bowden tube, a flexible PTFE tube.
Advantages of Bowden
With this setup, the printhead is much lighter, which means it can travel more quickly and smoothly along the X and Y axes. Prints are clearer and more polished at faster speeds thanks to the reduced inertia. There is less nozzle obstruction and easier maintenance due to the extruder being reachable from the carriage, which is another practical advantage.
Disadvantages of Bowden
The main drawback is that the filament has to go through a long, flexible tube, which makes retractions more difficult, increases friction, and slows down the extrusion reaction. This exacerbates the stringing issue and reduces performance when using abrasive or flexible filaments. Increasing the motor's torque and fine-tuning the retraction parameters are necessary to resolve these issues.
Feature-by-Feature Comparison for Classroom 3D Printing
1. Filament Control in a Learning Environment
Direct Drive
Reliability is more important than speed when it comes to schoolwork. This is where direct drive extruders shine; the shorter filament path enables more accurate extrusion and retraction, which in turn reduces the likelihood of print surprises. The reliability of a direct drive helps reassure novice printer users that their parts will come out clean, even when printing complex designs with complex curves.
Bowden Extruder
Bowden setups, with their longer PTFE tubes, are more difficult to work with, particularly for students who struggle with printer calibration or who frequently switch filaments. In a classroom with limited print windows, this can lead to more trial-and-error, which can be both educational and time-consuming.
2. Print Speed vs. Print Success Rate
Bowden Extruder
When dealing with a backlog of student projects, the idea of using a Bowden system—which is lighter and faster—may sound intriguing. On the other hand, slower speeds aren't always better in a school setting, particularly when a botched print goes unnoticed for hours.
Direct Drive
While direct drive systems do have a slightly slower speed requirement, they are more versatile and can handle a wider range of materials and tasks. Teaching the basics of 3D printing can emphasise the importance of reliability over raw speed.
3. Material Flexibility for Student Projects
Direct Drive
From solid PLA for structural models to flexible TPU for robotics grips and PETG for more durable applications, school projects can be somewhat unpredictable. With direct drive extruders, flexible filaments are much easier to work with, allowing students to explore additional possibilities without worrying about extra technical challenges.
Bowden Extruder
Bowden setups are great for PLA and other conventional filaments, which is great if you only intend to print with a couple of materials. However, without careful tuning of the settings, they might not be able to handle flexible or specialty filaments.
4. Maintenance and Supervision
Bowden Extruder
The stationary motor of a Bowden extruder makes it simpler to access the printer for maintenance and may lessen the strain on its moving components. When numerous classes use the same printer, this becomes helpful. But you'll have to change the PTFE tubes every so often and tweak them more for specific filaments.
Direct Drive
While direct drive systems reduce filament-path difficulties, they can be more challenging for younger students to handle during filament changes due to the extruder's direct mounting on the printhead. The key to ensuring the printer runs well throughout numerous courses is to have clear, teacher-led maintenance processes in both scenarios.
5. Fit with Classroom Printer Designs
Direct Drive
You should also consider the printers in your classroom when making this decision. Strong printers, such as CoreXY or well-constructed Cartesian models, are adaptable for a range of tasks because they can manage the additional weight of a direct drive without compromising performance.
Bowden Extruder
Bowden systems may be useful for lighter or cantilevered printers, which are common in school budgets, because they reduce the load on the printer's frame and motion components. Reduce the likelihood of printer failures during the semester by matching the extruder type with the printer's build quality.
Real-World Voices
Community reviews and user stories provide light on the pros and cons of direct drive and Bowden extruders beyond the technical specifications. When it comes to models that require repeated retractions, many makers, both amateur and professional, find that direct drive setups yield cleaner prints and are more reliable with flexible filaments.
In comparison to Bowden systems, they find that dialling in settings is frequently quicker and less annoying, particularly for newbies. Bowden fans, on the other hand, rejoice about the lower moving mass and higher travel rates, claiming that printing with stiff materials like PETG and PLA results in shorter print times and smoother surface finishes.
Although direct drive is slightly slower than Bowden, several users have noted an improvement in extrusion consistency after making the transition. Some have gone the other way, claiming that they need printers that can handle high-speed manufacturing runs and lighter carriages as their reasons. The "better" option frequently hinges on the printer's frame stiffness, the most popular filament kinds, and the user's tuning and maintenance tolerance, according to postings on sites like r/3Dprinting on Reddit and the Prusa Knowledge Base. Some producers, even those who have been in the industry for a while, have both sets on hand and switch between them as needed.
Best 3D Design Software for Education
3D modeling software is essential for hands-on 3D printing projects in STEM classrooms because it helps students turn creative ideas into real-world designs while building critical thinking and problem-solving skills. Among the many 3D design programs available, SelfCAD stands out as the best option for educational purposes. It combines modeling, sculpting, and slicing in one easy-to-use interface that eliminates the need for students to switch between programs.
Designed with students and educators in mind, it offers step-by-step tutorials, customizable lesson plans, cloud saving, and simple sharing.
Selecting the Configuration That Simplifies Teaching
Direct Drive has unparalleled material flexibility and precision, but it's heavier and more complicated to maintain. Bowden systems have better potential speeds and less maintenance requirements, but they are less flexible when it comes to filaments and require fine tweaking. Consider your material requirements, desired print speed, and printer specifications before making a final decision. Also, you can get the most out of both worlds by looking into hybrid solutions, such as remote drive. Do not hesitate to inform us if you would like advice on adjustments, tuning, or hybrid extruder configurations.
