Diagnosing and Fixing Filament Grinding and Slipping in Educational Printers

Educational 3D printers sometimes experience problems with filament slippage and grinding. These issues may annoy both students and teachers, as well as waste materials and interrupt ongoing classroom initiatives. For printing processes to run smoothly, it is crucial to understand the causes and solutions. If you're having trouble identifying or fixing these problems, our tutorial has you covered.

Being Aware of the Grinding and Slipping of Filament

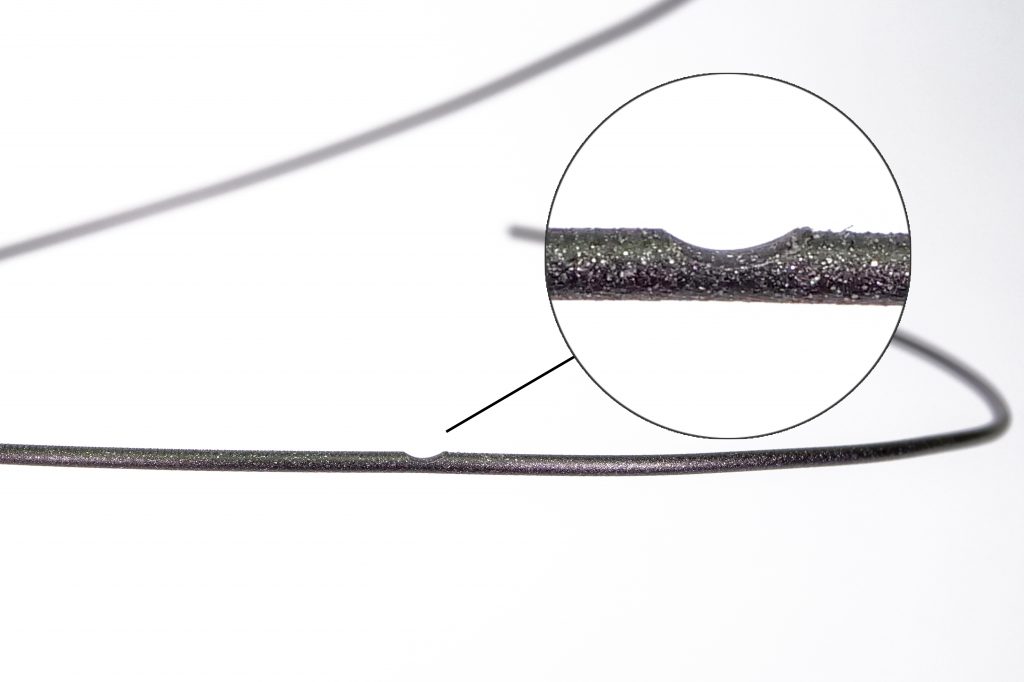

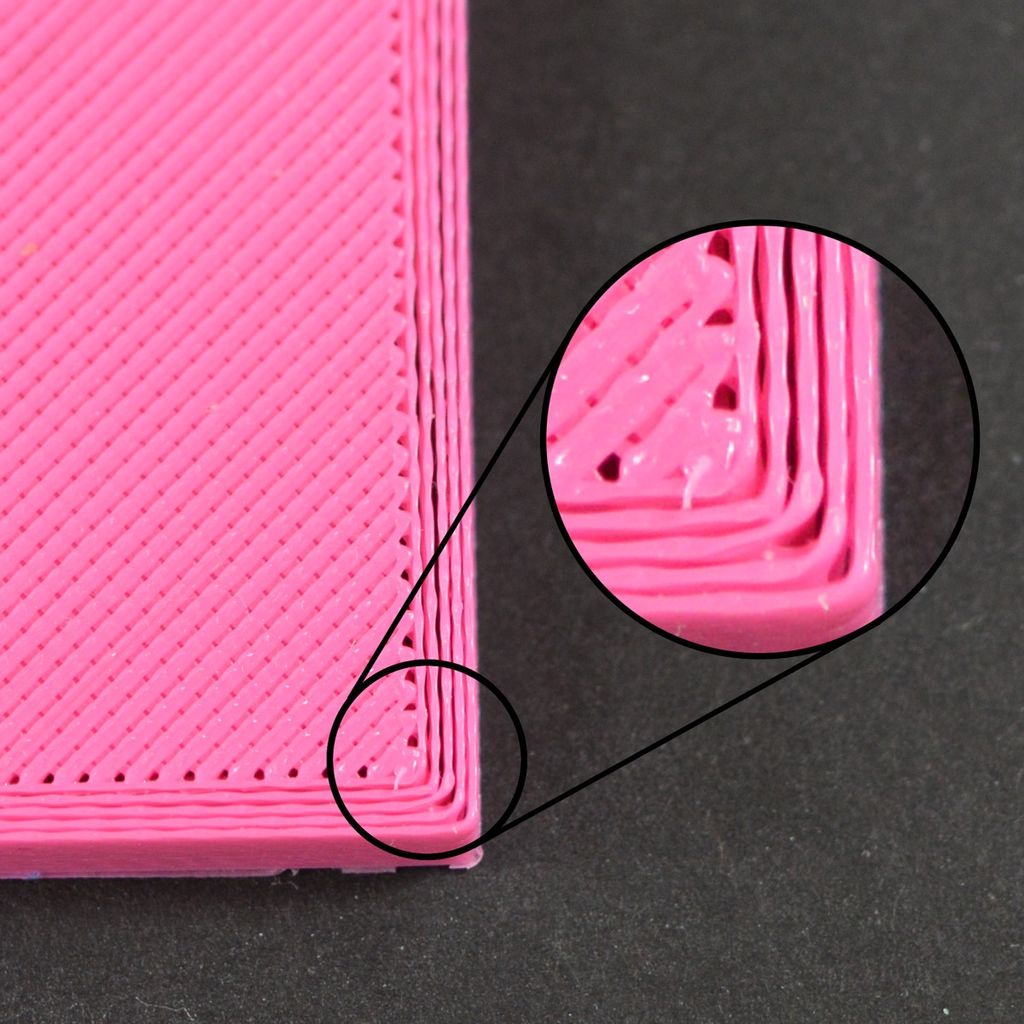

Grinding of the filament happens when the extruder gear pulls material off the filament rather than pushing it forward. This occurs when the gear turns but the filament won't move, usually because of resistance in the hotend or an extruder tension issue. Inconsistent extrusion results from slippage, which occurs when the gear completely loses grip. Problems with under-extrusion and wasted filament result from both of these difficulties.

Regular use of printers in schools causes them to wear out faster. Another possible cause of these issues is that students will inadvertently alter the settings. You can avoid permanent damage by learning to recognize the signs early, including clicking noises, shredded filament, or uneven extrusion.

Reasons Why Filament Slips and Grinds

1. Problems With Extruder Tension

Gear crushing of the filament makes it harder to push through, which happens when the extruder tension is overly tight. Gear won't hold well and slip if it's too slack. You can control the tension on many extruders using a screw or spring. To lessen grinding, loosen it slightly; to alleviate sliding, tighten it.

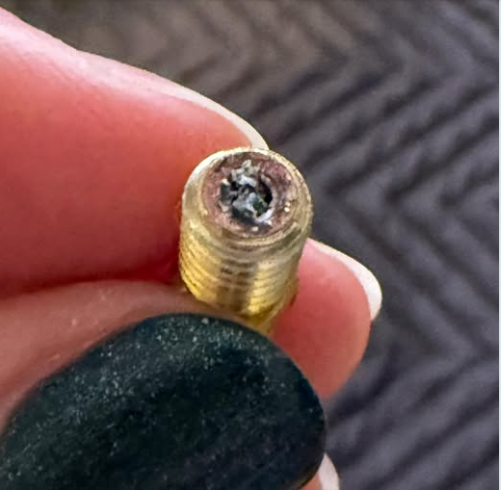

2. Blocked Nozzles

When the nozzle becomes clogged, the extruder encounters resistance and grinds the filament rather than pushing it through. Dust, deteriorating filament, or remnants of earlier printing can cause clogs. It is less likely to happen if you use high-quality filament and clean your tools regularly.

3. Mistaken Retraction Settings

The extruder may grind the same segment of filament too many times if the retraction distance or speed is too high. It is important to verify retraction values on school printers, as different users can change them. Minimizing the distance and speed of retraction can be beneficial.

4. Low Printing Temperature

Inadequate heat from the hotend causes the filament to melt unevenly, leading to higher resistance. Usually, the optimal printing temperature for PLA is between 190 and 220°C. Raising the temperature by 5 to 10°C might enhance flow while decreasing grinding.

5. Printing Too Fast

The extruder motor spins faster at high print rates, which increases friction and heat. The filament may become pliable before it reaches the nozzle, leading to blockages. If you're experiencing grinding problems, try reducing the speed by 30-50%.

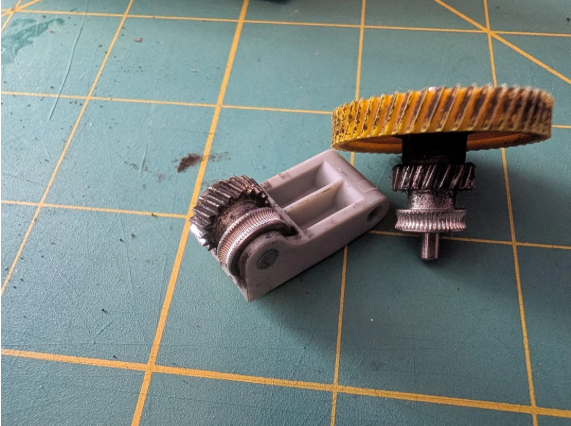

6. Worn or Dirty Extruder Gears

Over time, gears become less grippable due to the accumulation of dust and filament debris. To maintain uniform feeding, clean the gears with a brush and inspect them for wear. If the situation gets really bad, you might have to use a metal extruder.

Step-by-Step Troubleshooting Guide

1. Inspect the Filament

Take the filament out and look for flattening or deep tooth marks. Remove the broken part and reload if necessary. Unwinding the filament spool too quickly can cause grinding due to strain.

2. Fine-Tune the Extruder's Tension

To test extrusion, loosen the tension screw on the extruder just a bit. If the filament slips when feeding, tighten it little by little until it feeds smoothly without grinding. To fine-tune the tension screws, use a precision screwdriver set.

3. Verify That Nozzles Are Clear

Pull filament through the heated nozzle by hand. If you encounter significant resistance, try using a cold pull or a nozzle cleaning needle. Take the hotend apart and give it a good cleaning if the blockage persists.

For this process, you may use:

• Needles for acupuncture or cleaning the nozzles to remove obstructions.
• Atomic pulls with cold-pull filament (like nylon or cleaning filament, for instance).
• Brushes made of brass wire for removing debris from outside of nozzles.

4. Fine-Tune the Retraction Parameters

Cut down on the slicer's retraction speed and distance. The standard range for Bowden installations is 5-7mm, while direct drive requires only 1-3mm. Evaluate using a print that calibrates retraction.

5. Raise the Temperature of the Hotend

If grinding happens in the middle of the print, increase the temperature by 5°C increments. To avoid heat creep, don't let the filament get hotter than it can go.

6. Lower Print Speed

For smaller, more intricate prints, lower the slicer's speed settings. Typically, educational printers may safely operate at speeds ranging from 40 to 60 mm/s.

7. Clean and Maintain the Extruder

Take the cover off the extruder and use a brush to clean the gears. If you notice any worn teeth, it may be time to replace the gear. Coat any moving components with lubricant.

Preventive Measures for Educational Settings

• Regular Maintenance

Make it a habit to inspect the nozzle for obstructions, clean the gears, and adjust the tension once a week. This lessens the likelihood of unforeseen setbacks in class assignments.

• Make Slicer Profiles Consistent

Make retraction, temperature, and speed optimized slicer profiles. Students are unable to use the wrong setups because of this.

• Make Use of Premium Filament

Plugging is more likely with low-quality or wet filament. Use trusted filament brands and keep it in a dry place to get consistent prints.

• Train Users on Proper Handling

Instruct pupils on proper filament loading, identifying grinding noises, and performing basic troubleshooting procedures. This prolongs the printer's life and prevents overuse.

When Should You Get a New Extruder?

A dual-gear or BMG extruder may be worth considering if grinding continues after debugging. These are perfect for classrooms that get a lot of use because they are long-lasting and offer a stronger grip.
