Cura Retraction Settings: Improve Print Quality
Stringing, or the appearance of fine, web-like filament strands between printed components, is a common and annoying problem for 3D printing enthusiasts. These flaws might detract from the usefulness and beauty of your prints. The good news is that this issue has a robust solution in the Cura retraction settings. Learn more about the retraction, its significance, and how to tweak your Cura settings for picture-perfect prints in this detailed article.
What is Retraction in 3D Printing?
Fused Deposition Modelling (FDM) 3D printing relies heavily on the retract function. In order to avoid oozing and stringing, it is necessary to slightly retract the filament during movements that do not involve printing. Melted filament can still leak out of the nozzle even when the print head travels to a different region of the model without extruding material. To prevent this, retracting the nozzle lowers the pressure, which prevents the deposition of any extra material during the trip moves.
Materials with a tendency to string, such as PETG and TPU, really benefit from this procedure. You might have to spend a lot of time post-processing to remove ugly threads or blobs if you don't use the right retraction parameters.
Why Retraction Settings Matter?
The beauty of your prints isn't the only thing that retraction settings affect. Stringing, lumps, and nozzle blockages are all possible outcomes of improper retraction settings. The opposite is true with well-calibrated retraction, which guarantees waste-free, expert-looking prints.
Too little retraction distance, for instance, can lead to filament oozing since it won't pull back far enough. On the other hand, if you retract the filament too far, it could cause under-extrusion or filament grinding, which is bad for the material and the print quality.
One technique to lessen this effect is retraction. One way to decrease the likelihood of stringing over wide regions is to remove part of the plastic from the printer's hot end before it travels. This reduces the pressure in the molten plastic.
If you want your prints to be neat and exact, you can tweak this parameter in your printer's slicing software. To get the most out of Cura, we'll show you how to adjust its settings. If you're using the "Basic" or "Advanced" visibility settings, you might not be able to see all of these options. To see all of them, select "Expert" before you begin testing.
Key Cura Retraction Settings Explained

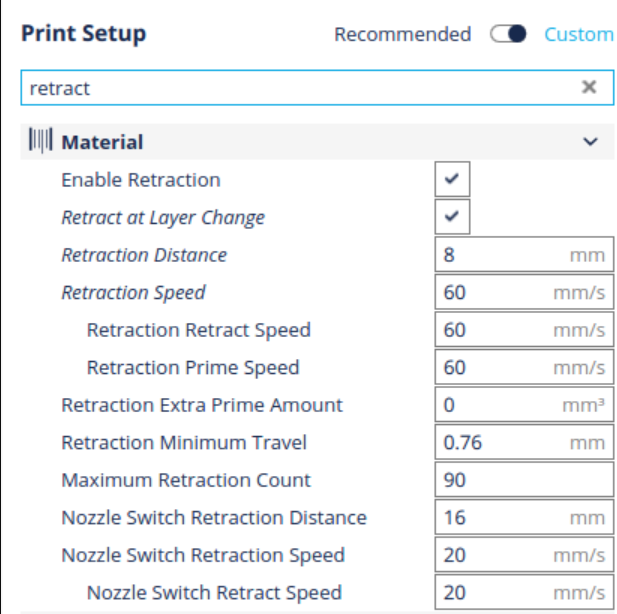

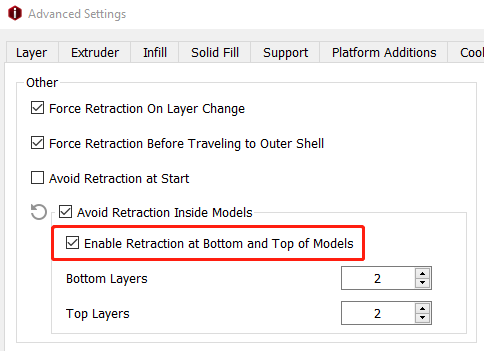

You may adjust the retraction procedure to your liking with Cura's many options. The following is an outline of the most crucial ones:
1. Retraction Distance

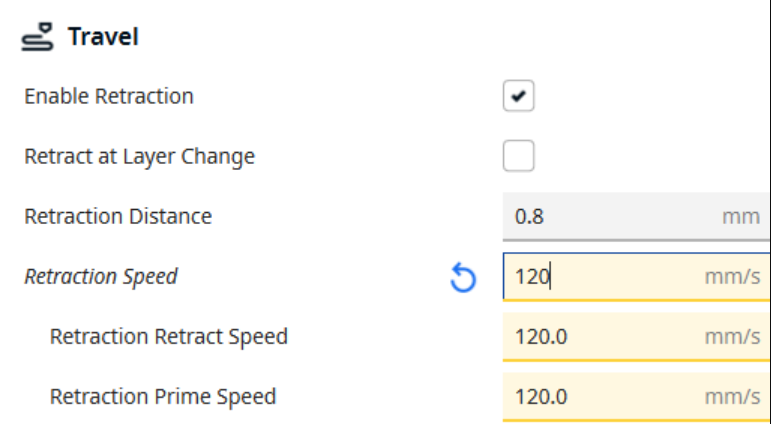

A travel move's retract distance is the measure of the filament's retraction. This range is usually between 4 and 8 mm for Bowden extruders, because their filament paths are longer. Due of their shorter filament path, direct drive extruders typically only need 1-3 mm.
Stringing will continue if the distance is insufficient. The filament could grind or become clogged if it's very lengthy. To discover the best value, begin with the defaults and tweak in tiny increments (e.g., 0.5 mm).
2. Retraction Speed
You may control the speed of pulling back and pushing forward the filament by adjusting the retract speed. For softer filaments like TPU, a quicker speed (40-60 mm/s) may minimise leaking but lead to grinding. Though they are easier on the filament, slower speeds (20–40 mm/s) could still leave some stringing.
Try out different speeds, ranging from 5 to 10 mm/s. In order to minimise stringing and avoid damaging the filament, watch the results closely.
3. Retraction Minimum Travel
Here you can specify the absolute minimum distance that the print head must travel before retracting. Reducing stringing with a smaller amount (e.g., 0.1 mm) may increase the danger of filament grinding, but it's worth it. For shorter travel distances, a bigger number (say, 1.5 mm) is safer, but it might let a little leaking through.
4. Retraction Extra Prime Amount
The printer might have to extrude a little more filament after retraction to make up for what it lost during the trip moves. Be careful not to use too much extra priming, since it might generate blobs, but this option is great for avoiding under-extrusion.
Cubic millimetres is the unit of measurement for the retraction extra prime quantity. To avoid problems like under-extrusion, a higher number helps to increase nozzle pressure. Nozzle size and distance travelled are two of the many variables that determine the necessary quantity.
How to Calibrate Retraction Settings in Cura
Testing and modifying parameters are part of the step-by-step process of calibrating retraction settings. The key to success is this:
Step 1: Start with Default Settings

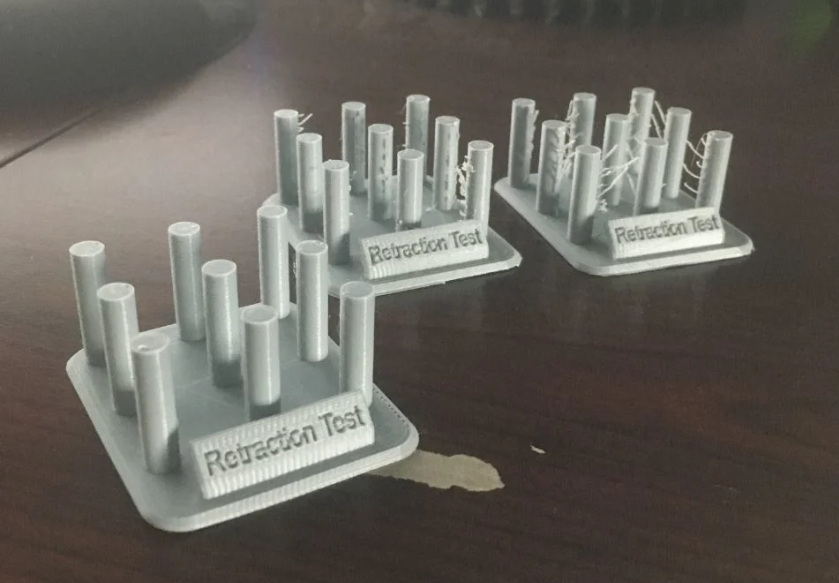

To start, make a mental note of Cura's default retraction speed and distance. You can use these numbers as a starting point for any modifications. To assess the starting performance, print a stringing test model.
Step 2: Adjust Retraction Distance
Make tiny adjustments (e.g., 0.5 mm) to the retraction distance and print out the test model again. Check for stringing reductions free of under-extrusion or grinding indications.
Step 3: Fine-Tune Retraction Speed
After you've found the ideal distance, you can tweak the retraction speed. Set the speed to a modest level (say, 40 mm/s) and adjust it by 5-10 mm/s as needed. Get the speed just right while keeping the filament intact.
Step 4: Test with Different Filaments
Variegated retraction settings are necessary for various filaments. To illustrate the point, PLA usually requires less retraction than PETG, the latter of which is more likely to string. When changing materials, make sure to always recalibrate.
Advanced Tips for Mastering Retraction
Implement Calibration Towers
With a calibration tower, you may print out several different retraction settings to see which ones work best. Finding the sweet spot is a breeze because each tower piece represents a distinct distance or speed.
Enable Combing Mode

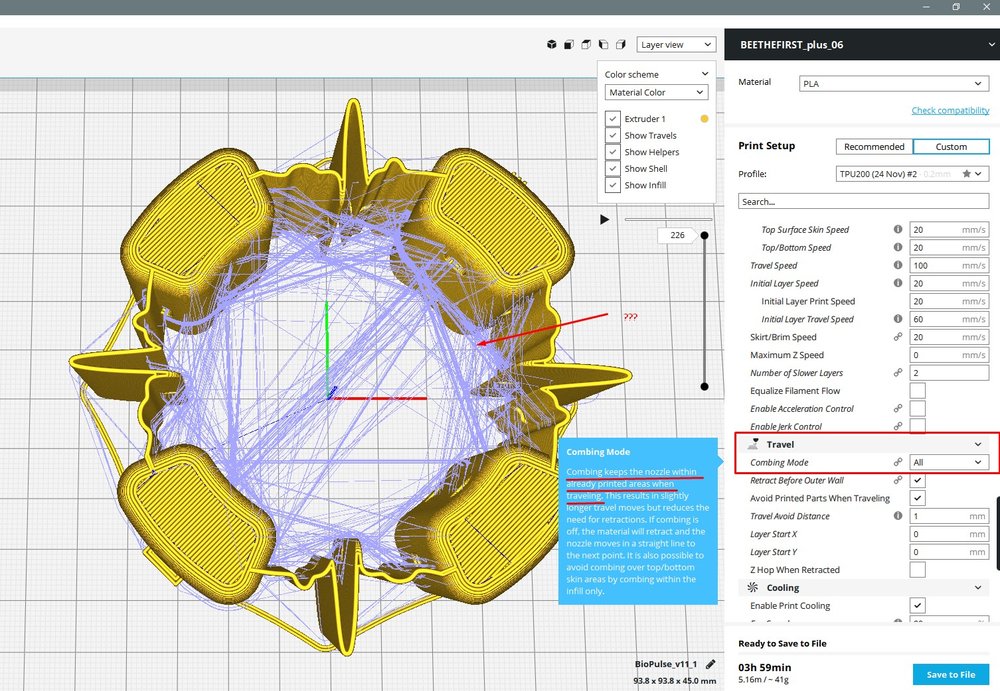

Combing lessens the likelihood of stringing by minimising the amount of journey moves that traverse open regions. Turn combing on "Within Infill" if you don't want your prints' outside surfaces to show any defects.
Several situations call for combing. Since any leaking or stringing can occur inside the part and is therefore unnoticeable, it permits a degree of looseness during printing, but it can lead to larger travel distances. Users are able to print more quickly with fewer retractions because of this.
Optimize Nozzle Temperature
Perfect retraction settings won't stop seeping if the nozzle is too hot. In order to achieve a smooth filament flow without excessive stringing, lower the temperature by 5°C increments until you reach the optimal point.
Best 3D Printing Software
There are many 3D printing software available that can prepare designs for 3D printing, and a good example is SelfCAD. It is an easy-to-use 3D design software that you can use not only to create 3D models but also to edit meshes and slice designs. It comes with interesting 3D modeling tools like freehand drawing and sketching that you can use to create designs from scratch.
The software comes with a built-in online slicer that one can use to prepare designs for 3D printing. The video below shows how to slice STL files and generate the G-code to send to the 3D printer.
