Cura Ironing: What You Need to Know

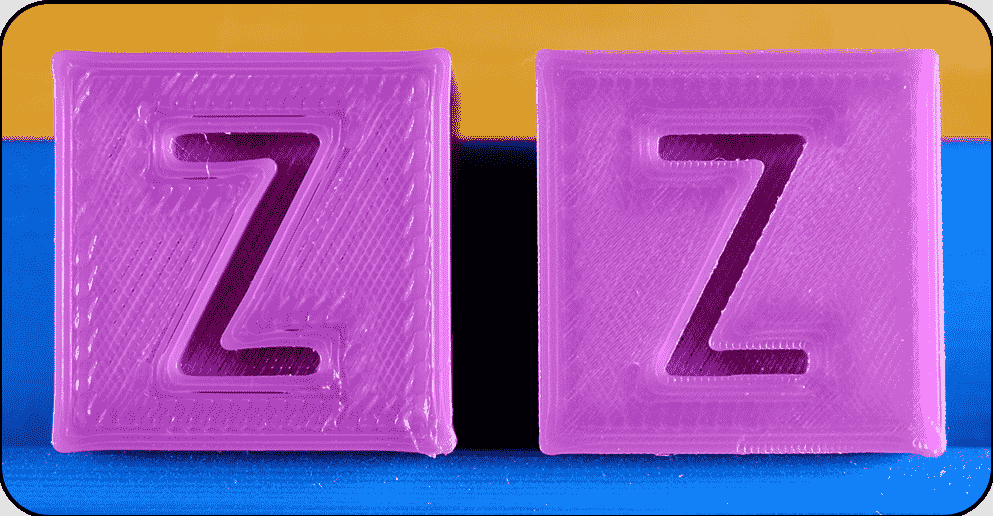

The advanced Cura ironing feature enhances the top surface of 3D printing. It is part of the Cura slicer. It achieves a smoother surface, less apparent lines, and a more refined finish by adding a second layer of filament to the topmost layer. Making prints that seem polished and professional is where this feature really shines.
Discover the ins and outs of Cura ironing, its advantages, and how to utilize it to its full potential for your 3D printing projects with the help of this comprehensive guide.
Cura Ironing: What Is It?
Slicing is the perfect time to apply the post-printing technique known as cura ironing. Following the deposit of the standard top layer, it entails a thin extrusion of filament across the print's surface. To fill in spaces, smooth ridges, and improve the overall quality, the nozzle travels slowly and accurately while spreading a thin layer of melted filament.
Ironing reinforces the surface layer of the part but does not affect its structural integrity. Because of its entirely aesthetic function, it is perfect for use in decorative models or practical components that require a perfectly smooth surface.
Why Cura Ironing Is Beneficial?
Cura ironing has many benefits that can make your prints seem much better:
1. A Less Rough Surface

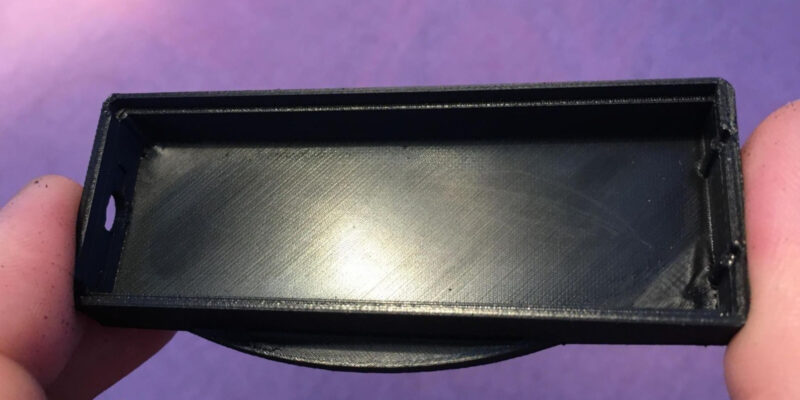

When you iron the top layer, the lines and spaces between layers become less noticeable. Particularly helpful for display models and prototypes, it produces a uniformly smooth surface.
2. Improved Visual Appeal
Ironing settings and materials determine whether the top layer will be glossy or matte. Your prints will seem more polished with this feature.
3. Simple to Apply
Cura makes it easy to enable and customize ironing. You may add it to your prints with no effort and no special skills required.
4. Enhancing Functionality
Ironing can increase usability and minimize friction for components that require a smooth surface for better interaction with other elements, like sliding mechanisms.
How to Enable Cura Ironing?
1) Open Cura
Get Cura up and running on your PC.
2) Import Your 3D Model
Click the "Open File" icon and choose the file containing the model you wish to print.

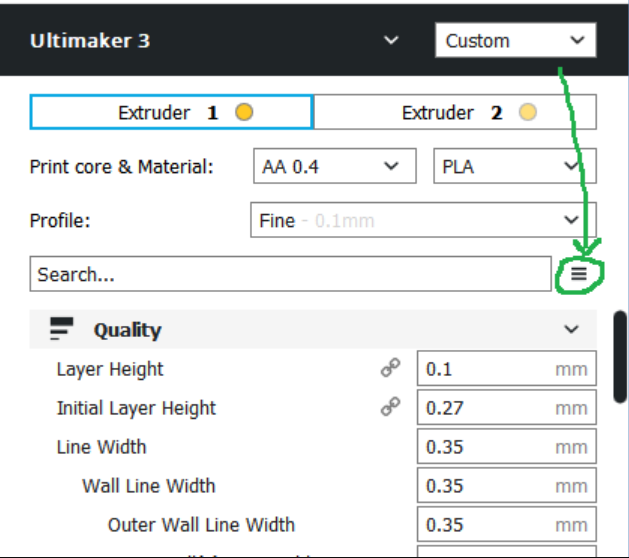

3) Unlock the Printing Options
- Find the panel where you can adjust settings; it's usually located on the right side.
- In the settings panel, you should see a three-bar menu (often called the "hamburger"). Click on that.
- Pick "All" or "Expert" to see all the options.

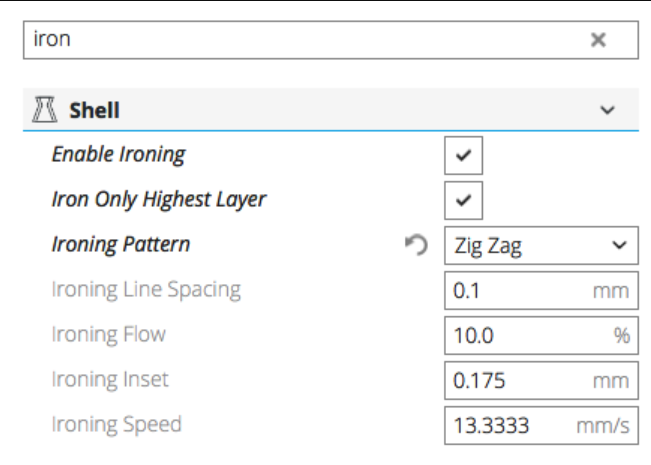

4) Enable Cura Ironing
Tap the search box on the settings page and enter "ironing."
To enable ironing, locate the "Enable Ironing" option and select it.
Instructions for Using Cura's Ironing Features
Cura's ironing features allow you to adjust a number of parameters, each of which has an effect on the final product. To get the best results, you need to know these parameters.
ⅰ. Ironing Enabled
You may turn ironing on and off with this setting. You can't utilize any of the other ironing functions unless you enable them.
ⅱ. A Pattern for Ironing
This establishes the ironing nozzle's motion pattern:
- Zigzag pattern: In a zigzag pattern, the nozzle travels in a straight line back and forth. It's quick and effective on basic, flat surfaces.
- Pattern in a Circle: The nozzle moves in a spiral or circle. You get more even coverage, making it ideal for organic or curved forms.
ⅲ. Spacing Between Ironing Lines
You can adjust the ironing pass spacing using this. Printing takes more time with smaller spacing, but it offers better coverage. The optimal line spacing for fine details is between 0.1 and 0.2 mm.
ⅳ. Flow of Ironing
The amount of filament extruded while ironing is dependent on the flow rate. If you want to keep from over-extrusion, you should probably stick to lower flow rates, about 5-10%.
ⅴ. Ironing Speed
During ironing, this refers to the speed of the nozzle's movement. Results are smoother when speeds are slower. A reasonable beginning point would be a speed of 15-30 mm/s.
ⅵ. Iron Only Highest Layer
You can restrict ironing to just the top surface of a print when you enable this feature. By adjusting this setting, you won't have to iron other flat surfaces as much.
Best Practices for Using Cura Ironing
a. Make Use of the Presets First
Most prints will work well with Cura's default ironing settings. Be sure to try out the smaller models with these settings before making any changes.
b. Make the Line Spacing Perfect
Minimizing the line spacing will guarantee full coverage and produce high-quality outcomes. Less space between passes results in surfaces that are smoother.
c. Employ Reduced Flow Levels
Ironing without over-extrusion, which could leave surface bumps or blobs, is possible with a reduced flow rate.
d. Control the Temperature
Find the sweet spot for your filament's nozzle temperature. If the pressure is too low, the filament will not flow easily. Stringing or uneven finishes can result from setting it too high.
e. Print Slower
To get a much better surface quality, reduce the print speed generally and particularly during the ironing phase.
f. Select a Proper Filament
Ironing is a good activity for materials such as PLA, PETG, and ABS. The end product might not be smooth if the filament has a rough texture or fillers (such as wood or metal-infused).
Fixing the Most Common Cura Ironing Problems

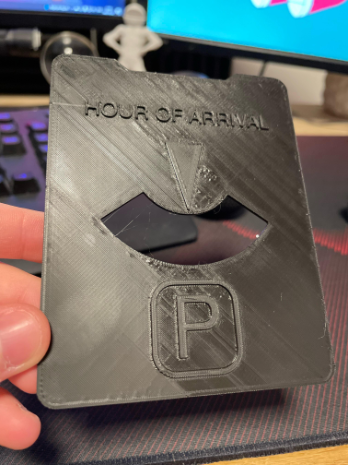

a) Ironing Over-Extrusion Issue
Surface imperfections like bumps, blobs, or raised lines might result from over-extrusion. In theory, ironing should leave a flat surface, but this makes a mess of things.
Root reasons:
- Incorrectly adjusted ironing flow rate results in excessive filament extrusion.
- Because the nozzle is heated to an excessive degree, the filament flows too freely and unpredictably.
- Ironing tends to move around excess material from earlier layers.
Solutions:

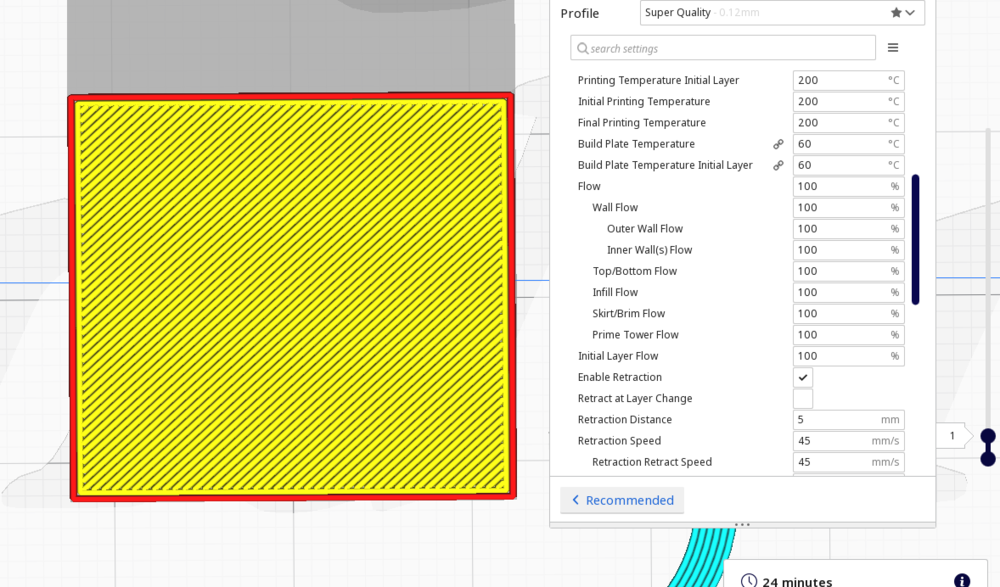

- Turn down the ironing flow rate; test with a 5% reduction first and observe the results. Typically, a flow rate of 5–15% is enough for most substances.
- Verify that the nozzle is not too hot: Be careful not to let the nozzle become too hot. When the filament is heated to a point where it becomes too fluid, over-extrusion can occur. Retest after reducing the temperature by 5 to 10 degrees Celsius.
- Make sure there are no variations in the layers: If over-extrusion is a recurring problem, check the print's foundational layers. In the print preferences, you can change the extrusion multipliers and flow rates as needed.

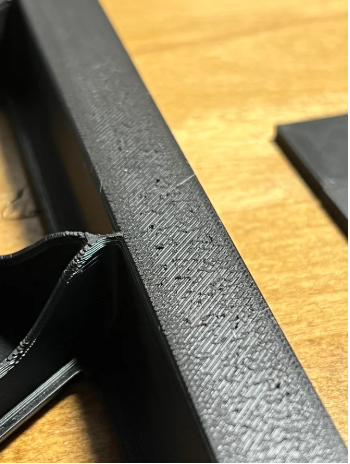

b) Surface Inconsistencies and Gaps
When the ironing pass does not produce a smooth surface, there will be apparent ridges, gaps, or other imperfections. If you're going for a smooth look, this imperfect finish will ruin it.
Root reasons:
- There are too many spaces between passes because the ironing line spacing is too wide.
- The ironing pattern doesn't work very well with the top layer's shape.
- Variations in temperature or obstructions can cause filament flow to be inconsistent.
Possible Solutions:
- Lessen the distance between ironing passes to make sure the lines overlap properly. For optimal results, start with a setting between 0.1 and 0.2 mm; this will vary depending on the top surface's size and shape.
- Pick the appropriate ironing design: For simple, flat surfaces, utilize the zig-zag design. To get better coverage on organic or rounded objects, use the circular pattern instead.
- Make sure the filament flows consistently. Prevent clogs by cleaning the nozzle, and keep the printer at a constant temperature while printing. To minimize diameter and flow variations, use a high-quality filament.
c) Artefacts or Stringing
After ironing, the surface may show stringy filament residue or small imperfections, such as blobs or marks.
Root reasons:
- Retraction settings are not optimized, leading to oozing during nozzle travel.
- The nozzle temperature is too high, causing the filament to drip or string.
- The filament itself is prone to stringing or is of inconsistent quality.
Possible Solutions:
- Adjust retraction settings: Increase the retraction distance slightly to pull the filament back into the nozzle during travel. If you’re using a direct-drive extruder, a retraction distance of 1–2 mm works well. For Bowden setups, aim for 4–6 mm.
- Reduce the temperature by 5–10°C to limit filament stringing. Test gradually to find the ideal setting for your filament.
- Stringing can occur when using low-quality filament that has contaminants or a diameter that is inconsistent. Use only reputable products, and test hygroscopic materials like PETG and PLA for their moisture absorption properties.
When Should You Use Cura Ironing?
A) Scenarios Where Ironing is Beneficial
- Display Models
Ironing gives a polished, smooth surface excellent for decorative items like figurines, sculptures, and display pieces. It might make your model look more professional and visually appealing.
- Functional Parts
For components that require smooth surfaces to reduce friction or improve operation, such as sliding mechanisms, ironing is a suitable solution. Smooth surfaces boost the part’s usefulness.
- Prototypes
When presenting prototypes to clients or stakeholders, ironing enhances the surface quality, providing your models a professional finish that stands out during presentations.
B) When Not to Use Ironing
- Hidden Surfaces
If the top surface of your model will be concealed or not visible in the final application, ironing may be unnecessary. Skipping ironing can save printing time and filament.
- Non-Flat Surfaces
Models with highly curved or complicated top surfaces may not benefit substantially from ironing. It could be tough to create a noticeable improvement on such shapes.
- Time-Sensitive Prints
Ironing adds to the overall print time. If you need a rapid print or the finish isn’t crucial, it’s advisable to omit this step.
Best 3D Modeling Software
SelfCAD is an intuitive and easy-to-use 3D modeling program that comes with all the necessary tools one needs to create both simple and complex 3D models. The video below demonstrates how SelfCAD works.
Refine Surface Layers with Cura’s Top-Shelf Ironing Setting
By recognizing typical difficulties and tweaking your Cura ironing settings, you can consistently generate professional-quality prints. While ironing is not always necessary, it is a potent tool for boosting the visual and practical qualities of specific prints. When it counts most, use it strategically to conserve filament and time without sacrificing quality. You can improve your 3D printing skills and become an expert Cura user with practice.
